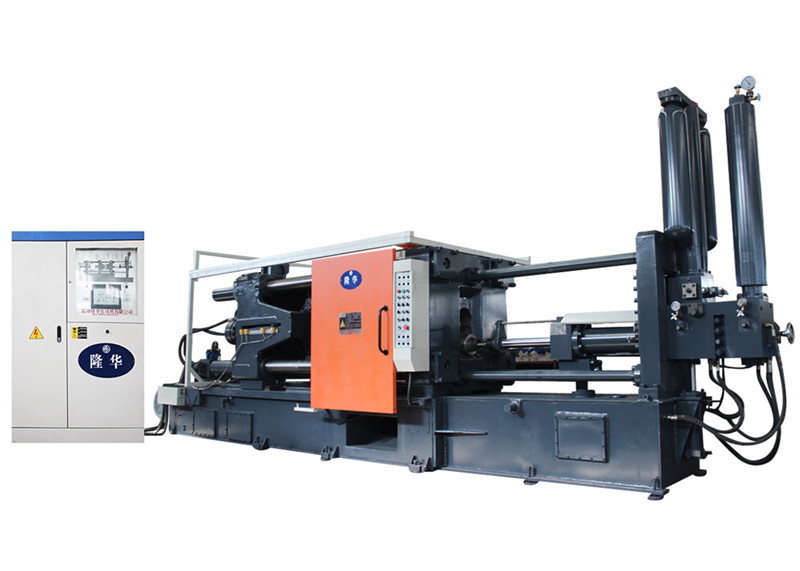

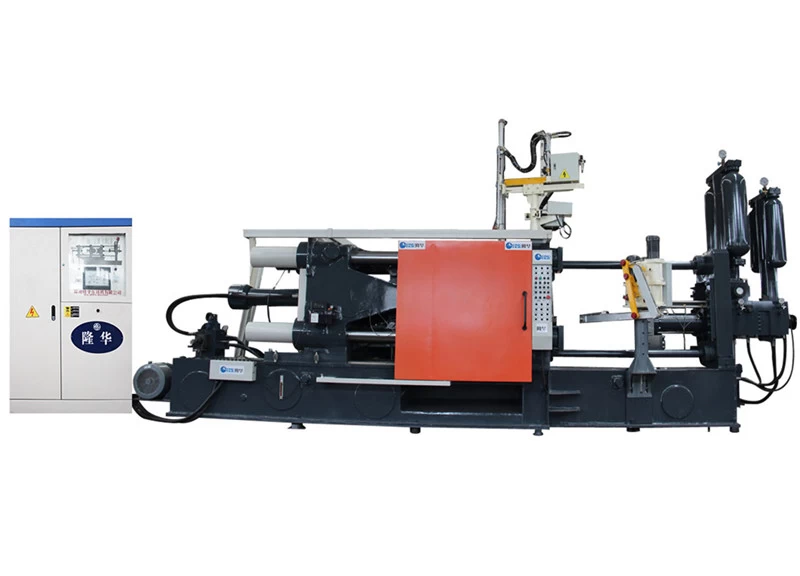

LH-550T Full automatic high efficiency die casting machines manufacturer price

Cold chamber die casting machines are suitable for die pressed casting of aluminum,zinc,copper,magnesium and other non-ferrous metal.

They can make door handles, electric cases, LED light housings and many other products.



Product Item:

LH-550T Full automatic high efficiency die casting machines manufacturer price


This die casting  machine is widely used for mass production of  foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.




This die casting machine is superior in performance high in productivity and smooth in operation.




LH SERIES OF STANDARD PARAMETER TABLE (LH-550 T)

ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

14

CLAMPING FORCE

KN

5500

SPACE BETWEEN TIE BARS

MM

760*760

TIE BAR DIAMETER

MM

¢140

DIE OPENING STROKE

MM

580

INJECTION FORCE(INTENSIFY)

KN

480

PLUNGER LAUNCH DISTANCE

MM

250

INJECTION POSITION

MM

0  --  220

PLUNGER DIAMETER

MM

¢70----¢90

INJECTION STROKE

MM

580

CASTING PRESSURE (INTENSIFY)

MPA

124/95/75

CASTING FIANGE PROTRUSION

MM

15

CASTING FIANGE DIAMETER

MM

165

MAX CASTING AREA UNDER 40MPA

CM

1250

LNJECTION WEIGHT(AL)

KG

7.1

DIE HEIGHT(MIN--MAX)

MM

300~800

EJECTOR FORCE

KN

240

EJECTOR STROKE

MM

140

MOTOR CAPACITY

KW

22

MACHINE DIMENSIONS  (L*W*H)

M

7.7*2.2*3.1

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

22

OIL TANK CAPACITY

L

1200

PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE



Die casting product display



Packaging & Shipping


We have been producing die casting machines for 37 years, our products are all over the world, and we have rich export experience.



After-Sales Service

After the sale, when the die casting machine arrives at your port, you send invitations, and our engineers go to your country to install and debug machines. Training the operator until you learn so far.
