LiFePO4 24V 100Ah Lithium Battery for Transport Robot

20v100AH lithium battery has high energy efficiency, long battery life and slow discharge. It is the first choice for handling robots.




Long Life Deep Cycle AGV Forklift 24V 60Ah lifepo4 Lithium Batteries
Our long life deep cycle AGV battery 20V100AH is the first choice for handling robots. Daily normal low-frequency charge and discharge can be used for 4 to 5 years. The battery has built-in BMS, with overcharge, overdischarge, overcurrent, overvoltage, short circuit protection, and high self-discharge rate. The structure is stable, the battery life is long-lasting, and the capacity can be customized.

Specifications:

Place of Origin Guangdong, China Brand Name ZXDY
Model Number EV24-100 Battery Type LFP lithium battery
Nominal Voltage 24v Nominal Capacity 100Ah
Energy Storage 2400wh Recommend Charge Voltage 29.2v
Discharge Cut-off Voltage 20v Charge Current Range 1 to 120A
Max Continuous Discharge Current 120A Peak Discharge Current 200A @ 3 seconds

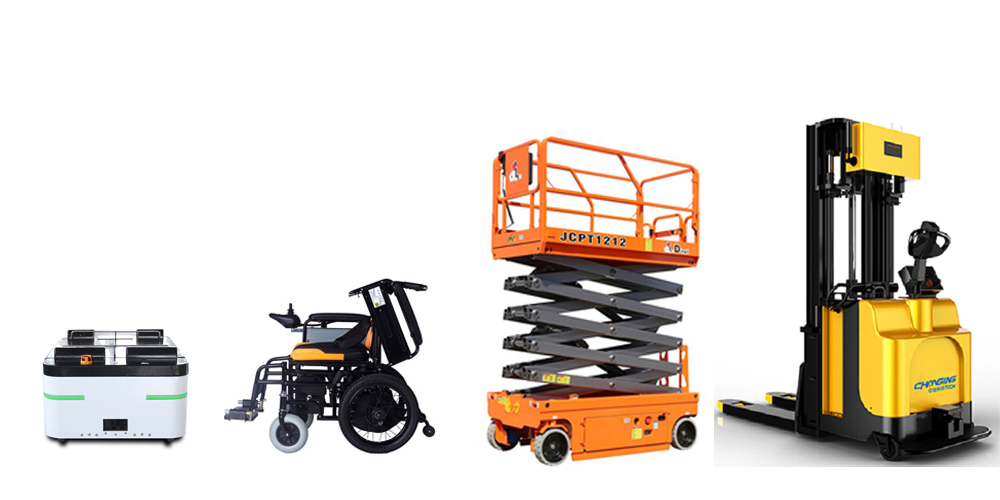

Cycle Life 3000 Above Cycles @0.5C 100%DOD Application AGV,robot,automatic truck,Industrial control equipment ,portable device
Warranty 2 years Battery Size 430*240*200mm
Certification UN38.3, MSDS Weight 29kg
Communication method RS485/RS232/CAN(D0/A0/DI)

Advantages:

1. Safer: Triple protection designs to prevent short-circuit inside the cell.

2. Real and high capacity, Low self-discharging, no memory effect.

3. Longer cycle life more than 3000 times @80% capacity retain.

4. Bulit-in smart BMS with multiple protection and communication functions.

5 Wide working temperature range and high reliability.

6. Multiple battery units can be connected in parallel,suitable for high energy storage applications.

7. Compatible with various charge controllers and inverters.

8. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.


Application:

This 100AH-24V Li-ion battery is suitable for home appliances, boats, golf carts, submarines, power systems, solar storage systems, uninterruptible power supplies, RVS, RVS.



Packaging & Shipping:

Export carton packaging; Lined with plastic bag; Placed inside the wooden case.

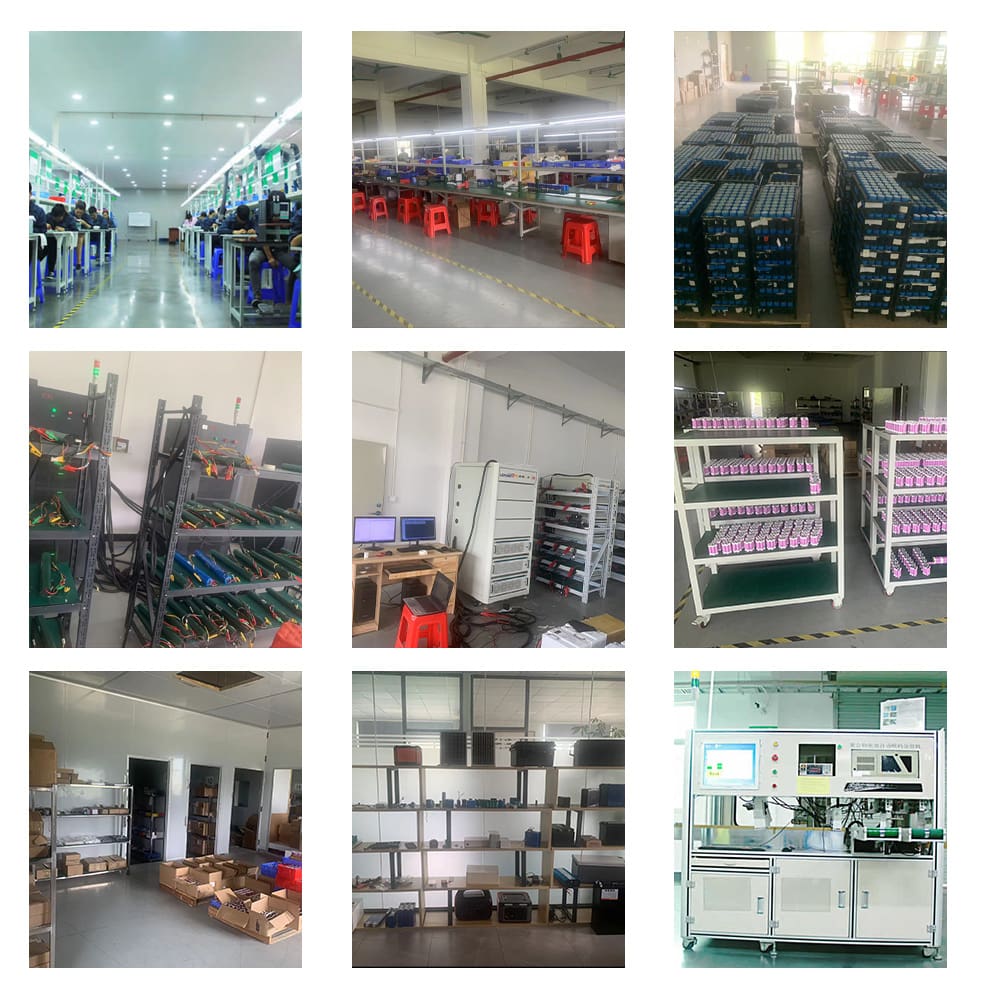

Manufacturing Process:


Why Choose Us?

Dongguan ZXDY New Energy Co., Ltd. is a professional LiFePO4(also called Lithium-ion Phosphate Battery) Battery manufacture for worldwide customers. We ensure very good price for our products. We focus on OEM LiFePO4 batteries and battery pack, provide the full solution for your battey inquiry, include BMS.From battery design to battery delivery. From battery OEM to case OEM to package OEM.



FAQ:

1): Are you a manufacturer or a trading company?


Reply: We are the manufacturer, the company is located in Qingxi Town, Dongguan City, we sincerely welcome you to visit our factory!

2): Can I get a lower price if I order a large quantity?

Re: Yes, the price is cheaper for large quantity orders.

3): Can you customize products?

Reply: Yes, we have a professional design team, which can design the products you need according to the needs of customers.

4): How is your company's intelligence?

Re: ISO9001 certification, Chinese high-tech enterprise, 10 million battery guarantee, 8 patents, almost all products have passed MSDS, UN38.3, IEC62133, CB and other certifications.

5): When will you ship my order?

Reply: Usually 10-14 days after receiving your payment, but can be negotiated according to the order quantity and production plan.

6): How long is the product warranty period?

Re: 3 years!
