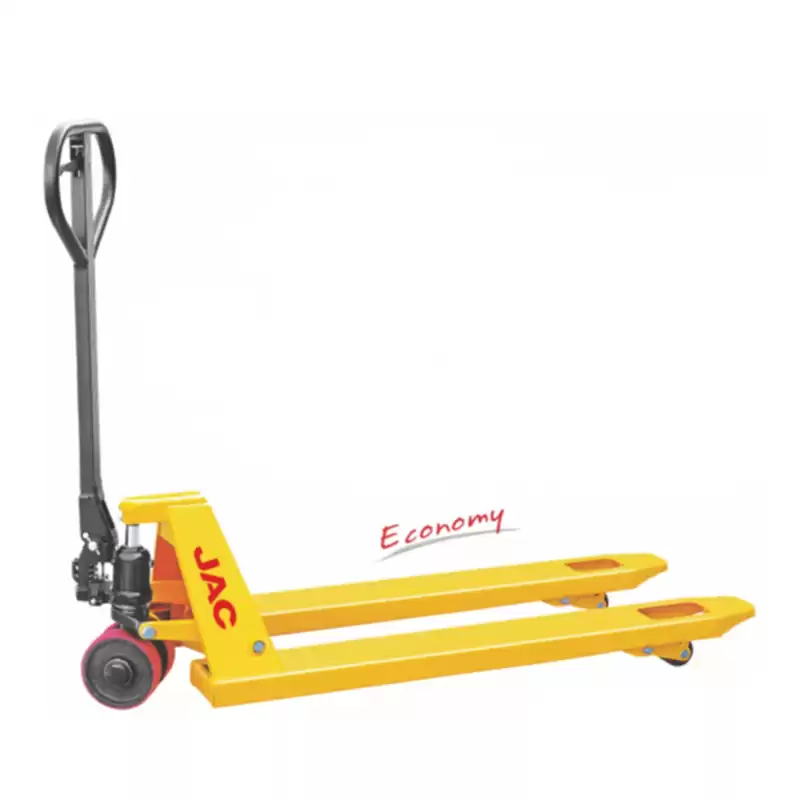

1. Features:
• Standard epoxy powder coat finish which is resistant to chips and normal corrosion.
• Exceptionally strong but light weight steel construction, service weight is only 55kgs.
• With welded joints and reinforced fork tips for most durability in the toughest applications.
• 3 position hand control- Raise,Lower,Neutral.
• Excellent turning angle of 190 degrees facilities.
• Number of pump strokes 12 times, lift height per stroke 11mm.
• Reliable oil leak-proof hydraulic system.
2. Option:
1.Nylon wheel, polyurethane wheel, rubber wheel,single fork roller or tandem fork rollers.
3.Fork length:800mm,900mm,1000mm,1100mm.
3. Specification:
|
Model
|
|
DB
|
DB-II
|
|
Capacity
|
Q(kg)
|
2000
|
1500
|
|
Lowered fork height
|
h13(mm)
|
75
|
75
|
|
Steering wheel
|
mm
|
φ160
|
φ160
|
|
Fork wheel single
|
mm
|
φ70×80
|
φ70×80
|
|
Fork wheel tandem
|
mm
|
φ70×60
|
φ70×60
|
|
Max. lift height
|
h3(mm)
|
190
|
190
|
|
Total height
|
h14(mm)
|
1176.5
|
1176.5
|
|
Overall length
|
l1(mm)
|
1520/1590
|
1520/1590
|
|
Fork length
|
l(mm)
|
1150/1220
|
1150/1220
|
|
Width overall forks
|
b5(mm)
|
520/550/680
|
520/550/680
|
|
Ground clearance,centre of wheelbase
|
m2(mm)
|
22
|
22
|
|
Aisle width for pallets 1000×1200 crossways
|
Ast(mm)
|
1720/1790
|
1720/1790
|
|
Aisle width for pallets 800×1200 lengthways
|
Ast(mm)
|
1770/1790
|
1770/1790
|
|
Turning radius
|
Wa(mm)
|
1265/1335
|
1265/1335
|
|
Service weight
|
kg
|
53-60
|
53-60
|
