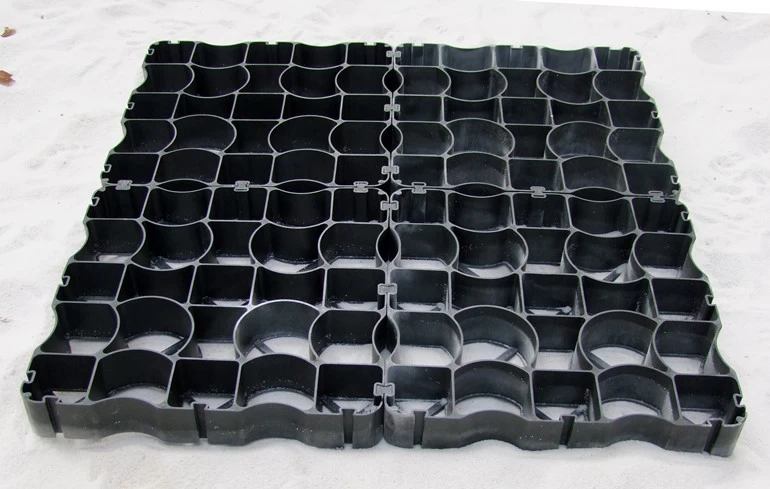

Light Weight Ground Reinforcement Horse Paddock Hoof Grid

Light weight hoof grid is a soil stabilization and drainage system perfect for paddocks, walkways, and arenas. horse paddock hoof grid is placed between the sub-base and the soil to provide drainage with the added benefit of soil stability.





Recruit Global Distributors of Horse Paddock Hoof Grid

light weight hoof grid is a soil stabilization and drainage system perfect for paddocks, walkways, and arenas. horse paddock hoof grid is placed between the sub-base and the soil to provide drainage with the added benefit of soil stability.

LIGHT WEIGHT GROUND REINFORCEMENT HORSE PADDOCK HOOF GRID

Leight Weight Ground Reinforcement Horse Paddock Hoof Grid

LEIYUAN NEW ONLINE MUD MANAGEMENT PRODUCT –HOOF GRID

Ground Reinforcement Hoof Grid is a high quality and versatile range of 100% recycled high density plastic, permeable paving. Hoof grid from Leiyuan Industrial Company Limited is the best quality product of its kind in the market place. It is best mud management solutions for all equestrian facilities and livestock owners. Grid floor has a compressive strength of up to 250 tonnes per m2.



DIMENSION

 MATERIAL:  HDPE(100% Recycled High Density Polyethylene)
 SIZE:  336*336*50mm
 COLOR:  Black; Dark Green
 CELL WALL THICKNESS:  2mm
 WEIGHT:  0.65kg/pc; 5.85kg/m²
 PACKING:  Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.
 LOADING QUANTITY:  570m2/20’gp, 1150m2/40’gp, 1310m2/40’HQ


SPECIFICATION

 LOADING BEARING CAPACITY:  More than 250tons/m2 after filled
 OPEN CELL PERCENTAGE:   92% top; 75% base
 ANTI HCL:  According to GB4218-1984, 30%x24h, no visible change
 ANTI NaOH:   According to GB4218-1984, 30%x24h, no visible change
 THERMAL AGING:   According to GB/T 7141-1999, 70ICx24h, no visible change
 UV RESISTANCE:  According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
 TOXICITY:  Non Toxic
 DURABILITY:  Durability of at least 10 years in neutral ground of 4<pH<9



COLORS

Horse Paddock Hoof GridHorse Paddock Hoof Grid


APPLICATION


  • Indoor and outdoor riding arenasPaddock Grid Floor

  • Paddocks and open stables

  • Horse walkers

  • Lunging arena

  • Equestrian sports area

  • Tethering and mounting areas

  • Feeding spots

  • Tolt tracks, Racetracts

  • Gravel road

  • Round pens

  • Washing areas.




FEATURE

Plastic Grid Floor



-Light weight

-Non-slip

-Elastic and robust

-Easy Install

-Crack-proof

-Weatherproof

-Environmentally friendly, 100% recyclable

-High load capacity

-Ammonia resistant

-Withstands frost and UV light

-Does not rot




PROJECT SHOW

Ground Reinforcement Hoof Grid

Recruit Global Distributors of Horse Paddock Hoof Grid
