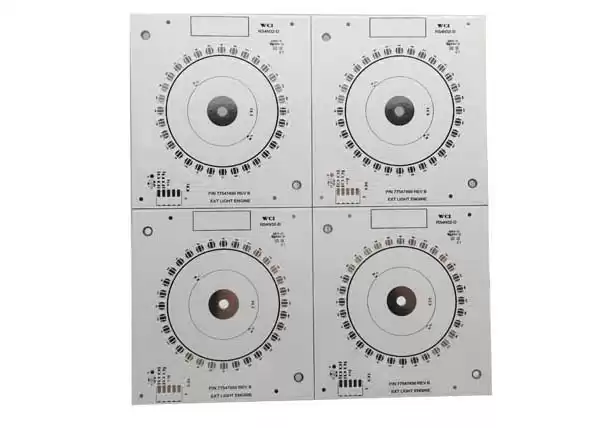

Lighting Aluminum Core Circuit Board Customized China Supplier



  • Solder Mask ColorWhite
  • Surface FinishHASL-FREE
  • Min Hole≥4mil(0.1mm)
  • Min Line Width/Space≥3mil(0.075mm)
  • Finished Copper thickness1oz
  • Finished Board Thickness1.2mm
  • MaterialAluminium Base
  • Layer1
  • Legend ColorBlack
  • ApplicationPower Supply

ABIS has been manufacturing aluminum PCBs for years. Our full feature aluminum circuit boards making capabilities and Free DFM Check allows you to get high-quality aluminum PCBs done within budget.


Advantages of Aluminum PCBs

  • Low Cost-Aluminum is a metal that can be found in a variety of climates, so it is easy to mine and refine.


  • Environmentally Friendly-Aluminum is non-toxic and recyclable. Manufacturing with aluminum is also conducive to conserving energy due to its ease of assembly.


  • Heat Dissipation-Aluminum can actually transfer heat away from vital components, thus minimizing the harmful effect it could have on the circuit board.


  • Higher Durability-Aluminum provides strength and durability to a product, also it is a sturdy base material that can reduce accidental breakage during manufacturing, handling, and everyday use.


  • Lightweight-Aluminum is a surprisingly lightweight metal. Aluminum adds strength and resilience without adding on any additional weight.

Aluminum PCBs Introduction


-Definition

Aluminum base is a CCL, a type of base material of PCBs. It is a composite material composed of copper foil, a dielectric layer, an aluminum base layer and aluminum base membrane with a good heat dissipation. Using a very thin layer of thermally conductive but electrically insulating dielectric, which is laminated between the metal base and the copper layer. The metal base is designed to draw heat away from the circuit through the thin dielectric.


-Application

  • Audio equipment:
  • Lighting
  • Power supply equipment
  • Communication electronic equipment:
  • Office automatic equipment
  • Computer: power supply device
  • Electronic control
  • Switches, microwave
  • Industrial vehicles
  • LED Display


ABIS Metal Core PCB Manufacturing Capacity


Item

Speci.

Layers

1~2

Common Finish Board Thickness

0.3-5mm

Material

Aluminum Base, Copper base

Max Panel Size

1200mm*560mm(47in*22in)

Min Hole Size

12mil(0.3mm)

Min Line Width/Space

3mil(0.075mm)

Copper Foil Thickness

35μm-210μm(1oz-6oz)

Common Copper Thickness

18μm, 35μm, 70μm, 105μm.

Remain Thickness Tolerance

+/-0.1mm

Routing Outline Tolerance

+/-0.15mm

Punching Outline Tolerance

+/-0.1mm

Solder Mask Type

LPI(liquid photo image)

Mini. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm

Impedance Control Tolerance

+/-10%

Surface finish

Lead free HASL, immersion gold(ENIG), immersion sliver, OSP, etc

Solder Mask

Custom

Silkscreen

Custom

MC PCB Production Capacity

10,000 s.q.m/monthly


ABIS Aluminum PCBs Lead Time

As the current mainstream, we mostly do single aluminum PCB, while it is more difficult to do double sided aluminum PCB.


Small Batch Volume

≤1 sq meter

Working Days

Mass Production

>1 sq meter

Working Days

Single Sided

3-4 Days

Single Sided

2-4 weeks

Double Sided

6-7 Days

Double Sided

2.5-5 weeks



How ABIS Working Out Manufacturing Difficulties of Aluminum PCB?


  • Raw materials are strictly controlled: The pass rate of incoming material above 99.9%. The number of mass rejection rates is below 0.01%.


  • Copper Etching Controlled: the copper foil used in Aluminum PCBs is comparatively thicker. If the copper foil is over 3oz however, the etching requires width compensation. With the high precision equipment imported from Germany, the min width/space we can control reaches 0.01mm. The trace width compensation will be designed accurately to avoid the trace width out of tolerance after etching.


  • High Quality Solder Mask Printing: As we all know, there is a difficulty in solder mask printing of aluminum PCB due to copper thick. This is because if the trace copper is too thick, then the image etched will have a large difference between trace surface and base board and solder mask printing will be difficult. We insist on the highest standards of solder mask oil in the whole process, from the one to the two-time solder mask printing.


  • Mechanical Manufacturing: To avoid reducing electrical strength caused by the mechanical manufacturing process, involves mechanical drilling, molding and v-scoring etc. Therefore, for low-volume manufacturing of products, we prioritize using the electric milling and professional milling cutter. Also, we pay high attention to adjusting the drilling parameters and preventing burr from generating.






What are the advantages of manufacturing in ABIS?

Look around you. So many products come from China. Obviously, this has several reasons. It is no longer just about price.



  • Preparing quotations is done quickly.


  • Production orders are completed quickly. You could plan orders scheduled for months in advance, we can arrange them immediately once PO confirmed.


  • Supply chain expanded enormously. That is why we can purchase every component from a specialized partner very quickly.


  • Flexible and passionate employees. As a result, we accept every order.


  • 24 online service for urgent needs. Working hours of +10 hours per day.


  • Lower costs. No hidden cost. Save on personnel, overhead and logistics.


Packaging & Delivery


ABIS CIRCUITS Company is not only trying to give customers a good product, but also pay attention to offering a complete and safe package. Also, we prepare some personalized services for all the orders.

-Common packaging:

  • PCB:  Sealed bag, Anti-static bags, Suitable carton.
  • PCBA:  Antistatic foam bags, Anti-static bags, Suitable carton.
  • Customized Packaging: The carton outside will be printed the name of the customer address, mark, the customer needs to specify the destination and other information.

-Delivery Tips:

  • For small package, we advise to choose by Express or DDU service is the quickest way.
  • For heavy package, the best solution is by sea transportation.



Business Terms

-Accepted Delivery Terms
FOB, CIF, EXW, FCA, CPT, DDP, DDU, Express Delivery, DAF


--Accepted Payment Currency
USD, EUR, CNY.


-Accepted Payment Type
T/T, PayPal, Western Union.



Quotation from ABIS

To ensure an accurate quote, be sure to include the following information for your project:

  • Complete GERBER files: including the BOM list
  • Quantities: Choose Num (pcs)
  • Dimensions: Height X Width mm
  • Turn time: working days
  • Panelization Requirements
  • Materials Requirements
  • Finish requirements
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.

Please keep us informed for any interests!

ABIS cares every your order even 1 piece!
