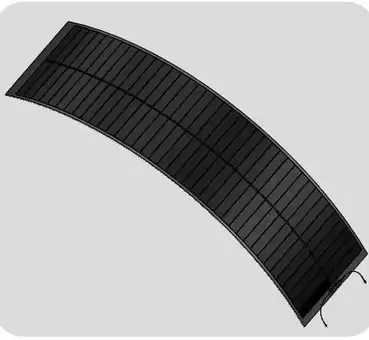

Lightweight Mono PERC High Density Module

The lightweight mono PERC module is 75% lighter compared with the normal one. There is no need to fix the mounting system, the weight of the PV power station is greatly reduced. Thus without sufficient load, the PV power station can also be built in the metal sheet roof.




  Advantages

1. Lightweight

Optimized composite materials, 75% lighter at the same power

2. Flexible

Flexional encapsulating and patent materials

3. Excellent Appearance and Performance

Esthetics module design, no flare effect, “0” risk of micro crack

4. Easy transportation and installation

Original design making it far less costly for transportation and Installation

5. Customization

Customization for various senarios, high additional value


  Technical Parameters

1. Electrical Parameters (STC*)

Module Type

LO22P-105

LO22P-110

LO44P-220

LO44P-225

Nominal Max. Power (Pmax/W)

105

110

220

225

Open Circuit Voltage ( Voc / V)

39.26

39.94

39.89

40.20

Short Circuit Current (Isc/A)

3.62

3.67

7.35

7.41

Operating Voltage (Vmp/V)

31.53

32.54

32.49

32.96

Operating Current (Imp/A)

3.33

3.38

6.77

6.83

Module Efficiency (%)

15.0

15.7

18.0

18.4

STC *( Standard Test Condition ): Irradiance 1000W / m², Cell Temperature 25, AM1.5



2. Mechanical Parameters

Cell size

Mono PERC 158.75mm*31.75mm

Module size

1750×400×4mm (L×W×H)

1750×700×4mm (L×W×H)

Module Thickness

4.0mm

Module Weight

3.0kg

5.2kg

Output Cable

4mm², cable length 300mm (can be customized)

Connector

MC4 compatible

J-Box

IP68, 2 bypass diodes

Back Color

Black / White



3. Temperature Coefficients

Short Circuit Current(Isc)

+0.048%/

Open Circuit Voltage(Voc)

-0.31%/

Nominal Max. Power(Pmax)

-0.38%/

NMOT

43±2



4. Operating Parameters

Max. System Voltage

DC1000V

Power Tolerance

0 ~ +5 W

Operating Temperatue

-40 ~ +85

Max. Fuse Rated Current

15A

Front Static Load

Snow load 2400Pa, Wind load 2400Pa

Application Classifcation

Class A

Packing Specification

56 pcs/Pallet,

1344 pcs/ 20’GP; 2688 pcs/ 40’HQ;

56 pcs/Pallet,

672 pcs/ 20’GP; 2016pcs/ 40’HQ;



  Application Scenario
