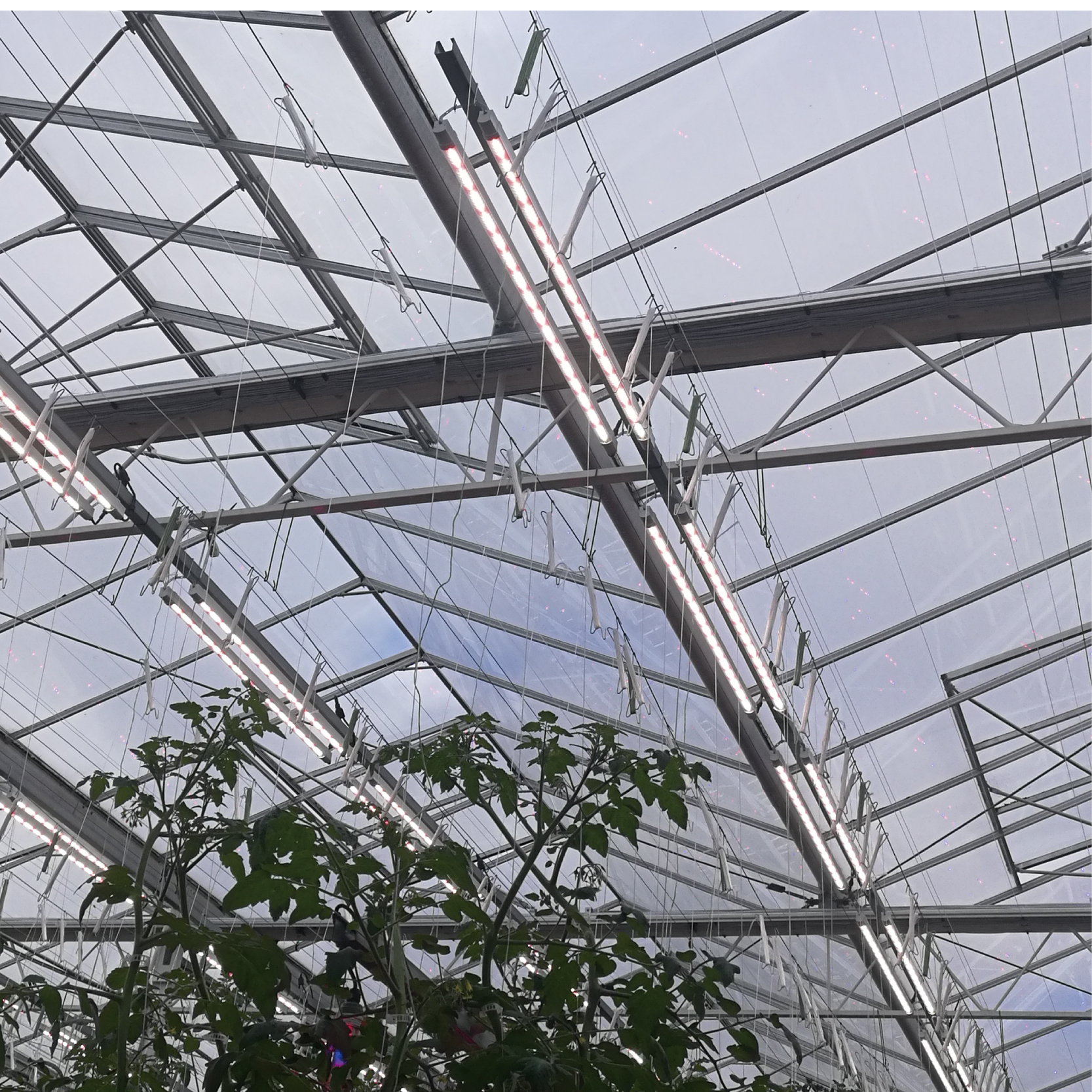

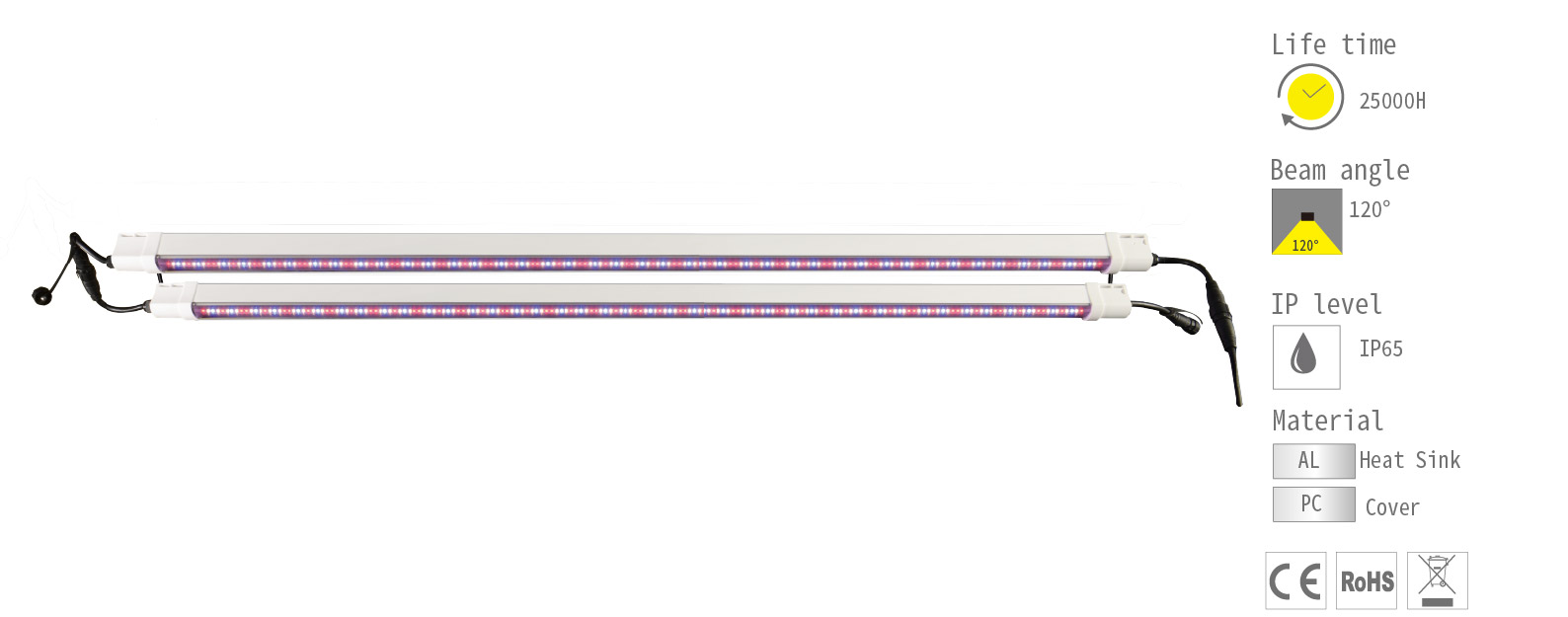

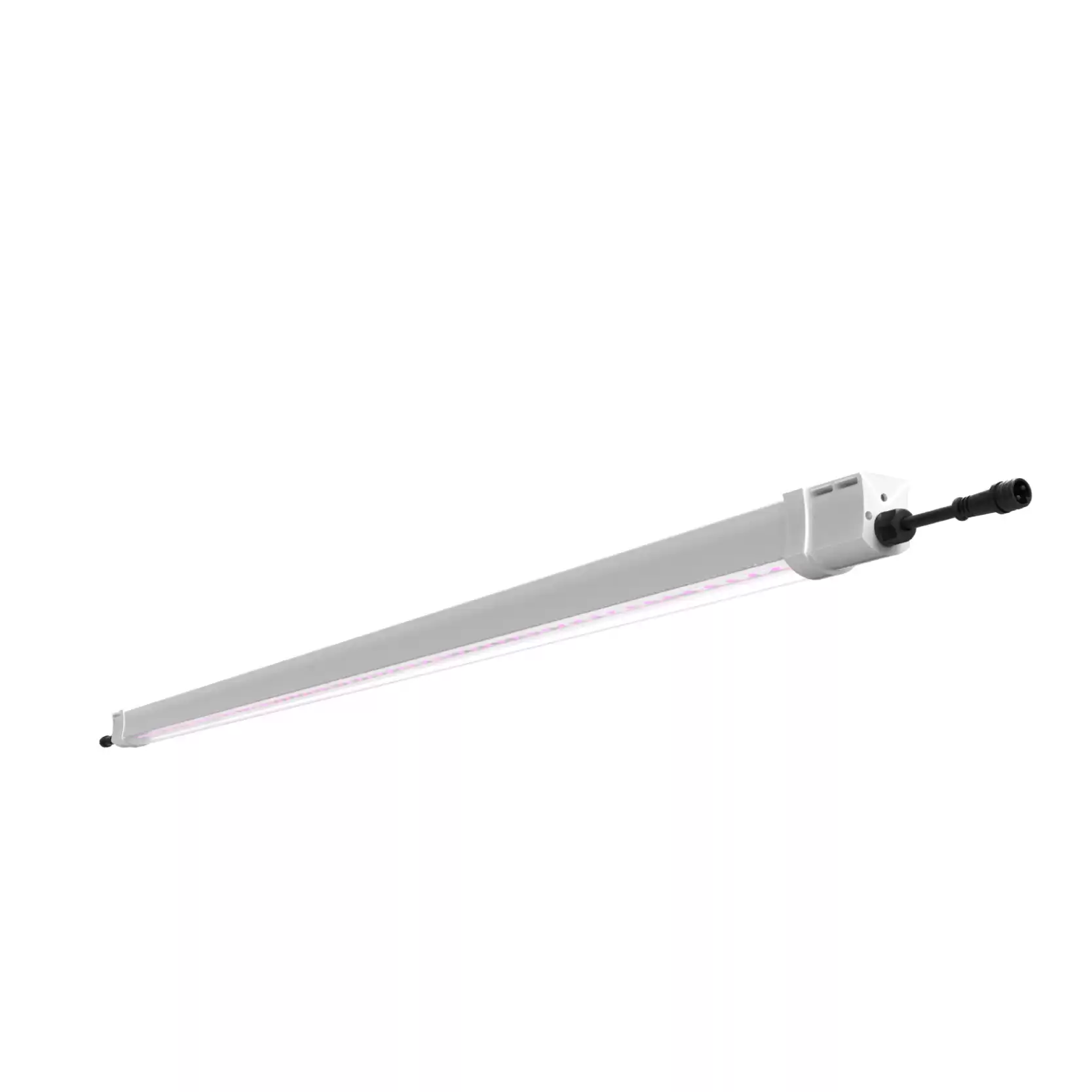

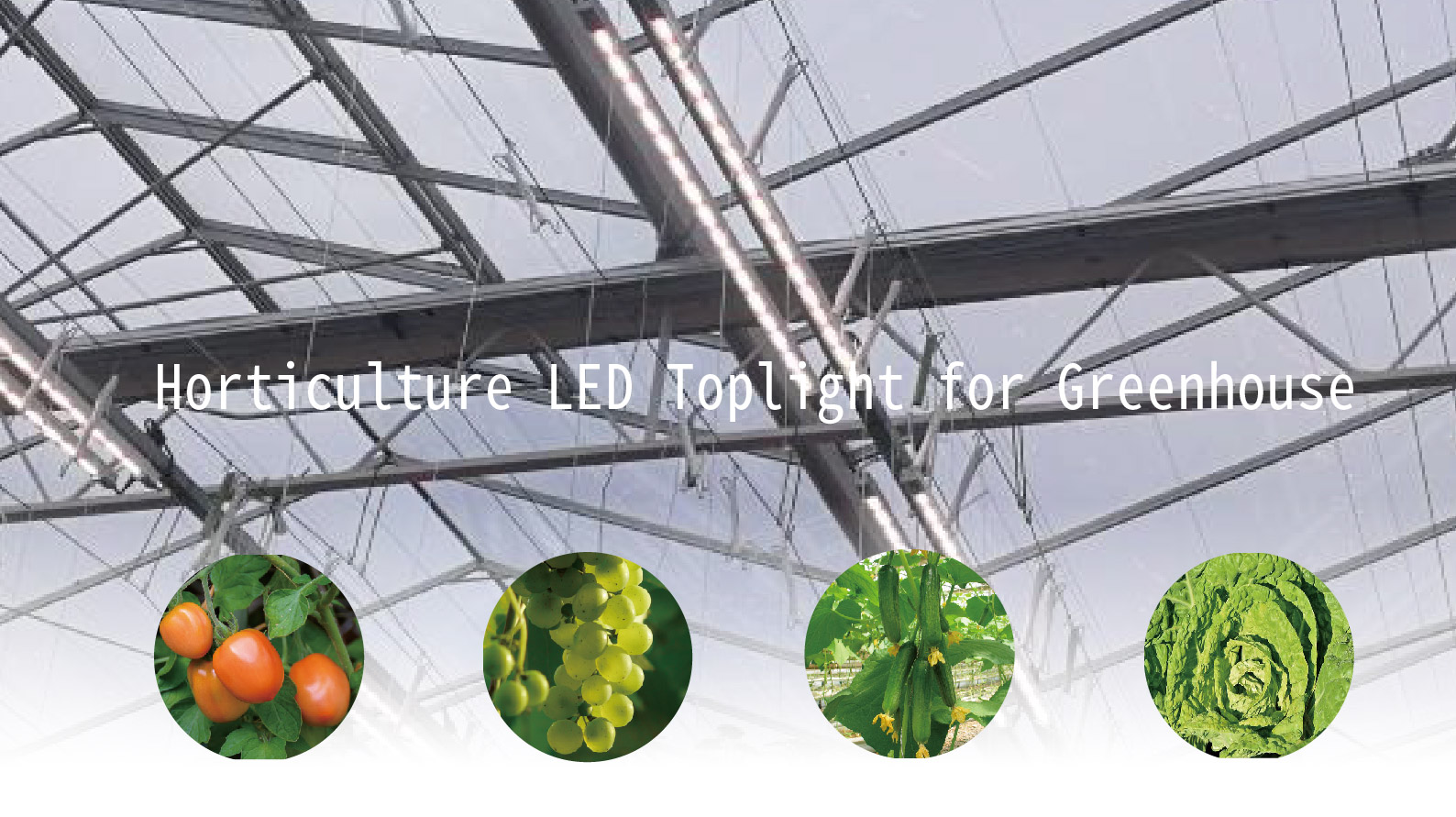

TOPLIGHT-L is a member of the horticulture product line from Sanan’s product release for 2016. The chainable main cable design and multiple installation methods for different applications.It is mainly used in vertical farm and greenhouse.
Features
-
High efficiency optical design
-
IP65 waterproof level, easy to clean
-
Chainable design
-
UV resistant material, durable Diversified installation methods
-
integrated driver;

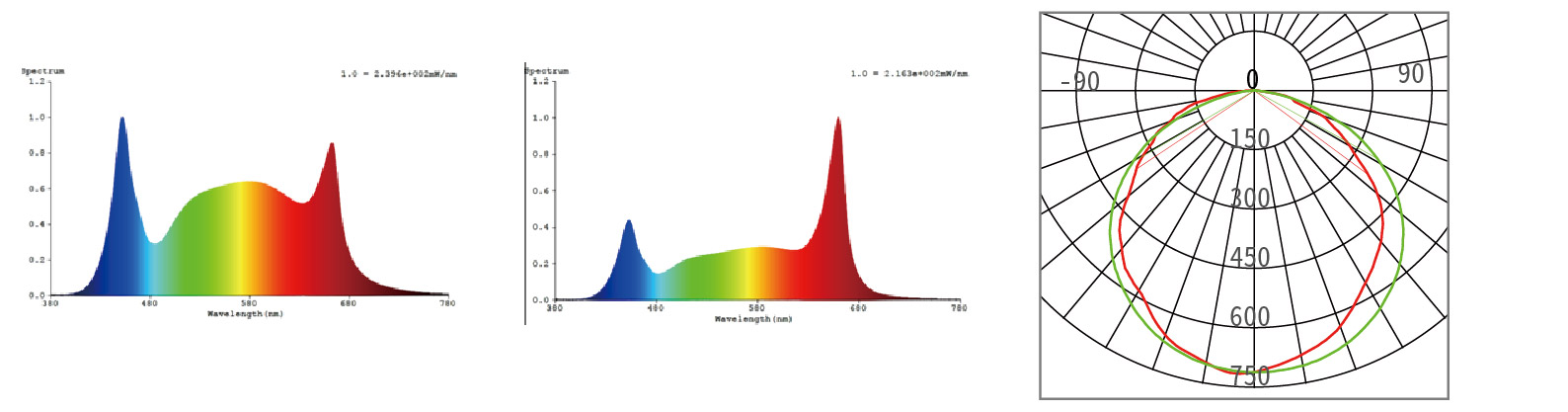

Spectrum
Light Distribution Curve
Dimension

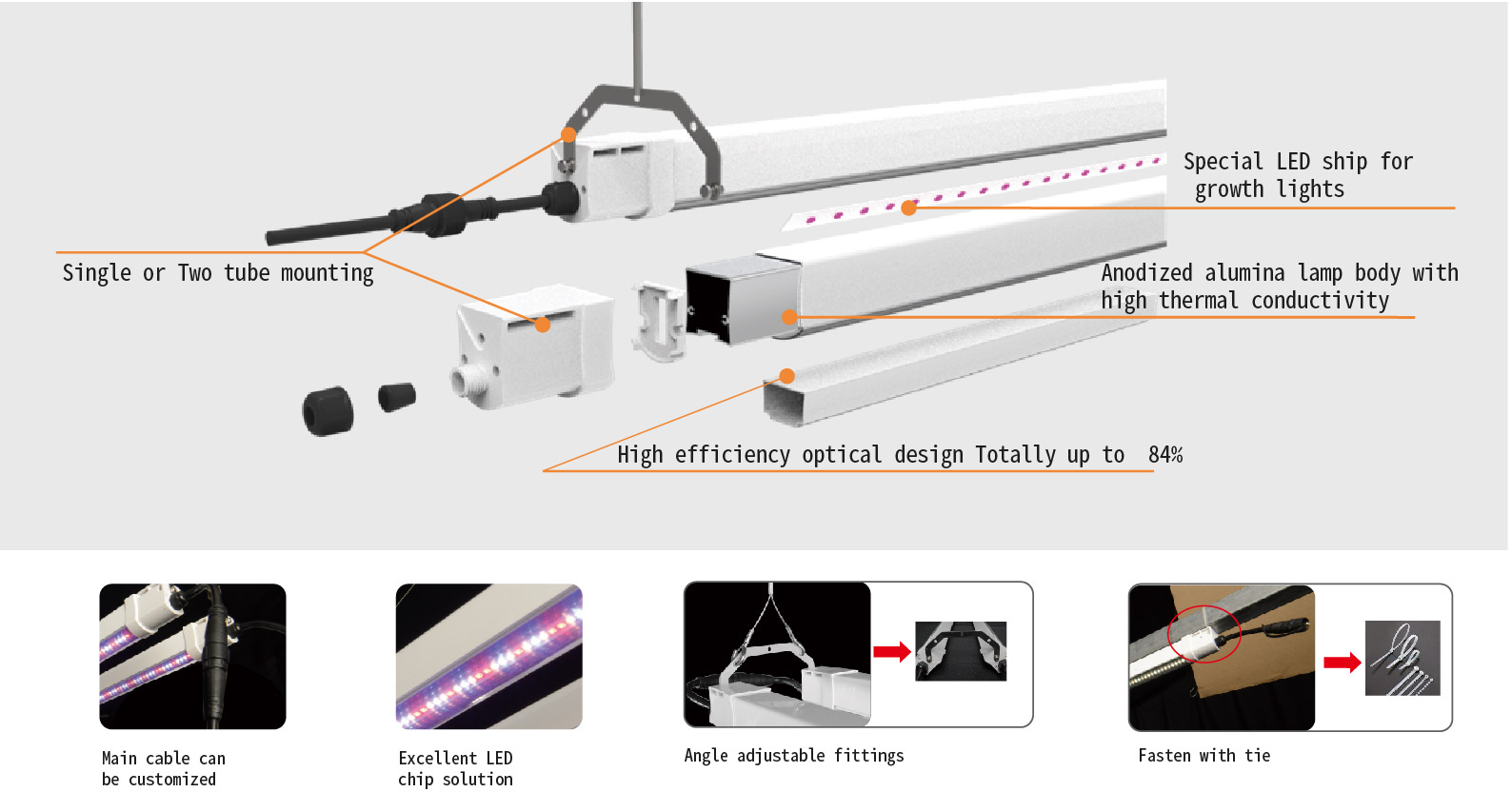

Exploded Drawing

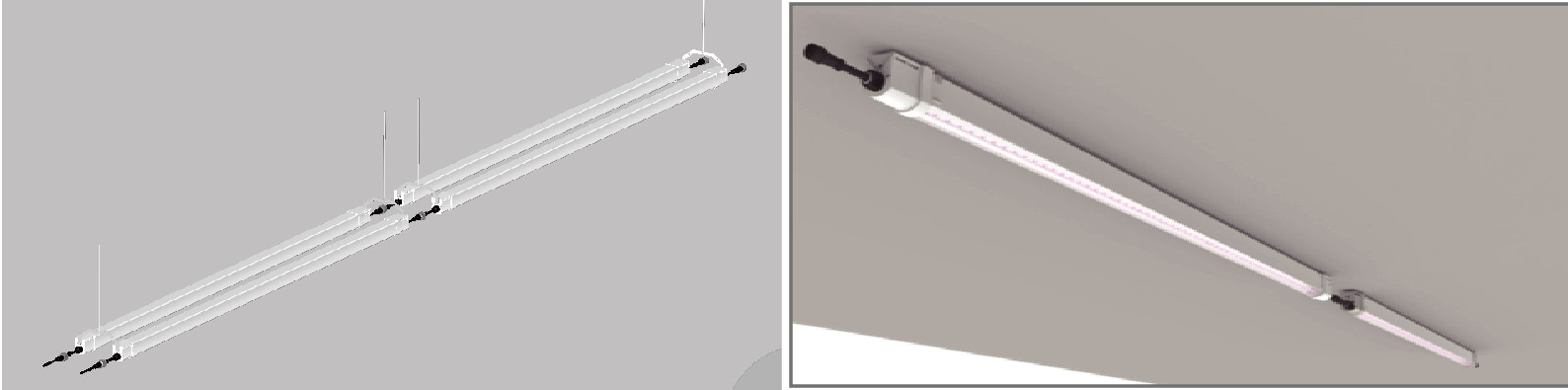

Installation

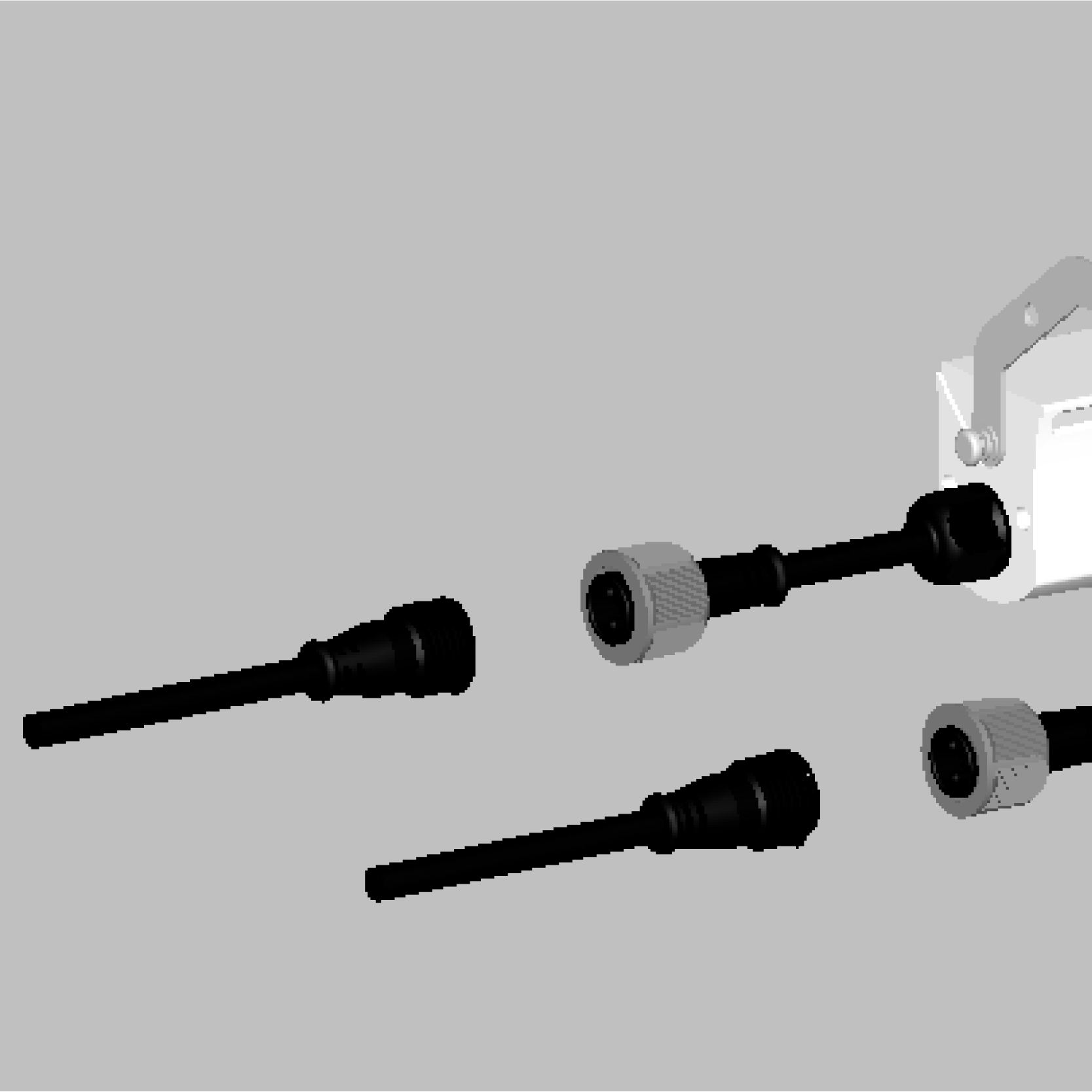

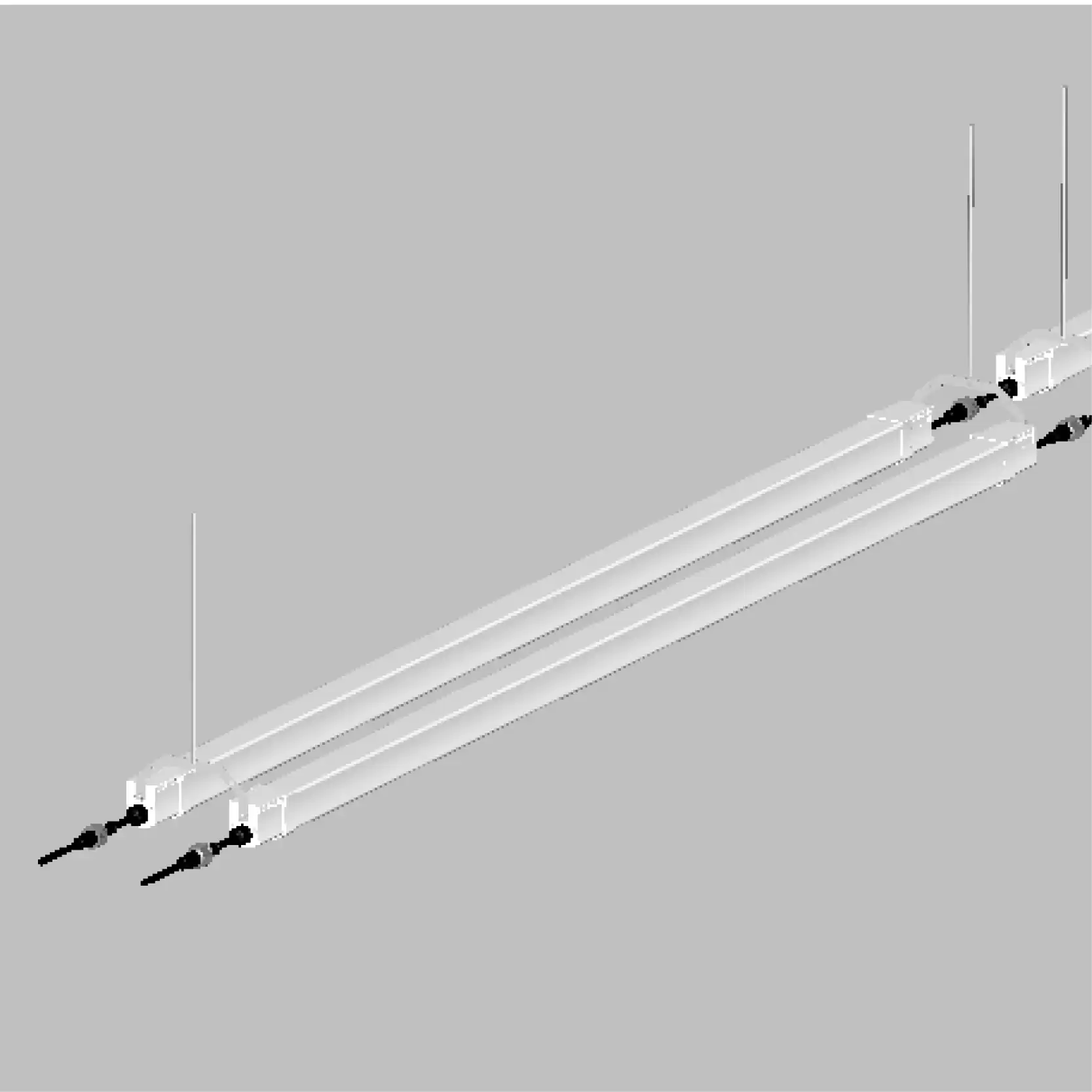

Multi light connection chainable &Double light connection
Parameter
|
Type
|
Toplight-L
|
|
Models
|
N030L2-N-H01-XX
|
N038L2-N-H01-XX
|
|
Voltage
|
100-240V
|
200-240V
|
|
100-277V（NA market)
|
|
Power
|
30W
|
Up to 38W
|
|
Spectrum
|
Full Spectrum
|
|
PF
|
>0.9
|
|
PPF(380-780nm)
|
60-110umol/s
|
|
PPE
|
2.0-3.0umol/J
|
|
Beam Angle
|
110°*120°
|
|
Operating Ambient Temperature
|
-20℃~40℃
|
|
Dimming
|
No-DIM & 3 Step switch Dim
|
|
Lifetime
|
25000H
|
|
IP Rating
|
IP65
|
|
Dimension（mm)
|
L1220*W35.4*H41.3
|
|
Material
|
PC+PC\ABS
|
|
Installation
|
Hanging & Ceiling
|
|
N.W.
|
18pcs/Carton
16.13kg
|
|
G.W.(Outer)
|
18pcs/Carton 18.14kg
|

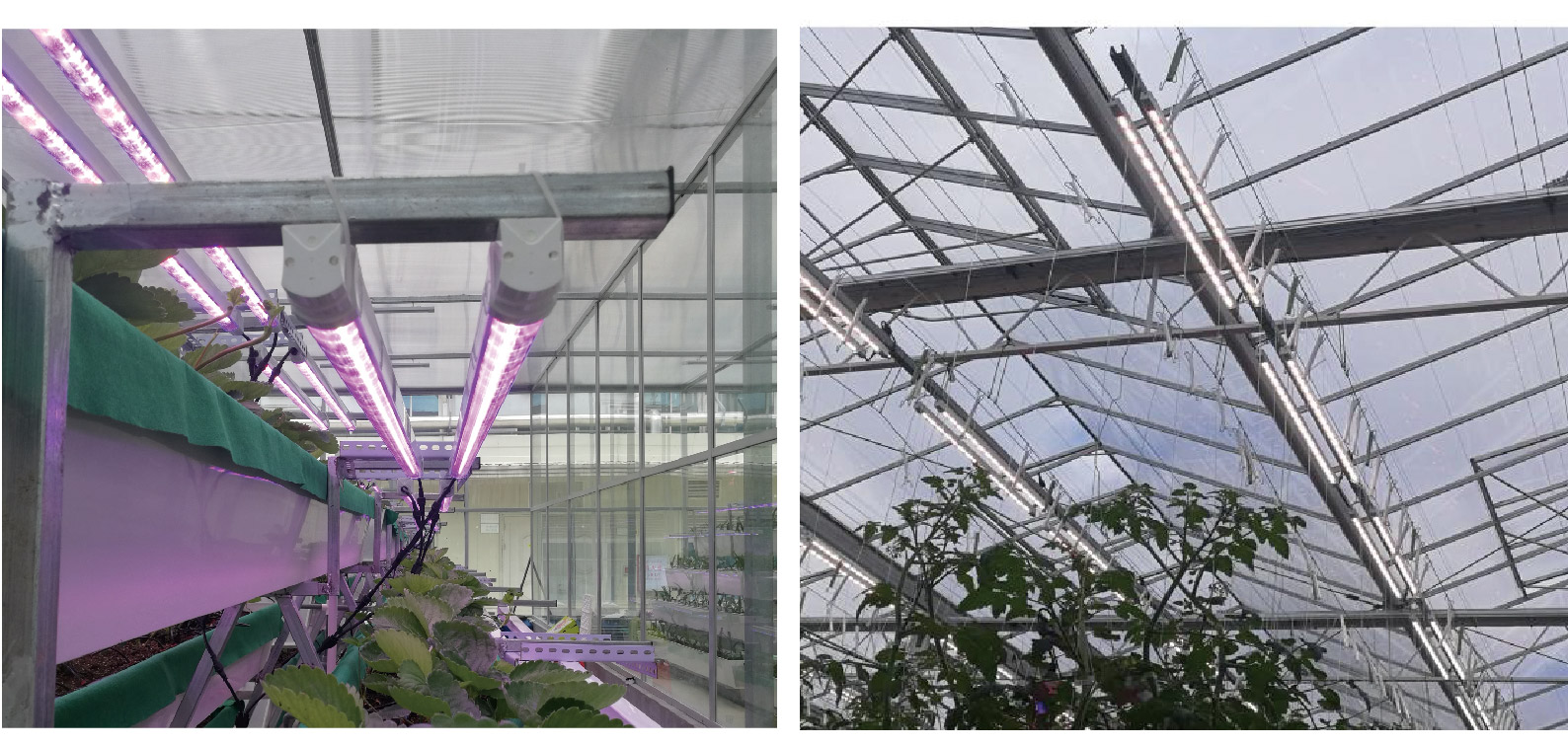

Application
Multi light connection chainable & Double light connection
About San’an
Strict Quality Control
SANAN’s Testing Center was set up in April 2013(Xiamen), specializing in LED application test. It’s certificated by UL / TUV / CNAS / DEKRA to become as a third-party testing institution complying with ISO17025. Taking quality as the top consideration, San’an Technology ensures product quality in every step from R&D through out to productive process
Energy Saving and Customized Design
FAQS:
Q: What is your MOQ?
A: MOQ is 1000 pcs. But we also accept test orders less than 1000 pcs quantity in the first time.
Q: How about the delivery time?
A: According to your order. Generally, we can finish your order in 30 days.
Q: What is your Toplight G3-2in1 LED Light fixture warranty?
A: 12 months for parts and labor against quality defects.
Q: Do you accept OEM or ODM?
A: Yes, of course, and we offer one-stop service for product design, mould design, mould manufacturing,injection, assembly and other aspects.
