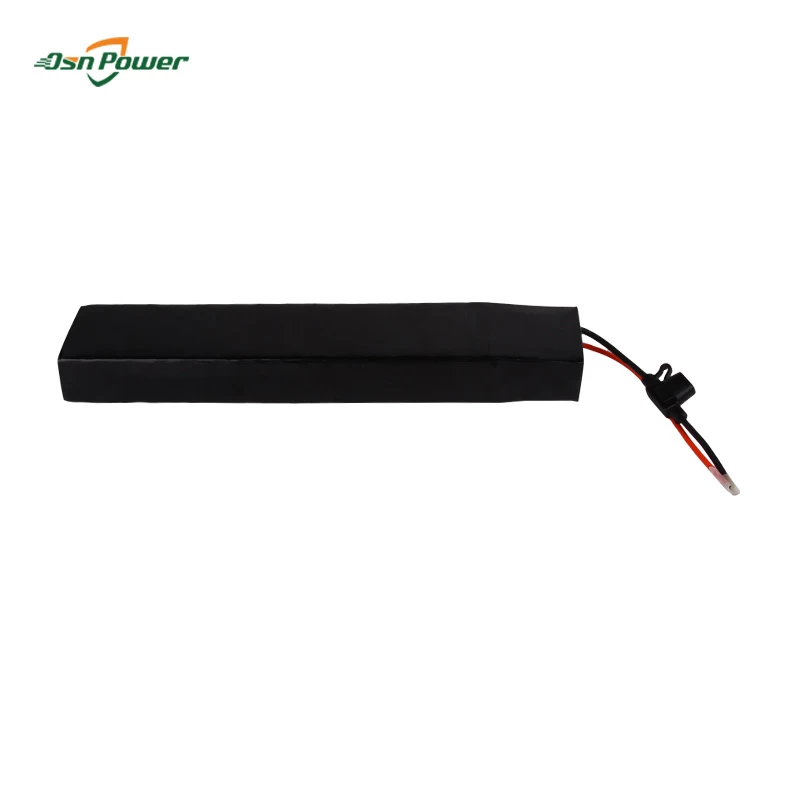

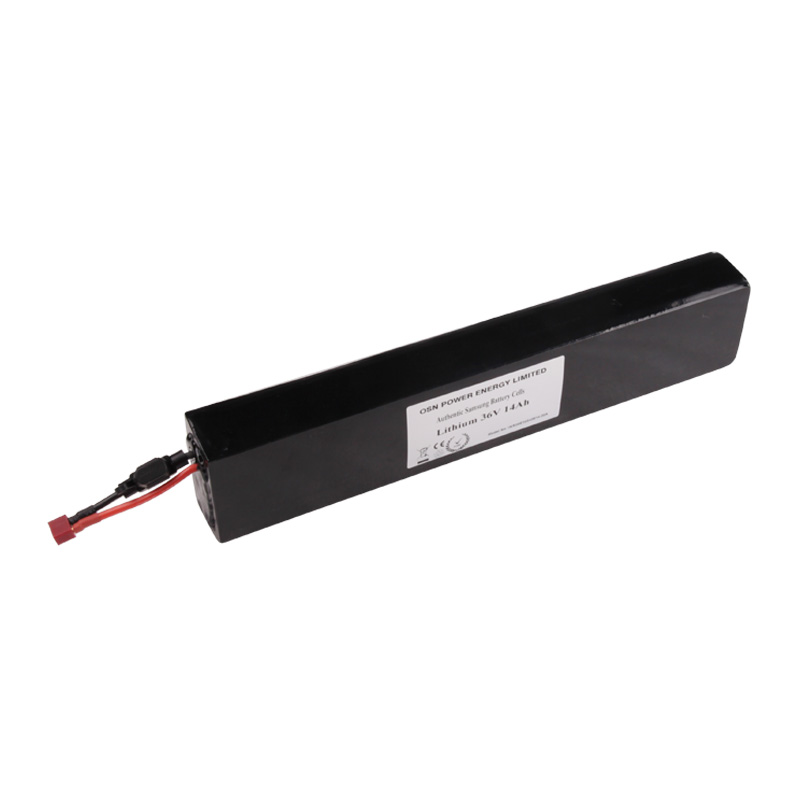

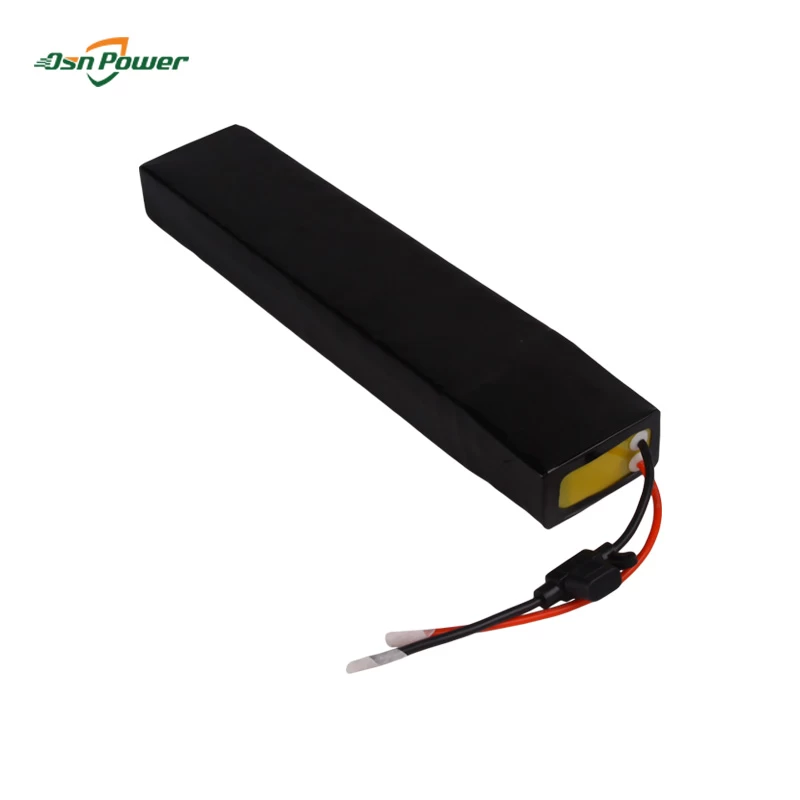

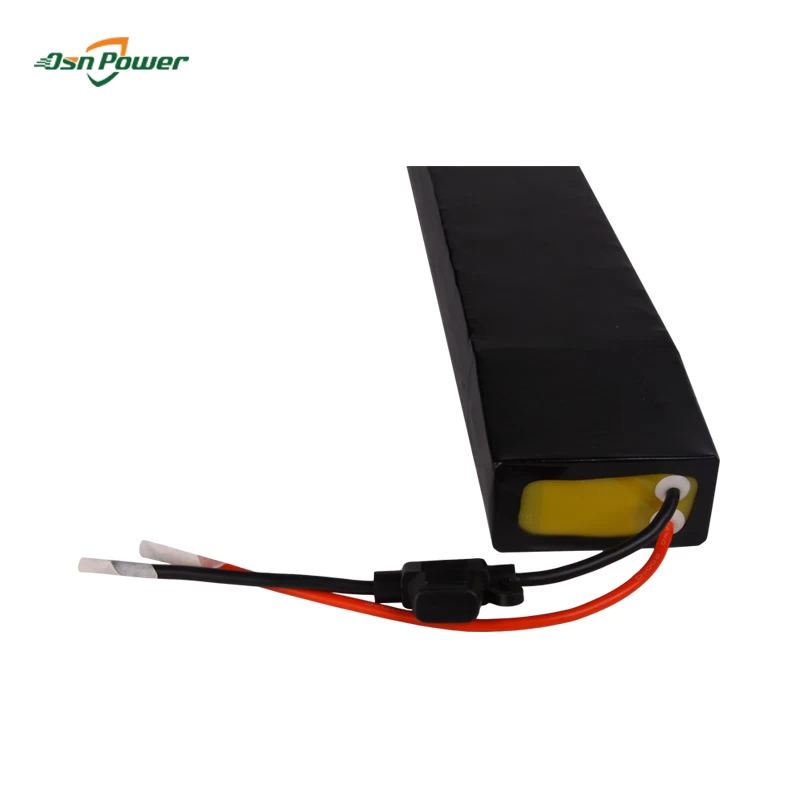

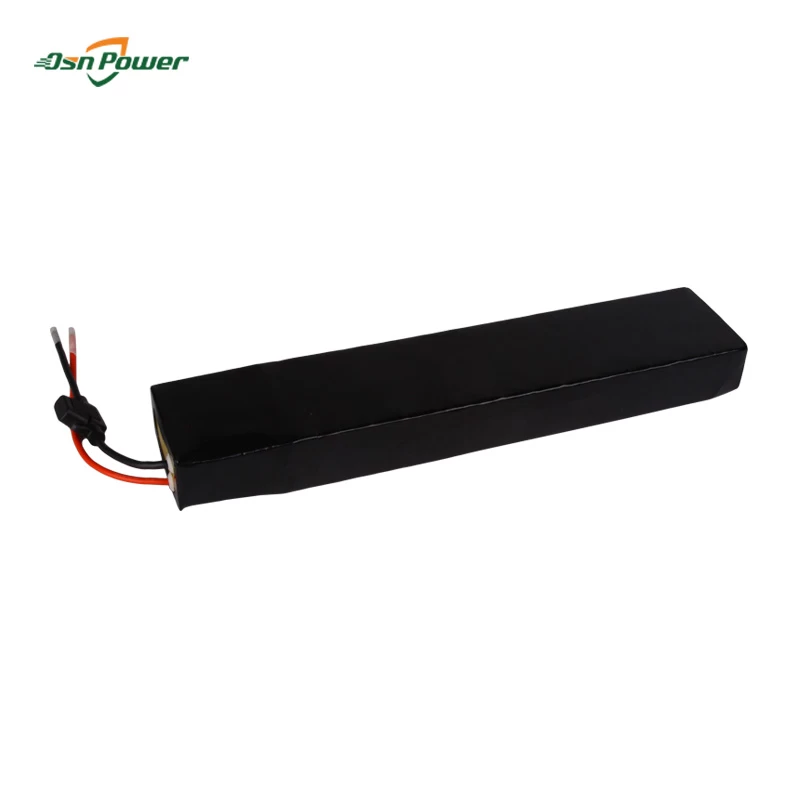

Lithium Battery Pack 36V 14Ah For Foldable Light Electric Scooter

This 36v14Ah battery pack is specifically designed for foldable light electric scooter .

It comes with a very advanced BMS (battery management system) with Texas Instruments IC inside which protects the pack from damage during charge and discharge.

This BMS also has temperature protection to keep the pack from getting too hot.



Product name

Lithium Battery Pack 36V 14Ah For Foldable Light Electric Scooter



Specification


MODEL

  OSN-INR35E10S4-3614Li

PERFORMANCE

Rated Capacity

14 Ah

Nominal Voltage

36 V

Discharge Ending Voltage

25 V

Charging Limited Voltage

42 V

Recommend Charging Current

3A-7A

Max. Charging Current

20 A

Max. Continuous Discharging Current

20 A

Max. Discharging Current

40 A

Containing Cell

Samsung 35E

Cycle Life

1000 cycles @85% DOD (dependant on actual DOD, usage & temp.)

Discharge Rate

1C

Response Time

> 1ms

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

385*38*70mm

Weight

2.05 Kg

Enclosure

Heat Shrinkable PVC

OTHER

Operating Temperature

Charging: 0 to +45°C / Discharging: -20 to +60°C

Storage Temperature

-20 to +60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Warranty

3 years



Highlight

  • Original Samsung 3500mah cell,made in Korea,It offers highest energy density, smallest dimensions and lowest weight– guaranteeing maximum riding enjoyment.
  • Long Cycle Life :The Battery Management System offers maximum protection against overcharging, over-discharging, over current, short circuit as well as extending the service life of the Battery pack.
  • Beefy T-Plug connectors with customized 35A fuse for discharging
  • Mounted together in a battery holder and spot welded together ,Thereby the insulation between the cells is better,prevent from short circuit .
  • On both ends of battery pack are sealed with glue ,with waterproof function


Related Product





Applications:


With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.

Please email us at service@osnpower.com to get solution and quotation.
