Lithium Electric Golf Cart 48V Volt Batteries AGM replacement

  • Apply in Golf cart 48Volt electrical drive system
  • Lighter weight & Smaller volume
  • Made of higher density lithium battery cells
  • High end 100A battery management system includes brand Mosfet and IC chips built in with protecting against overheating, over charging, over discharge and short circuit etc



Product Name:

Lithium Electric Golf Cart 48V Volt Batteries AGM replacement


Highlights:

  • Apply in Golf cart 48Volt electrical drive system
  • Lighter weight & Smaller volume
  • Made of higher density lithium battery cells
  • High end 100A battery management system includes brand Mosfet and IC chips built in with protecting against overheating, over charging, over discharge and short circuit etc
  • Customized hard metal case design
  • 5 years life span under proper usage

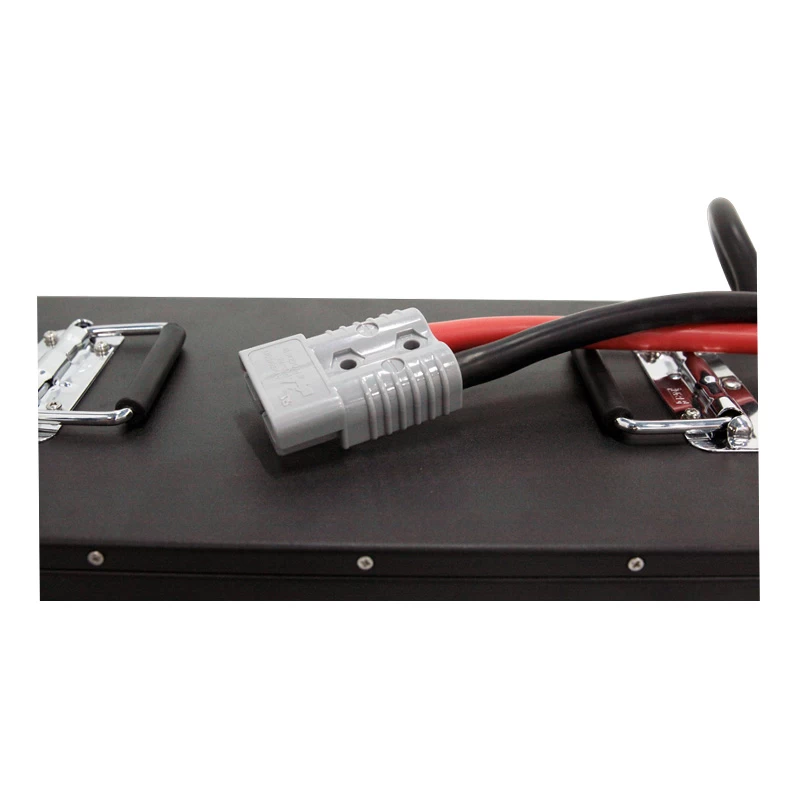

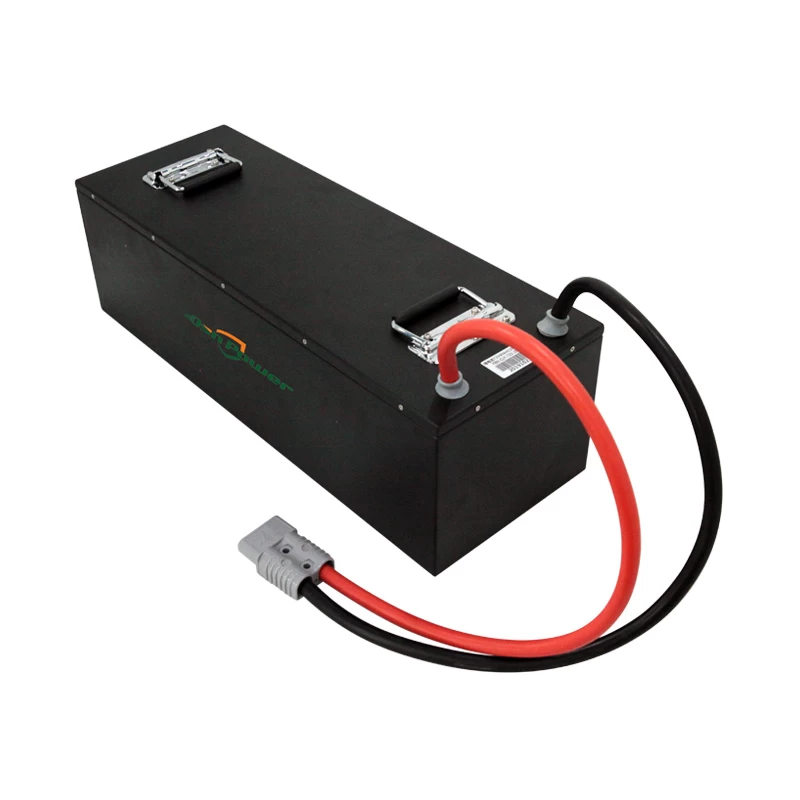

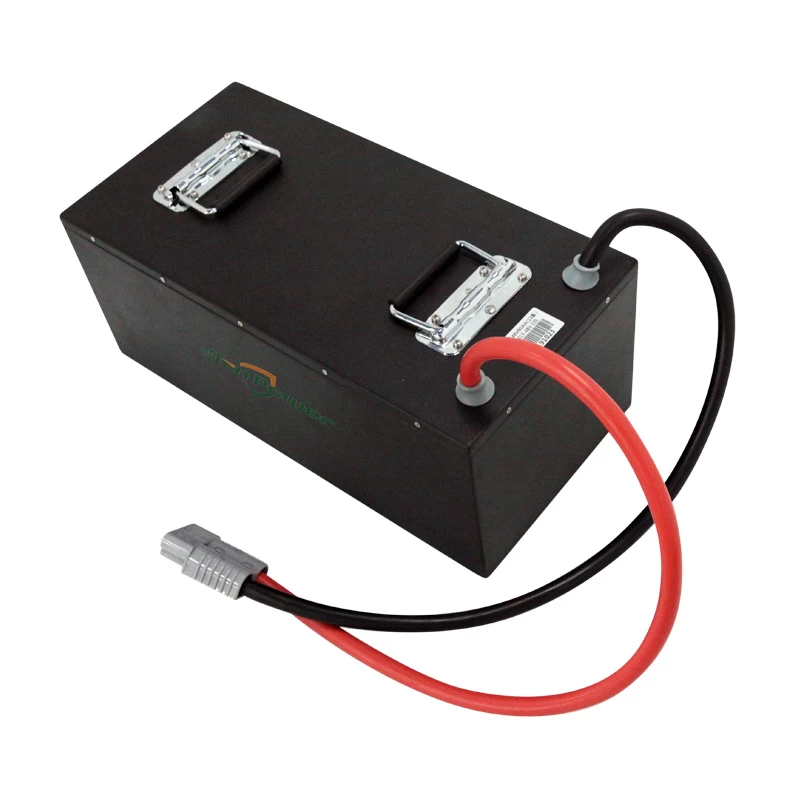

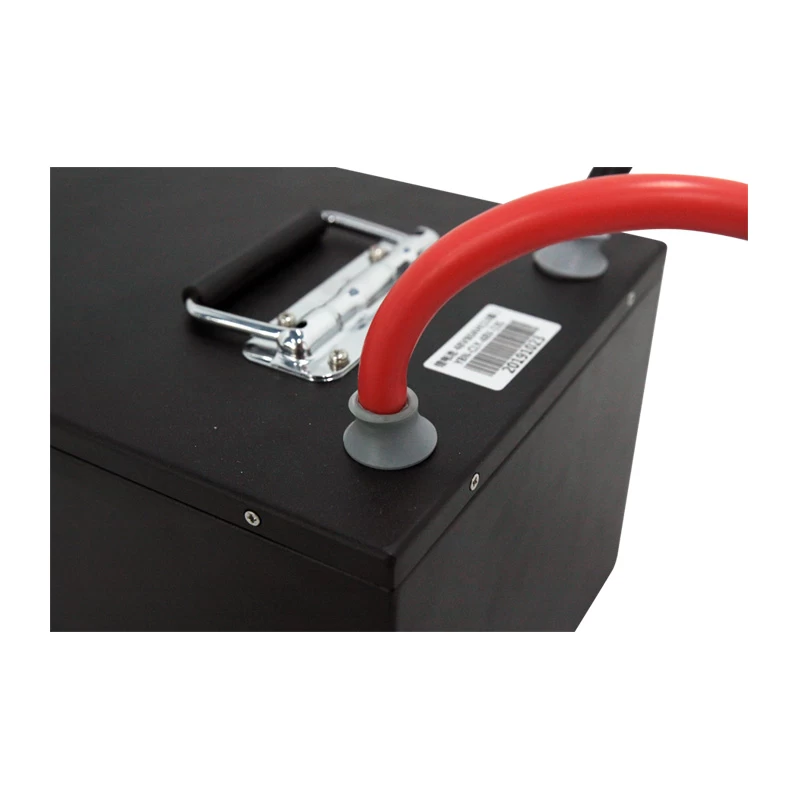

Photos of 48V 80AH Lithium golf cart battery


Datasheet of 48V 80AH Lithium golf cart battery


MODEL

OSN-GC-L4880

PERFORMANCE

Rated Capacity

 80 Ah

Nominal Voltage

48.1V

Discharge Ending Voltage

32.5V

Charging Limited Voltage

54.6V

Max. Charging Current

100.0 A

Max. Continuous Discharging Current

100.0 A

Containing Cell

3.7V 80AH

Design Life

More than 10 years

Cycle Life

2000 cycles @80% DOD (dependant on actual DOD, usage & temp.)

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

Length:460mm

Width:230mm

Height: 190mm

Weight

32 Kg

Enclosure

Metal case

Power terminal

175A Anderson connector

OTHER

Operating Temperature

Charging: 0 to +45°C / Discharging: -20 to +55°C

Storage Temperature

-20 to +60°C

Warranty

5 years


More features

  • Easy to install, Customize metal case with handle
  • Special technical requirements on battery accepted, our technician will design perfect lithium battery solution
  • Offer several types of 48V lithium battery for golf carts at different prices to meet high-end market and cost-effective market
  • 3 years life time limited warranty


Related batteries for golf carts

48V 100AH Lithium golf cart battery battery


OSN power supply mature golf cart battery  solution-one lithium battery pack replaces of several original lead acid batteries for your golf cart. More, we also provide 12V lithium batteries connected in series to get 36V or 48V batteries.
