Lithium Forklift Golf Cart 42V 36V 100A Battery Charger
1.Product Introduction:
**1. Touchscreen Interface:**
- The charger features an intuitive touchscreen interface, allowing you to easily set the output voltage and current as per your requirements.
**2. Smart Charging Capabilities:**
- Conveniently schedule and pre-plan charging sessions to align with the specific voltage and current requirements of your charging equipment.
**3. Data Export and Fault Code Display:**
- Easily export charging data for analysis and monitoring.
- In case of any faults or issues, the charger's screen provides a clear display of fault codes for quick troubleshooting.
**4. Intelligent Main Power Module:**
- The charger is equipped with an intelligent, self-developed main power module, with single modules certified by TUV Rheinland and UL.
- Utilizes modular construction and digital power technology.
- All internal components of the module are sourced from reputable North American brands to ensure compliance with North American standards (USA/Canada).
**5. High-Efficiency Charging:**
- The charging power module employs a three-phase Vienna rectification circuit for the APFC (Active Power Factor Correction) section.
- Utilizes DSP (Digital Signal Processing) technology to achieve single-phase power factor correction, with a power factor greater than or equal to 0.99 under rated loads.
- The DC/DC section employs DSP digital technology, an interleaved full-bridge LLC resonant circuit topology, and achieves ZVS (Zero Voltage Switching) for bridge MOSFET switches and ZCS (Zero Current Switching) for rectifier diodes, reducing stress on power components and optimizing system efficiency.
- The integrated design incorporates core components for standardized voltage and thermal stress balance.
2.Technical Parameters：
|
input technical parameters :
|
|
Input voltage
|
Three-phase four-wire system (AC480Vac±10%)
|
|
Input voltage range
|
432Vac ~ 528Vac
|
|
Input maximum current
|
11A
|
|
|
|
|
|
|
Breaker specifications
|
C20A
|
|
Maximum power
|
6.8kW
|
|
Frequency
|
60Hz
|
|
Power factor
|
≥0.99
|
|
output parameters :
|
|
Maximum output voltage
|
60VDC
|
|
Minimum output voltage
|
40VDC
|
|
Maximum output current
|
100A
|
|
Minimum output current
|
20A
|
|
Maximum output power
|
6.0kW
|
|
Current limiting range
|
10% ~100% Continuous
|
|
Working efficiency
|
≥93%
|
|
Voltage regulation accuracy
|
≤±0.5%
|
|
Current regulation accuracy
|
≤±1%
|
|
Current sharing coefficient
|
≤±5%
|
|
Condition and Environment :
|
|
Operating temperature range
|
-20℃ ~ 45℃
|
|
Storage Temperature
|
-20℃ ~ 50℃
|
|
Relative humidity
|
5～95% , non-condensing
|
|

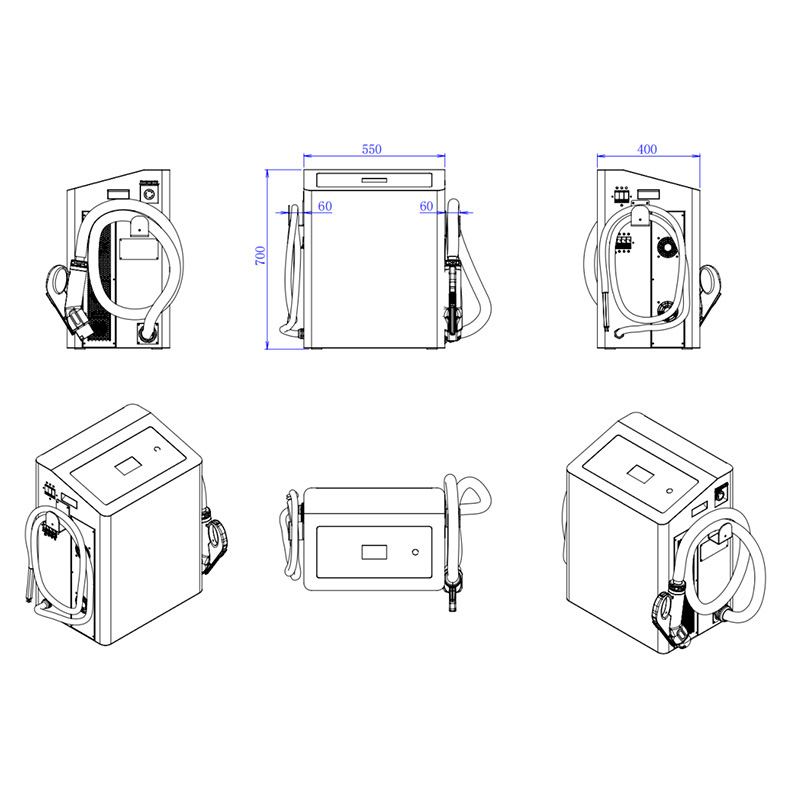

External dimensions
|
Lengths * Widths * Heights : 550 * 400 * 700 mm
|
|
Weight
|
55kg
|
|
Protective function :
|
|
Protection Class
|
IP 20
|
|
Level of protection
|
Class I
|
|
Environment of use
|
Indoor
|
|
Overvoltage category
|
OVC III
|
|
Pollution level
|
PD 2
|
|
Output short circuit protection
|
Enter shutdown protection mode within 1 second
|
|
Overtemperature protection
|
Reduced output: 45°C~65°C, above 65°C shutdown protection
|

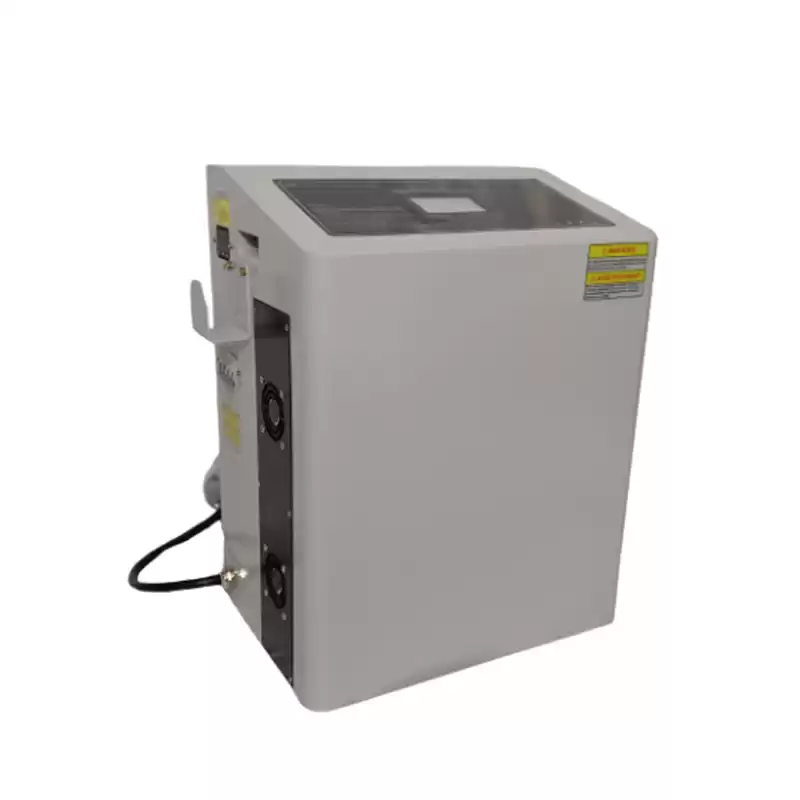

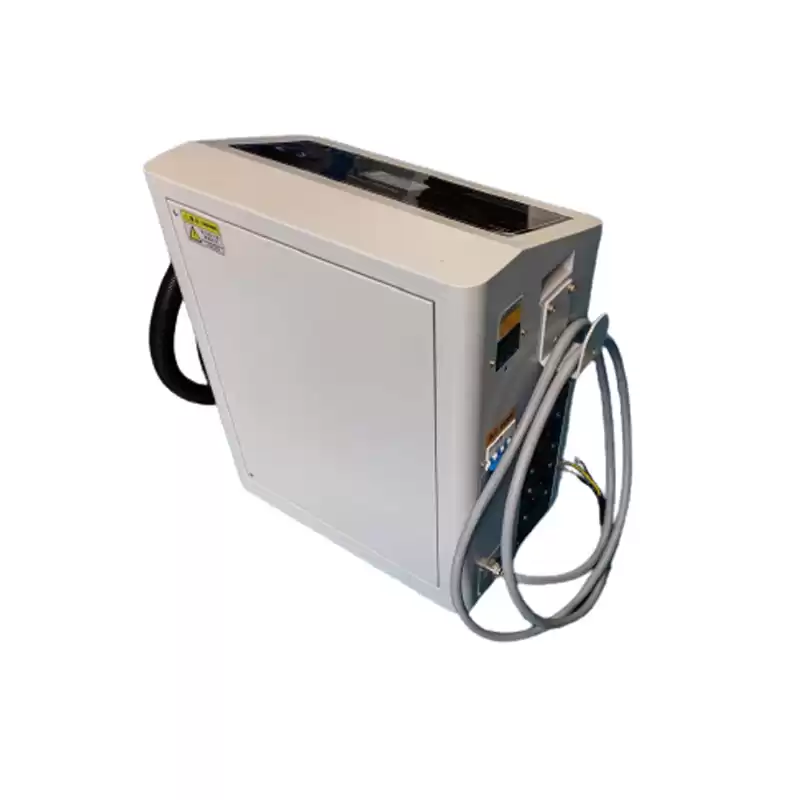

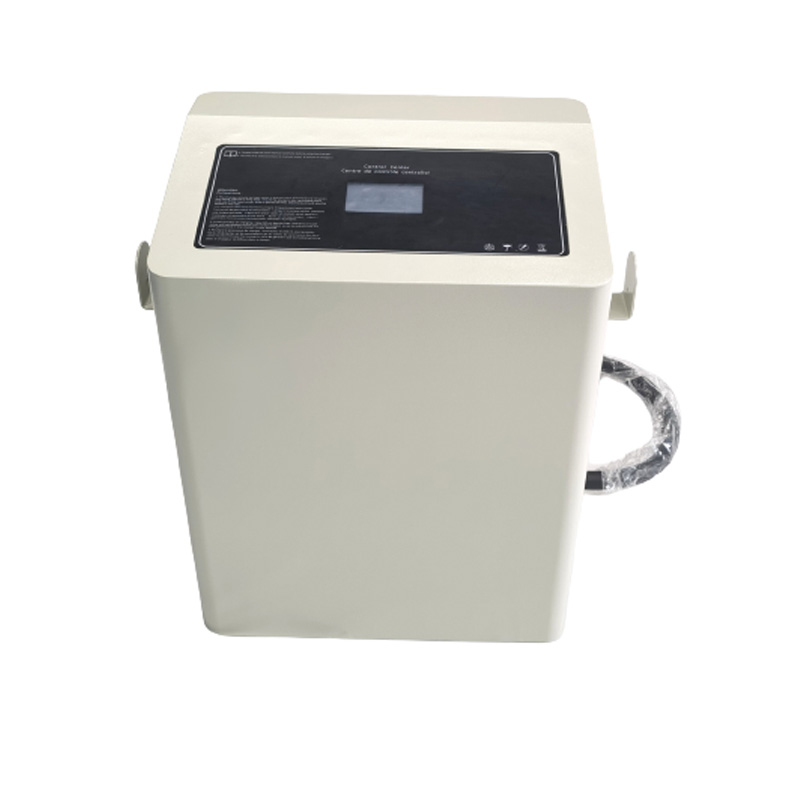

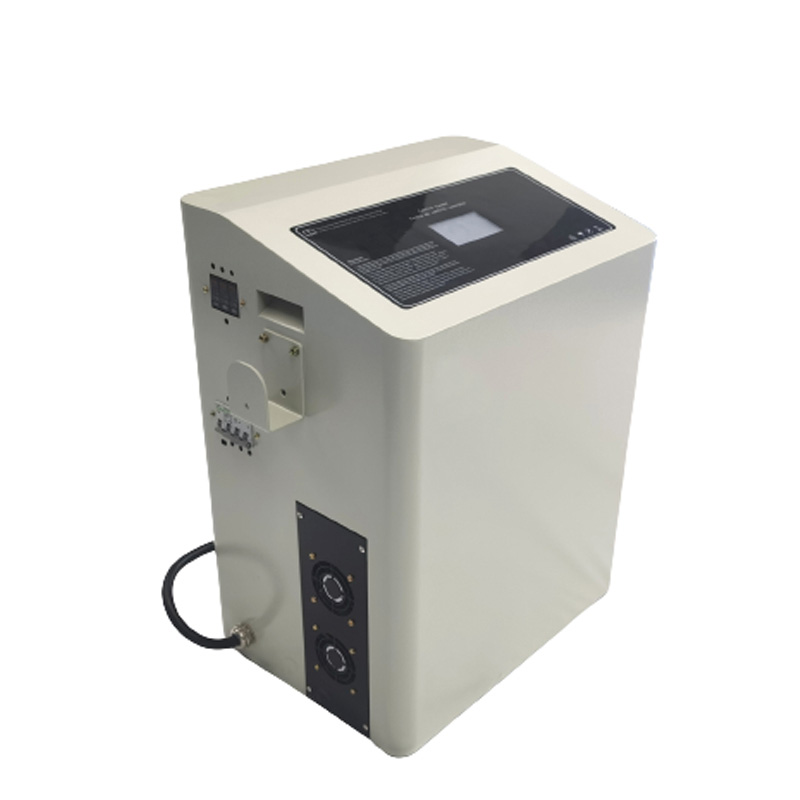

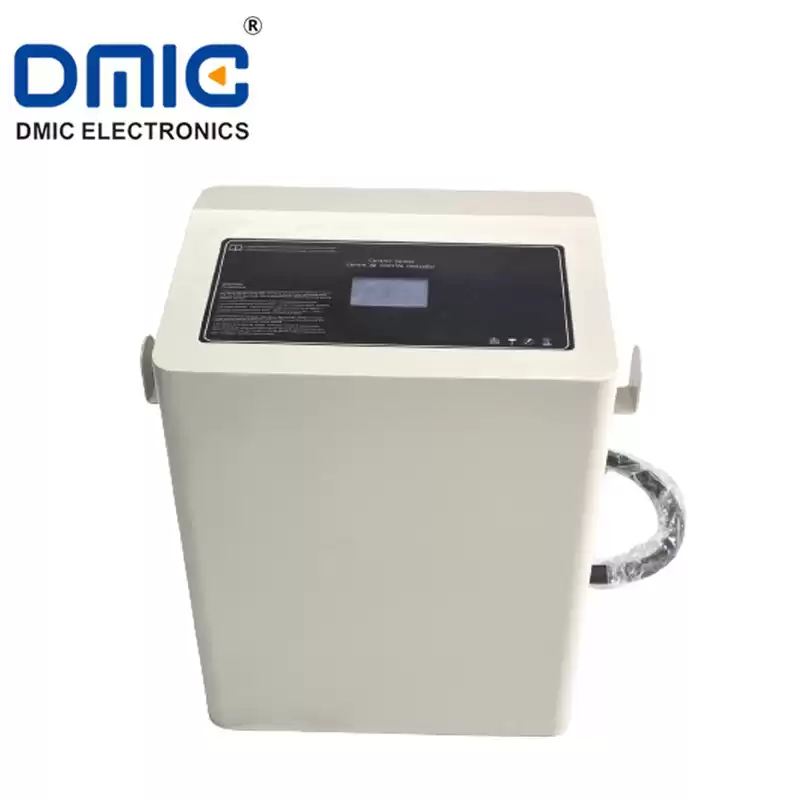

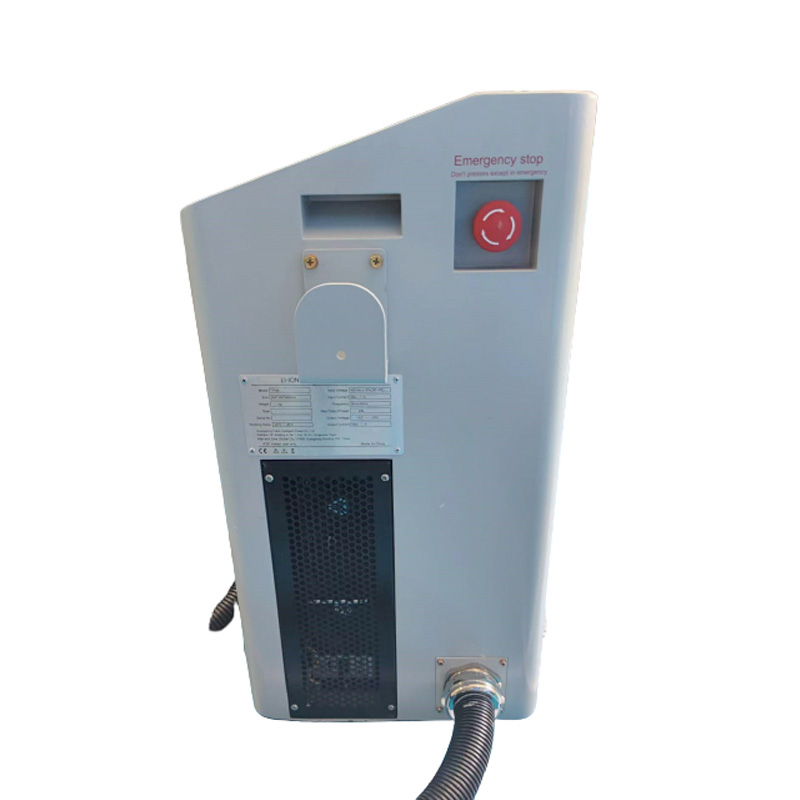

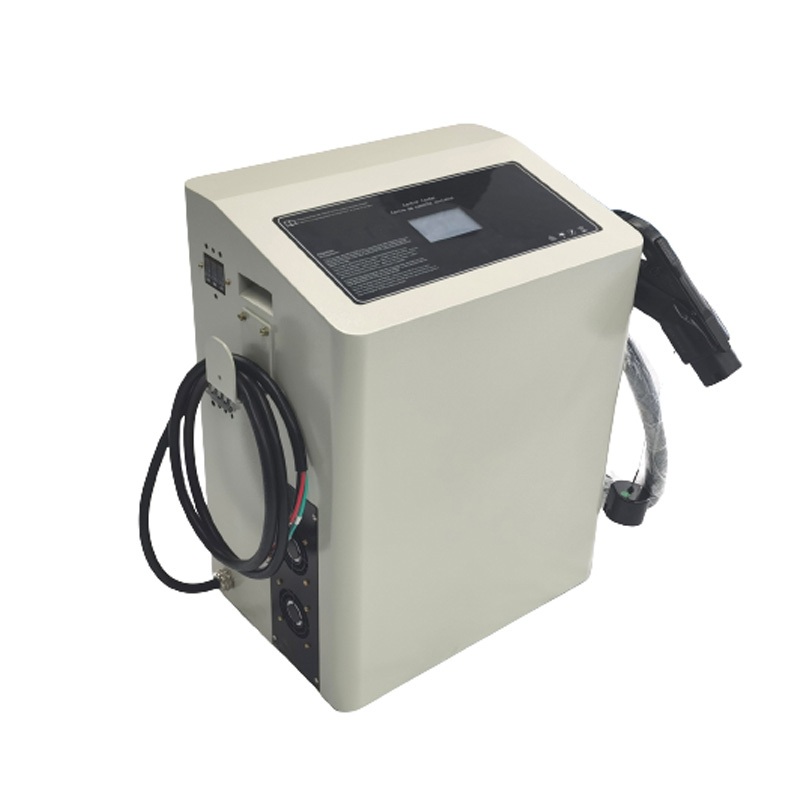

3.Picture Introduction:
4.Our Advantages:

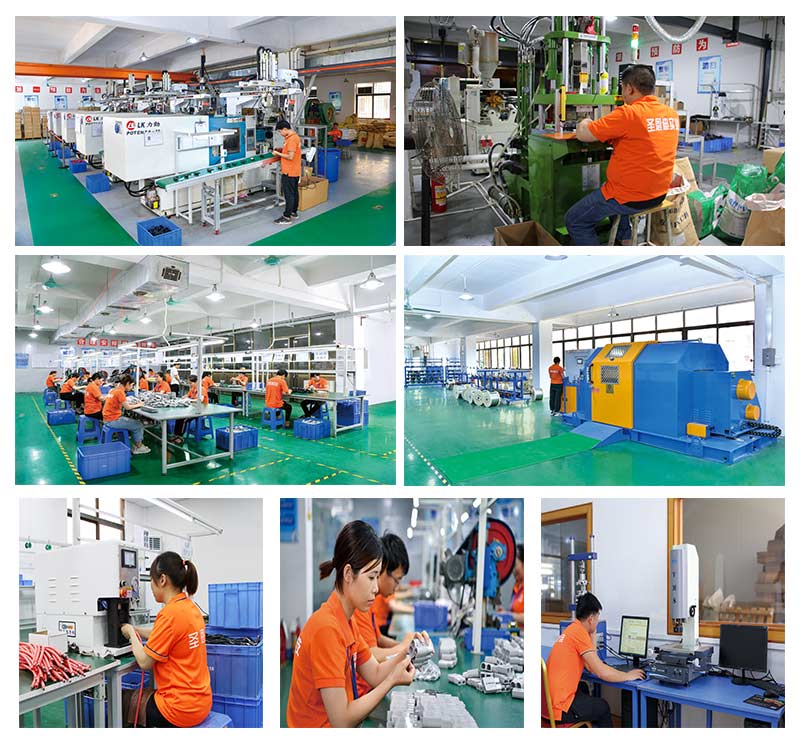

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
