living in an a frame house tiny container home

1) All steel fabric parts and the size of prefab house can be made according to clients' requirement.
2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection.
3) The material of prefab house is light and easily to installation. one 27-35 square meter housefour workers 10min finished installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and foam as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc

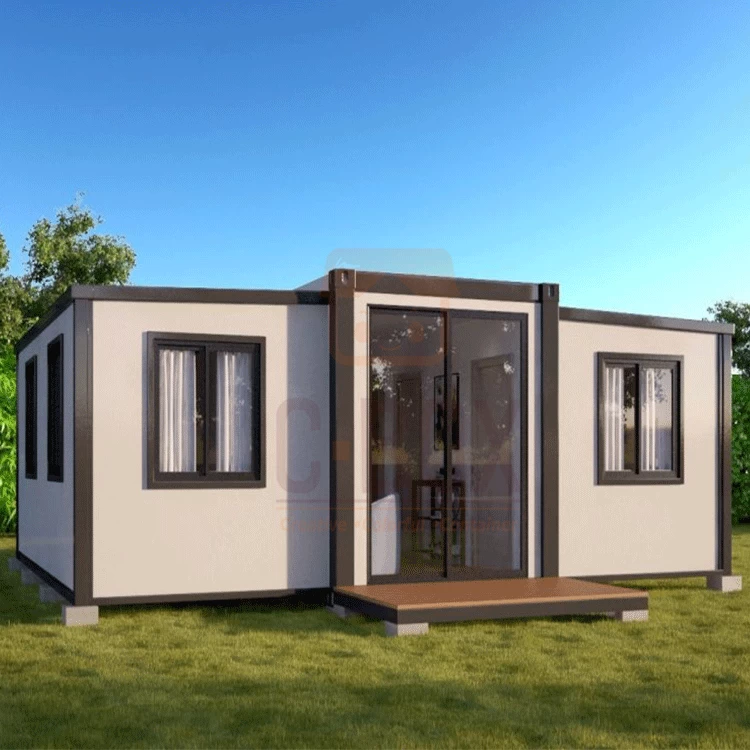

6)Expandable container house size: 5850*6300*2500mm




living in an a frame house tiny container home


Steel structure
List Part Name  Specification Remark
1  steel column   Steel panel 3mm thickness Bend   part
2 Main bottom beam  150*75*3.0mm
3 Main top beam  12#*6mm
4 Secondary beam  80*80*2.0mm
5 PANEL  galvanized steel corrugated sheet  1.0mm
6 Bottom frame purlin 80*40*2.0mm

Panel, Door and Window
List  Part Name Specification Remark
7 Ceiling 1150×50×0.326mm double side Choi foam sandwich panel
(white and grey)

8
external wall panel
Bending piping 2.5mm+1150×50×0.326mm 0.326mm double side Choi foam sandwich panel (white and grey)
9 Floor Fireproof panel 15mm (yellow)+PVC grain board
10 Door panel 304 SS door (primary colours) W*H: 1520mm*2200mm, 1 set
11 Sliding window aluminium alloy sliding window (white) W*H:930mm*1200mm, 8 sets



Product Details

flatpack expandable living container houseexpandable living containerexpandable living container home



expandable container house design



Expandable container house installation



Expandable container house size

Product Advantages

1.Safety and reliable light steel flexible structural system

2.Easy to transport,.

3.Good and attractive appearance

4.Waterproof, sound-insulated, heat preservation, seal, easy to clean and maintenance

5.Any dimension and customized design are available




Expandable container house project

Expandable container house caseExpandable container house

When China is gonging through the epidemic struck, Wuhan Vulcan Mountain Hospital, emerged from the ground. Guangdong C.BOX Co., Ltd. from Guangzhou delivered the flat pack container house isolation ward project of Vulcan Mountain Hospital in only ten days.

The rapid delivery of the Vulcan Mountain Hospital project has demonstrated the company's management and production strength, and won the support and trust of overseas customers. This is an intangible asset to the corporate culture and has further enhanced the corporate brand image and market reputation.
