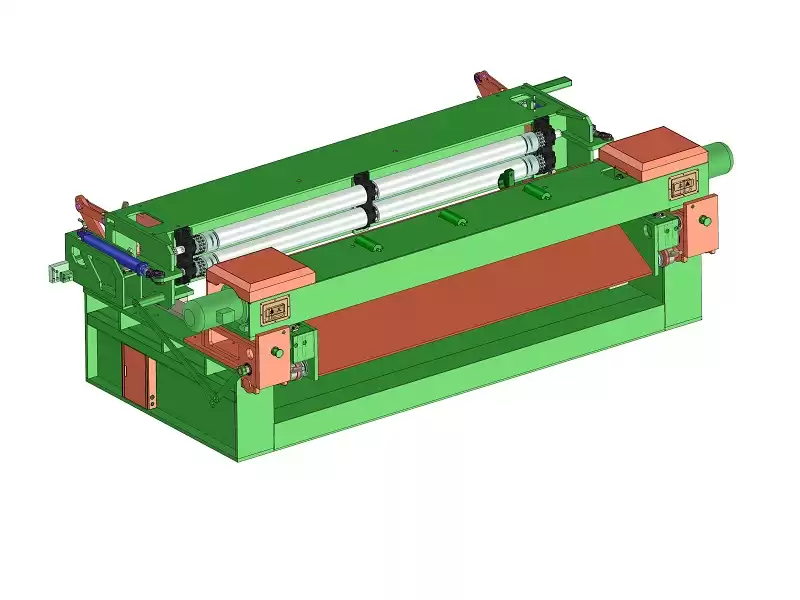

Log 600mm 8ft Hydraulic Barking Machine

BQ1826/6YE is a model of 8FT Hydraulic barking machine. It is used to peel  the bark of small log then make wood veneer. The Spindleless veneer peeling line is a part of Plywood making making.We could manufacture 4ft,6ft ,8ft CNC spindleless veneer peeling machine or customized ones.



Product Name:  Log 600mm 8ft Hydraulic Barking Machine

Major Technical Parameters

Model : BQ1826/6YE

Length of  Veneer Log: 2000-2600mm

Diameter of Veneer Log: Φ120-Φ600mm

Length of Peeling Knife: 2750mm

Linear Speed of Veneer Peeling Line: 50 m/min

Total Power:  35.5KW

Total Weight:  11000kg

Overall Dimensions: 4450*2400*1380

Product overview:

1.Working steady:The moving blade base and fixed double roller and guide rail make the veneer working machine stable and good quality veneer.

2.Heavy bearing:use strong and heavy bearing to increase the service life of bearing and reduce maintenance cost

3.Key technology:


Packing details:

Wrapped with PE film and plywood wooden case for the spare parts


Features:

1) 4ft and 8ft Spindleless plywood veneer peeling and veneer cutting machine with conveyor.
2) Heavy duty iron steel structure veneer machine body.
3) High quality spare parts and electric components.

Wood Veneer Peeling and Veneer Cutting Machine for Plywood

Peeling log uniformly with CNC control.

Peeling range for log diameter: 600mm-45mm

Veneer Peeling machine with built-in clipper

Spindleless wood veneer peeling and veneer cutting machine

small blades for clipper.

High working efficiency.

Plywood Spindleless Veneer Peeling Machine and Price

High alloy material of veneer peeling blade

Professional installation positionof veneer peeling blade

Ensure the best working performance of veneer machine
