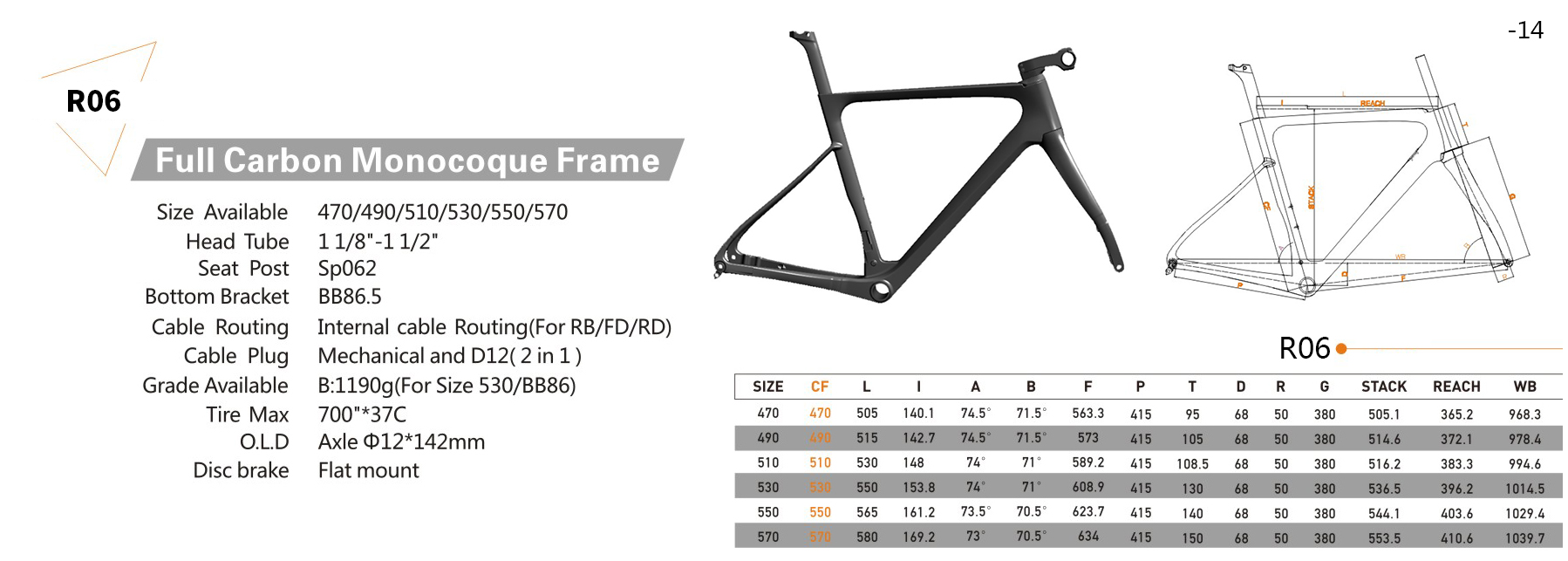

Model Number: R06
|

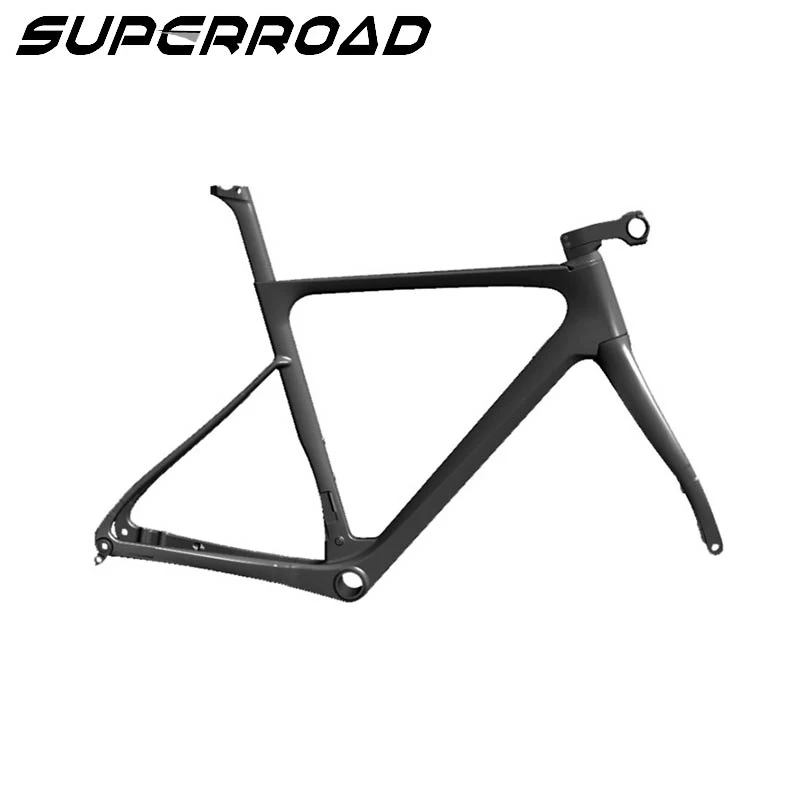

Type: Bike Frame
|
|
Material:Carbon, Totray Carbon T800
|
Seat Post: Sp062
|
|
Size Available: 470/490/510/530/550/570
|
O.L.D: Axle 〼 12*142mm
|
|
Head Tube: 1 1/8"-1 1/2"
|
Cable Routing: Internal Cable Routing(For RB/FD/RD)
|
|
Bottom Bracket: BB86.5
|
Tire Max: 700*37C"
|
|
Cable Plug: Mechanical and DI2(2 in 1)
|
Grande Available: B:1190g(For Size 54/BB86)
|
FAQ
1.What is the ERD?
ERD, short for Effective Rim Diameter, is the rim diameter measured at the nipple seats in the spoke holes, plus the thickness of the two nipple heads.as picture: It's used to calculate spoke length when preparing to build a wheel.
2.Which countries do you send to?
All over the world.
3.What is parts in the wheels package?
Skewer,spare spokes,brake pad and rim tape.disc brake wheels is not incl brake pad.
