Efficiency Innovation New Interaction
|
Real-time HD image transmission
|
15 km
|
Maximum battery life
|
85min
|
|
Wind resistance
|
Level 7
|
Maximum flight speed
|
90km/h
|
|
AI recognition
|
Target tracking and recognition
|
New control experience
|
New Interaction
|
|

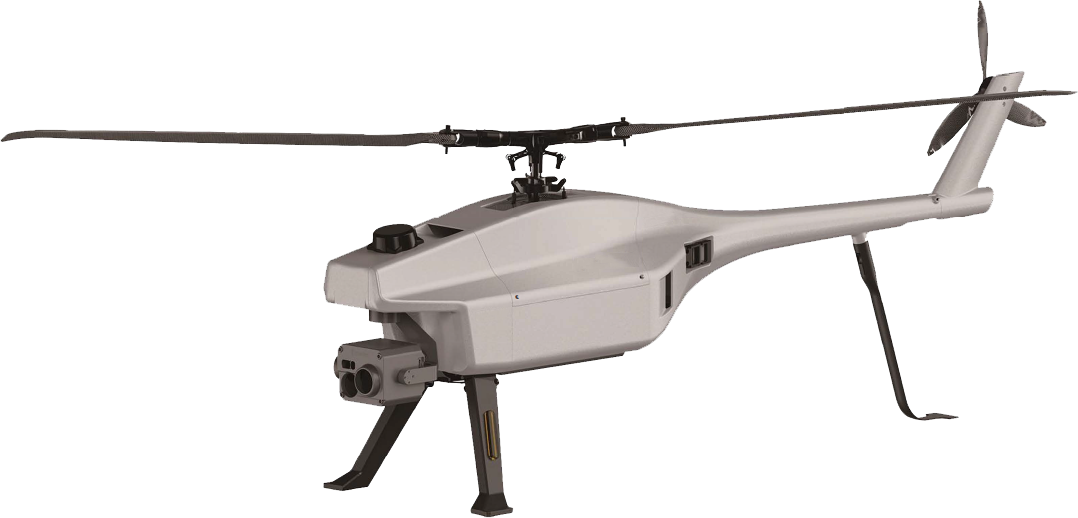

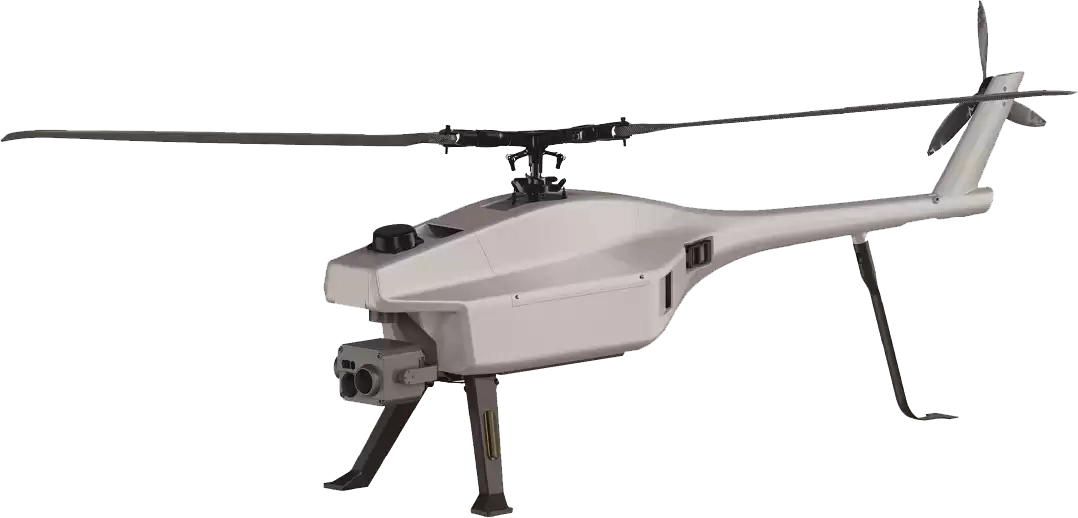

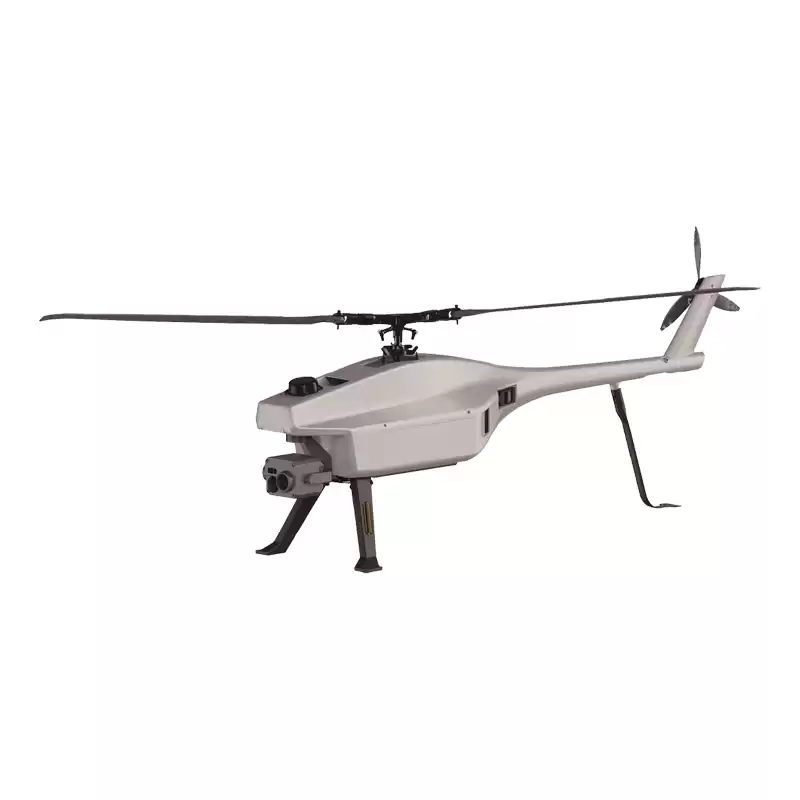

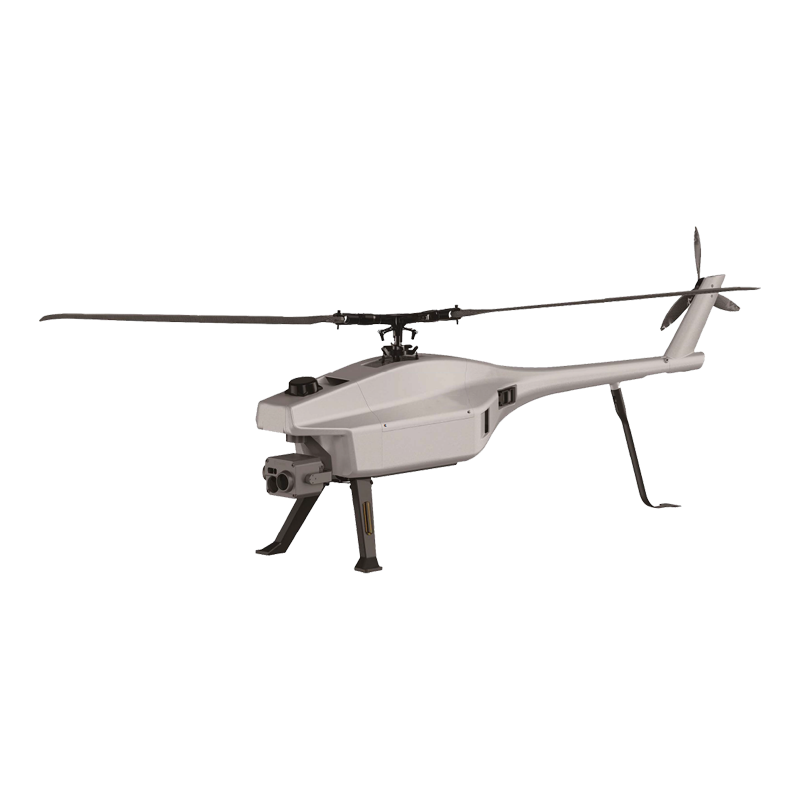

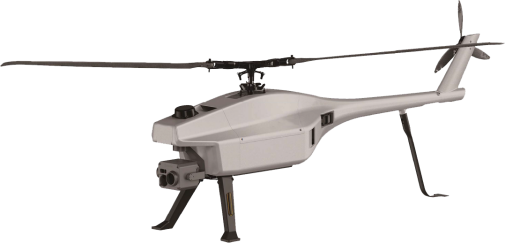

Machine size
|
1221×157×442mm
536×237×332mm
|
M
ain rotor diameter
|
1332mm
|
|
Maximum battery life
|
85min
|
Wind resistance
|
Level 7
|
|
Maximum take-off weight
|
7.5kg
|
Maximum flight altitude
|
7000m
|
|
HD image transmission distance
|
15km
|
Hovering accuracy
|
Vertical: ±2.0m (GPS) ±0.1m (RTK)
Horizontal: ±1.5m (GPS) ±0.1m (RTK)
|
|
Maximum level flight speed
|
90km/h
|
Obstacle avoidance function
|
support
|
|
Economic cruising speed
|
60km/h
|
Maximum ascent/descent speed
|
4m/s
|
|
Empty weight (including battery)
|
6.6kg
|
Storage temperature
|
-20 ℃～ + 45℃
|
|
Battery weight
|
3kg
|
Operating temperature
|
-20 ℃～+55℃
|
|
Three-light pod function
|
Visible light/infrared/laser ranging/tracking/position calculation
|
|
Visible light parameters
|
lOX enhanced optical zoom
|
Thermal imaging parameters
|
Focal length: 25mm Pixels: 640×512
|
|
Maximum range
|
1200m
|
|
|
1. Efficiency innovation
85 minutes of ultra-long battery life - get rid of battery life anxiety
A single flight has a wide operating range, reduces the frequency of take-off and landing and battery replacement, and efficiently utilizes the operating time window, improves overall efficiency and reduces operating costs
2、New Interaction
From three-dimensional to two-dimensional - simplifying the complex
Full touch screen control, new UI interaction, game-like control experience, easier to use, and reduces the risk of misoperation
|
Load
|
|
|
|

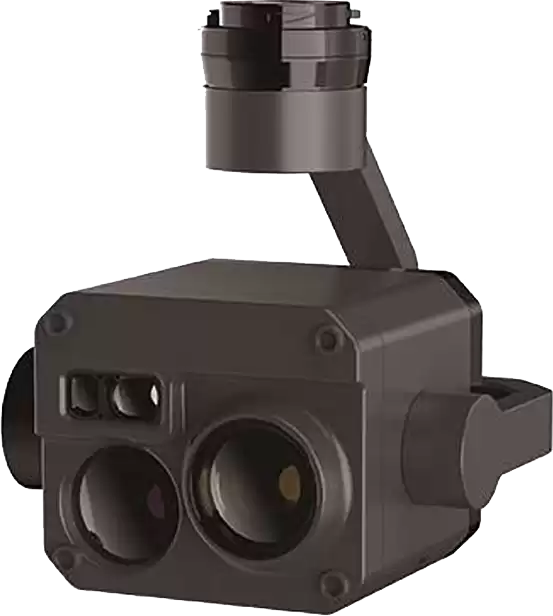

Three light pod
|

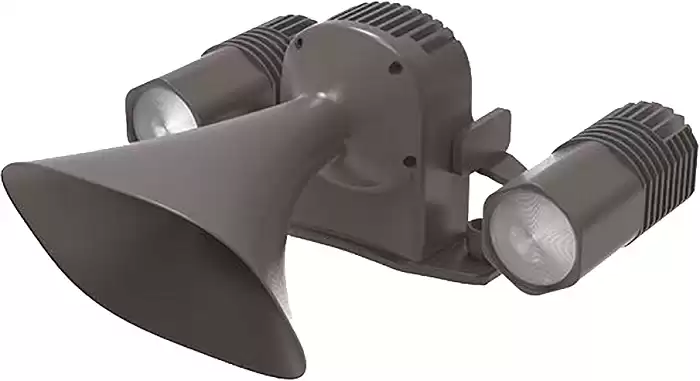

Megaphone + Searchlight
|
|
Accessories
|
|
|
|
|

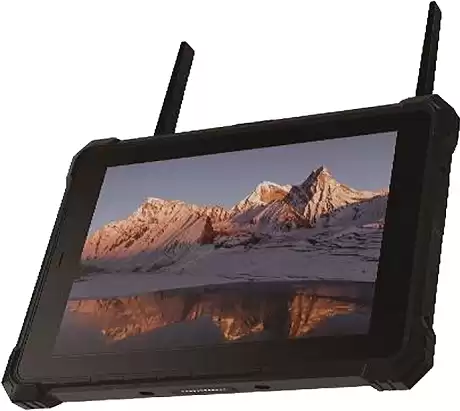

Flatbed ground station
|

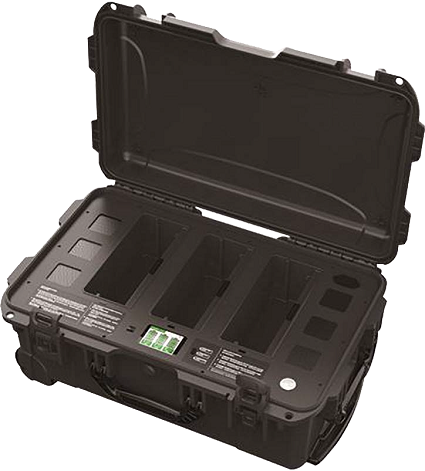

Battery Box
|

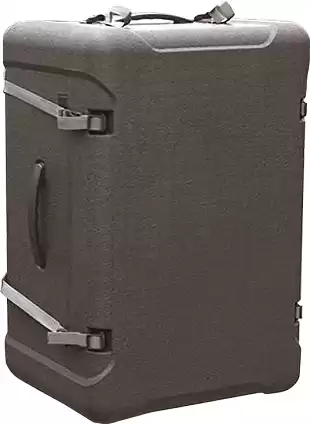

Portable backpack
|
