Long Group Power 550W Monocrystalline 166mm M6 Half Cut 144 Cell Solar Panel Mono PV Energy Power


530w With 144 Cells Half Cut Type Mono Crystalline



  • CertificationTUV CE ISO
  • Number Of Cells:144cells
  • Solar Cell:mono 9bb
  • Power Range520-550
  • BrandLongcom Group
  • Warranty25YERAS

Product introduction

Long Group Power 550W Monocrystalline 166mm M6 Half Cut 144 Cell Solar Panel Mono PV Energy Power


 SOLAR PANEL 530W WITH 144 CELLS HALF CUT TYPE



Parameter of solar panel:

Model Number
530-144M
535-144M
540-144M
Testing Condition
STC
NOCT
STC
NOCT
STC
NOCT
Maximum Power(Pmax/W)
530
395.8
535
399.5
540
403.3
Open Circuit Voltage(Voc/V)
49.20
46.03
49.35
46.17
49.50
46.31
Short Circuit Current(Isc/A)
13.71
11.08
13.78
11.14
13.85
11.19
Voltage at Maximum Power(Vmp/V)
41.35
38.55
41.50
38.69
41.65
38.83
Current at Maximum Power (Imp/A)
10.80
8.65
10.87
8.70
10.93
8.76
Module Efficiency(%)
20.7%
20.9%
21.1%
STC(Standard Testing Conditions):Irradiance 1000w/m²,Cell Temperature 25℃,Spectra at AM1.5.
NOCT(Nominal Operating Cell Temperature)
Pmax/W
Voc/V
Isc/A
Vmp/V
Imp/A
Pmax gain
467
49.4
12.09
41.2
11.34
5%
490
49.4
12.67
41.2
11.88
10%
512
49.5
13.24
41.3
12.42
15%
534
49.5
13.82
41.3
12.96
20%
556
49.5
14.40
41.3
13.50
25%
Electrical characteristics with different rear side power again (reference to 445W front)





Product Details


Glass
*Anti-reflective glass
*High-transmittance and low reflection Increase model efficiency
*High mechanical strength

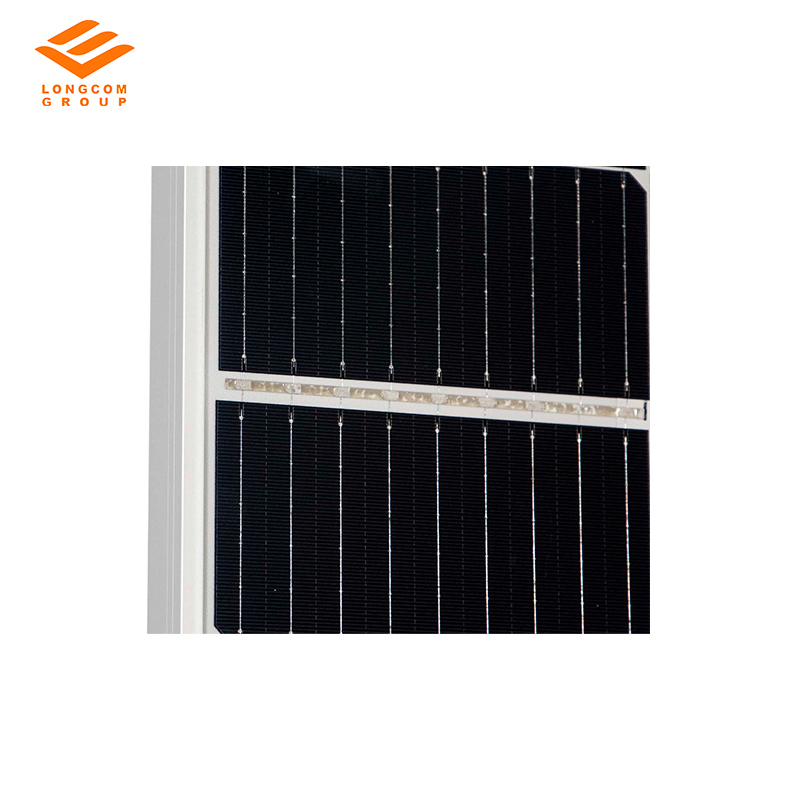

Solar Cell


*High model efficiency up to 20%

*High shunt-resistance: adapt the several environmental conditions
*High PID resistant
* Low breakage rate

*Uniform color









Frame
*Optional silvery or black frame
*Tensile Strength Frame
*Boost bearing capability and prolong service life










Junction Box

*Waterproof Junction Box

*Innovative Full-Glue-Filled Combination of series circuit and parallel circuit,

reduced internal power loss Quality diode ensures module running safety

*Heat dissipation
*Long service life





Production & QC




Automatic typesetting machine
After setting up the program according to the requirements of the process drawings, the typesetting machine will automatically
typeset the battery string. High precision, high efficiency, low defect rate

Solar cell Welding
Use automatic welding machine to connect solar cells in series
All the solar cells are made by top class brand, like TW Solar, Longi Solar



Automatic welding
Automatic laying of EVA, backing, automatic cutting of excess backing material 100% automation of the entire production process

100% Cells Sorting
Ensure Colour and Power Difference. Ensure high yields,consistent performance and durability, First of 52 steps strict quality control and inspection process.


Visual Inspection

Through the turning machine, completely inspect the solar panel after lamination, and record the defects and feedback to the previous process


100% Optimal Testing

Ensure 3% Positive Power Tolerance Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
