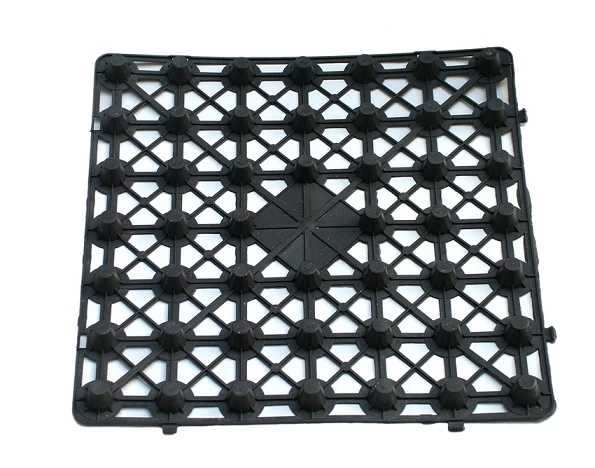

Long Lasting Drainage Plate for Roof Garden Construction

Drainage plate is long lasting and low cost, durable, high efficiency. Plastic drainage plate is the best materials for roof garden construction.


  • Total Volume0.06m3/bundle
  • Size410x410x25mm
  • ColorBlack
  • MaterialHDPE
  • Press Strength≥320Kpa

Long Lasting Drainage Plate for Roof Garden Construction Specifications:

Item No.

B3(JES25)

B2(JES20)

B1(JES25)

B4(JES25)

B5(JES25)

B6(JES30)














Material

HDPE

HDPE

HDPE

HDPE

HDPE

HDPE

Size

500*500*25mm

500*500*20mm

410*410*25mm

330*330*25mm

500*500*25mm

500*500*30mm

Quality

1800(g/m2)

1800(g/m2)

1800(g/m2)

1800(g/m2)

1800(g/m2)

1800(g/m2)

Anti-pression Strength

320Kpa

600Kpa

320Kpa

320Kpa

320Kpa

320Kpa

Tensile Strength

5N/cm3

5N/cm3

5N/cm3

5N/cm3

5N/cm3

5N/cm3

Drain Capacity

23.5cm3/s

23.5cm3/s

23.5cm3/s

23.5cm3/s

23.5cm3/s

/



Drainage Plate to replace the drainage layer pebbles treatment not only save time, effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Drainage Board and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Composite Drainage Board light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape



Features and Benefits:

  • Lightweight
  • High compression strength
  • Seepage proof
  • Available in different sizes
  • Cost save
  • Water drainage and storage
  • Easy installation
  • No surface drains required
  • Reduces surface temperature around building
  • High load bearing 148.58t/m2 unconfined
  • Replenishes water supply to landscaped areas
  • Unique and easy to use interlocking system
  • Promotes fast and excellent plant growth
  • Strong structure can support heavy loads
  • Retains a minimum of approximately 76L/m2 of perched water above the cells



Composite Drainage Plate Application:

Roof greening

Bridge abutments

Underground

Road

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Fire lanes

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields



Composite Drainage Plate Construction:


Projects View:


Leiyuan Strength drainage Plate: Good water feature, Long life service!
