Product features
The communication coverage is wide, flexible and efficient
Multi-load compatibility and strong scalability
Modular design for rapid deployment and maintenance
Redundant design, safe and reliable
It has good environmental adaptability and strong wind resistance
Product Details

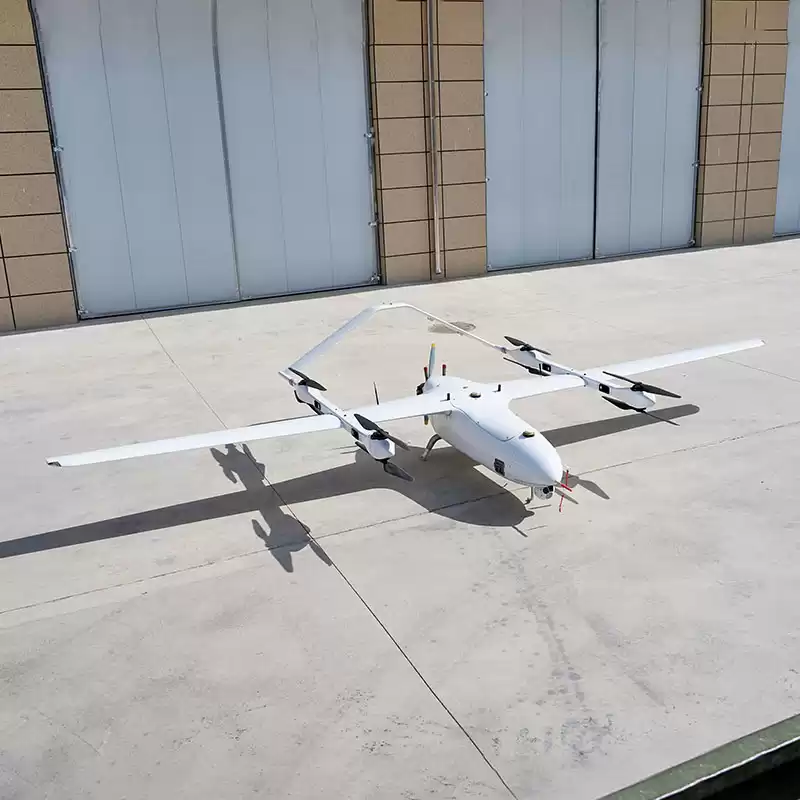

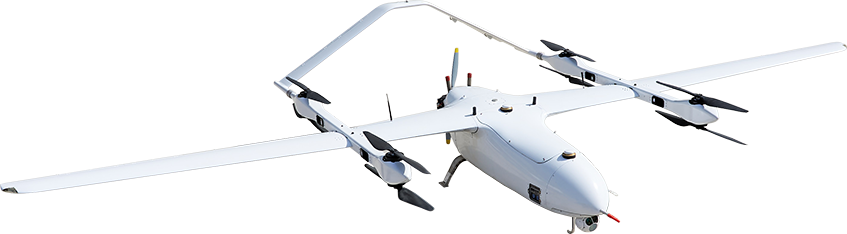

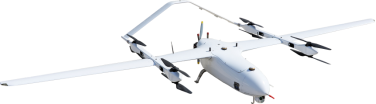

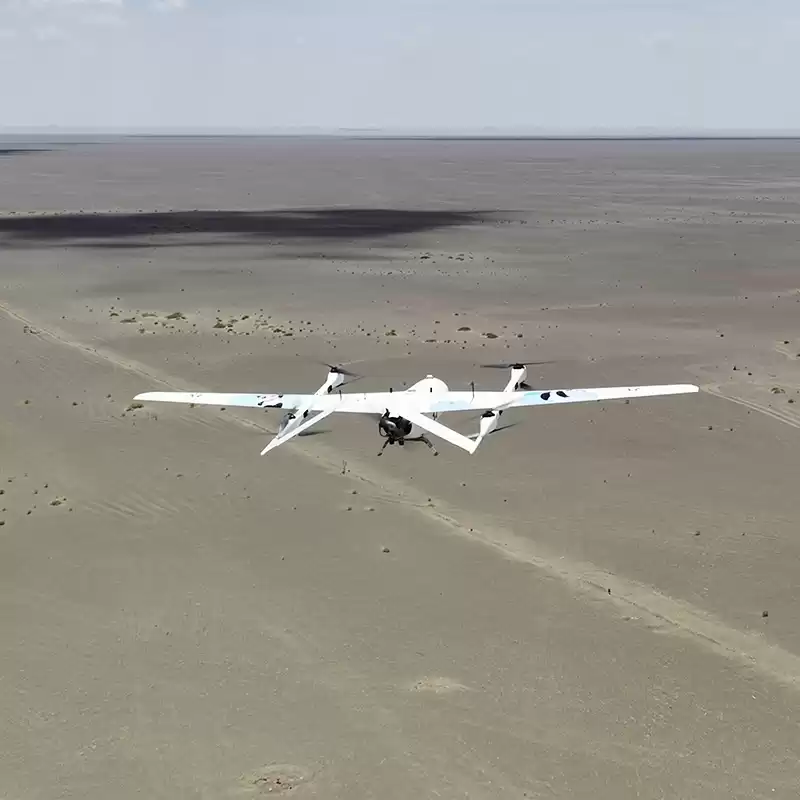

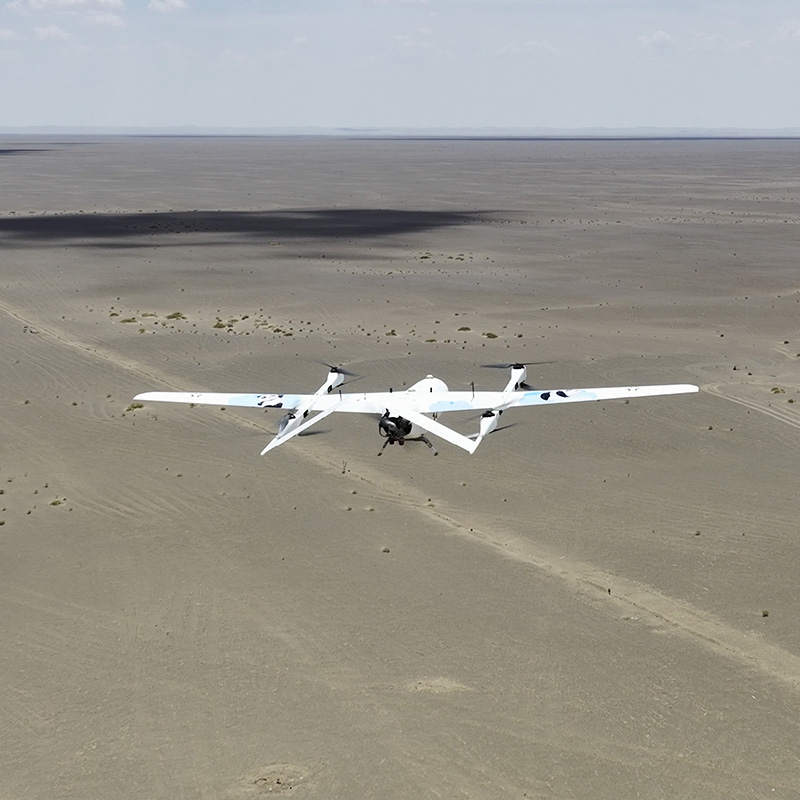

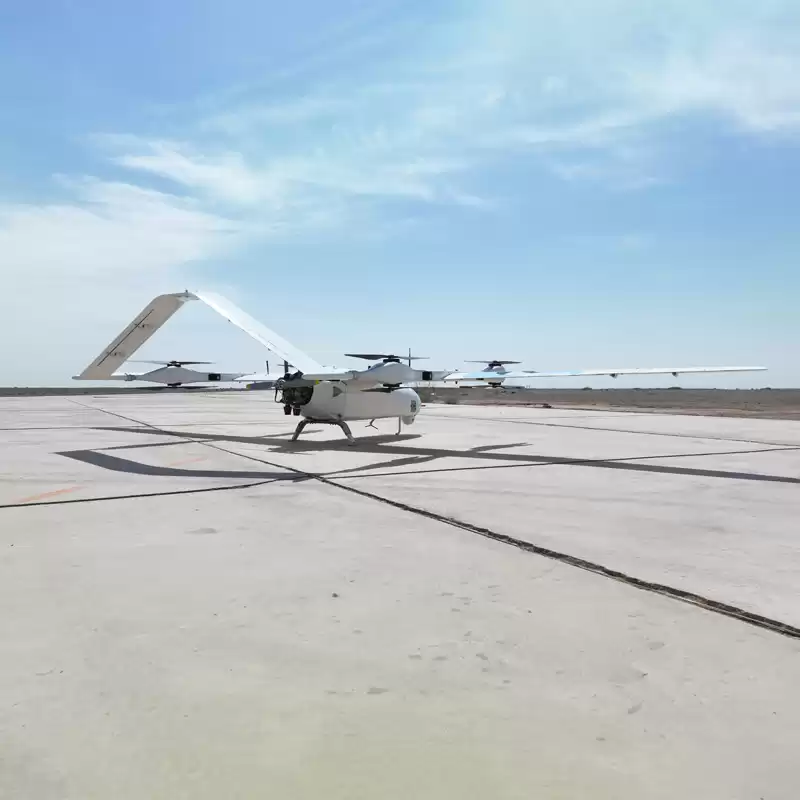

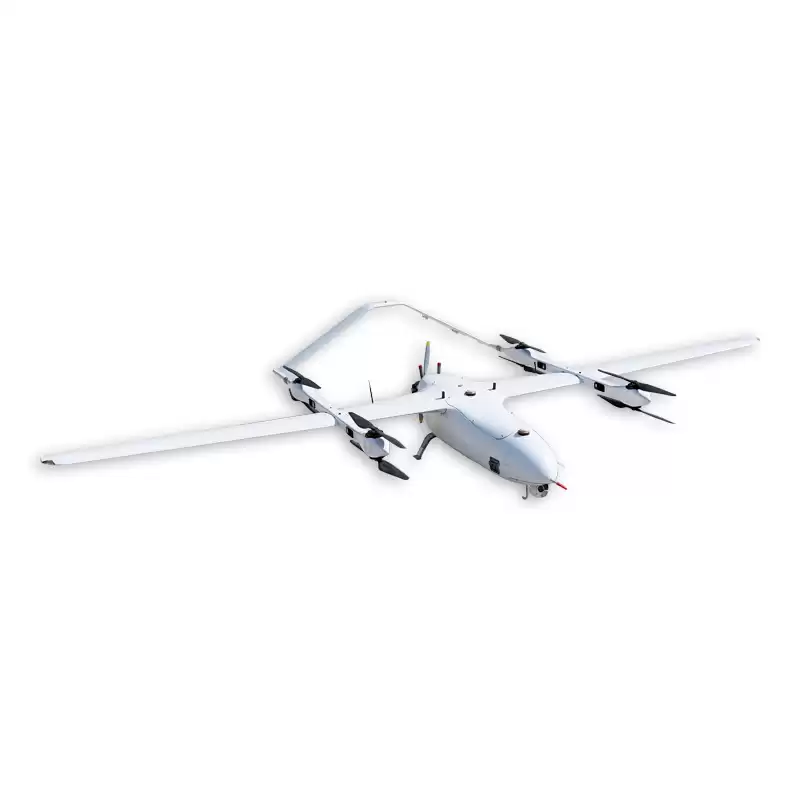

This system adopts an advanced hybrid power design of oil and electricity, combining the advantages of long endurance of fuel power and high efficiency of electric drive, ensuring that the drone can still maintain stable flight in complex environments. Compared with traditional pure electric or fuel-powered drones, this system has a longer stay in the air, which can meet the requirements of large-scale and high-intensity operations and significantly improve the efficiency of mission execution. It becomes an ideal choice for diverse tasks such as aerial reconnaissance, maritime monitoring, fire rescue, meteorological observation, emergency communication support, and material transportation.
This drone can carry a variety of mission payloads, including high-definition electronic optical pods, multi-spectral sensors, communication relay equipment, emergency supplies, etc., meeting the needs of different industries. The entire drone adopts a modular structure design, which can be quickly disassembled and assembled. Only a small number of personnel are needed to complete transportation, deployment and maintenance. The entire system can be carried by ordinary freight vehicles, significantly reducing the difficulty of logistical support. It is suitable for rapid response tasks in various complex environments such as the wild, mountainous areas, and at sea. In addition, an optional Satcom data link can be installed, enabling communication in areas covered by satellites.
The system adopts multiple redundant designs to ensure flight safety. Meanwhile, the intelligent flight control system can monitor the flight status in real time, automatically adjust the attitude, and maintain stable flight even in bad weather conditions. Drones have excellent environmental adaptability and can operate stably in high temperature, low temperature, high altitude and light rain conditions. It can withstand strong winds during level flight and also has good wind resistance during takeoff and landing, ensuring the smooth execution of the mission.
Product parameters
|
Parameters
|
|
Size
|
3300mm**6900mm*1000mm
|
|
Cruising speed
|
110~140km/h
|
|
Effective load
|
≤40kg
|
|
Maximum takeoff weight
|
150kg
|
|
Practical ceiling
|
5000m
|
|
Maximum operating time
|
10h
|
|
Maximum take-off and landing altitude
|
3500m
|
|
Visibility control radius
|
200km
|
|
Engine power
|
18kW
|
|
The above parameters are for reference only. The detailed product parameters are subject to the actual delivery.
|
