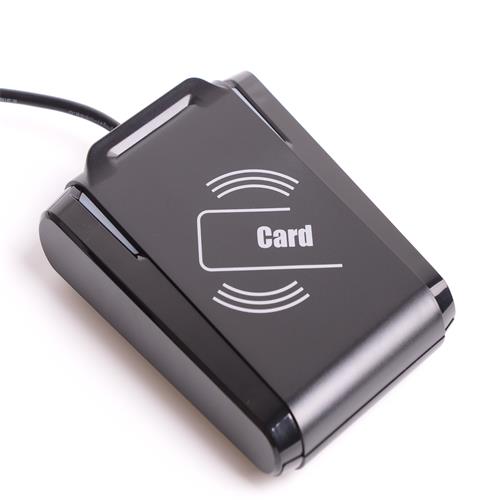

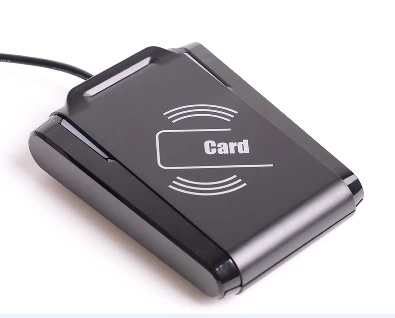

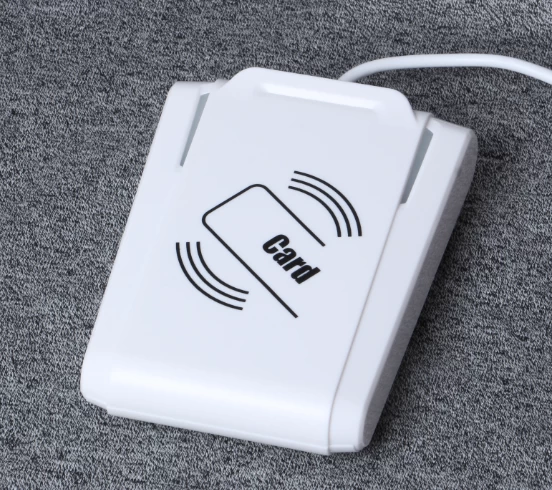

Long Range Proximity 125KHZ T5577 RFID ID Card Tag Reader

Improve efficiency and productivity with our RFID readers. Explore now. Meihe RFID readers are designed specifically for your enterprise and environment. Best Encoding Accuracy. Industrial durability. Operational Efficiency. User-friendly features. Types: Retail, Healthcare.

Facebook Twitter Pinterest LinkedIn 分享

Description

G-series 125KHz Smart Card Reader

Host Interface

Interface

USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps)

Power Source

From USB port

Supported Operating Systems

Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above

Contactless Smart Card Interface(125KHz)

Support the card type

Temic 5567/5577 read/write, EM 4001 read only

Operating Distance

Up to 40mm

Built-in Peripherals

Buzzer

Monotone

LED Status Indicators

2 LED (green, blue)

Physical Specifications

Dimensions

125mm (L) x 95mm (W) x 28mm (H)

Weight

180g

Operating Conditions

Temperature

-10°C – 60°C

Humidity

10% to 90%, non-condensing

Next Product

Prev Product

Product Tags "rfid reader" rfid reader cat rfid reader rfid reader animal industrial rfid reader rfid tag reader rfid reader manufacturer rfid tags and reader rfid card and reader

Factory Directly Auto Upholstery Faux Nappa Vinyl Leather

Fitness colorful children playground music piano toy equipment set

Classic Beige color luxury PVC kitchen cabinet with storage accessories

GPS Tracking Circuit Board Assembly

Customized Logo and Size Cardboard Paper Boxes for Fruit and Vegetable

Eco-friendly Double Wall Paper Coffee Cups with Lids

Air Purifier Application Common Anode 7 Segment Display

3000w solar power system portable generator kit for home

P1.875 LED flexible screen 360-degree multi-picture soft-module LED display

LED custom screen

1.2mm Thickness Car Seat Cover PU Leather Fabric

Long Range Proximity 125KHZ T5577 RFID ID Card Tag Reader

INQUIRY

Information

Company


Host Interface
Interface	USB 2.0 Full Speed Device (HID)or High Speed RS232 (9600-115200bps)
Power Source	From USB port
Supported Operating Systems			Windows® XP, Windows® 7, Windows® 8.1, Windows® 10, Linux®, Android4.0 above
Contactless Smart Card Interface(125KHz)
Support the card type		Temic 5567/5577 read/write, EM 4001 read only
Operating Distance		Up to 40mm
Built-in Peripherals
Buzzer		Monotone
LED Status Indicators		2 LED (green, blue)
Physical Specifications
Dimensions		125mm (L) x 95mm (W) x 28mm (H)
Weight		180g
Operating Conditions
Temperature		-10°C – 60°C
Humidity		10% to 90%, non-condensing
