Long Range UHF H3 860-960MHZ ABS RFID Tags For Logistics Management

The ABS hard logistics label is customized, it can do single color or multi-color printing, barcode or QR code printing, laser engrave, data encoding, etc. And currently we have black, yellow, red, green, blue, pink etc.



Long Range UHF H3 860-960MHZ ABS RFID Tags For Logistics Management


It is the most fertile field for supply chain management and logistics management in  RFID application. RFID in the supply chain plays a major role in enhancing the visibility right from the point of manufacturing, via supply chain, and most significantly from the back room to the floor, and ultimately to the exit door.

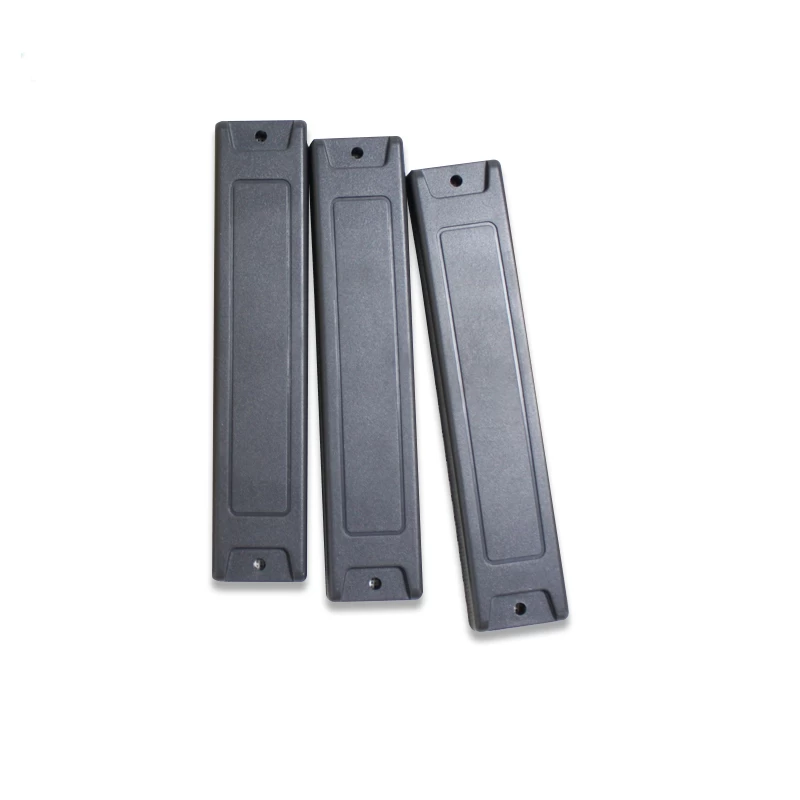

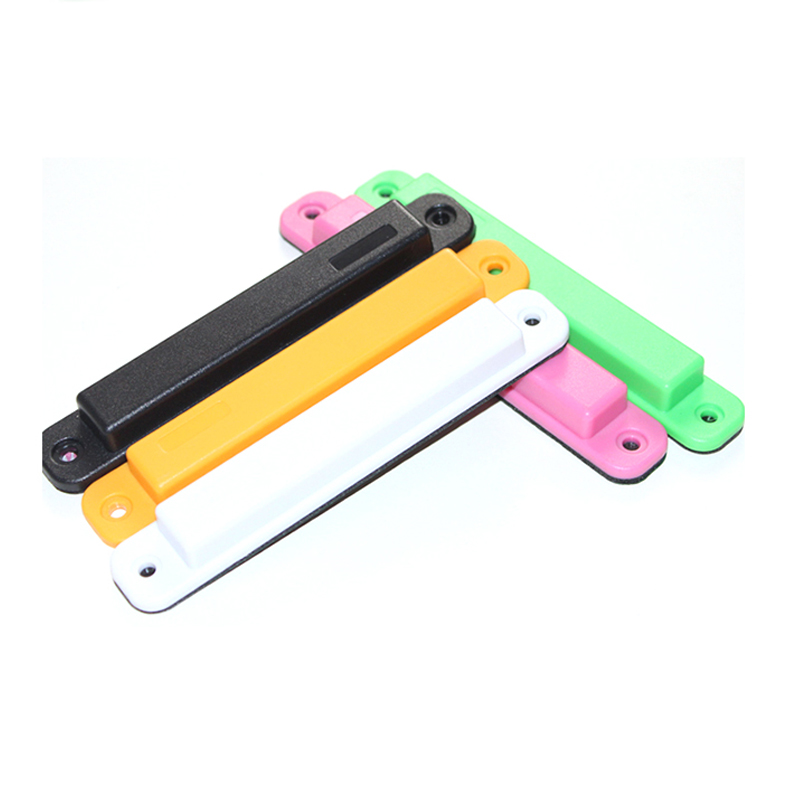

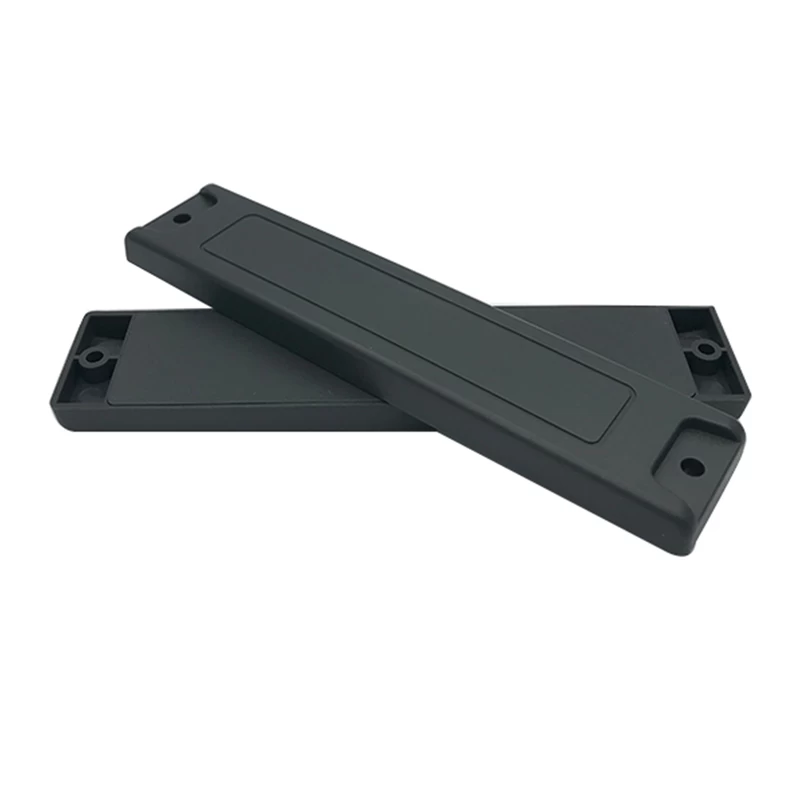

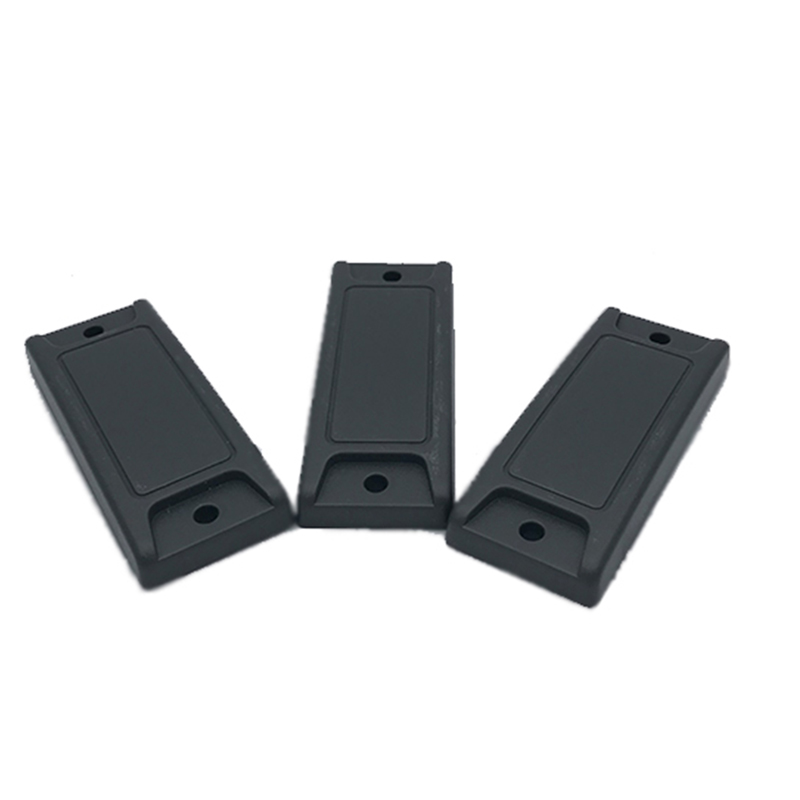

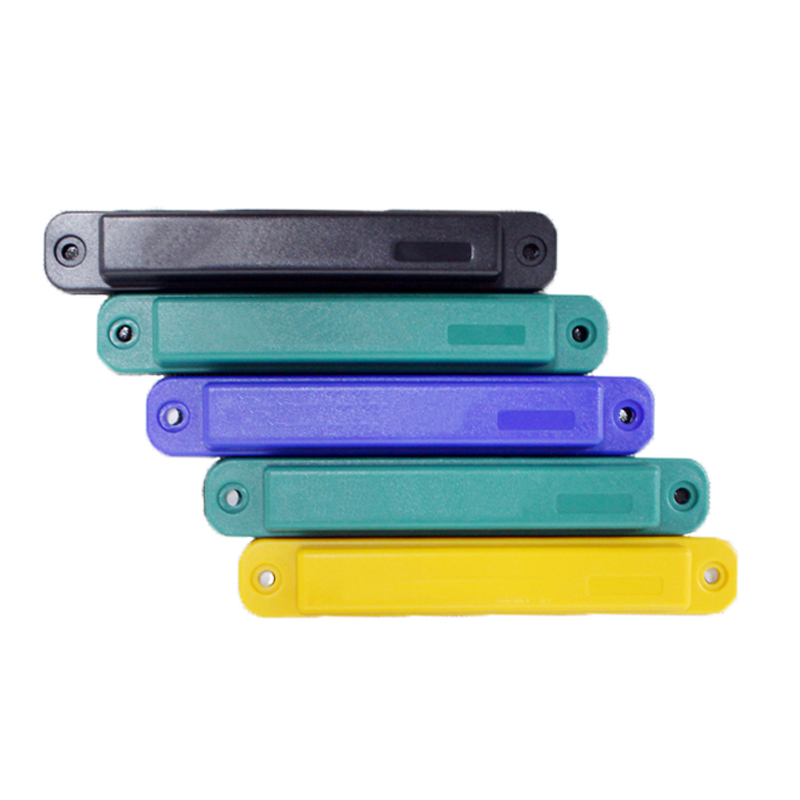

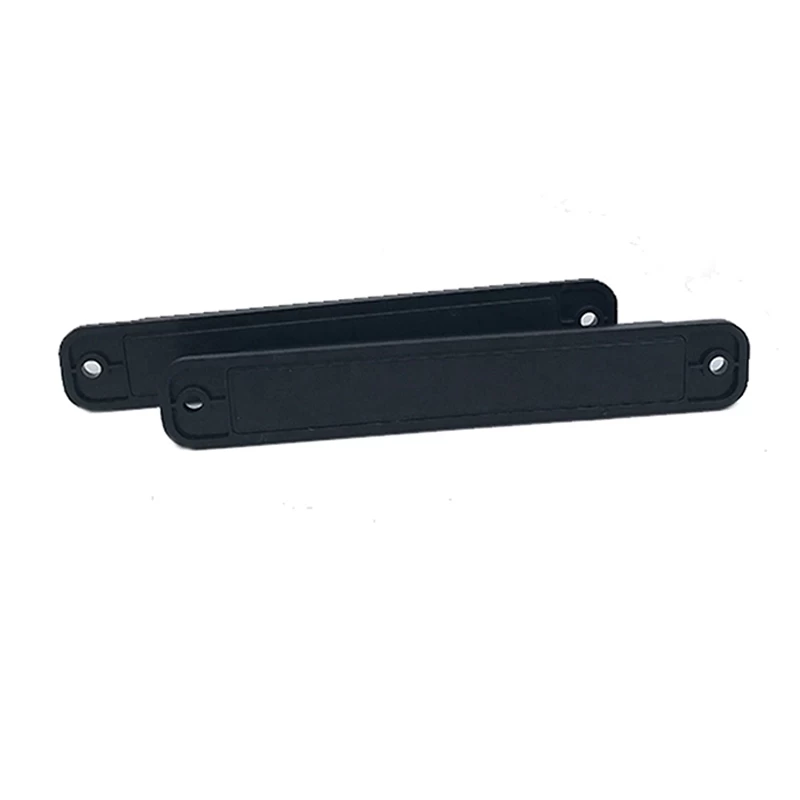

Products Display :

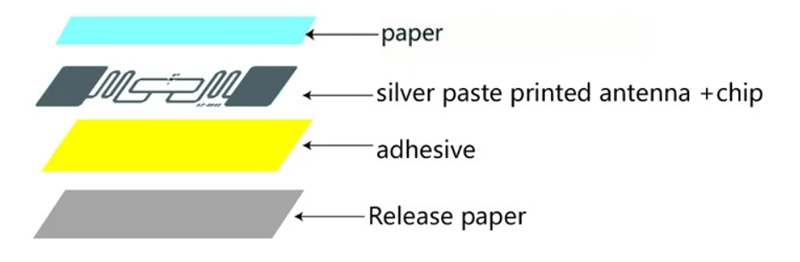

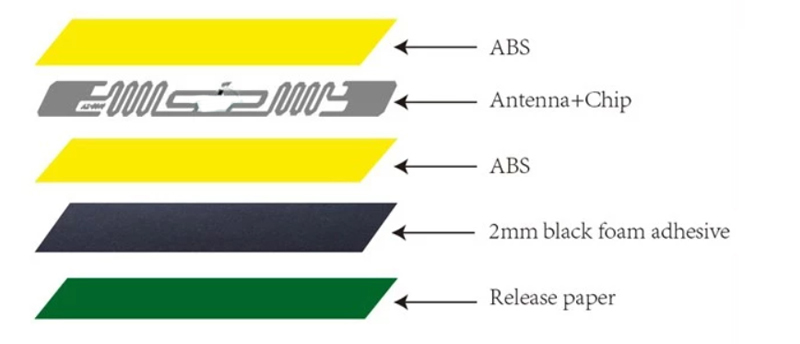

Product Structure:

RFID Logistics Labels


RFID Anti-Metal Tags



Products Description :

Parameters
Chip
UHF:H3 H3/H4,Monza4/5,UC 7 or customized
Protocol ISO18000-6C
Size

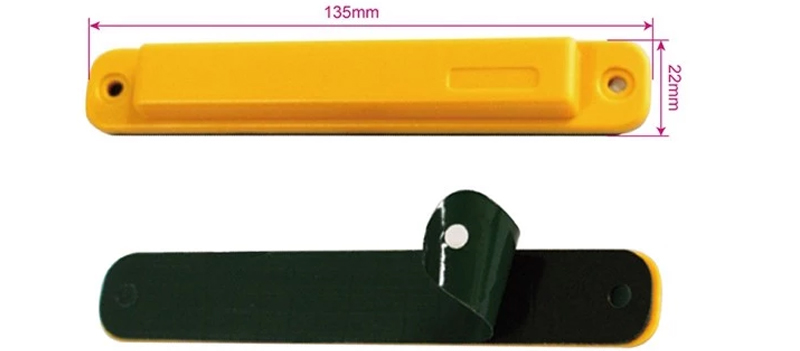

80*80mm,135*22*12mm(as picture),

73*20,80*80,100*50,65*15*12,87*41*8,1mm,or customized.

Memory
96bit,128bit.etc.
Frequency
860-960MHz
Material
Coated paper,CPC,ABS+foam, PVC, PET,or customized
Write Endurance ≥100000 cycles
Reading Range
UHF:0-10m(depends on the reader and antenna)
Application
Logistics ,Asset management,Stock control,Warehouse,Item tracking,etc.
Optional Craft

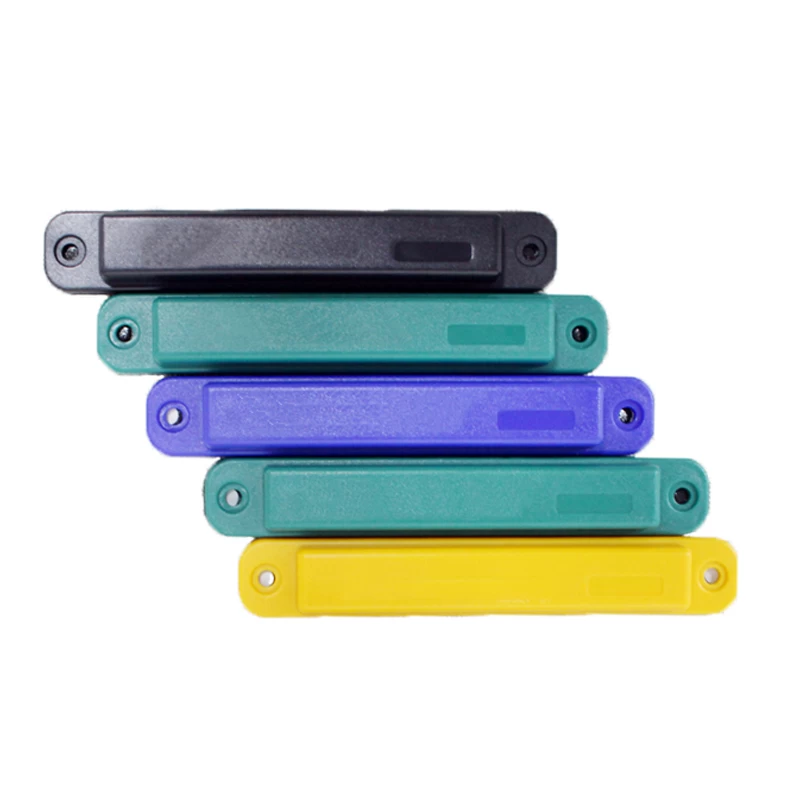

Color
black, yellow, red, green, blue, pink etc.
Craft Single color or Multi-color Printing,Barcode or QR Code printing,Laser engrave,Data encoding,etc.
Package
Type
piece by piece,in roll,or customized
Volume carton
50x45x35cm
Quantity
15pcs/bag, 32bags/ctn; 1000pcs/roll,2000pcs/roll
Weight
8.6kg/ctn;1kg/roll

FAQ:

Q1. Can I get sample for test ?
1. Yes sure, and samples without printing is free.

Q2. What chip should I use? And Inlay?
We have LF, HF and UHF chips with various memory and reading distance. If you are not sure, please inform our sales with project details.

Here are some commonly used chips and inlays for your reference:
1. LF (0-5cm): TK4100 (64 Bit), HitagS256 (256 Bit), EM4305 (512 Bit).
2. HF (0-15cm): N213 (144 Byte), F08 (1K Byte), IC SLIX (128 Byte).
3. UHF (1-10m): H3 (96 Bit), H3 H4 (96 Bit), Monza 4D ( 128 Bit).
4. Inlay: H3 9654, H3H4 9762, M4QT, M4E.

Chips are then mounted on different inlays (Antenna etched on PET layer) for achieving different reading distance and angles. Our sales will provide you the most suited inlay if not specified.

Q3. What the data can I encode to each Tag?
We can encode different serial numbers, URL/website, Text to each Tag as your request.

Q4. What file of printing image should I offer to you?
Design Files of AI, PDF, Corel Draw, Photoshop, CAD format are supported. If no, then send us JPG or BMP, we can design for your confirmation, it takes longer time though.

Q5. What about sizes?
All the size and the shape of the final product can be customized as your request. For die-cutting the minimum size should be 4mm bigger than inlay normally.

Q6. NFC Anti-metal material thickness?
We have 0.15mm, 0.2mm, 0.35mm and 0.5mm thick absorbing material for your reference.

Q7. What About the Payment terms ?
We accept T/T, Western Union, PayPal, MoneyGram.
PS: We can accept the 50% deposit, 50% payment before shipment .

Q8.  What about lead time?
Quantity below 100,000pcs normally 7-12 days. We will prioritize arrange if urgent , and pls infirm us before production as soon as possible.
