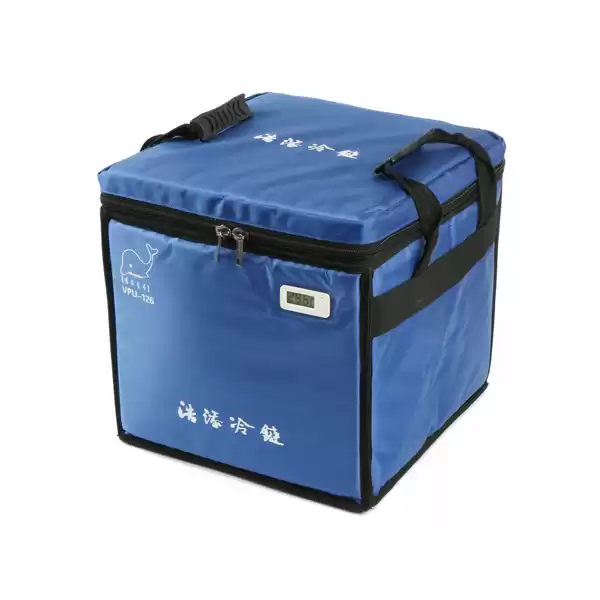

Long time Low temperature Tranportation cooler box
The cost of the logistics is reduced remarkably since VPU box costs much less than other insulating materials. Insulation is an important part of maintaining low temperature. The weight of the package is reduced drastically as VPU foams are lightweight as compared to their volume.
|
Category
|
Medical cooler box
|
|
Main Material
|
VPU high performance insulation panel
|
|
Application
|
Medical, vaccine, blood storage and transport
|
|
Dimension
|
Outer Dimension:310x310x310mm
Inner Dimension:230x230x230mm
|
|
Capacity
|
Payload capacity:12L
|
|
Cold source
|

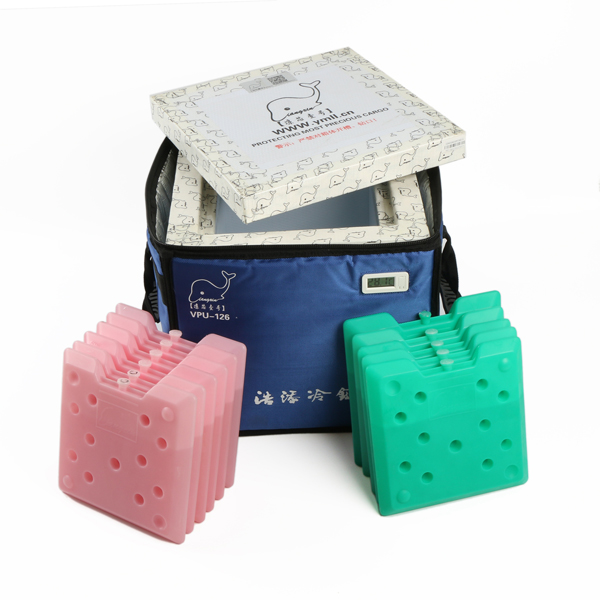

Ice Pack:6pcs combine cube: ice bricks size: 380*380*30mm
|
|
Cold life
|
keep 2 deg C to 8 deg C for more than 50hours / 72 hours at ambient temperature of - 25deg C to +35 deg C.
|
Application
Cold Chain Bags and Medical Cold shipping Box, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for: Vaccines,Insulin,Biopharmaceutical, Life Science and other Medical Products,IVD products and biological specimens,Selected fresh food, drink and dairy products.
Usage
1. Before using, wipe the non toxic sealed HT Ice Bricks dry, and place into a freezer until they are fully frozen (about 10 hours). If using HT Ice Packs, fill with clean fresh water, firmly replace the screw cap, then follow the same procedure.

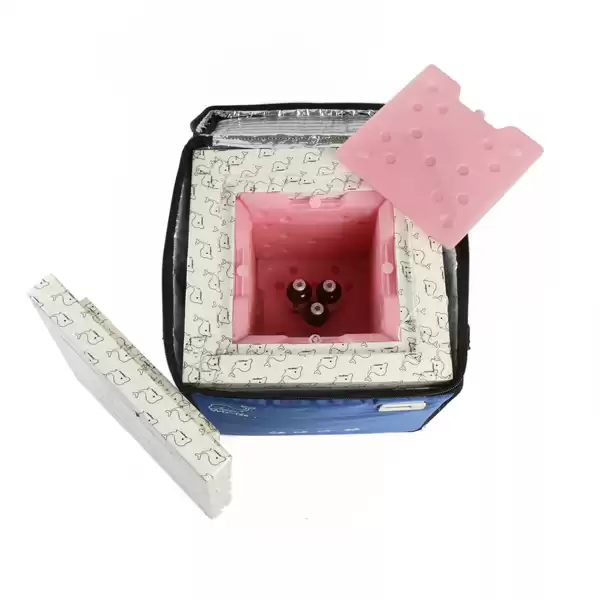

2. Remove the frozen packs from the freezer, and place every pack into the box in the positions indicated, and close the lid.
3. When the temperature of the box reduces to below 8°C, open the lid and place the contents to be kept cold in the cold transport container. Close the lid.
