Product Introduction

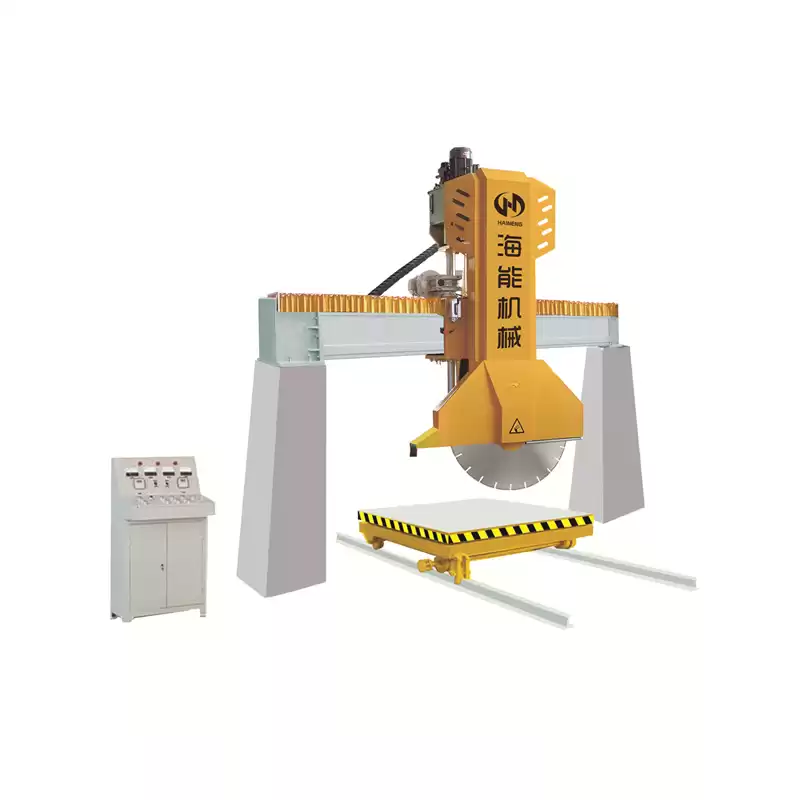

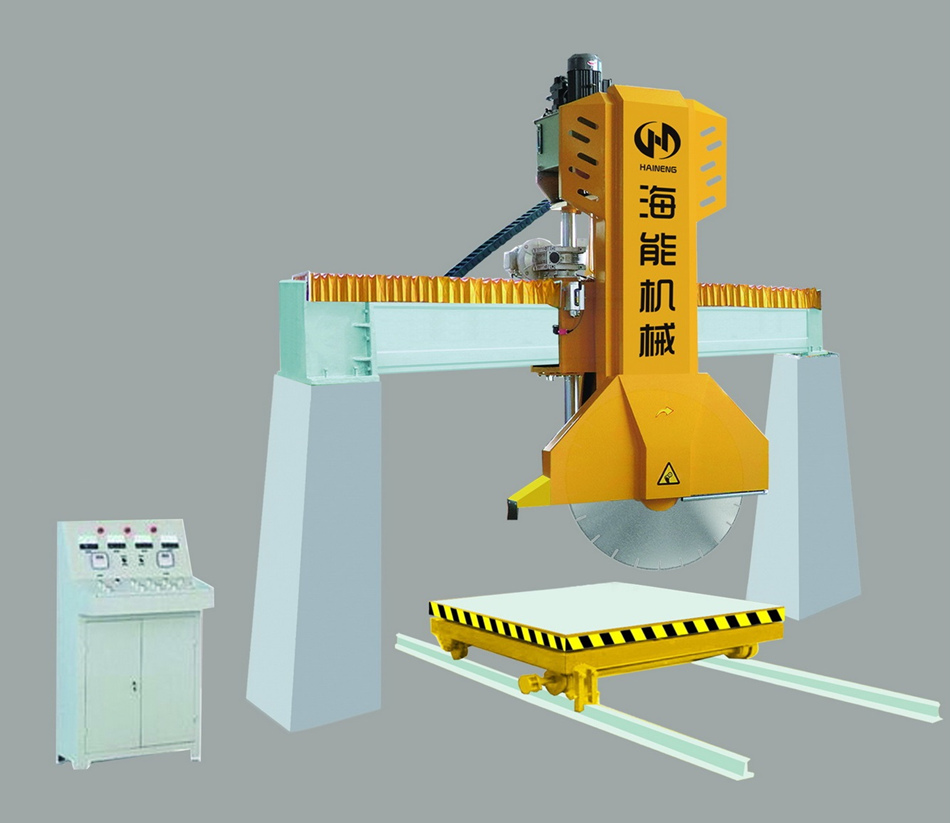

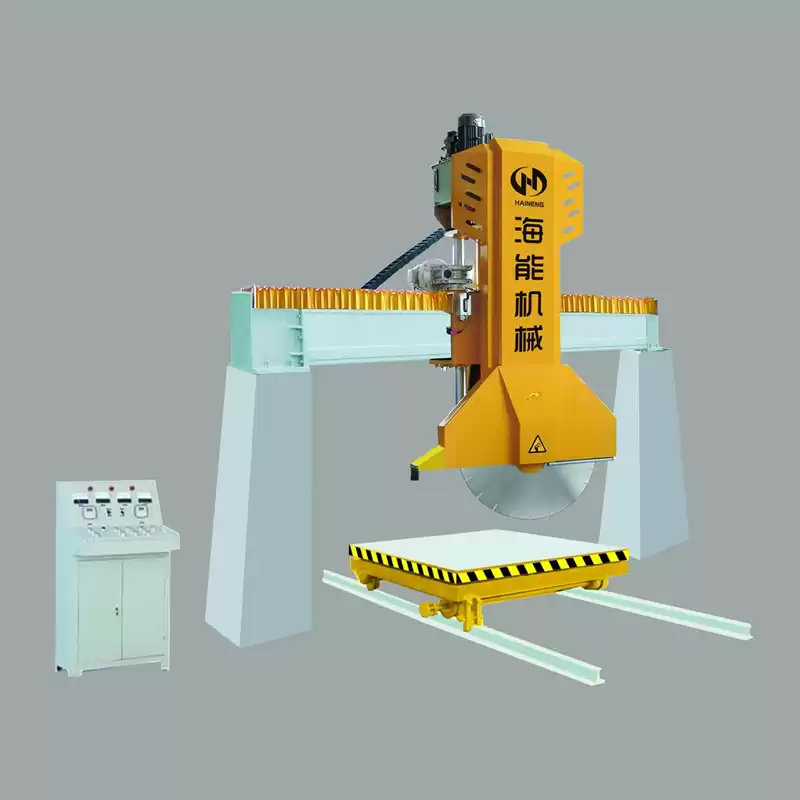

Longmen Medium Stone Cutting Machine is simple structure, small footprint, lifting system with hydraulic drive up and down the knife, more rapid, stable, long life, easy maintenance. Stone processing enterprises greatly improve production efficiency,but also reduce the maintenance cost of the equipment.
The slick-lifting plate and guide rail pillar, trolley rotated by manually rotating and hydraulic auto-rotate for users to choose. This machine is mainly used in cutting thick blocks, especially for processing thickness blocks in 750-950 below, is the ideal device small and medium scale stone processing enterprise.
Technical Parameters
|
Longmen Medium Stone Cutting Machine
|
|
Type
|
unit
|
LZQ-1800A
|
LZQ-2200A
|
|
Blade diameter
|
mm
|
Φ1800
|
Φ2200
|
|
Max.cutting length
|
mm
|
3500×1800×750
|
3500×1800×950
|
|
Size of trolley
|
mm
|
1800×1800
|
1800×1800
|
|
Power of main motor
|
kw
|
30
|
37
|
|
Total power
|
kw
|
33.6
|
40.6
|
|
Water consumption
|
m³/h
|
6
|
8
|
|
Dimension (L×W×H)
|
mm
|
6800×1500×3000
|
7800×1500×3000
|
|
Total weight
|
kg
|
5500
|
6200
|
