Low-energy LED Cleanroom Ceiling Light Panels For High-performance Clean Room

The outer frame of LED cleanroom ceiling lamp is made of aluminum alloy by anodic oxidation. It has many performance characteristics such as strong dimming performance, high luminous efficiency, small size and light weight, and it has energy saving and environmental protection, long service life, safety and reliability.


  • ApplicationsPharmaceutical、Laboratories、Healthcare 、Hospital、General
  • IP CodeIP54
  • Luminance Flux(Lm)1400/2400/3800/5500/5700/7250
  • Color Temperature(K)2700-6500
  • Power(W)15/25/40/60/80
  • Specification(mm)300x300x12/300x600x12/300x1200x12/600x600x12/600x1200x12/200x560x12/200x1000x12

Wiskind Low-energy LED Cleanroom Ceiling Light Panels For High-performance Clean Room


Model

LxWxH(mm)

KW

Color Temperature(K)

IP Code

Luminous Flux(Lm)

YJ101
300*300*12
15
2700-6500
IP54
1400
YJ102
300*600*12
25
2700-6500
IP54
2400
YJ103A
300*1200*12
40
2700-6500
IP54
3800
YJ103B
300*1200*12
60
2700-6500
IP54
5700
YJ104A
600*600*12
40
2700-6500
IP54
3650
YJ104B
600*600*12
60
2700-6500
IP54
5500
YJ105A
600*1200*12
60
2700-6500
IP54
5300
YJ105B
600*1200*12
80
2700-6500
IP54
7250
YJ106
200*560*12
25
2700-6500
IP54
2400
YJ107
200*1000*12
40
2700-6500
IP54
3800


Remark: all products can be emergency, add -e after the model, which means the product has emergency function, such as yj103a-e, emergency time is 90 minutes or 180 minutes.

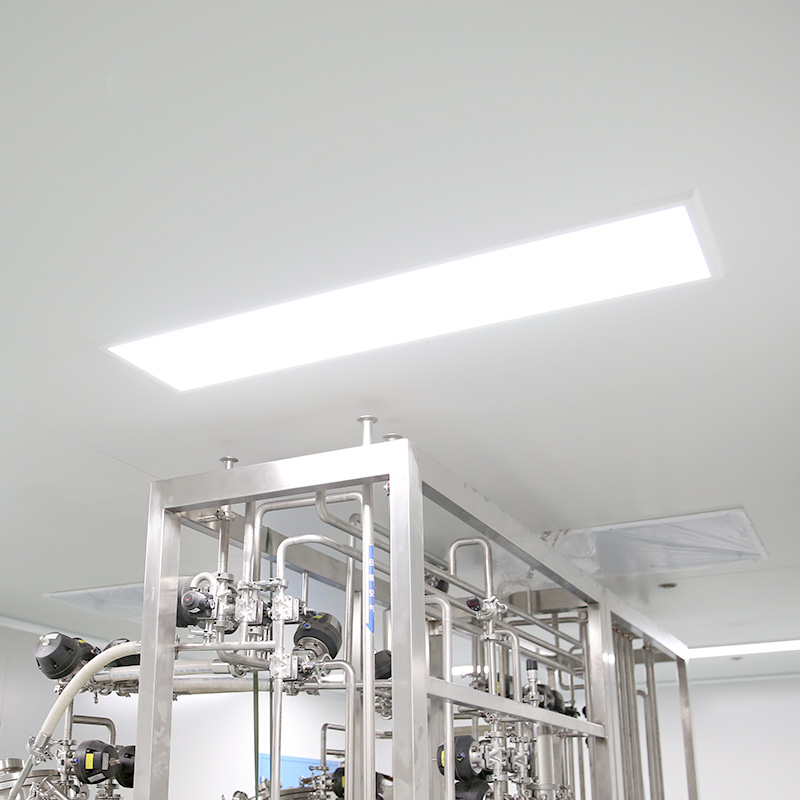

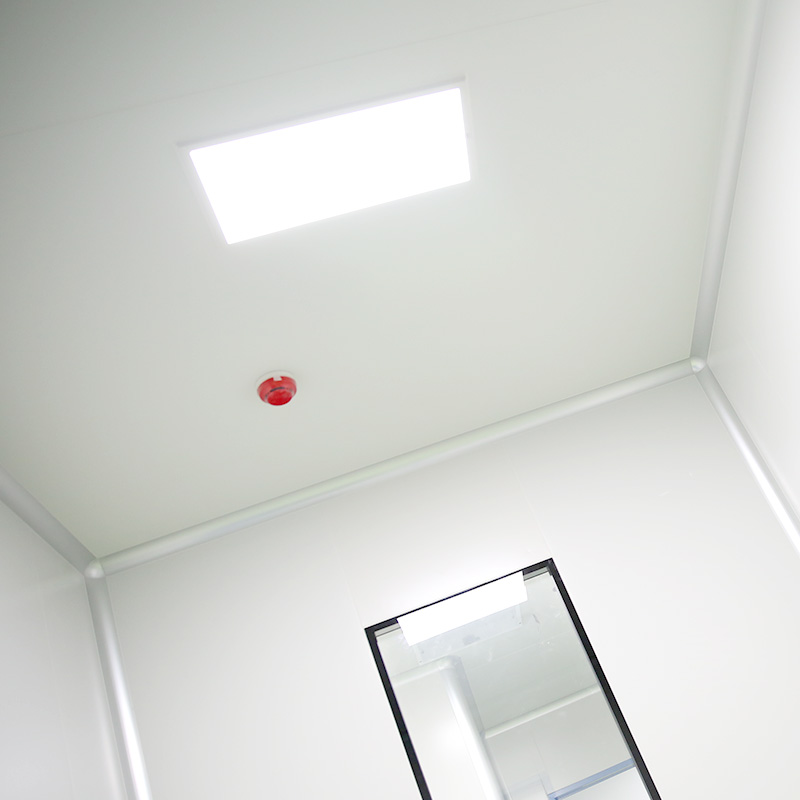

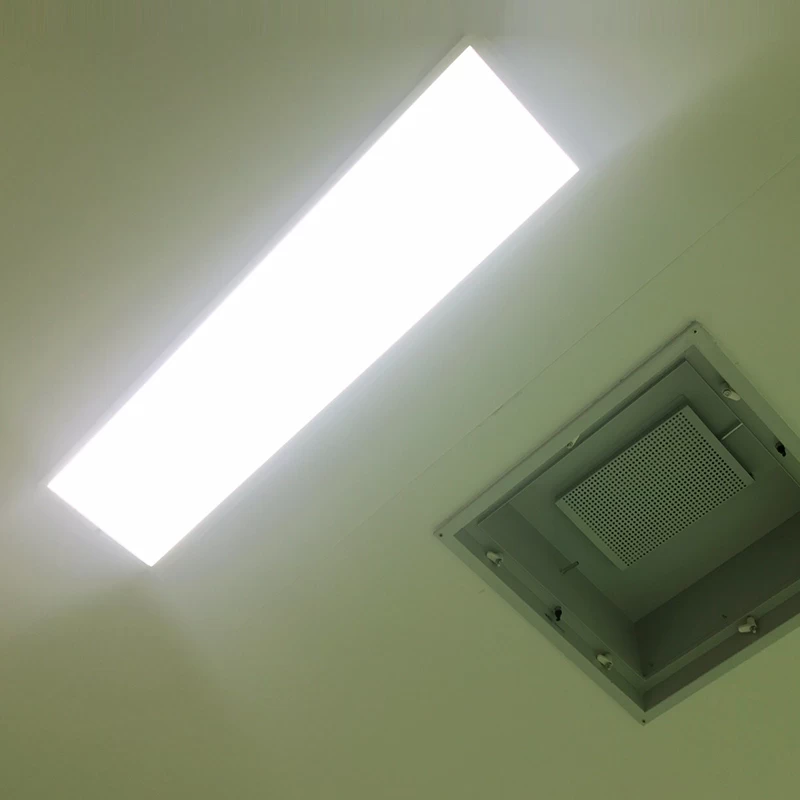

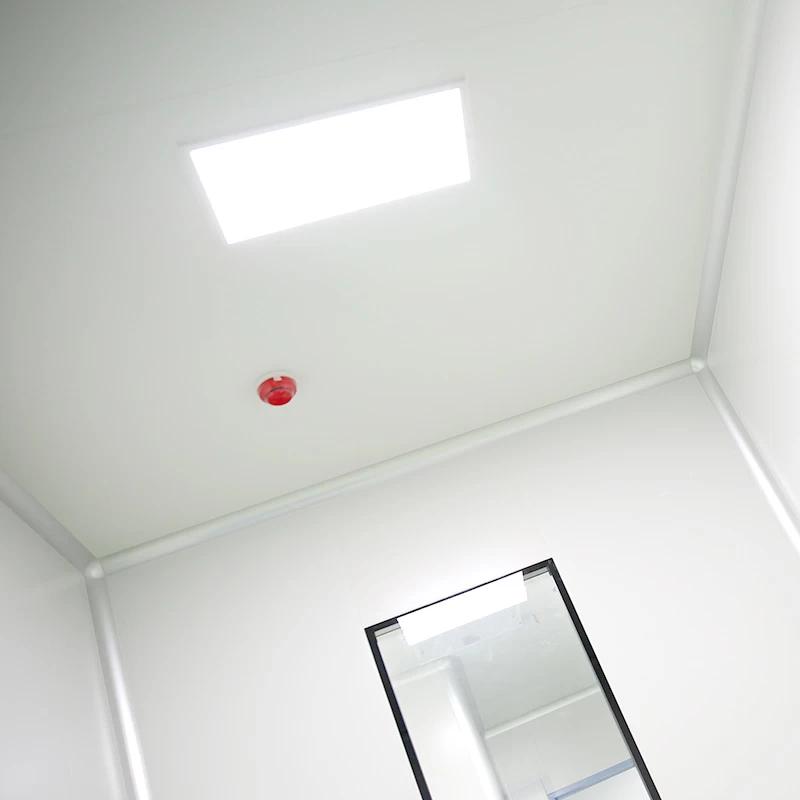

Clean Room Lighting Lamps

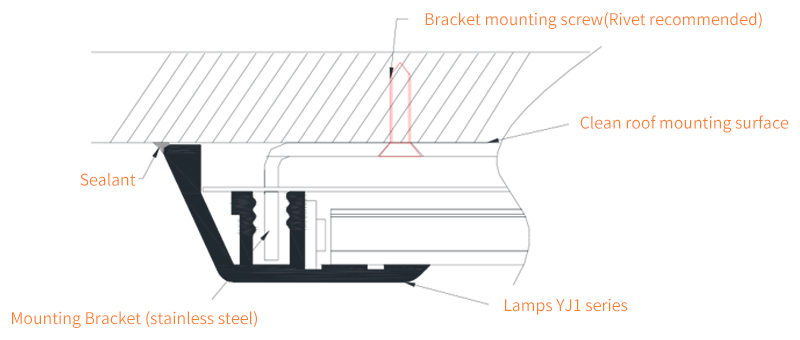

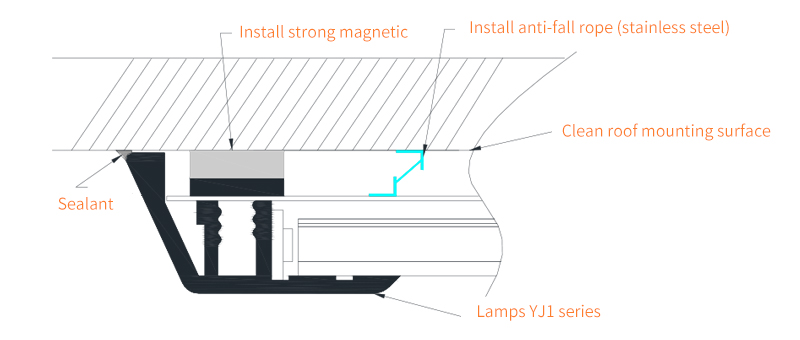

Clean Room Lamp Installation

1、Integrated bevel design, fully integrated clean environment photo visual system.

2、It is made of aluminum with high thermal conductivity, and its surface is treated by anti-static spraying.

3、Imported chip LED light source, day blue light hazard and photobiological pollution.


Requirements for lighting


1. try to use the top suction Ming.

2. The lighting standard is generally 200-500 lux, and the auxiliary room, corridor and air lock room are generally 150-300 lux.

3. The uniformity value of illumination is greater than 0.7.

4. Illumination glare value is less than 22.

5. Emergency lighting, the quantity should be 20% of general lighting.


Lamps and lanterns requirements


1. clean room lighting lamps generally use efficient, anti - glare lamps.

2. The lighting fixtures in the clean room must be strobe free, noiseless and anti-interference when working.

3. The structure and appearance of lamps cannot affect the air flow mode in the clean room.

4, the lamp frame is smooth, not easy to dust, easy to clean, no special edges and corners, and cleanroom ceiling panel installation, beautiful and generous.

5, the surface of lamps and lanterns to resist corrosion, oxidation.

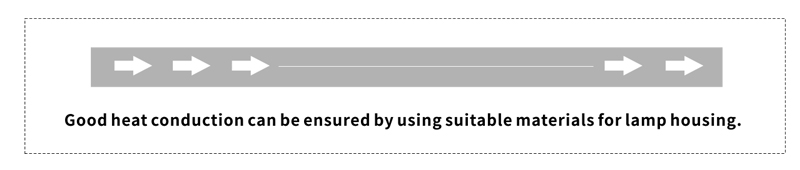

Good heat dissipation system

Lamps and lanterns should be kept in a bright state in a clean space for a long time. Good heat dissipation system is required to ensure the normal work of lamps and lanterns.

Good Heat Dissipation System Appropriate lighting effect

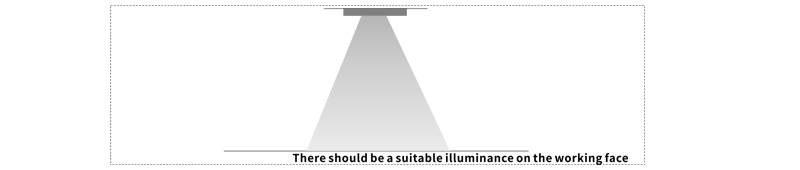

As a controlled environment, suitable lighting effect must be required to meet the requirements of clean environment.

Appropriate Lighting Effect

Soft light

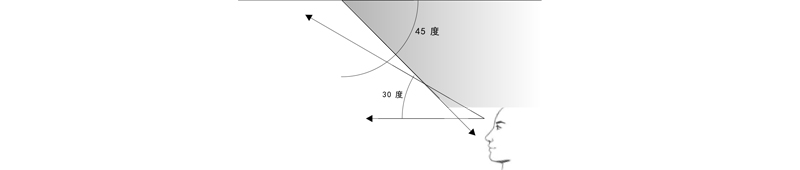

Work under lamplight for a long time, lamps and lanterns require anti-glare function, prevent visual fatigue and damage vision.

Soft Light
