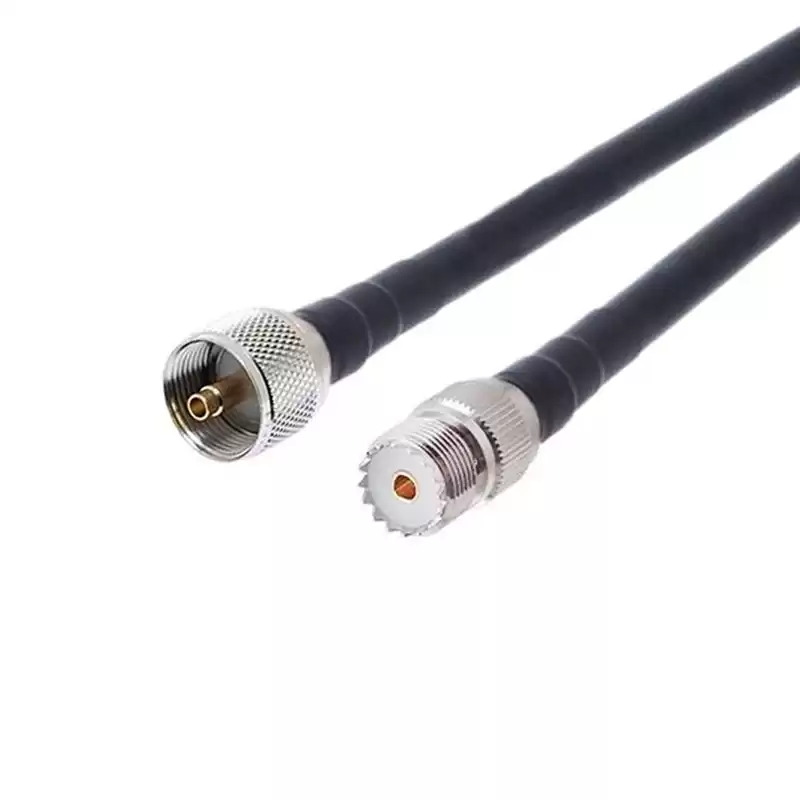

Low Loss RP UHF Male to UHF Female Connector RF Coaxial Cable Assembly

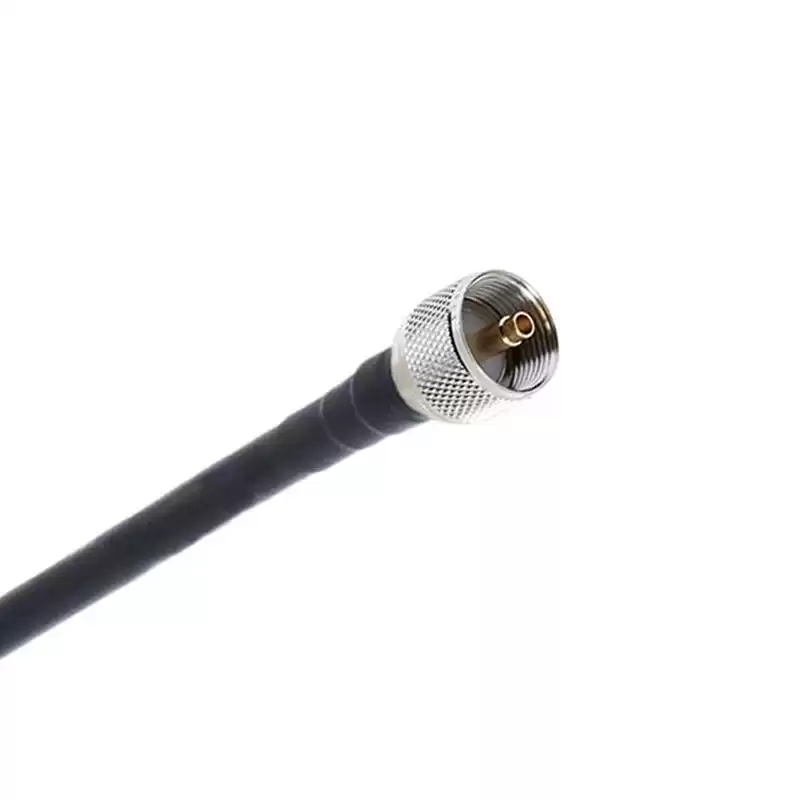

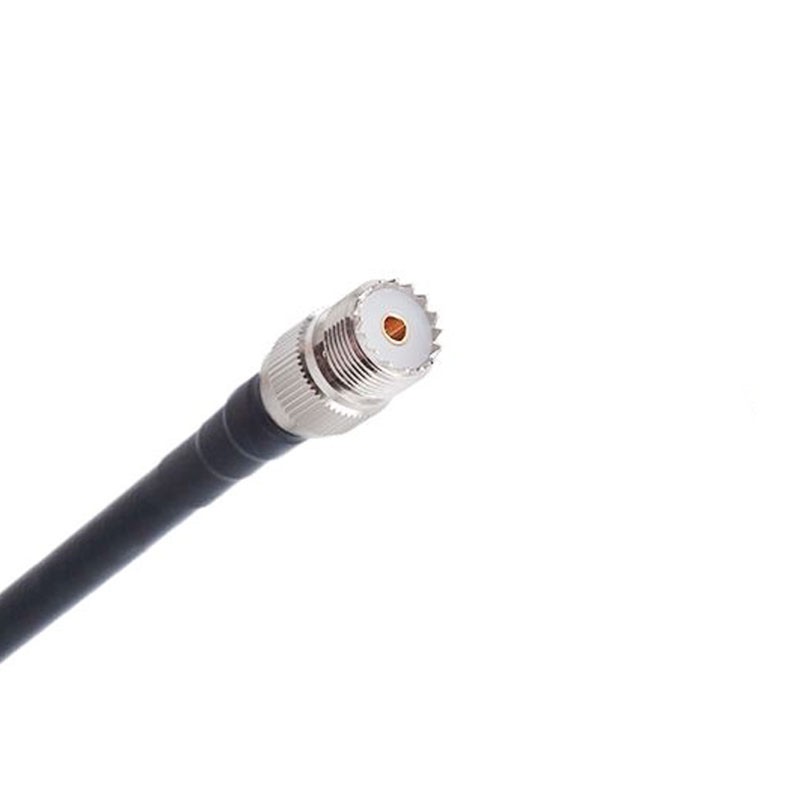

The UHF cable assembly can use flexible, formable or semirigid coaxial cable such as RG142, RG213, RG214, RG223, RG393, RG400, RG58, RG59, RG8; the body of UHF to UHF cable assembly is straight connectors which is female to female, female to male, male to female or male to male gender. This UHF male to UHF female cable assembly uses a 50ohm Straight UHF for connector 1 and a 50ohm Straight UHF for connector 2, Cable is a 50ohm flexible RG214.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
RP UHF |
| Connector 1 Style |
Str Plug |
| Cable Type |
RG214 |
| Connector 2 Series |
UHF |
| Connector 2 Style |
Female |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Max Frequency |
300 MHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Antenna analyzer
- Radio scanner
- Ham radio transceiver
- SWR meter
- CB radio handheld
- Antenna tuner
