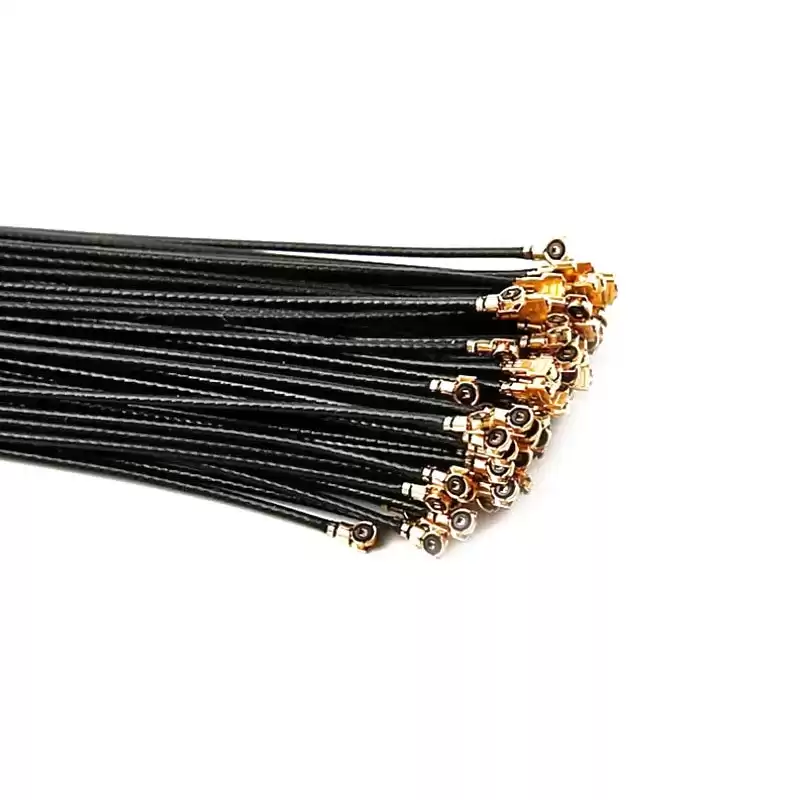

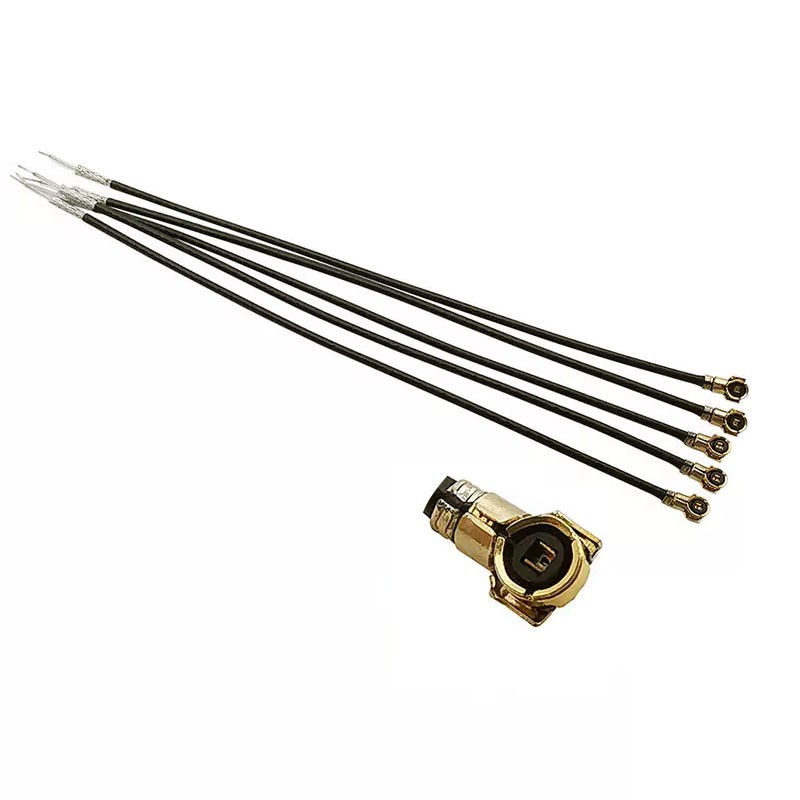

Low Loss UFL IPEX Plug Antenna Jumper Pigtail Cable Assembly with RF 0.81mm Cable

U.FL Cable assembly Features:

  • Can be combined with MCX, MMCX, N, SMA, TNC or U.FL connector;
  • Frequency Up to 6GHz;
  • Cable use ultra-fine coaxial cable 0.81mm, 1.13mm, 1.37mm, RG178;
  • Body is gold plated.



Low Loss UFL IPEX Plug Antenna Jumper Pigtail Cable Assembly with RF 0.81mm Cable

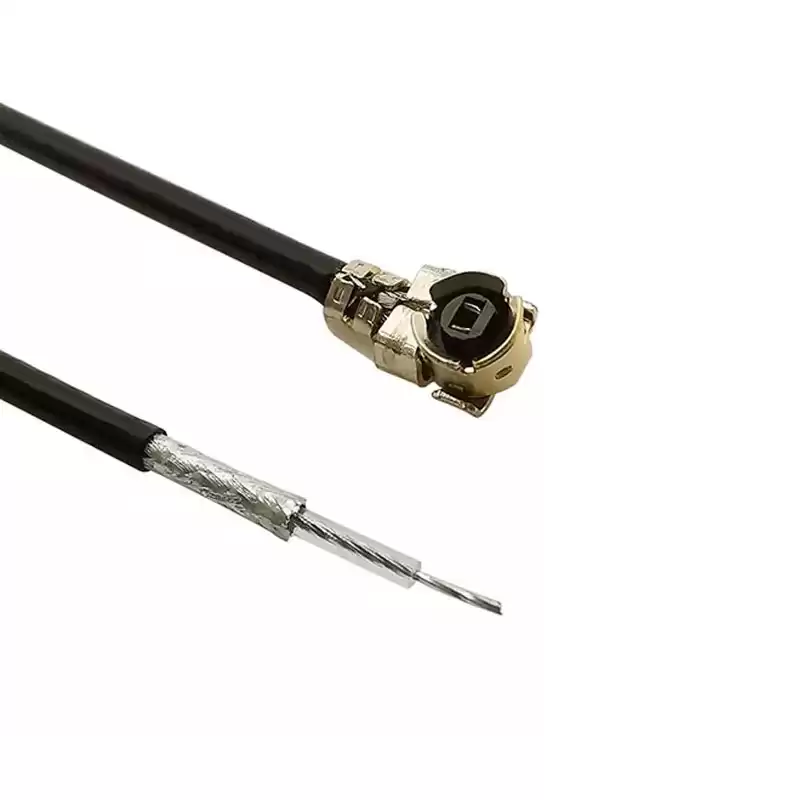

The UFL cable assembly can use ultra-fine coaxial cable such as 0.81mm, 1.13mm, 1.37mm, RG178; the body of  UFL with cable assembly is straight connectors which is plug with cable or jack with cable. This UFL plug with cable assembly uses a 50ohm straight UFL for connector 1 and a cable is a 50ohm Type 0.81mm.



Specifications

ELECTRICAL DATA
Connector 1 Series UFL/IPEX/MHF
Connector 1 Style Plug
Cable Type 0.81mm
Connector 2 Series -
Connector 2 Style -
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material
PTFE



Applications

  • Wireless LAN Devices (Wi-Fi 6)
  • Bluetooth devices
  • Car navigation
  • drone,PDA,GPS
  • wireless transmission devices
  • electronic measuring devices
