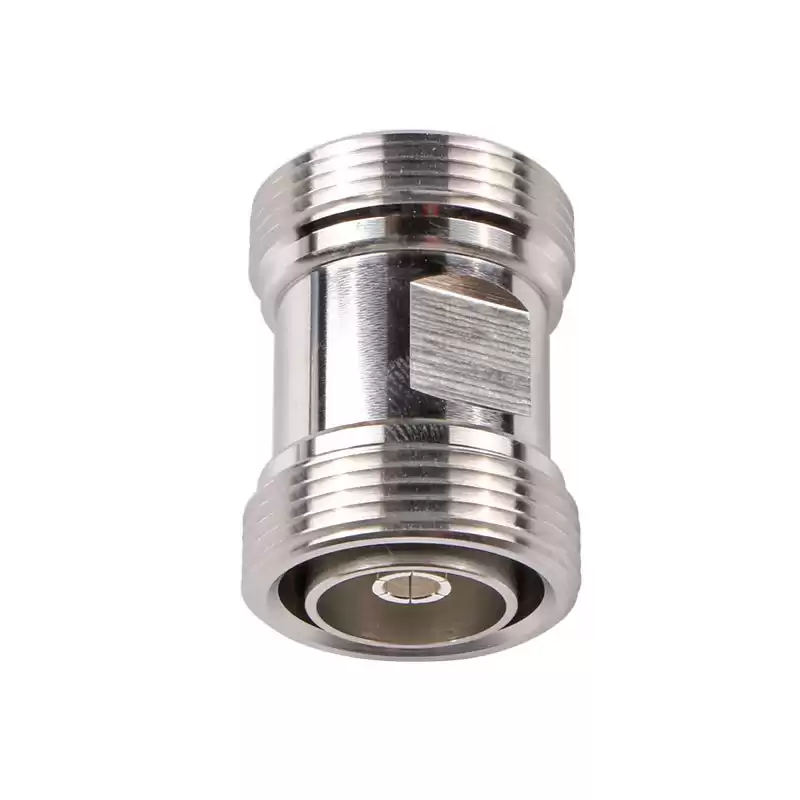

Low Pim L29 7-16 Din Female to 7-16 Din Female Straight RF Connector Adapter
The 7-16 DIN Adapter has different 7-16 DIN to7-16 adapter gender, that is between a series coaxial adapter.The 7-16 DIN to 7-16 adapters has female to female, female to male, male to female or male to male gende. ROHO offers 7-16 DIN to 7-16 adapters in standard or low PIM designs. This 7-16 DIN female to 7-16 female adapter has a maximum frequency of 8GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
7-16 DIN |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
7-16 DIN |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
8 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
| Body Material |
Nickel/Ternary alloy |
| Body Finish |
Brass |
| Contact Material |
Phosphor Bronze/Beryllium Copper |
| Contact Finish |
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Wireless LAN
- Broadcast systems
- Outdoor antennas
- Radar equipment
- Microwave Radio
- Base stations
- Satellite systems
