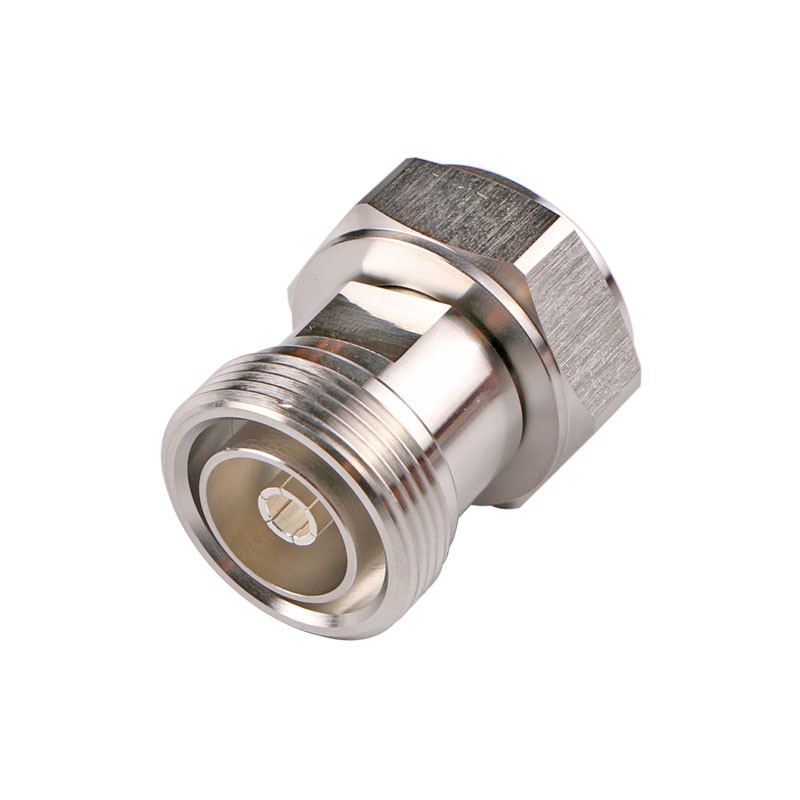

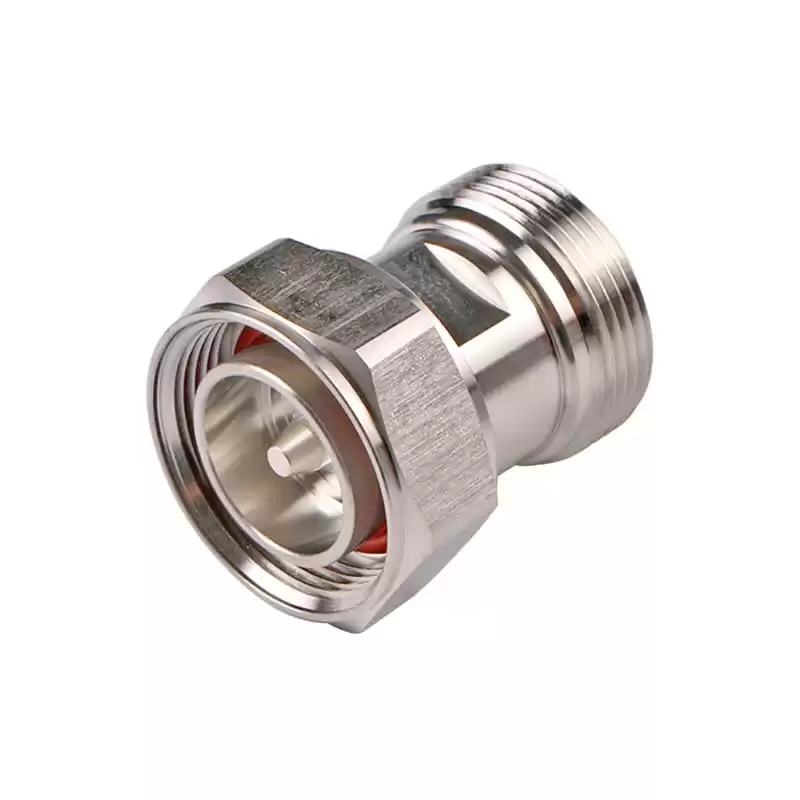

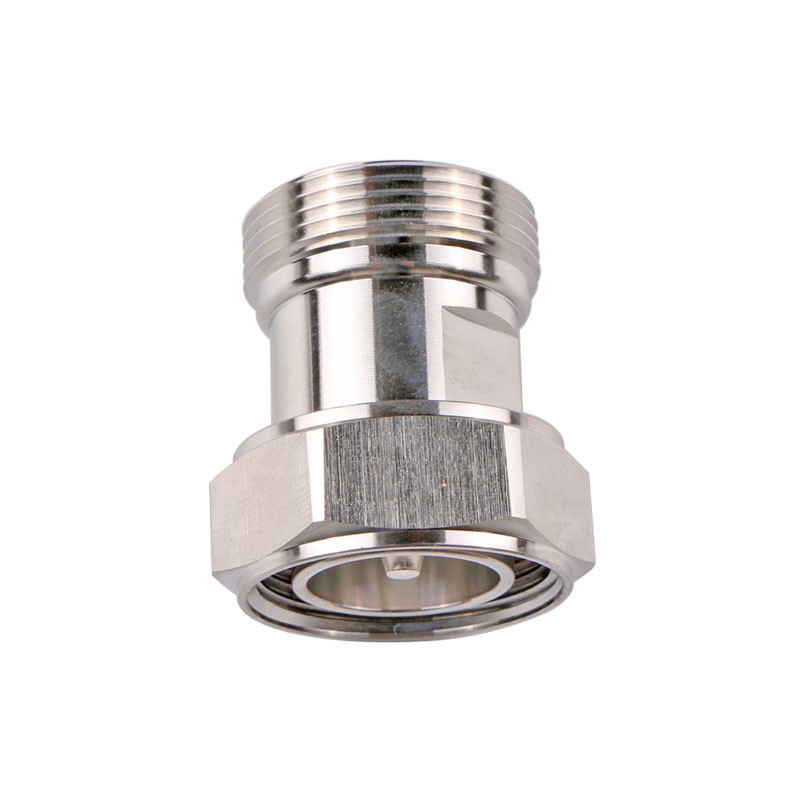

Low Pim L29 7-16 Din Male to 7-16 Din Female Straight RF Connector Adapter

7-16 DIN adapters Features:

  • Allow to interface 7-16 DIN connectors with 7-16 DIN, 4.3-10, N, SMA or TNC connectors;
  • Very robust, extremely stable and waterproof;
  • Has straight or right angle versions;
  • Offers standard, low PIM or high performance options.



Low Pim 7-16 Din Male to 7-16 Din Female Straight RF Connector Adapter



The 7-16 DIN Adapter has different 7-16 DIN to 7-16 adapter gender, that is between a series coaxial adapter.The 7-16 DIN to 7-16 adapters has female to female, female to male, male to female or male to male gende. ROHO offers 7-16 DIN to 7-16 adapters in standard or low PIM designs. This 7-16 DIN male to 7-16 female adapter has a maximum frequency of 8GHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series 7-16 DIN
Adapter Side 1 Style Male
Adapter Side 2 Series 7-16 DIN
Adapter Side 2 Style Female
Frequency (Max GHz) 8
Impedance (Ohms) 50
Low PIM Yes
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material Nickel/Ternary alloy
Body Finish Brass
Contact Material Phosphor Bronze/Beryllium Copper
Contact Finish Gold/Silver
Insulator Material PTFE



Applications

  • Wireless LAN
  • Broadcast systems
  • Outdoor antennas
  • Radar equipment
  • Microwave Radio
  • Base stations
  • Satellite systems
