Product name

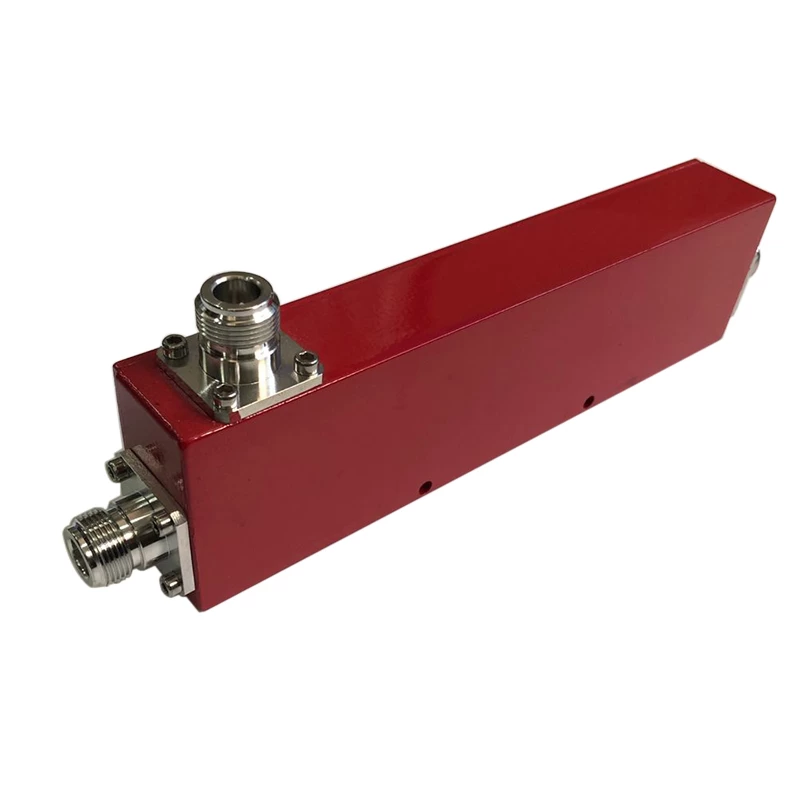

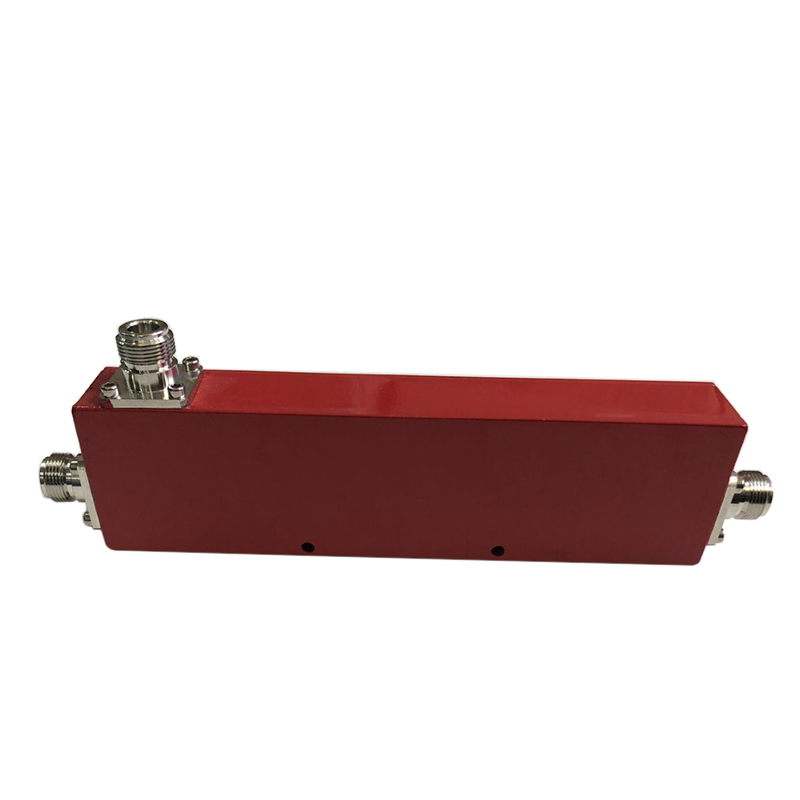

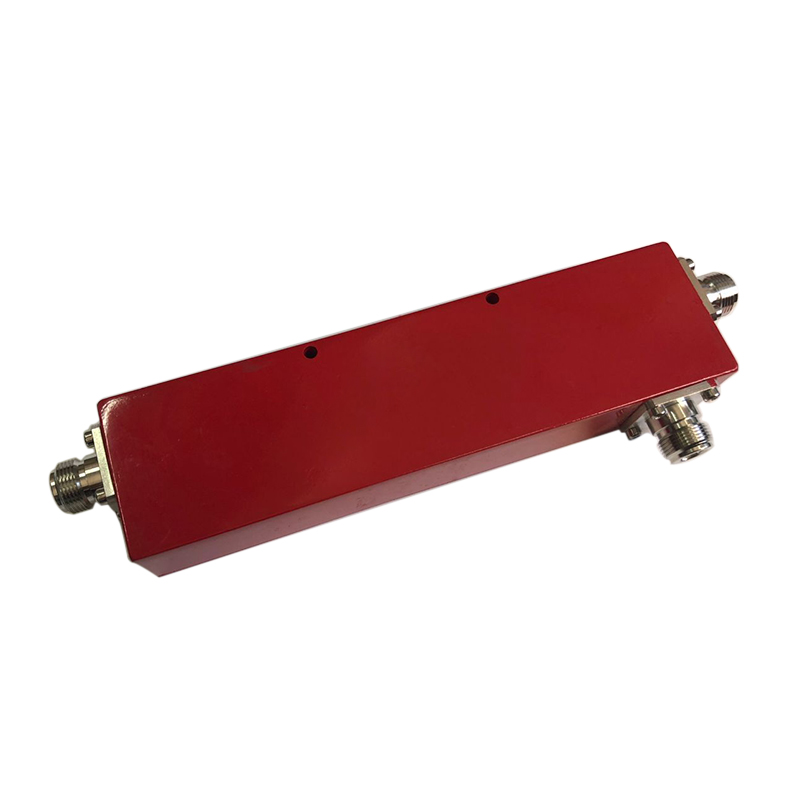

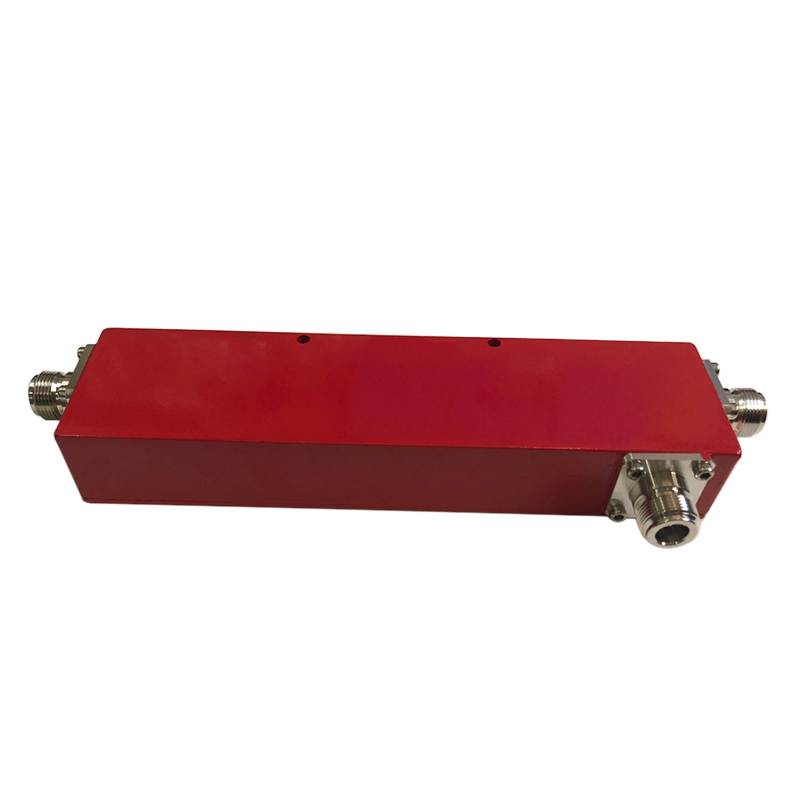

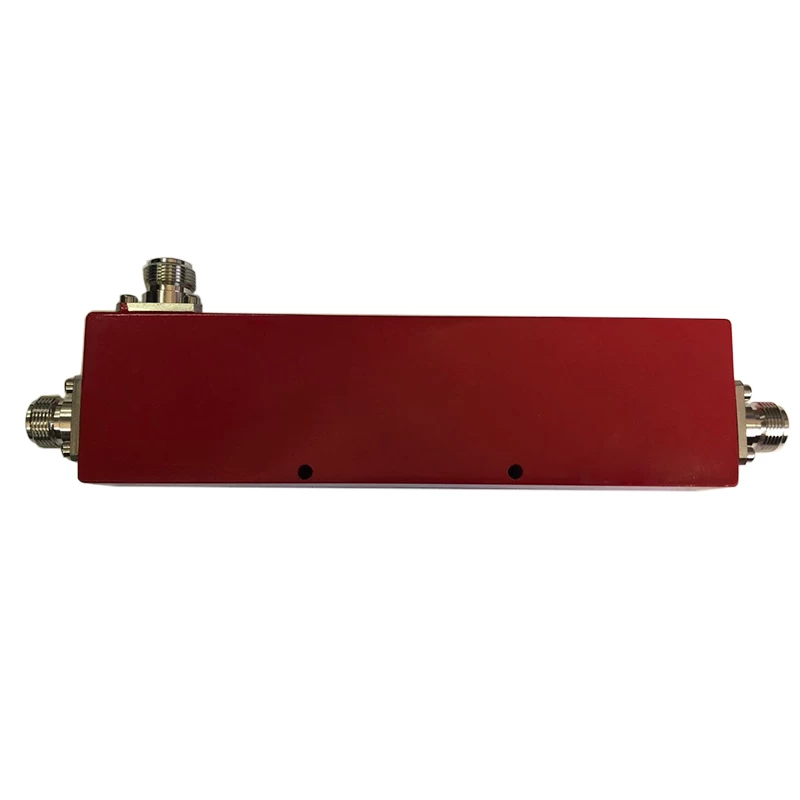

340-2700MHz directional coupler
Product features
♦ Low Insertion Loss for IBS BTS DAS
♦ Low VSWR
♦ High Isolation
♦ Up to 300W Average Power
♦ High Reliability, IP65High Reliability, IP65
Technical &Mechanical Specifications
|
Frequency Range
|
340-2700MHz
|
|
Impedance
|
50Ω nominal
|
|
PIM (dBc@2*43dBm)
|
Low PIM Rated
|
|
IP Grade
|
IP65(Waterproof)
|
|
Application
|
Indoor or Outdoor
|
|
Temperature Range
|
-30° C to +75° C
|
|
Connector Type
|
N Female
|
|
Housing Material
|
Aluminum Alloy
|
|
Color
|
200C Red
|
|
Model Number
|
Coupling(dB)
|
Insertion Loss (dB)
|
VSWR
|
Average Power (W)
|
Isolation (dB)
|
|
MN-DC-3427-5-NF
|
5(±1.2)
|
≤2.30
|
≤1.35
|
300
|
≥20
|
|
MN-DC-3427-6-NF
|
6(±1.3)
|
≤1.85
|
≤1.35
|
300
|
≥22
|
|
MN-DC-3427-10-NF
|
10(±1.6)
|
≤0.90
|
≤1.35
|
300
|
≥26
|
|
MN-DC-3427-15-NF
|
15(±1.7)
|
≤0.50
|
≤1.35
|
300
|
≥30
|
|
MN-DC-3427-20-NF
|
20(±1.7)
|
≤0.40
|
≤1.35
|
300
|
≥32
|
