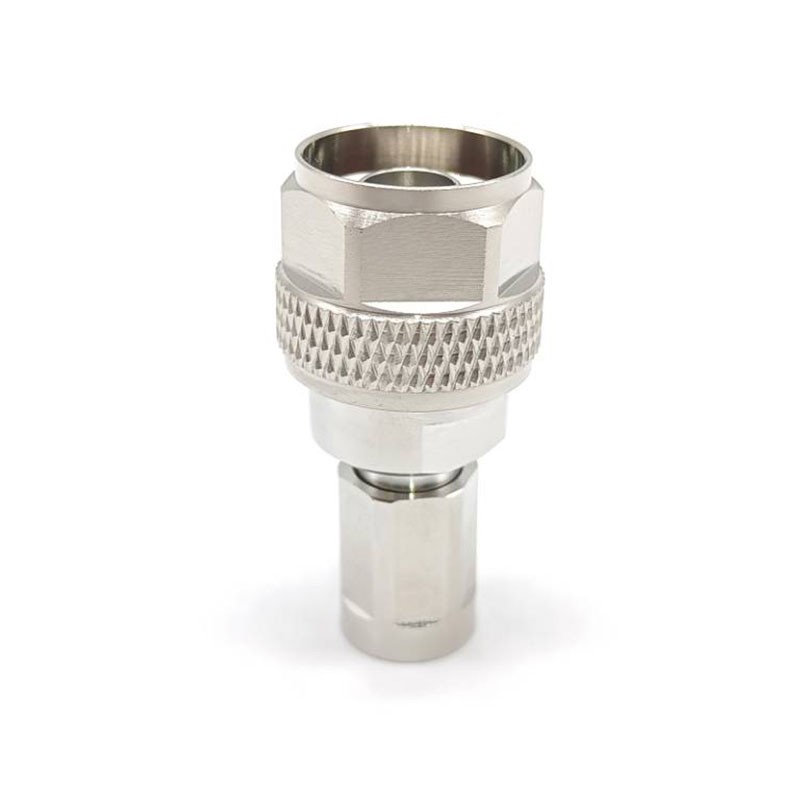

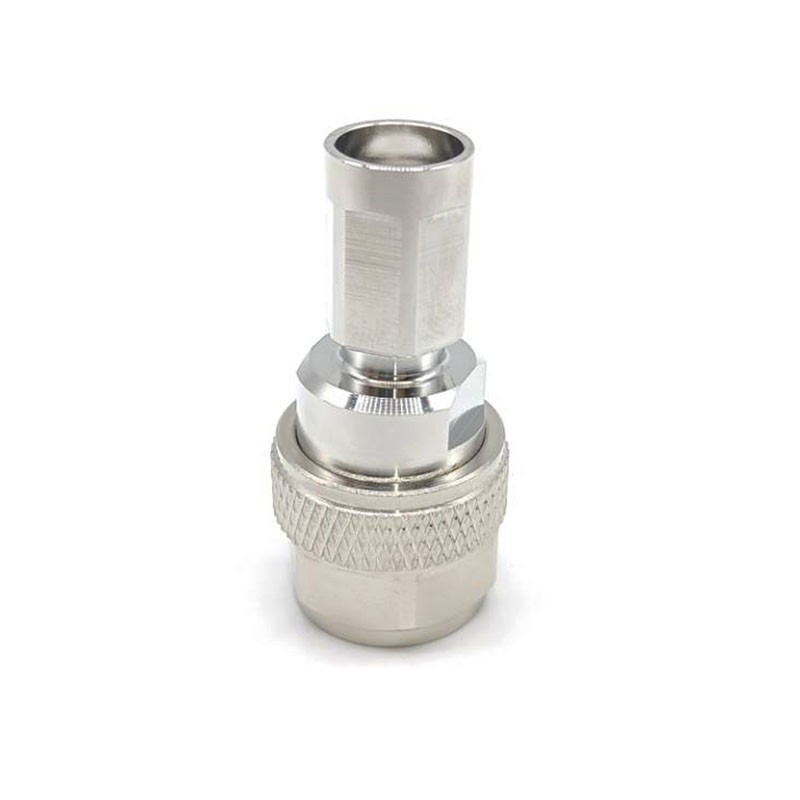

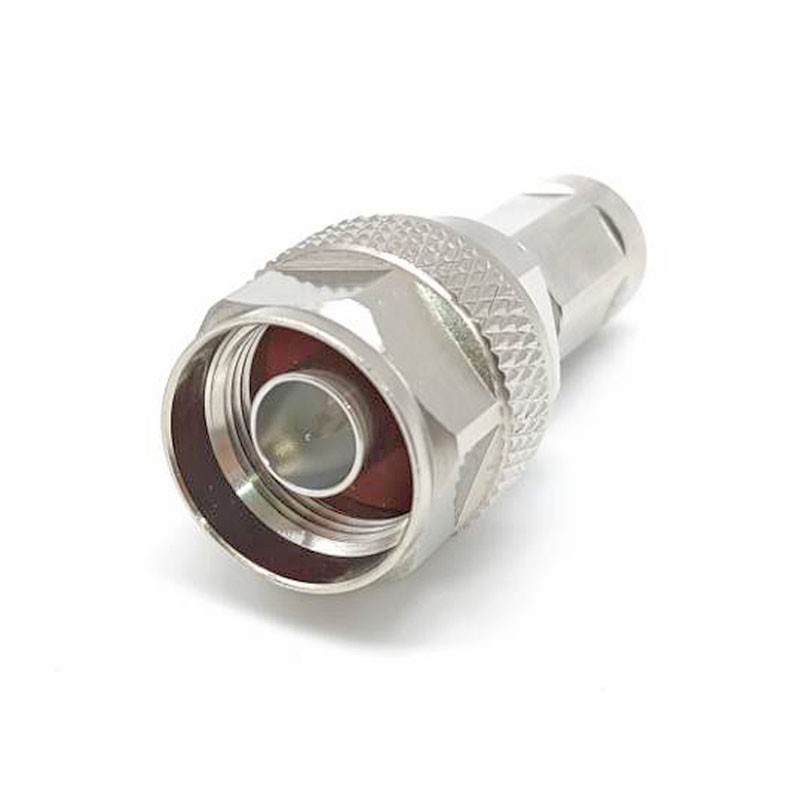

Low Pim NEX10 Male to N Male Straight RF Connector Adapter
NEX10 male to N male Adapter enables you to reliably transmit radio-frequency signals in the frequency range from DC to 6 GHz.This adapter guarantees outstanding IM characteristics with maximum passive intermodulation (IM3) of -165 dBc and low VSWR; The adaptor offers a transition from interface NEX10 male to N male Adapter. The connector has a straight direction,The NEX10 male to N male Adapter guarantees excellent, lossless mobile communication quality for use in in-building distributed antenna systems (DAS) or on mobile communication base stations outdoors.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
NEX10 |
| Adapter Side 1 Style |
Male |
| Adapter Side 2 Series |
N |
| Adapter Side 2 Style |
Male |
| Frequency (Max GHz) |
18 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- In multi-operator/multiband DAS
- Low-power base stations
- Designed to meet the demands of upcoming 5G networks
- Small cell applications
- Blind mate for panel as well as test & measurement
