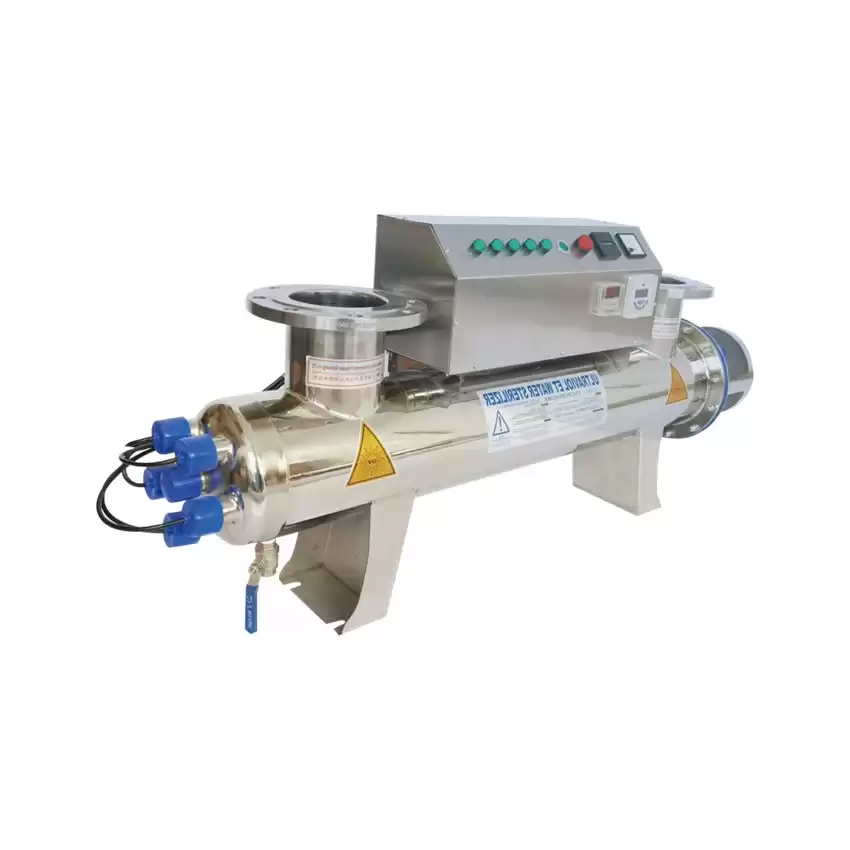

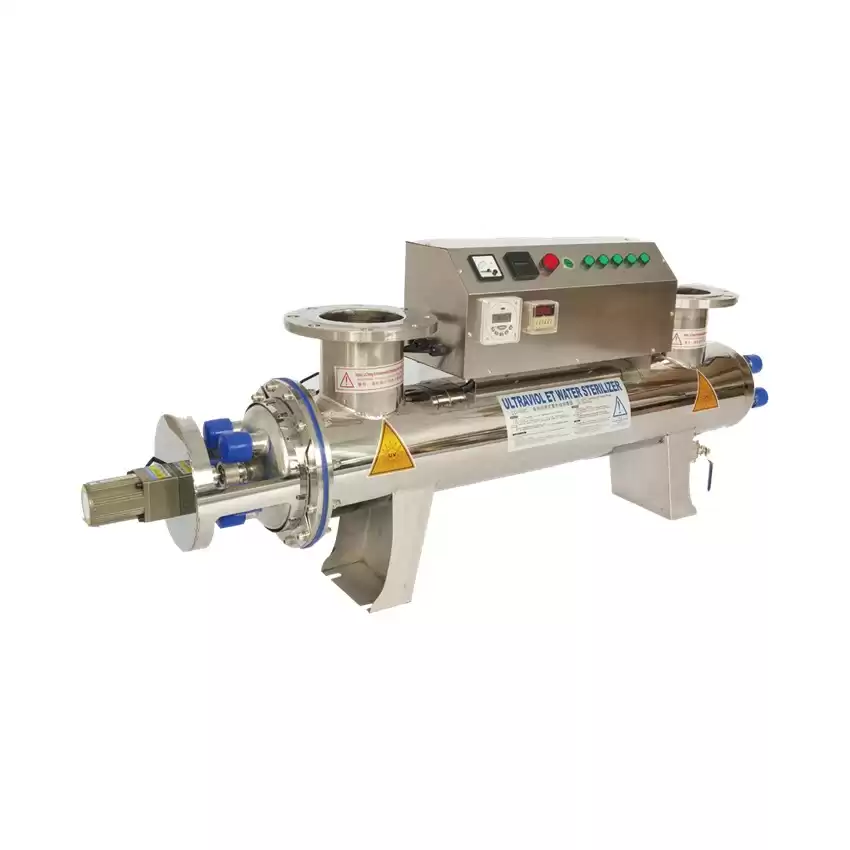

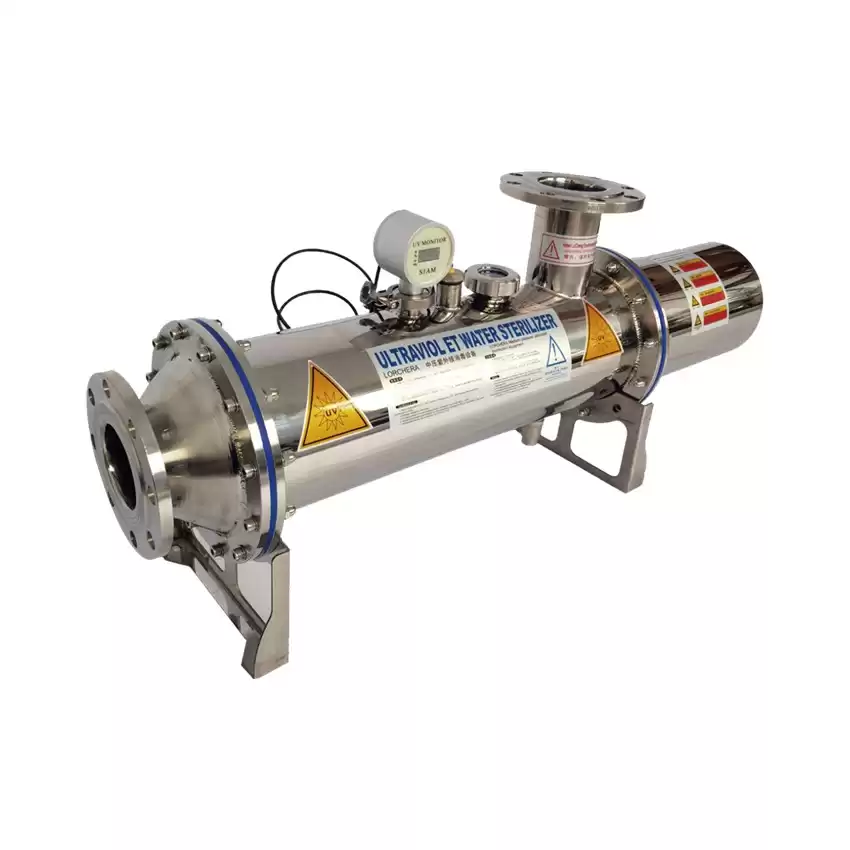

Low Pressure Closed Vessel Tube Type UV System for Water Disinfection

The ultraviolet disinfector integrates comprehensive sciences such as optics, microbiology, mechanics, chemistry, electronics, and fluid mechanics. The UV-C ultraviolet light generated by the imported or high-quality domestically produced high-efficiency, high-intensity, and long-life UV-C ultraviolet light generating device is used to irradiate the flowing water. When the bacteria and viruses in the water are irradiated with a sufficient dose of UV-C ultraviolet light (wavelength 253.7nm), their cell DNA and cell structure are destroyed, and cell regeneration cannot proceed, thereby achieving the effect of water disinfection and purification. The ultraviolet light with a wavelength of 185nm can also decompose organic molecules in the water, produce hydroxyl free radicals, and oxidize organic molecules in the water into CO₂ and H₂O , and achieve the effect of removing TOC.

  • Power of Each Lamp80w
  • Total Power80~800w
  • Number of Modules1 sets
  • Number of Lamps1~10
  • Water flow1~100m3/day
Facebook Twitter Pinterest LinkedIn 分享

Low Pressure Closed Vessel Tube Type UV System for Water Disinfection



Features

Low Pressure Closed Vessel Tube Type UV System for Water Disinfection adopt the magnetic cleaning push rod professionally developed by Purevita , which has the technical characteristics of strong magnetic force and stable thrust

Adopt digital display speed regulating electric cleaning motor, with speed digital display adjustment and stable working characteristics

Double-piece cleaning structure is adopted, and there is no scratch on the outer wall of the quartz tube

Adopt stainless steel screw, the cleaning structure is stable and firm, without wearing parts

External distribution box control system can be placed in a separate space and cavity for separate operation

The UV sterilizer cavity adopts a sealed tank structure, which has the structural characteristics of high pressure bearing capacity





The UV disinfection and cleaning mechanism is designed with a water-seal-free structure, avoiding the risk of equipment leakage

Efficiently clean the scale and pollutants on the outer wall of the quartz tube

Effectively increase the intensity of ultraviolet radiation on water bodies

Unique reset structure design, the cleaning device can automatically return to the cleaning position after it is separated from the screw rod, without manual reset

High light transmittance, imported raw material quartz tube and high stability medium/low pressure sterilization lamp, service life up to 12000 hours



System Components

  • #

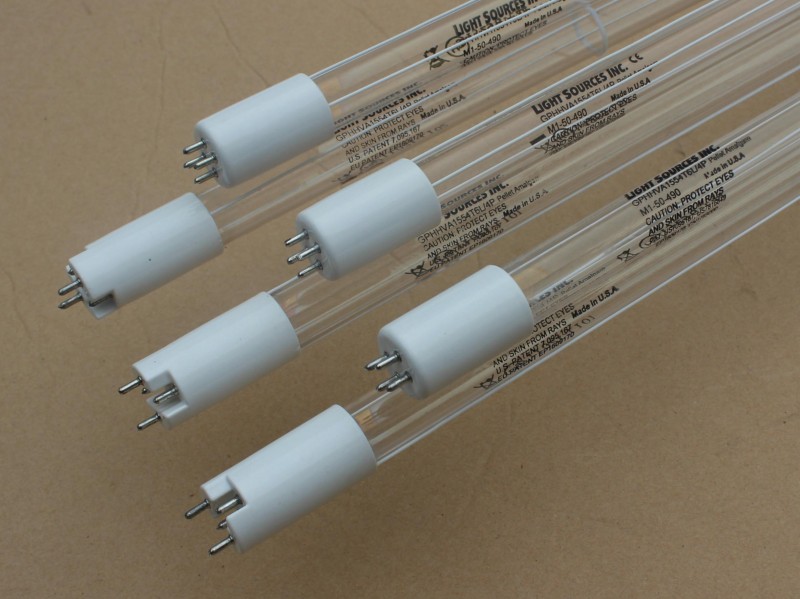

    Philips Lamps
    The equipment uses imported Philips ultraviolet lamps, which have high-intensity output, high conversion rate, long life, good reliability and good continuous sterilization and disinfection effect.
  • #

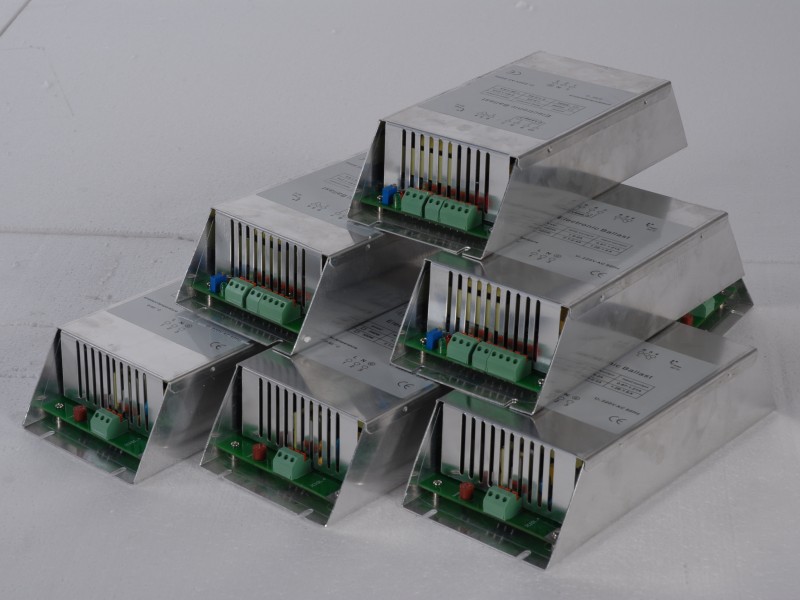

    Customized Ballast
    The electronic ballast used in the equipment is specially tailored for this product and has the characteristics of strong adaptability, high matching, long life and complete protection functions.
  • #

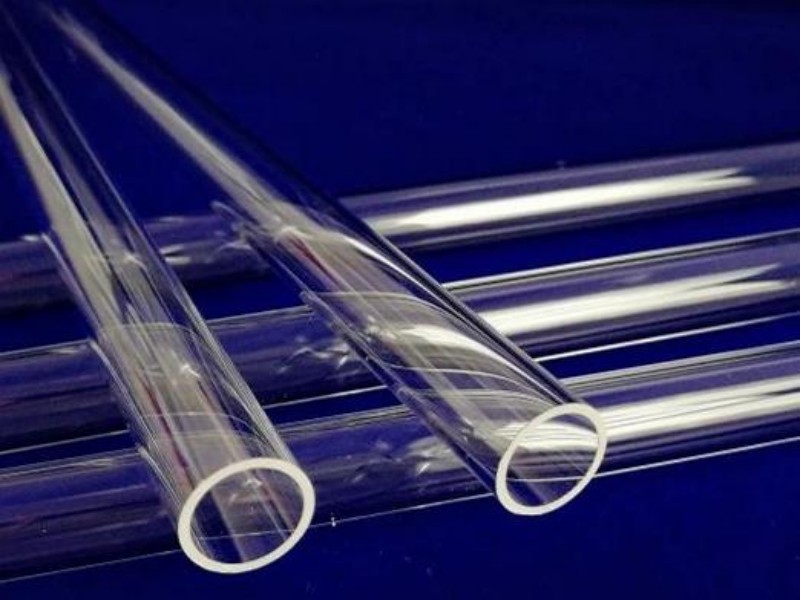

    Imported quartz sleeve
    The casing is made of pure imported raw material quartz from Pacific and Fudong Zhengyou , with good matching and high purple transmittance (ultraviolet transmittance is above 93%)

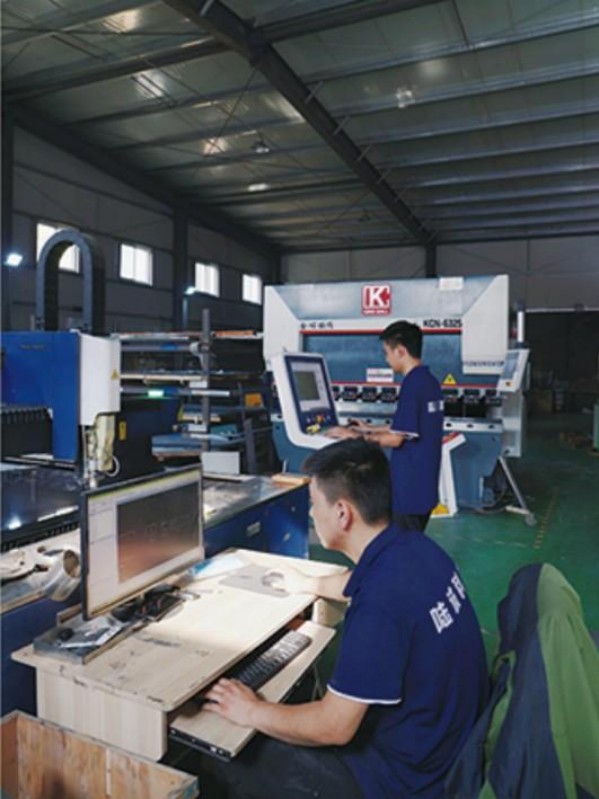

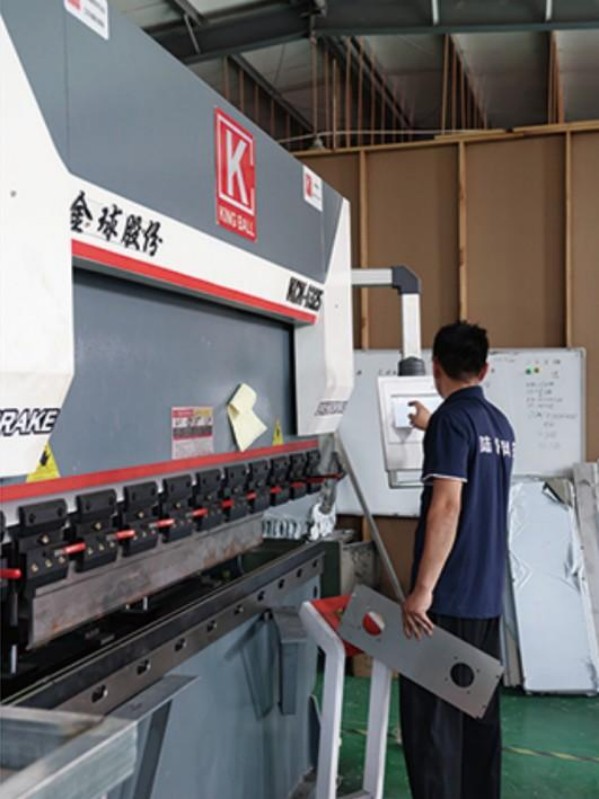

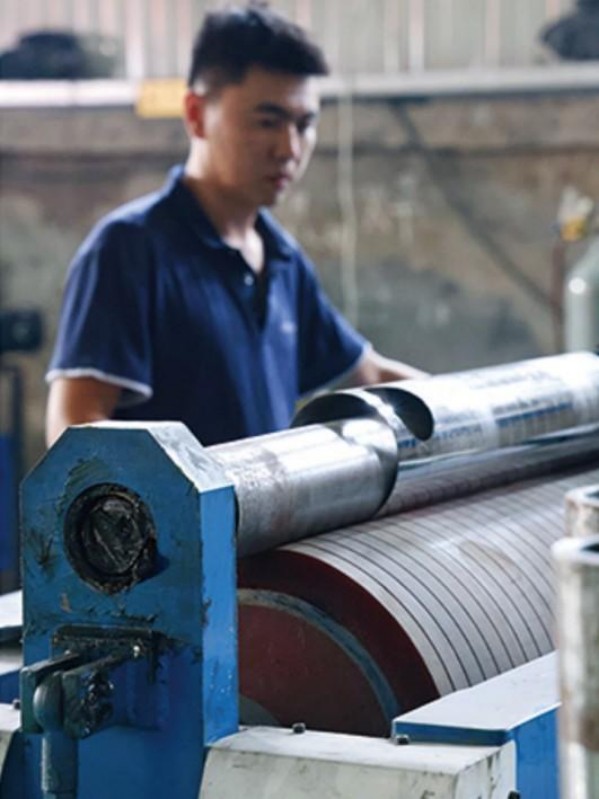

UV System Manufacturing

 Specifications

Model Power（W） Capacity（T/H） Diameter（mm） Operation Pressure（mpa）
LCUVC-23 23 0.1-1 20 0.4
LCUVC-80 80 0-5 32 0.6
LCUVC-120 120 9-10 40 0.6
LCUVC-160 160 12-16 50 0.6
LCUVC-240 240 20-25 50 0.6
LCUVC-320 320 23-30 80 0.6
LCUVC-360 360 32-25 100 0.6
LCUVC-480 480 45-50 100 0.6
LCUVC-600 600 55-60 125 0.6
LCUVC-720 720 60-75 125 0.6
LCUVC-840 840 80-85 150 0.6
LCUVC-960 960 90-95 150 0.8
