Low Price Load Cell NA1 (10-40kg)

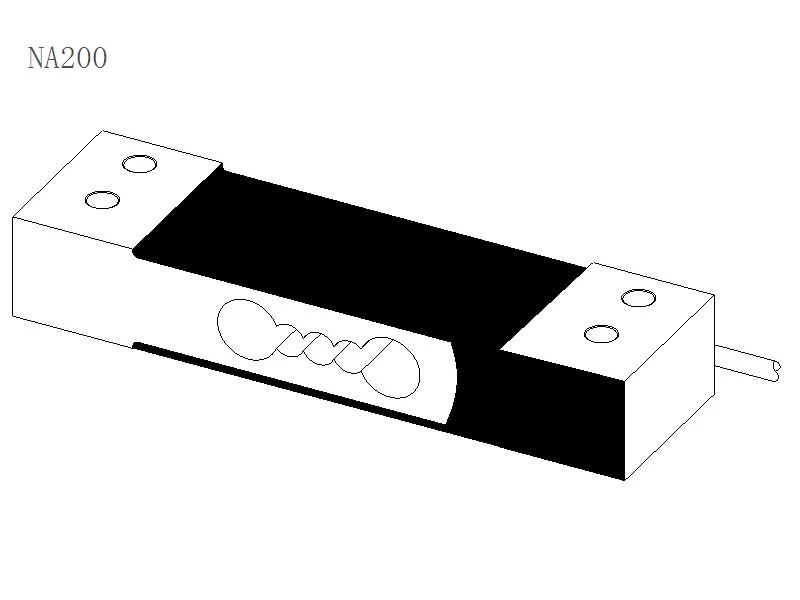

NA200 is a low price load cell with single point construction and surface anodized, made with aluminum alloy material. This counting scale load cell is available in the capacities: 10, 20, 40kg.
Key Features：
Aluminum
alloy construction
Compact
Design
Easy
to install
Usage & Applications：
price
computing scales
counting scales
weighing scales
retail scales

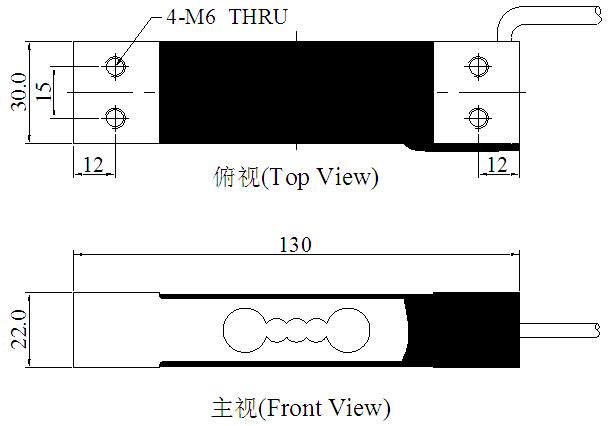

Dimension：
NA200 Specification：
|
Rated Capacities
|
10, 20, 40 (kg)
|
|
Rated Output
|
2.0 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.002 %R.O./℃
|
|
Temperature Effect On Zero
|
0.009 %R.O./℃
|
|
Input Impedance
|
410±15 Ω
|
|
Output Impedance
|
350±5 Ω
|
|
Insulation Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP65
|
|
Cable
|
φ4×0.45m (gray)
|
|
Recommended Platform Size
|
300×300 mm
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,Blue（SIG+）,White（SIG-）
|
