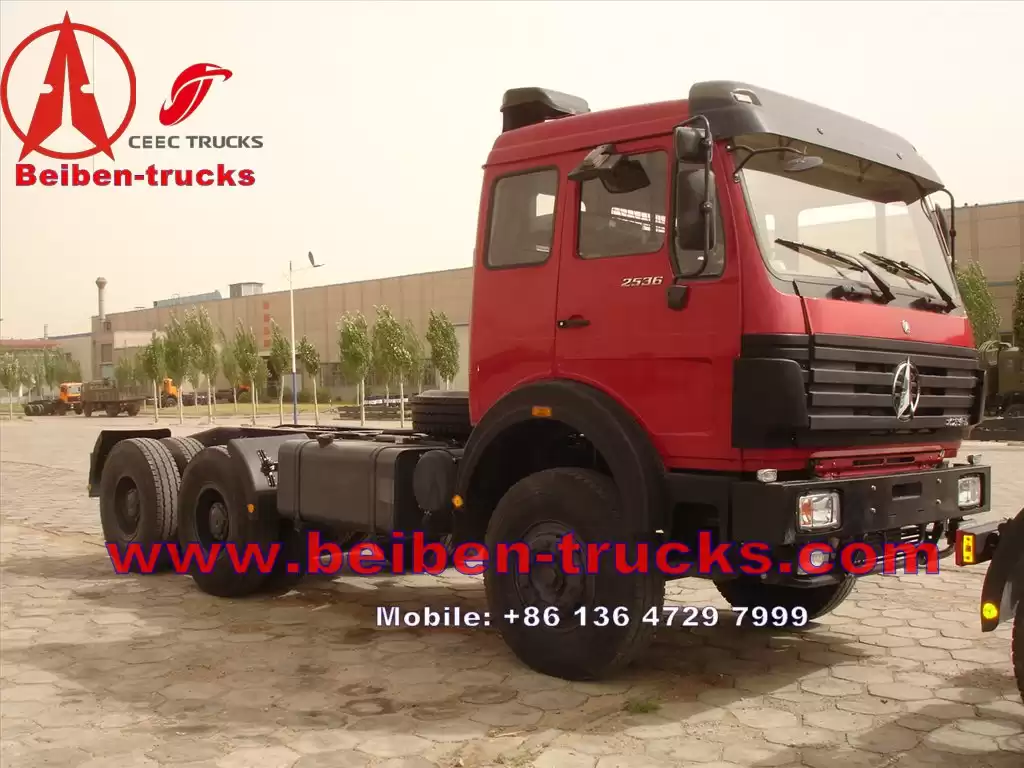

Lowest Price Beiben 6x4 Beiben Tractor Truck
-Military Quality
-Servie Available
-9 Year Exporting Experience
-SGS, BV
Lowest Price Beiben 6x4 Beiben Tractor Truck
| Beiben 6x4 tractor truck |
| Model |
ND4250W362JJ |
| Traction type |
6x4 |
| Driving type |
LHD |
| Cabin |
Mercedes Benz |
| |
| Engine brand |
Steyr (Weichai) |
| Engine model |
WD615.46 |
| Engine type |
4-stroke direct injection diesel engine, inline 6-cylinder with water cooling, turbo-charging & intercooling |
| Displacement |
9.726 liters |
| Max. output |
360hp@2200rpm |
| Max torque |
1460NM@1400-1600rpm |
| Bore/Stroke(mm) |
126/130 |
| Mean Pistion Speed |
9.53m /s |
| Compression ratio |
15.5:1 |
| Specific fuel consumption |
198g /Kwh |
| |
| Gear box |
Fuller 12-speed (12JS160T) |
| Clutch |
GF420 spring type |
| Steering |
TAS85 |
| |
| Front axle |
Benz |
| Rear axle |
Benz |
| Ratio |
1:5.2 |
| Frame |
Strengthened |
| Tyre |
12.00-20 |
| Fuel consumption (L/100km) |
36 |
| Fuel tank capacity (L) |
300 |
| Max. speed (km/h) |
90 |
| Max. gradeability (%) |
28 |
| Curb Weight |
9,200 kg |
| Total Mass |
38,500kg |
| Wheel base (mm) |
3,450+1,450 |
| Front overhang (mm) |
1,410 |
| Rear overhang (mm) |
740 |
| Front track (mm) |
1,995 |
| Rear track (mm) |
1,800 |
| Turning circle diameter (m) |
14.2 m |
| Approach angle |
26° |
| Departure angle |
64° |
| Dimension (mm) |
7,050x2,495x3,260 |
| 5th wheel |
3.0" |
