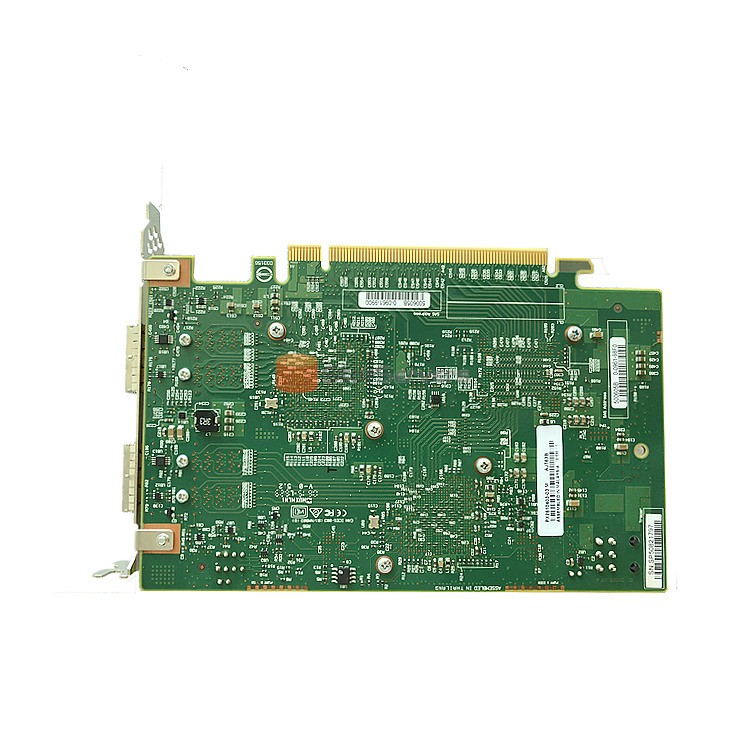

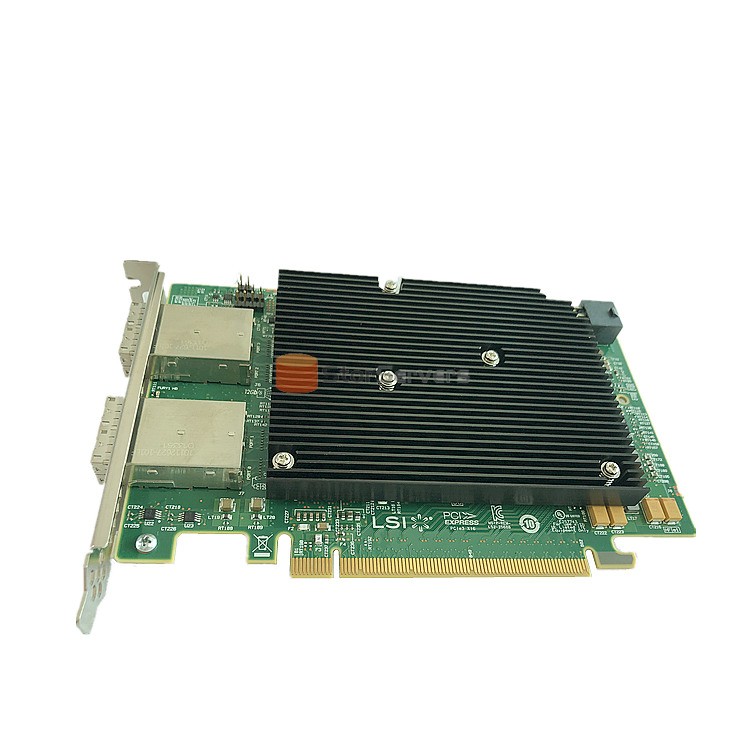

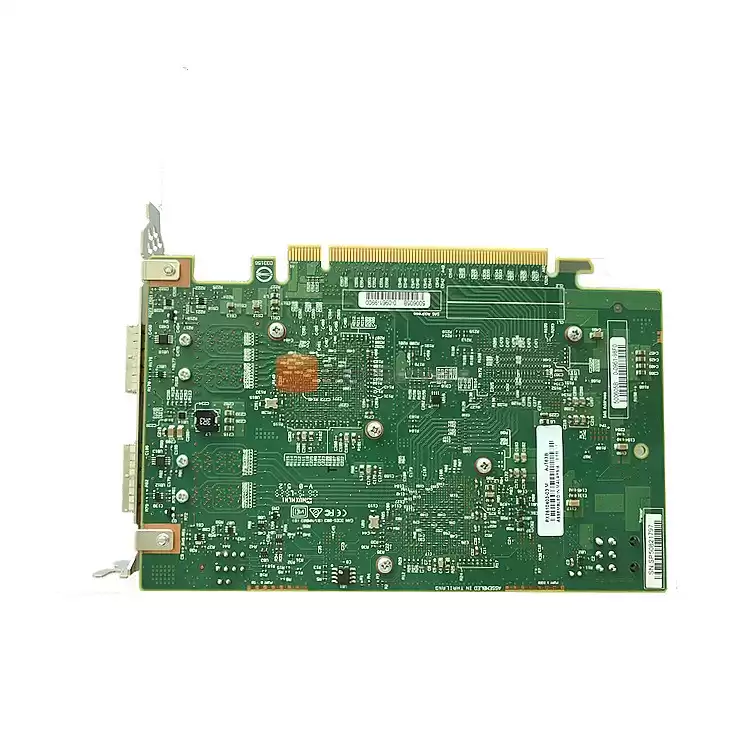

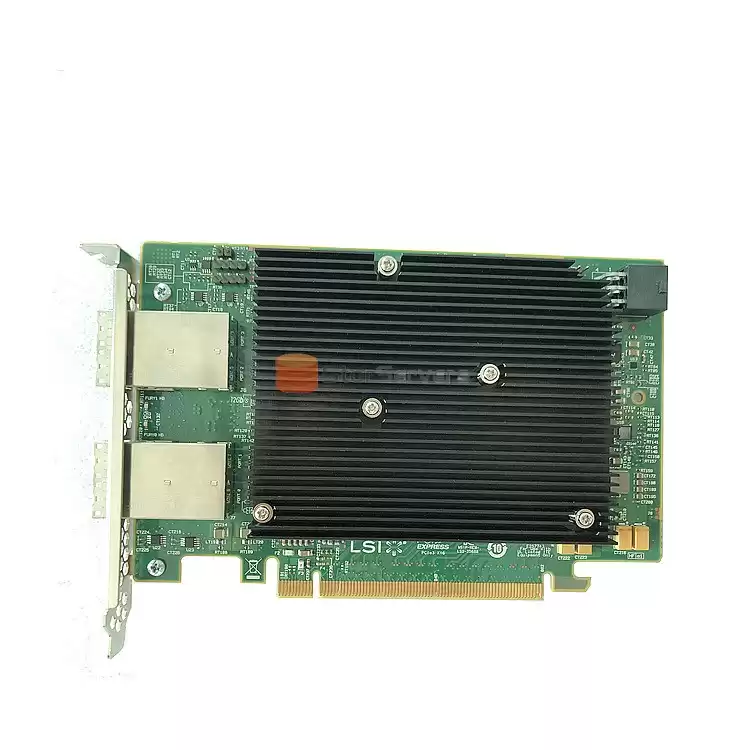

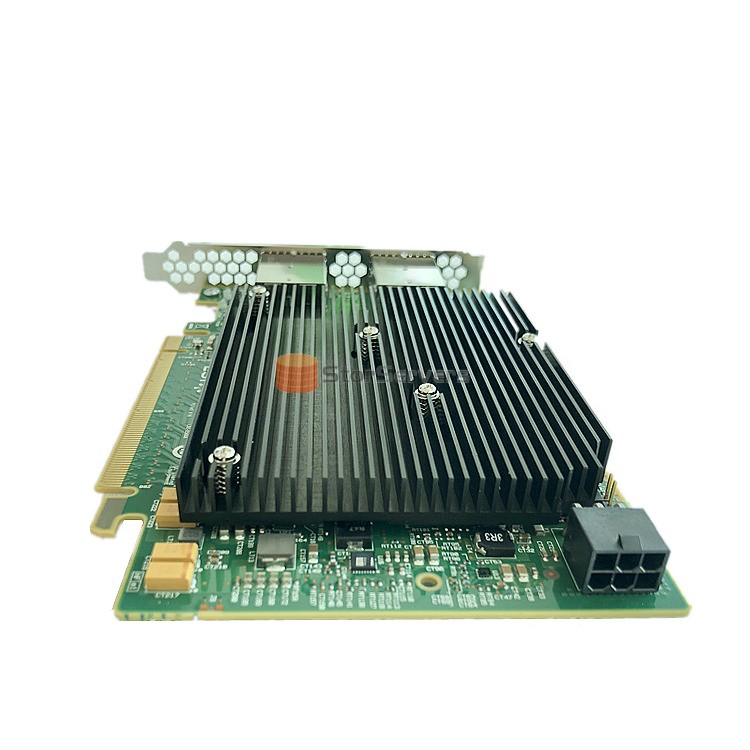

LSI 9300-16e 05-25688-00 HBAs
Key Features
■ 16 external 12Gb/s SAS+SATA ports
■ 16 lanes, PCI Express 3.0 for maximum performance

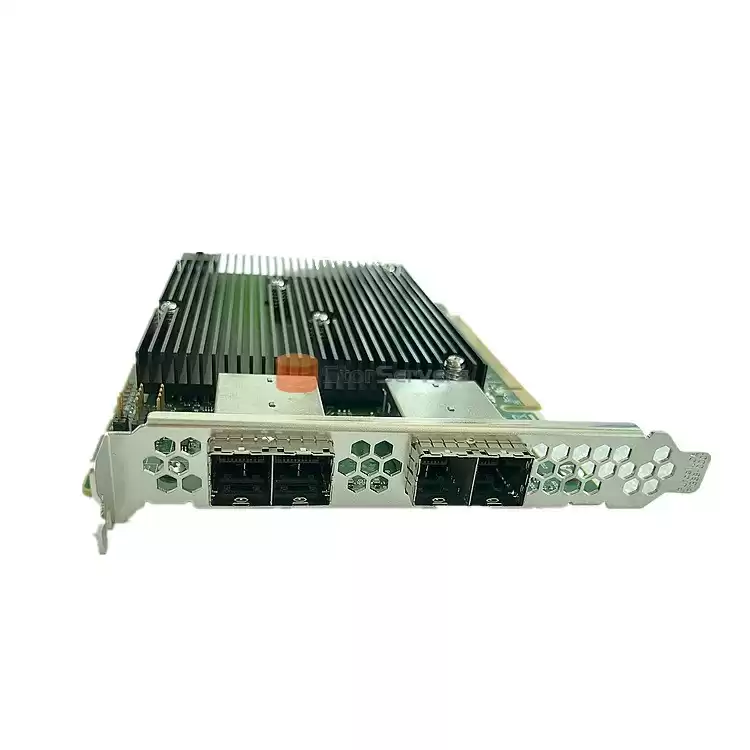

■ Four x4 external - mini-SAS HD connectors (SFF8644)
■ Two SAS 3008 12Gb/s SAS+SATA Controllers
■ Supports up to 1024 SAS or SATA end devices per controller
■ Supports SSDs, HDDs and tape drives
■ Up to 12.8Gb/s sequential write throughput
■ Up to 2.8M IOPs @ 4KB block sizes
Key Advantages
■ High performance with 12Gb/s data transfer rates with full size form factor
■ 16 Lanes of PCI Express 3.0 provides increased throughput for high-bandwidth applications
Specification
| Model |
LSI 9302-16e |
| Ports |
16 port ext |
| MPN |
H5-25688-00 |
| Connectors |
Four (x4) mini-SAS HD external connector (SFF8644) |
| Data Transfer Rates |
12Gb/s SAS 3.0 Compliant |
| I/O Controller |
Two, SAS 3008/ Fusion MPT 2.5 |
| Host Bus Type |
x16 lane, PCIe 3.0 |
| Form Factor |
Full Height |
| Cable Support |
Passive Copper, Active Copper |
Availability
|
In Stock |
Warranty
|
3 Years |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
