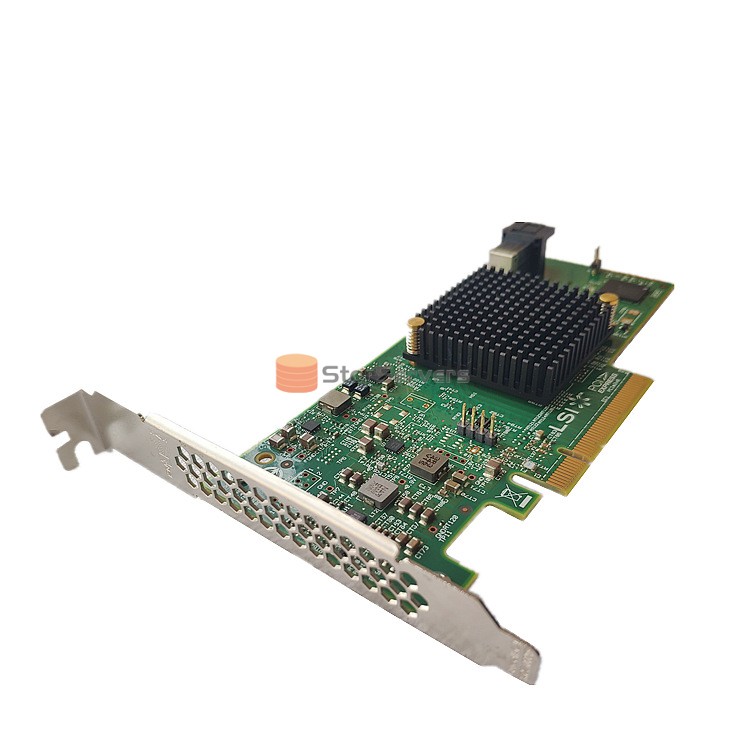

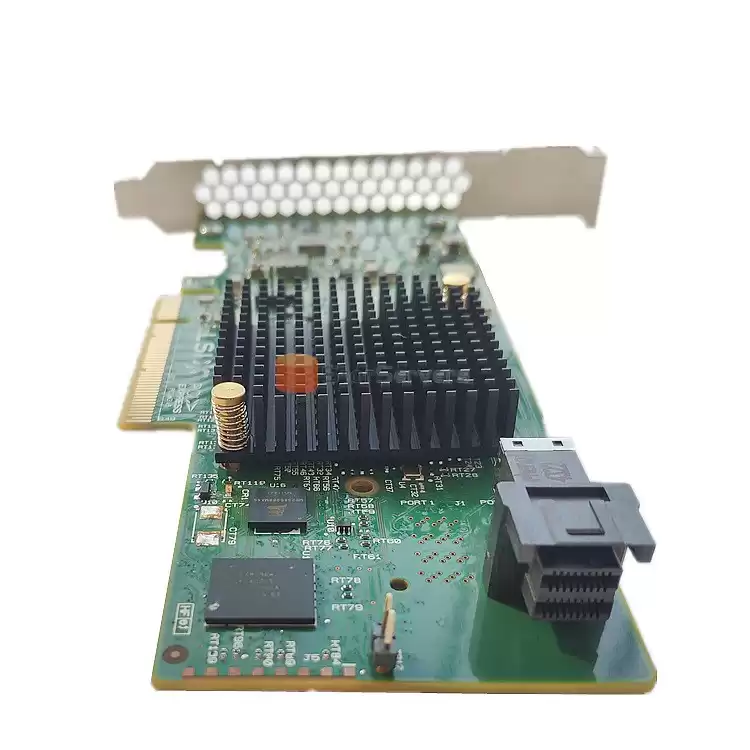

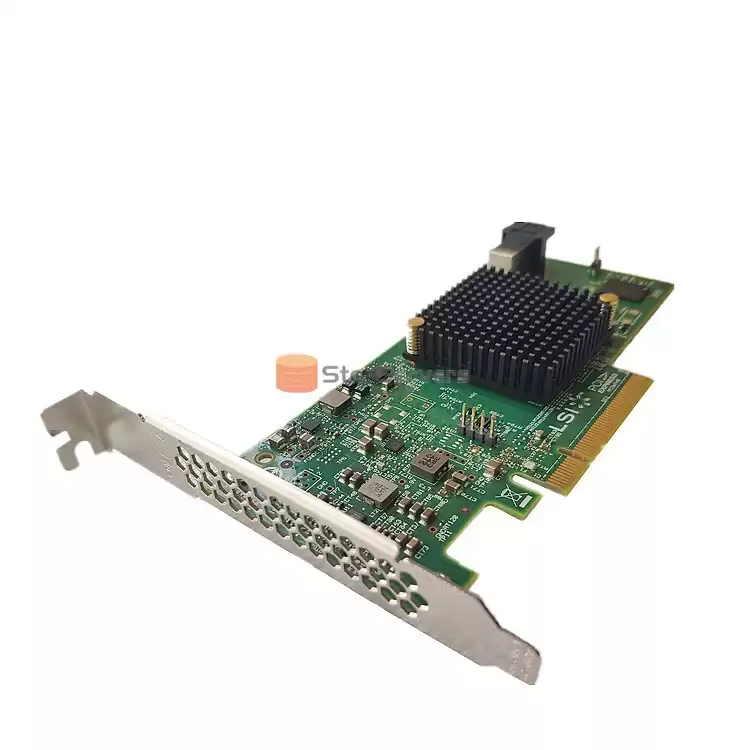

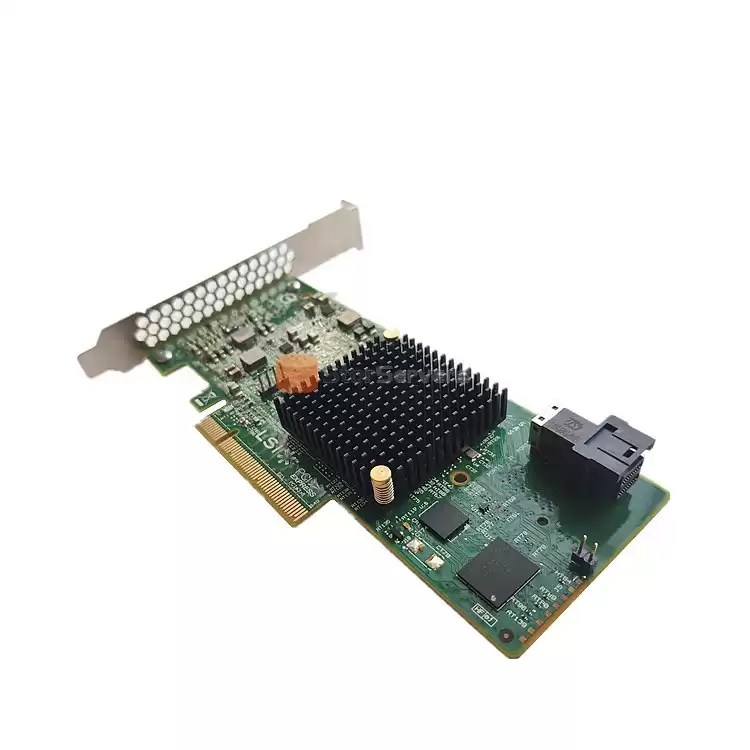

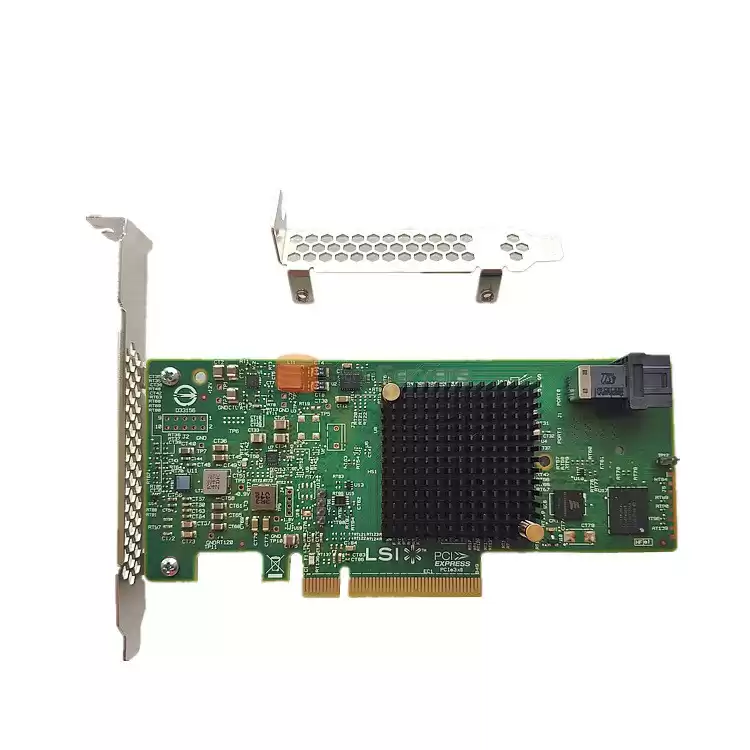

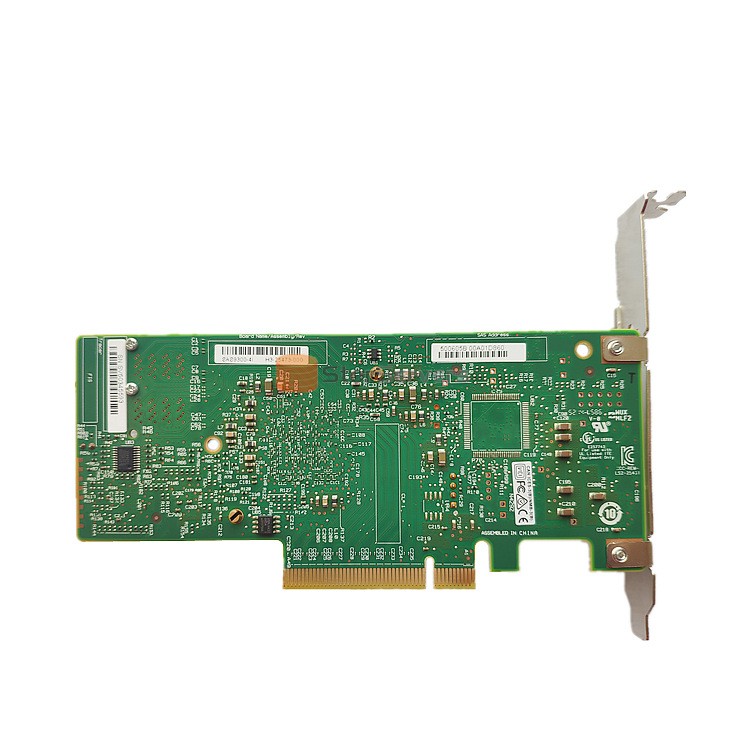

LSI 9311-4i Host Bus Adapter HBA card
Key Features
■ Four ports of 12Gb/s SAS + SATA ports
■ Eight lanes of PCI Express 3.0
■ Low-profile form factor
■ Mini-SAS HD connectors
■ SAS 3008 12Gb/s SAS+SATA controller
■ Supports SSDs, HDDs, and tape drives
■ Offers Integrated RAID (0, 1, 1E and 10)
Key Advantages
■ Provides connectivity in a low-profile form factor
■ 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
■ High performance with 12Gb/s SAS data transfer rates
Specification
| Model |
LSI 9311-4i |
| Ports |
4 internal |
| Brand |
LSI |
| Connectors |
Mini SAS HD SFF8643 One (x4) |
| Storage Connectivity Data Transfer Rates |
12Gb/s SAS 3.0 Compliant |
| I/O Controller |
SAS 3008 Fusion MPT 2.5 |
| Host Bus Type |
x8 lane, PCIe 3.0 |
Integrated RAID(IR)
|
Raid 0,1,1E,10 |
| Form Factor |
Low Profile |
| Cable Support |
Passive Copper |
Availability
|
In Stock |
Warranty
|
3 Years |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
