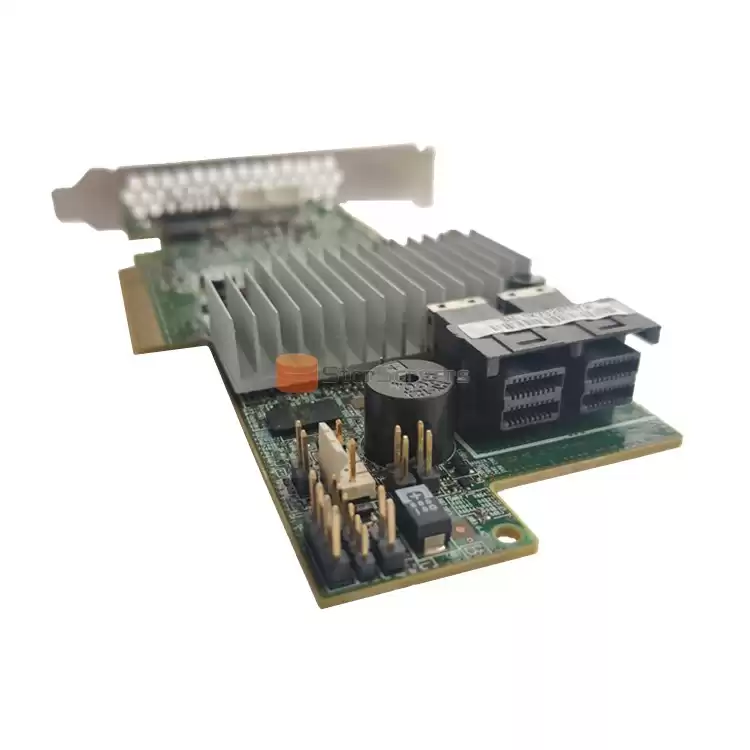

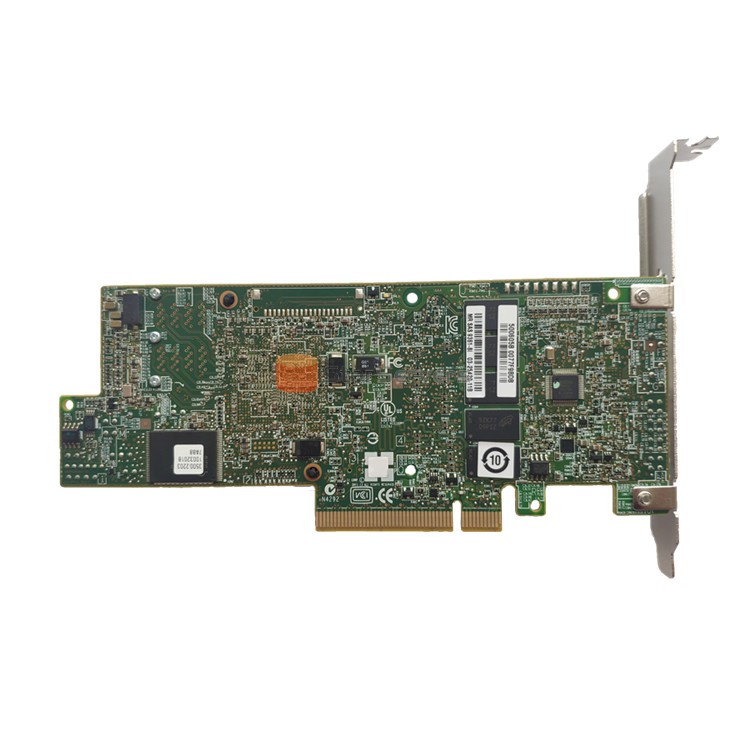

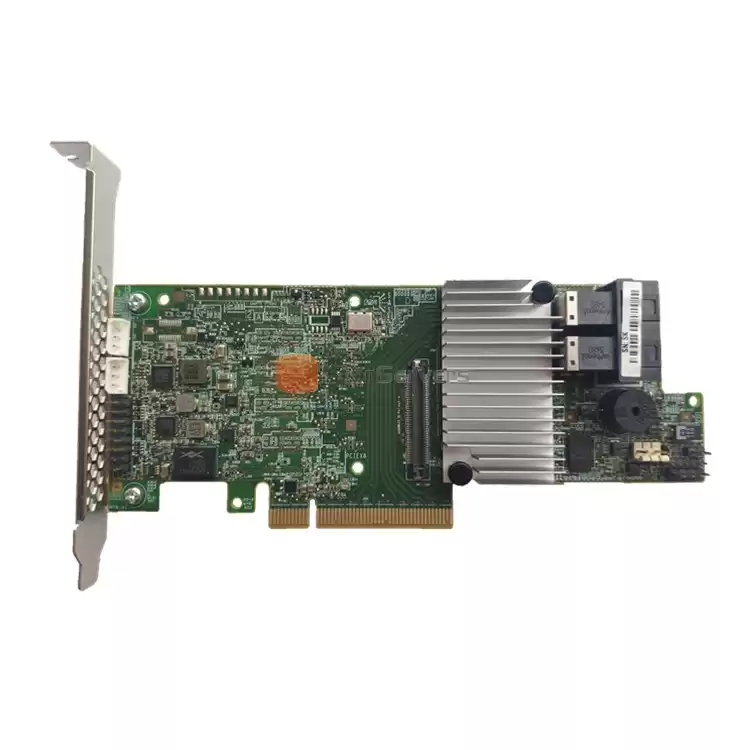

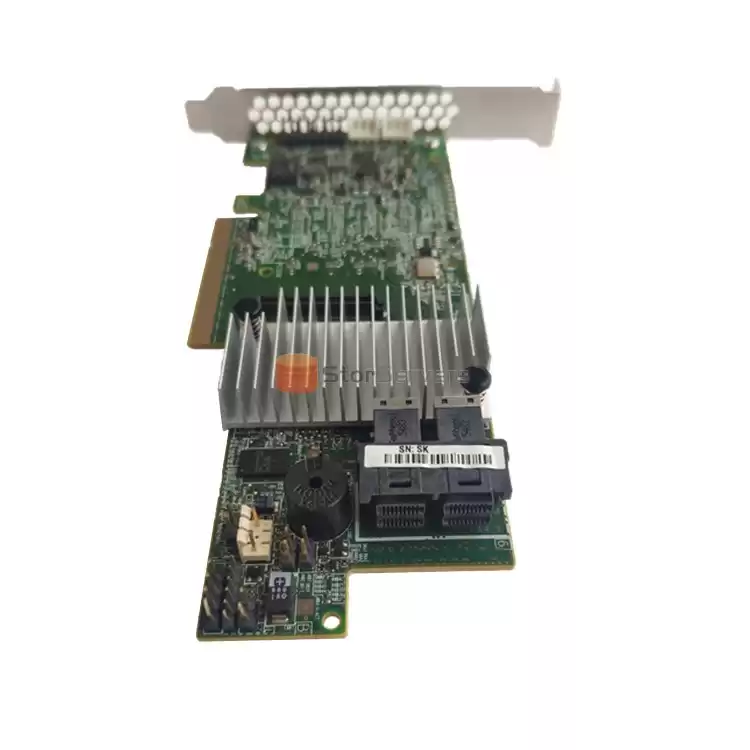

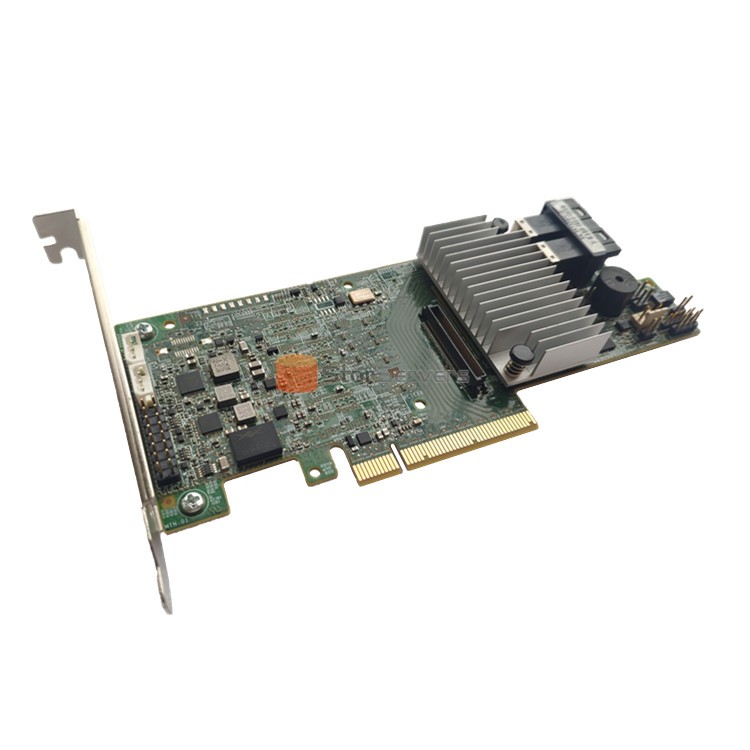

LSI 9361-8i 1G 05-25420-08 RAID CARD
Key Features
• High-performance 12 Gb/s data transfer rates
• Eight internal 12 Gb/s SATA+SAS ports
• Two mini-SAS SFF8643 internal connectors (horizontal mount)
• SAS3108: 1.2 GHz PowerPC 476 dual-core 12 Gb/s ROC
• PCI Express 3.0 host interface
• Cache memory options:
− 1 GB 1866 MHz DDR3 SDRAM
− 2 GB 1866 MHz DDR3 SDRAM
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault flash cache protection
Key Advantages
• 12 Gb/s solutions accelerate performance for next-generation data centers, web, and cloud
• Delivers enterprise-class data protection and security
• Preserves investment in 6 Gb/s and 3 Gb/s drives
• Support for Advanced Software options
• Connect up to 128 3 Gb/s, 6 Gb/s, or 12 Gb/s SATA and SAS devices
Specification
| Model |
LSl 9361-8i 1g |
| MPN |
05-25420-08 03-25420-11 LSI00417 |
| Certification |
FCC,ce, RoHS |
| Connectors |
Two mini-SAS SFF8643 internal connectors |
| Device Support |
Up to 128 SAS and/or SATA devices |
| Data Transfer Rates |
Up to 12 Gb/s per port |
| Host Bus Type |
x8 lane PCl Express 3.0 compliant |
| l/0 Processor/SAS Controller |
SAS3108 12 Gb/s dual-core ROC |
| Cache Memory Options |
1 GB 1866 MHz DDR3 SDRAM |
| Key RAID Data Protection Features |
RAID levels 0,1,5, and 6 RAID spans 10,50, and 60 |
| Warranty |
3 years |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
