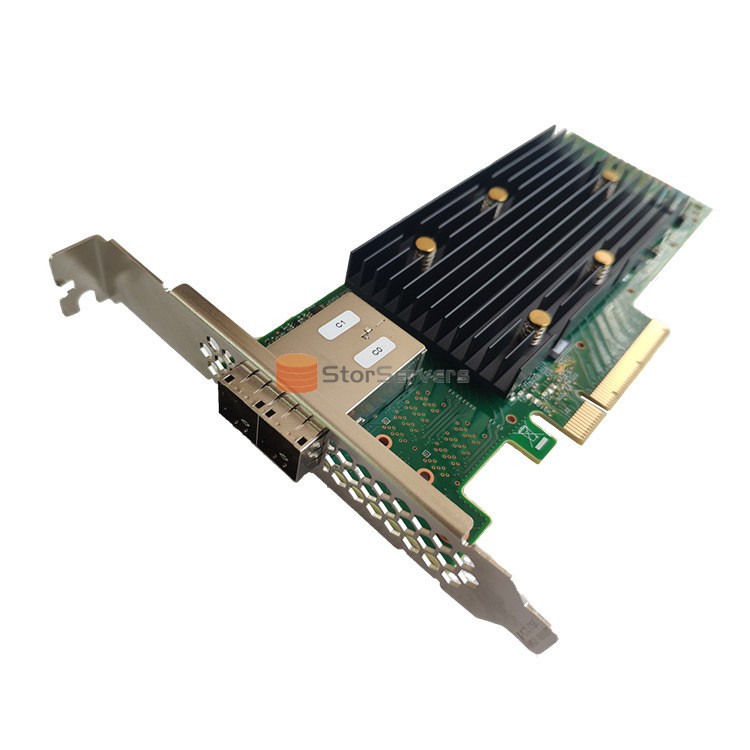

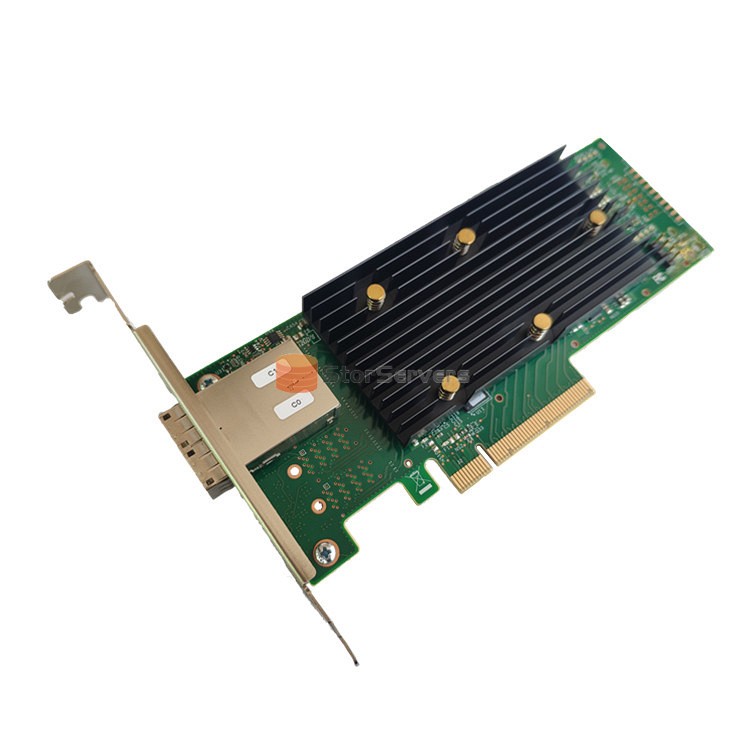

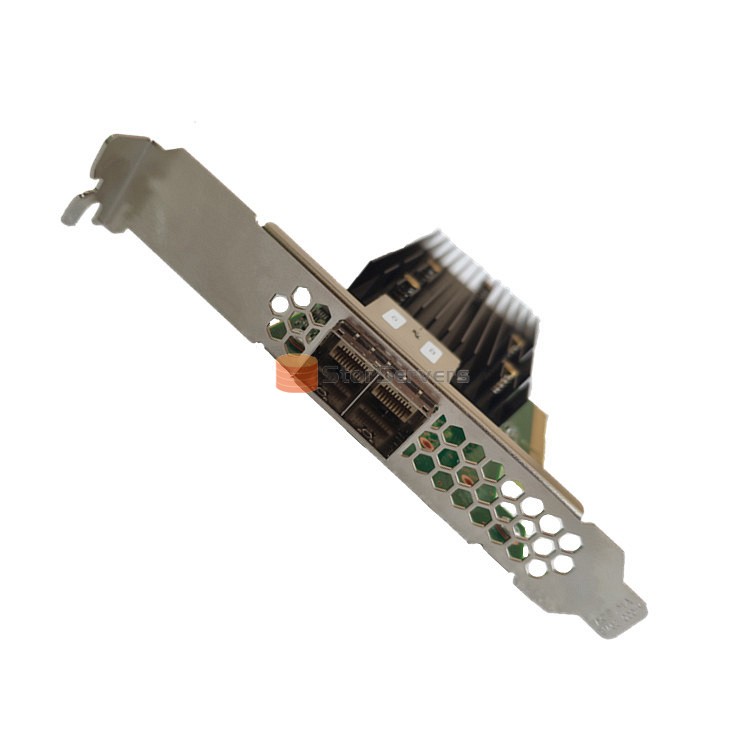

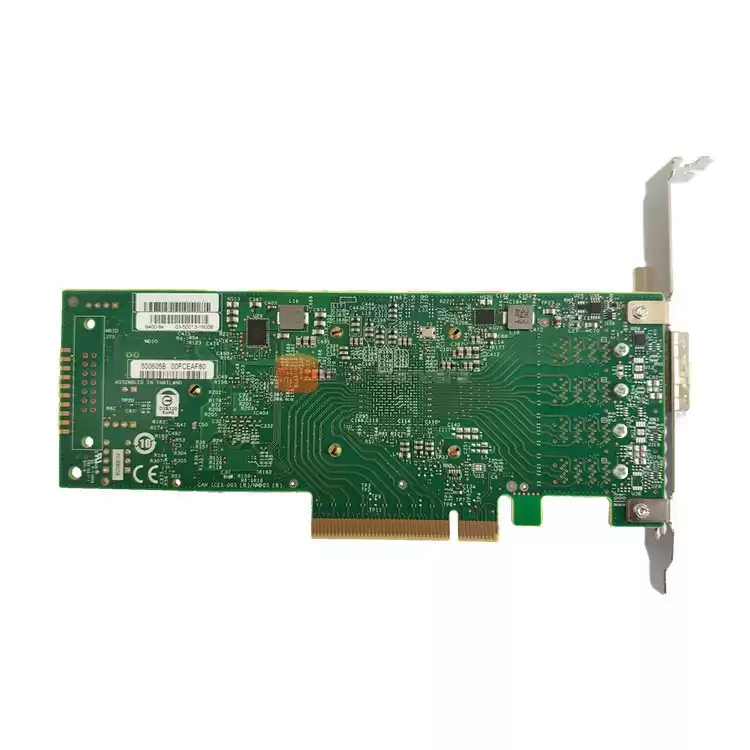

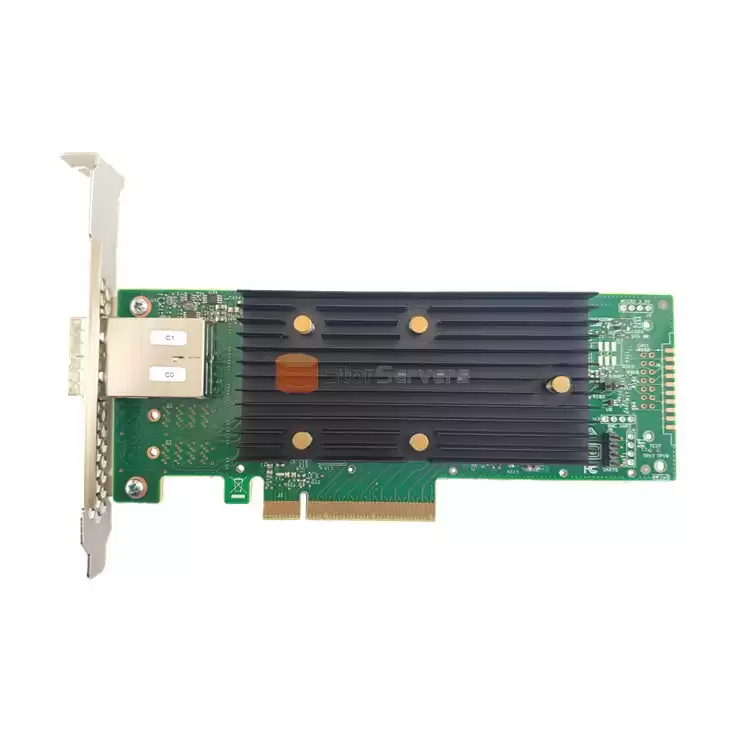

LSI 9400-8e 05-50013-01 HBA CARD
Applications
• High-port count SAS/SATA/NVMe adapters for direct attached high connectivity applications
• Tri-Mode connectivity enabling maximum data center flexibility
• Flexible solutions for cloud computing
• External storage requiring high connectivity SAS/SATA interface for host or drive side connect
Key Features
• Tri-Mode Storage Interface Ports
• Supports 12, 6, and 3Gb/s SAS and 6, 3Gb/s SATA data transfer rates
• Up to 8 storage interface PCIe links. Each link supporting x4 or x2 link widths up to 8.0 GT/s per lane
• SFF-9402 Compliant, Connector Pin-out
• SFF-8485 Compliant, SGPIO
• PCIe 3.1 Host Interface
− Supports x8, x4, x2, x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex
− Lane and polarity reversal
− Variable PCIe bandwidth negotiation
Specification
| Model |
LSI 9400-8e |
| Ports |
8 external |
| PN |
05-50013-01 |
| Connectors |
Two(×4)SFF-8644 |
| Storage Interface Support |
SAS,SATA,NVMe(PCle) |
| Max NVMe Direct Attach Devices |
N/A |
| Max Devices Per Controller |
SAS/SATA:1024 |
| I/O Processor/ SAS Controller |
SAS3408 |
| Host Bus Type |
PCle 3.1 x8 |
| Typical Power |
9.48W |
| Physical Dimensions |
6.600 in.x 2.712 in(155.65 mm x68.90 mm) |
| Cable Support |
Passive Copper, Active Copper, Active Optical |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
