LTE IP Network POC UHF VHF Mobile Car Radio

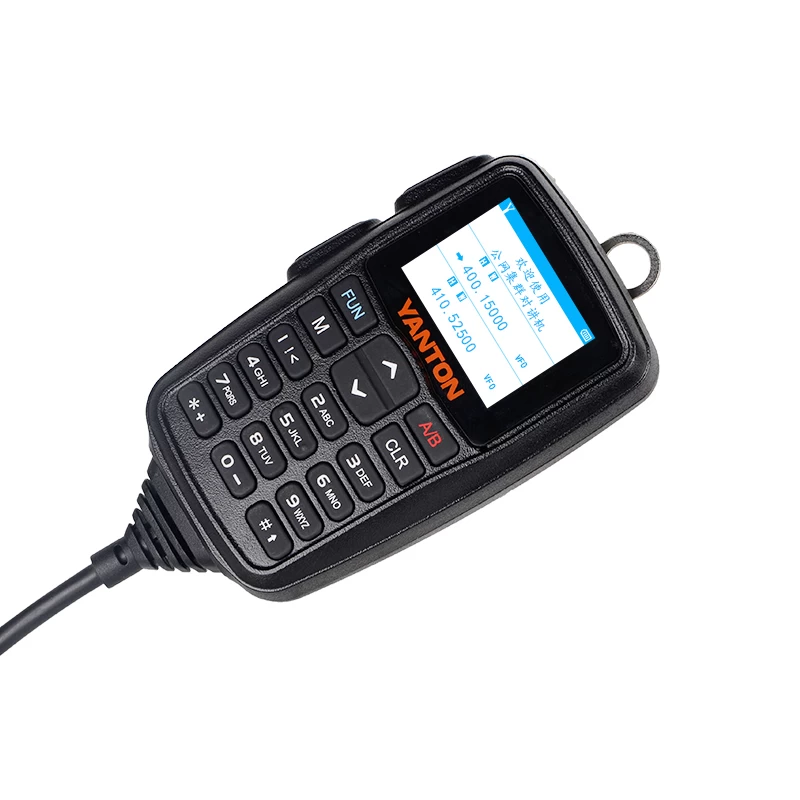

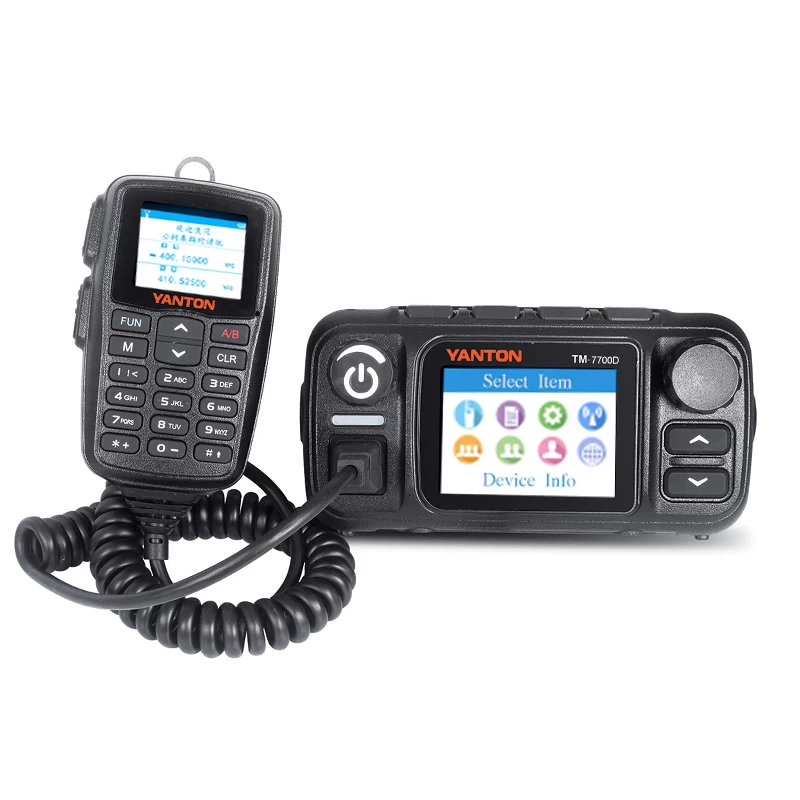

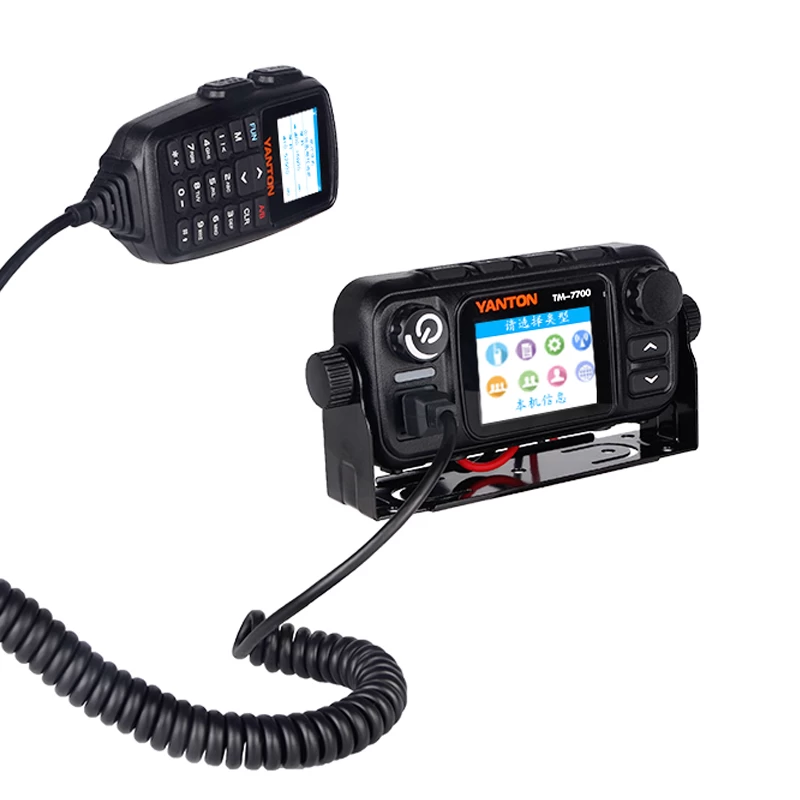

POC VHF UHF Car Radio With Repeater,TM-7700D IP mobile radio is unique for POC and analog dual mode, Operate functon by front panel of radio or multi-function Microphone, Repeater/Phone function, facilitate fast implementation of required functions, thus improving communication efficiency.
Quick Details
1.4G/LTE POC +dual band analog radio
2.Analog output power 25W
3.Double PTT
4.SOS & APRS function;
5.GPS Function;
6.Group Call, Private Call, Friends Call, Emergency Call
7.Dual SIM Card slots
8.Network Signal Strength Prompt
9.Repeater function
Specification
|
GENERAL
|
|
Operator
System
|
LINUX
|
|
LTE/4G
|
Band:B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39/B40/B41
|
|
WCDMA
|
Band
1:2100M Band2:1900M
Band5:850M Band 8:900M
|
|
GSM
|
Band
1:2100M Band2:1900M
Band5:850M Band 8:900M
|
|
Receive
sensitivity
|
LTE/4G:≤-100dBm
LTE/4G:≤-100dBm
WCDMA 2100:≤-110dBm
WCDMA 2100:≤-110dBm
|
|
GPS
|
GPS
Positioning, Support A-GPS function
|
|
GPS
sensitivity
|
GPS
L1 Band:1.57542GHz
GLONASS Band:1597.5-1605.8Mhz
BeiDou:1559.05-1563.8MHZ
Catch-144dBm, Track-159dBm
GSM CS:UL 9.6kpbs/DL9.6kpbs
GNSS
current:100mA(GSM/CDMA/UMTS/LTE)
|
|
voltage
|
12-24V
|
|
Dimensions
|
153mm(L)*78mm(W)*45mm(H)
|
|
Weight
|
570g
|
|
POC PART
|
|
Sim card type
|
Normal sim card
|
|
Data
Speed Rate
|
EDGE:Multi-slot
Class 12
WCDMA CS:UL 64kpbs/DL 64kpbs
WCDMA CS:UL 384kpbs/DL 384kpbs
HSDPA/WCDMA/EDGE/GPRS/GSM
|
|
Working
Current
|
Require
7.4V-240V Power Supply(Notice that 5V Power Band NOT work)
|
|
Working
Temperature
|
-20~50℃
|
|
Color
display
|
2.8inch
|
|
Analog PART
|
|
Frequency
Range(MHz)
|
Tx/Rx:400-480mhz
& 136-174mhz
|
|
Power
|
25W
|
|
PLL
Channel Spacing
|
5/6.25/10/12.5/25/50/100KHz
|
|
Antenna
Impedance
|
50Ω
|
|
Frequency
Stability
|
±2.5PPM
|
POC VHF UHF Car Radio With Repeater
Service
Package:Each package in gift box; 20PCS in strong carton
Payment:Paypal, Western Union, T/T, LC
Lead time:Sample: 1-3 working days
Wholesales order:500PCS within in 5-7 days
OEM order:7-15 days after receiving your deposit and confirm sample package design.
Shipping
Express:door to door service DHL,UPS, FEDEX, TNT and so on.
By air:To destination airport, need to assist clear customs, without door to door service.
By sea:To destination port, need to assist clear customs, without door to door service.
The shipping cost depends on weight and dimension, will recommend the cheapest and safest way according your detail quantity.
Shipping period depend on your location. If deliver by express, it take 3-7 days from China to destination country. Some remote need more 1-3 days.
