Item

Parameters

Model

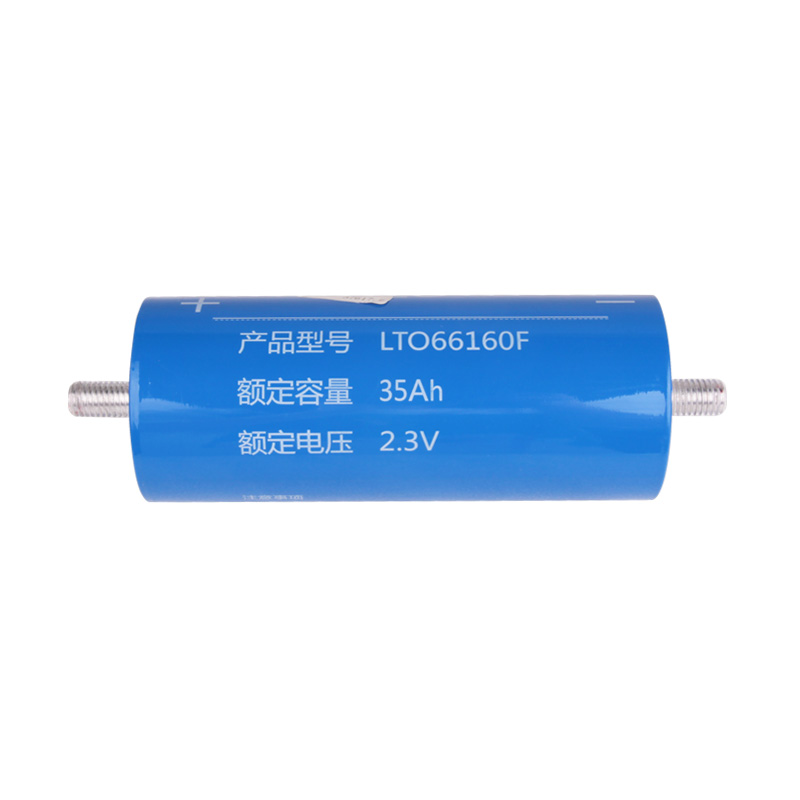

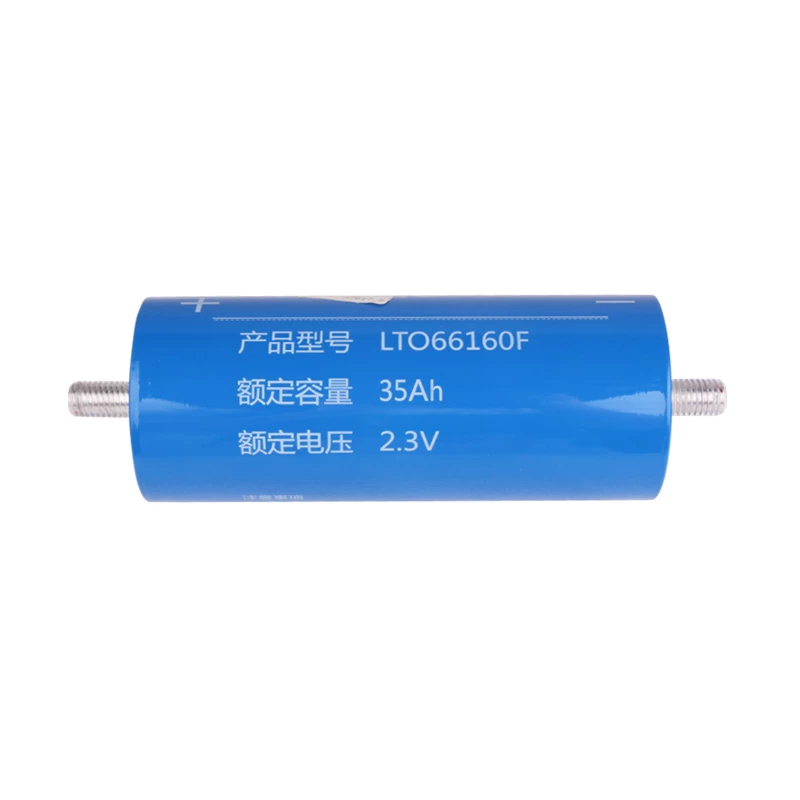

OSN-66160F-LTO35Ah

Materials

LTO

Nominal capacity

35Ah

Nominal voltage

2.3 V

Dimension

Length: 160±1.5mm

Diameter: 66±1mm

Weight

1.22±0.1kg

Internal Resistance

≤1mΩ

Operating voltage

Charge cut-off voltage

2.8 V

Discharge cut-off voltage

1.5 V

Maximum charge current

4C

Maximum discharge current

10C

Cycle life

30000 times

Operating Thermal Ambient

Charging

-50℃~ 65℃

Discharging

-50℃~ 65℃

Storage Thermal Ambient

Short term

(within 1 month)

-20℃~ 45℃

Short term

(within 1 year)

-20℃~ 20℃
