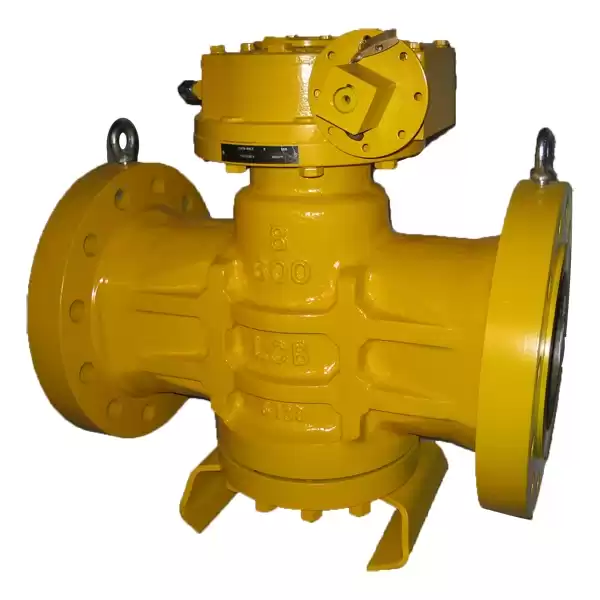

Lubricated Plug Valve 8Inch 600LB WCB

API6D Lubricated Plug Valve

8Inch,600LB, WCB, WCB+ENP, Gear Box

Manufacture STAVAL Factory Offers.



  • BoreFull Bore, Reduce Bore
  • ConstructionLubricated, Sleeve, Multi Way
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
  • End ConnectionBW, Flange
  • SeatSoft Seat, Metal Seat
  • Working Temp. -196°C to +600°C

Key Specification

Type

Plug Valve

Size

8Inch

Pressure

600LB

Construction

Lubricated, Full Bore

Connection

RF End

Body/Bonnet Material

A216 WCB

Plug Material

A216WCB+ENP

Stem Material

A182 F304

Seat Material

A216WCB+ENP

Bolt/Nut

B7/2H

Design Standard

API6D

Face to Face Dimension

ASME B16.10

End Connection

ASMEB 16.5

Inspection & Test Std.

API598

Temperature Range

-29℃~+80

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
