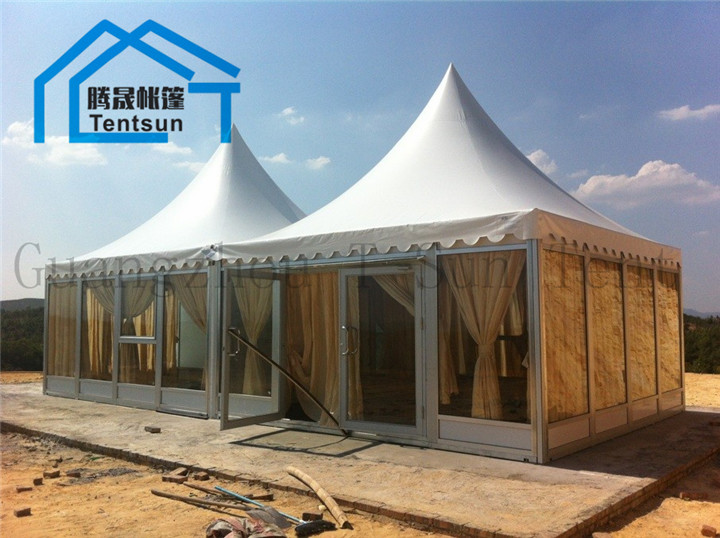

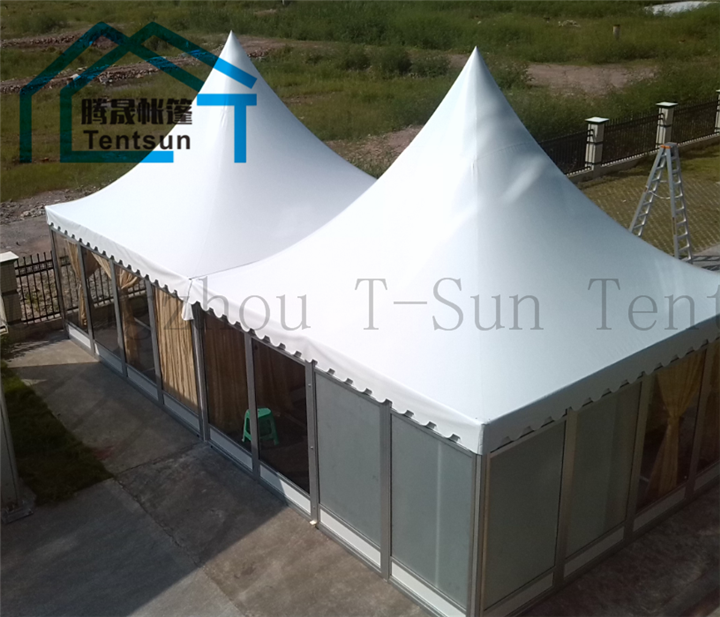

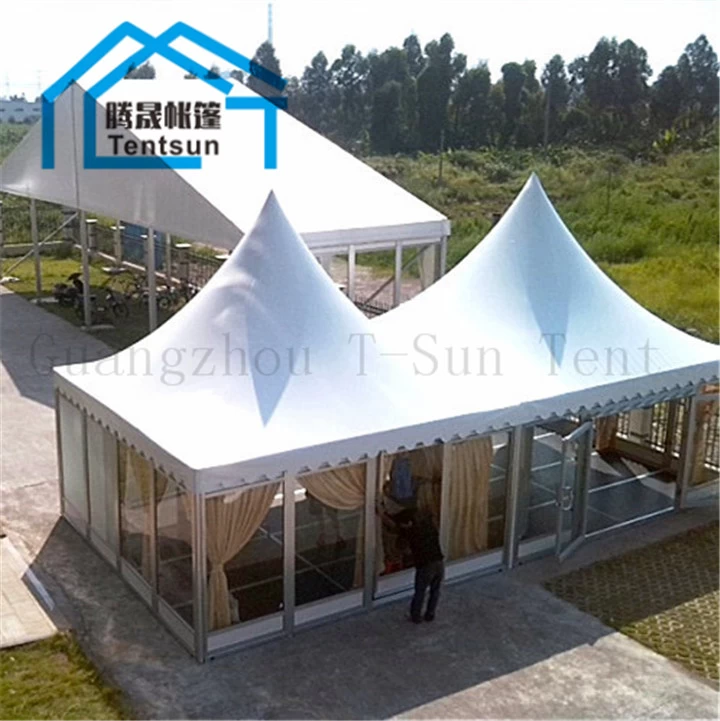

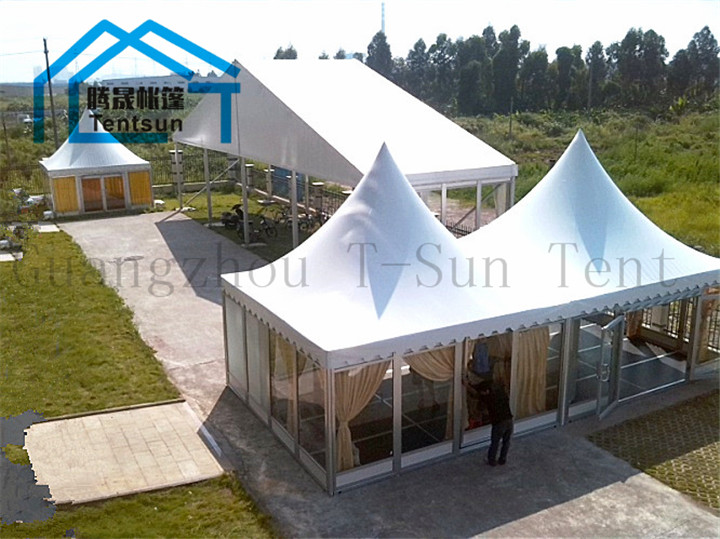

Luxury aluminum frame 5x5m glass wall combined pagoda tent
Standard size: 3x3m ,4x4m ,5x5m 6x6m,8x8m,10x10m
|
Model
|
Size(m)
|
Eave height(m)
|
RIdge height(m)
|
Main profile size(mm)
|
|
PGA03
|
3x3
|
2.5
|
4.3
|
65x65x2.5
|
|
PGA04
|
4x4
|
2.5
|
4.8
|
65x65x2.5
|
|
PGA05
|
5x5
|
2.5
|
5.4
|
65x65x2.5
|
|
PGA06
|
6x6
|
2.5
|
5.9
|
65x65x2.5
|
|
PGA08
|
8x8
|
2.6
|
6.0
|
122x68x3
|
|
PGA10
|
10x10
|
2.6
|
6.5
|
122x68x3
|
Pagoda Tent Frame:6061/T6 hard press extruded aluminium alloy frame, anodized , never rustic.
Roof cover: 850g/sqm double pvc coated blockout polyester fabric( waterproof , UV-protection , flame -retardant)
Side cover: aluminum frame 6mm thick tempered glass wall with ground bar
Connectors: Hot-dip galvanized steel.
Fixed method:
Expansion bolts into the concrete ground
Steel nails into soft land, like sand, grass etc.
Weight plates applied for any occassion
