Feature of tent
|
|
1.Easy to set up and dismantle,best structure for temporary
|
|
and semi-permanent purpose.
|
|
|
|
2.Light weight and small volume. convenient for transportation.
|
|
|
|
3.No any pole inside that you can use the interior space 100%.
|
|
|
|
4.Strong structure which allow the tent to resistance windload up to
|
|
100km/h and the snowload is up to 50kg/sqm.
|
|
|
|
Main frame
|
|
1.Hard press extruded aluminum alloy GB6061/T6 ,Hardness 13HW ,
|
|
long life span ,high strength,not rust.
|
|
|
|
2.The materials( size ,thickness ) will be change according to
|
|
width/clear span to make sure the tent is safty.
|
|
|
|
Connectors
|
|
1.Make from hot dip galvanized steel ,the coated laryer is up
|
|
to 60um high strength , anti-corrsion.
|
|
|
|
PVC cover
|
|
1.Roof cover , 850g/sqm light blockout double PVC coated polyester fabric
|
|
UV protection ,fireproof , waterproof.
|
|
|
|
2.Sidewall cover 650g/sqm translucent double PVC coated polyester fabric,
|
|
UV protection, fireproof, waterproof.
|
|
|
|
Transparent PVC cover
|
|
1.Roof cover, 0.8mm transparenT pvc film
|
|
|
|
2.sidewall cover, 0.5mm transparent pvc film
|
|
|
|
Hard wall cover
|
|
|
|
1.Glass wall,aluminum frame 6mm tempered glass wall
|
|
|
|
2.ABS wall , 5mm ABS panel.
|
|
|
|
3.Sandwich wall, 50mm sandwich panel
|
<<<<<<<<<<<<<<<<<<<<< Popular size >>>>>>>>>>>>>>>>>>>>>>>>>>>>>
|
clear span (m)
|
eave high(m)
|
rinde height(m)
|
bay distance(m)
|
main profile(mm)
|
length(m)
|
|
6
|
2.6
|
3.6
|
3
|
47x82.5x2.6
|
unlimited
|
|
8
|
2.6
|
4
|
3
|
47x82.5x2.6/48x100x3
|
unlimited
|
|
9
|
2.6
|
4.2
|
3
|
47x82.5x2.6/48x100x3
|
unlimited
|
|
10
|
2.6
|
4.8
|
3/5
|
48x100*3/122x66x3
|
unlimited
|
|
12
|
3
|
5.2
|
3/5
|
48x100x3/122x66x3
|
unlimited
|
|
15
|
4
|
6.4
|
5
|
122x66x3/166x88x3
|
unlimited
|
|
18
|
4
|
6.7
|
5
|
120x152.4/204x110x4
|
unlimited
|
|
20
|
4
|
7.2
|
5
|
204x110x4/204x120x4
|
unlimited
|
|
25
|
4
|
8
|
5
|
204x120x4
|
unlimited
|
|
30
|
4
|
8.9
|
5
|
256x121x4.5
|
unlimited
|

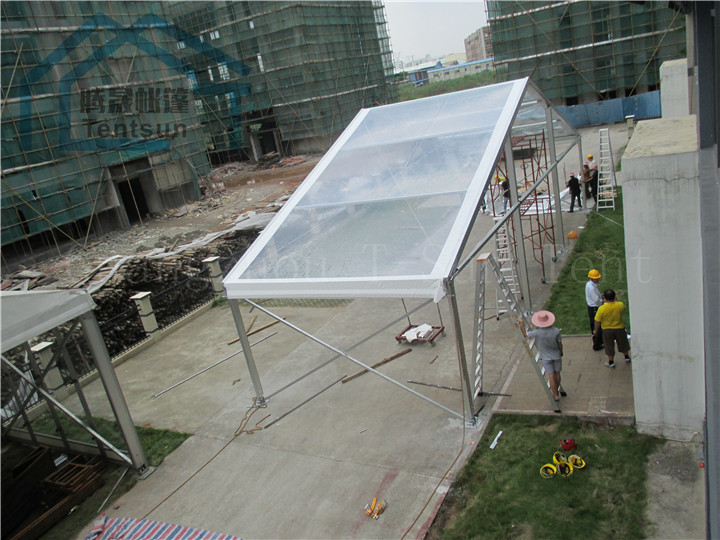

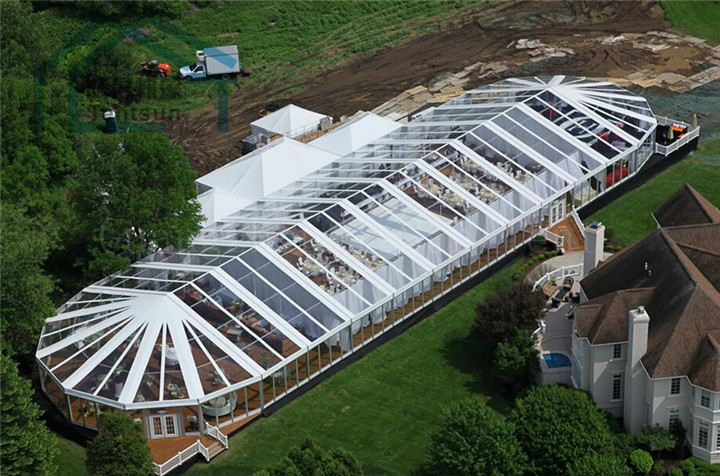

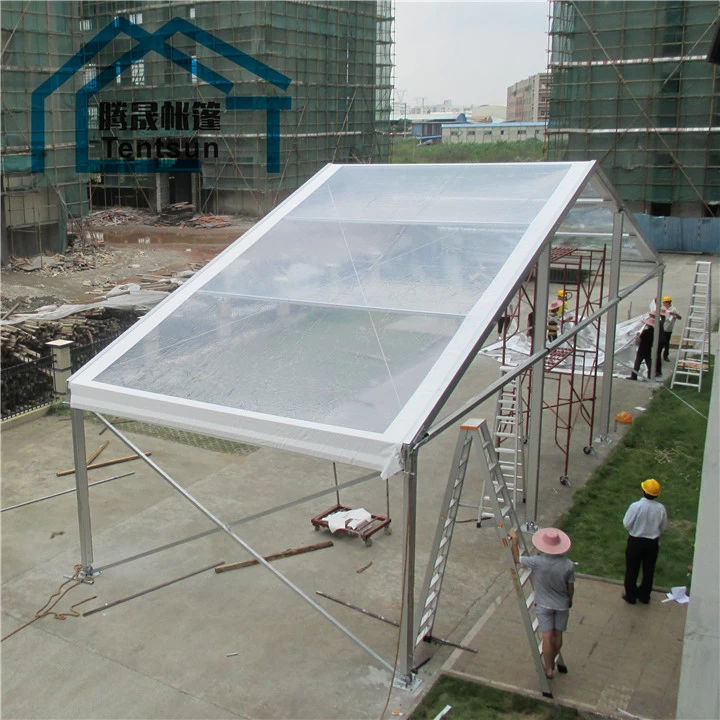

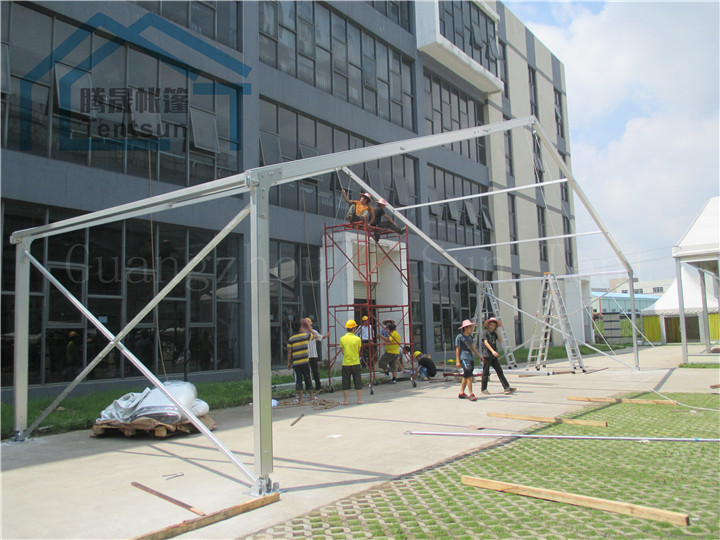

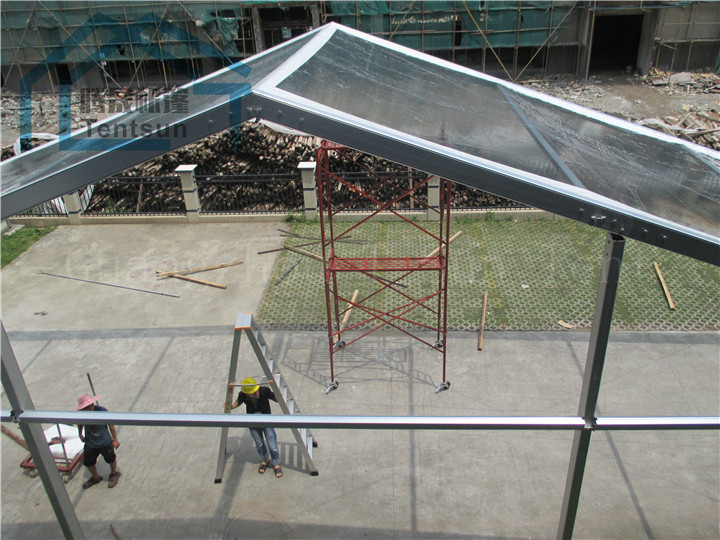

Pictures show
<<<<<<<<<<<<<<<<<<<<< optional accessories >>>>>>>>>>>>>>>>>>>>>>>
.................................. cover colors :white , transparent .................................................
............Windows: clear PVC window, mesh window, glass window for hard wall..........
...................wooden floorling systme: VIP cassette ,simple cassette...............................
...doors: double wing glass door , single wing glass door, PVC zip door ,rolling door....
..side wall: tempered glass sidewall, PVC sidewall, ABS side wall, sandwich sidewall...
......rain gutters (inner roof beam rain gutters or rain gutters between two tents............
...........decoration: lining , curtains , various colors of satin fabric are available..............
...........................furnitures: table, chair ,air condition.....................................................
why choose us
1. Many of our administrators and technicians have more than 10 years experience at tent line, we all hold the philosophy that quality and safety is most important thing in our production, so the quality of our tent is excellent , let your every penny is worthy,
2.combination of practice and theory , we design the most suitable tent for our customers according to clear span, height , bay. strong ,light weight no waste any unnecessary raw materials so that we can give our customer the best price.
3.we can help you to arrange the shipment or or cooperation with your forwarder.
4.we have engineer available to your hometown help you set the tent up.
5, we can help you if you want to buy other good shipment with your tent.

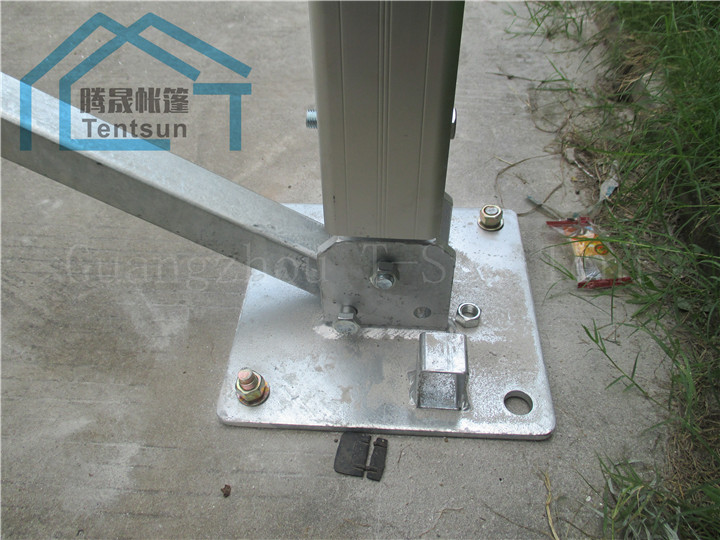

<<<<<<<<<<<<<<< fixed methods of the tent >>>>>>>>>>>>>>>>>>>>>>
.
<<<<<<<<<<<<<< Term of payment >>>>>>>>>>>>>>>>>
...T/T 30% of the total amount of invoice value as doposit , the balance is before shipment...
<<<<<<<<<<<<<<Terms of Delivery>>>>>>>>>>>>>>>>>>
..............................................FOB ,CIF, EXW ,CFR are all available......................................................
<<<<<<<<<<<<Packaging and shipping>>>>>>>>>>>>>>>
................. Roof cover & sidewall cover packaged with professional PVC carry bag.................
................ aluminum frame & galvanized steel connector packaged with plastic film................
.......glass wall and other accessories that easy to damage packaged with wooden box........
Our service
1.Guide you and help you to assemble your tent up,Wherever you come from, we can go to your home town to help you set the tent up.
2.Set the tent up and check the quality,Make sure all have to be done well before shipping.
3.More than 3 years Quality Warranty, and Free Repair Under the term of Quality Warranty.
Company information
FAQ
1.Does your company accept customized tent?
Yes , we can make the tent according to our customers different need.
2.Does your company is a factory?
Yes , we are a factory , so our price is really reasonable ,but have high quality.
3. Does your company provide any help to install the tent?
Yes , usually we will send manul instruction and CD to help our customers to install the tent.
4, Does your tent can move to the other place after set up?
Yes , the main frame of our tent is aluminum , so it is light in weight but with high strength, that is very easy to set up and dismantle.
5. How can I go to visit your company ?
Our company is locate in GuangZhou ,south china city , when you in GuangZhou you can take the Metro 3 to PanYu Square then we pick you up there or you can take the taxi to our factory.
6.How to buy your products?
|
Contact us that we will deal with your order quickly
|
|
