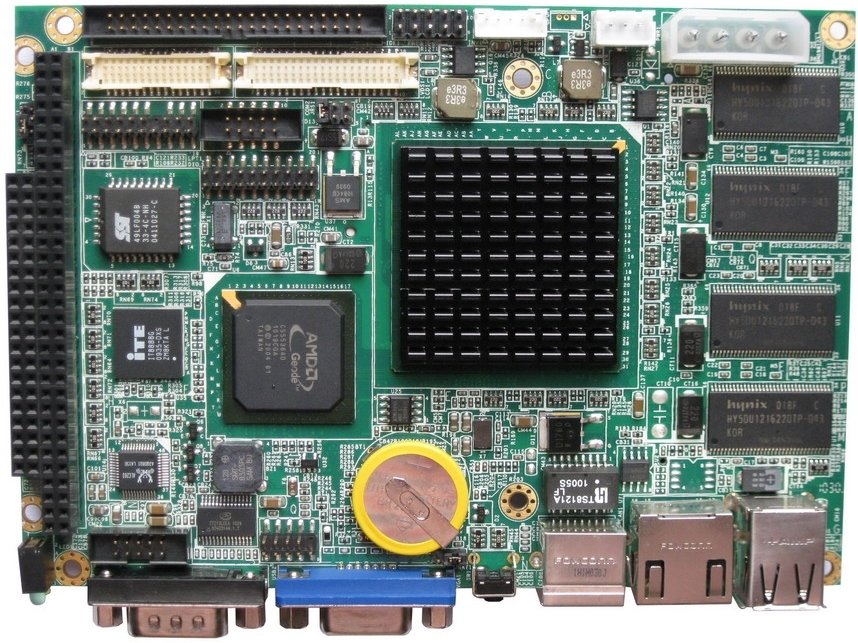

3.5" Single board computer Soldered on Board AMD LX800 CPU and 256M RAM PC/104 Expansion
Product Introduction
The "3.5" Embedded Motherboard Soldered on Board AMD LX800 CPU and 256M RAM PC/104 Expansion" is a compact and integrated computing solution designed for embedded applications. The motherboard comes in a compact 3.5" form factor, making it suitable for space-constrained environments and embedded systems. It is equipped with an AMD LX800 CPU. The AMD LX800 is a low-power, x86-compatible processor designed for embedded systems, offering a balance between performance and energy efficiency. The motherboard supports PC/104 expansion. PC/104 is a stackable and rugged form factor for embedded systems, allowing for easy integration of additional modules and peripherals.
Product Features
■ Soldered on board AMD LX800 CPU
■ 256M DDR Memory on board
■ 10M/100M LAN
■ VGA, LVDS interface
■ 2COM RS232 (COM2 supports RS422 / 485)
■ 4USB2.0
■ 16-bit GPIO
■ PC/104
■ 1 to 255S reset watchdog
Specification
|
CPU/GPU
|
Soldered on board AMD LX800 500M Hz CPU
|
|
Memory
|
Soldered onboard 256M DDRSDRAM
|
|
Storage
|
1×IDE，1 CF socket
|
|
Sound Card
|
Realtek AC’97 Audio
|
|
NIC
|
10M/100M
|
|
Display Card
|
CPU integrated graphic
|
|
Display Interface
|
1×VGA, 1× LVDS
|
|
USB2.0
|
4
|
|
USB3.0
|
0
|
|
GPIO
|
16 bits
|
|
COM
|
2COM RS232，COM2 support RS422 / RS485
|
|
BackplaneI / O
|

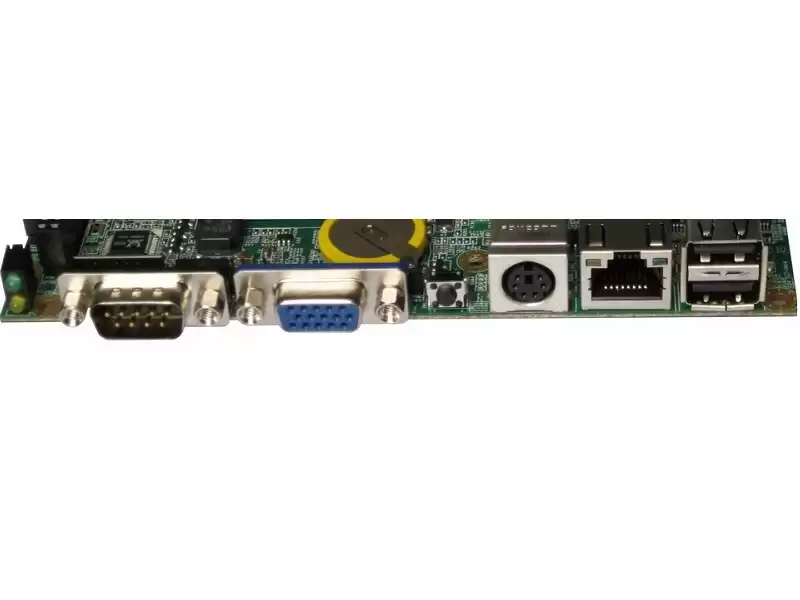

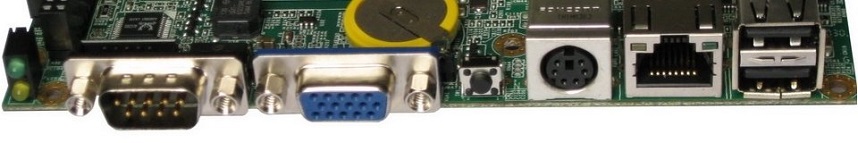

COM , VGA, PS/2, RJ45LAN, 2USB2.0
|
|
BoardI / O
|
2USB, COM, front audio, CLR_CMOS, CPU fan power, System fan power, GPIO
Front panel, 8P ATX, LVDS, invert, Print, IDE
|
|
Expansion
|
PC/104
|
|
System
|
Support Windows (WINXP ...)，Linux
|
Mechanical & Environmental
|
Power Supply
|
DC5V, 12V
|
Heat Dissipation
|
Heat sinks
|
Size(L×W)
|
146mm×102mm
|
|
Working Temperature
|
-15~55℃
|
Storage
|
-40~75℃
|
Environmental Humidity
|
0~90%air humidity，no condensation
|
|
Packing List
|
ES3-LX800DL124 motherboard×1，IDE cable×1，ATX power cable×1，COM cable×1, USB cable x1
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
