Product function
*Split core type structure, which can be
installed without changing cables
*High-quality epoxy resin vacuum casting,
excellent mechanical and environmental *resistance
*High-quality stainless steel clamp hoop
fastening structure, easy and reliable installation
*Output terminal type, more concise
wiring
*Single winding protection current
transformer
TECHNICAL PARAMETERS
|
Dimensions (D×d×H)
|
166mm×110mm×100mm
|
|
Rated frequency
|
50Hz
|
|
Rated secondary current
|
5A
|
|
Rated burden
|
≤2.5VA
|
|
Applicable cable outer
diameter
|
≤φ110mm
|
|
Rated primary current
range
|
100A
|
|
Dielectric strength
|
AC3000V，1min
|
|
Rated continuous
overcurrent
|
120% of rated current
|
|
Polarity and homonym
|
P2 represents the primary polarity
terminal,
S1, S2 represent the secondary
polarity end,
P2 and S2 have the same polarity
(-polarity) at the same instant
|
|
Working environment
|
Temperature
|
-25℃～40℃
|
|
Humidity
|
≤90%
|
|
Altitude
|
≤1000m
|
TECHNICAL DATA
|
Model
|
LXZK2
|
|
Accuracy class & Rated
burden（VA）
|
Accuracy class & Rated
burden（VA）
|
|
Type
|
Current transformer
for protection
|
Current transformer for
measurement
|
|
Current rating
PRI:SEC
Amperes
|
5P10
|
10P10
|
0.5
|
1.0
|
3
|
|
20/1
|
|
1
|
|
|
√
|
|
50/1
|
1
|
1.5
|
|
√
|
√
|
|
75/1
|
1.5
|
2.5
|
|
√
|
√
|
|
100/1
|
2.5
|
3.75
|
|
√
|
√
|
|
150/1
|
2.5
|
5
|
√
|
√
|
√
|
|
50/5
|
|
1
|
|
|
√
|
|
75/5
|
1
|
1.5
|
|
√
|
√
|
|
100/5
|
1.5
|
2.5
|
|
√
|
√
|
|
150/5
|
2.5
|
3.75
|
|
√
|
√
|

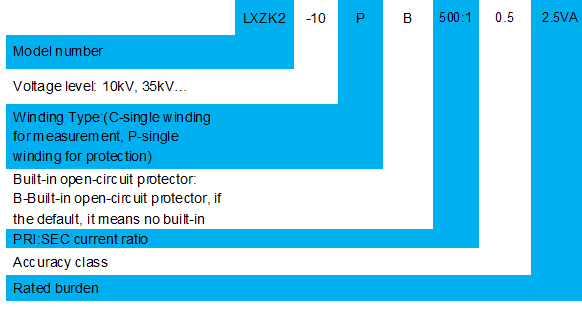

ORDERING INFORMATION
