Maintenance-Free Industrial Evaporative Cooler

Designed for hassle-free operation, this industrial AC features a built-in stainless steel pipe system to prevent scaling, requires zero regular cleaning, and uses a large-capacity water tank for months of use without connecting to a water supply—ideal for remote or water-scarce industrial sites.


  • BrandPQ



Product Description

Energy-Saving Factory Air Conditioning Unit

    When choosing an industrial air conditioner, consider cooling capacity, energy consumption, and maintenance convenience. This machine provides dual power configurations of 5HP and 15HP: the 5HP model covers 150-200㎡, and consumes only 4-5 degrees of electricity per day. The 15HP model covers 650-700㎡, and consumes 11 degrees of electricity per day, both of which can achieve powerful cooling that is 8-10℃ lower than the room temperature.

    The core advantage comes from the fully sealed stainless steel piping system, which is resistant to scaling and corrosion, and eliminates the cost of regular cleaning. The large-capacity water tank supports long-term operation for several months without the need for external water pipes, which is particularly suitable for warehouses, workshops, or remote sites with inconvenient water sources.

   Different from traditional air conditioners that require frequent maintenance and high water consumption, this machine perfectly combines powerful cooling, energy saving, and power saving with convenient use, ensuring a comfortable and efficient industrial environment without downtime losses and additional maintenance expenses.

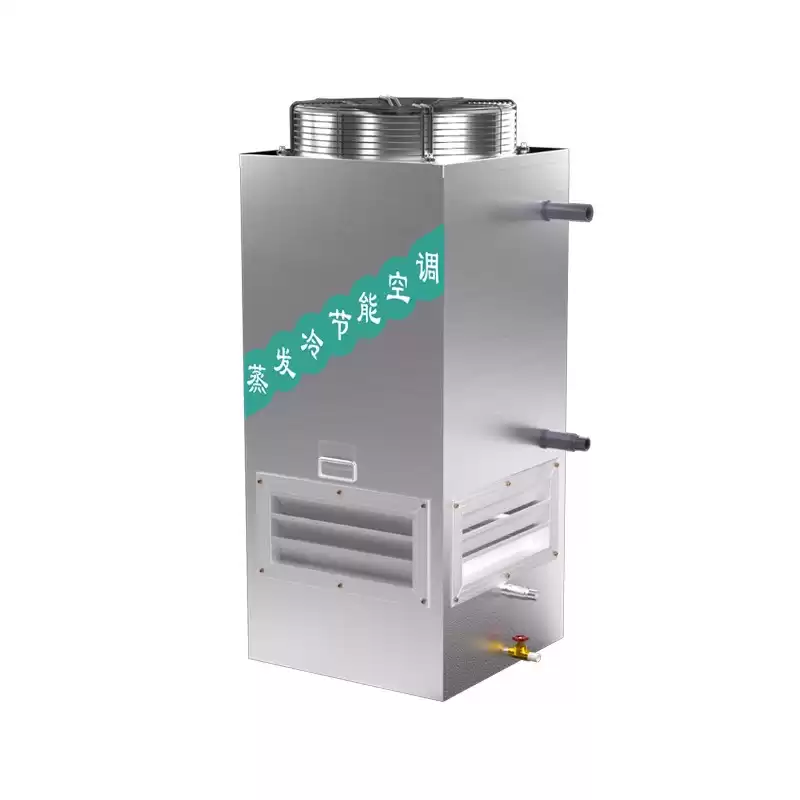

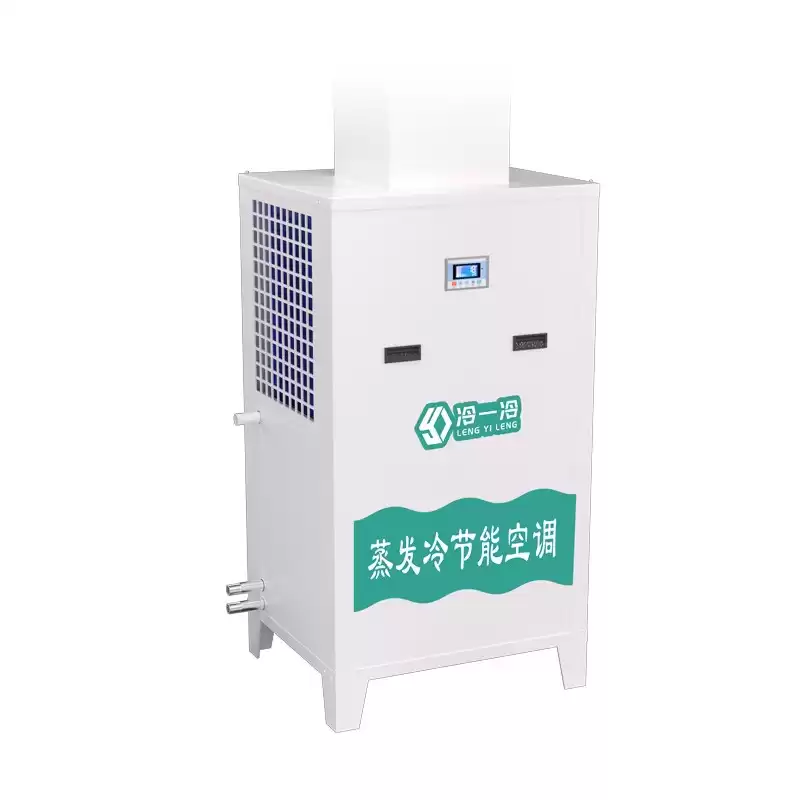

Different Designs of Products

Product Parameters

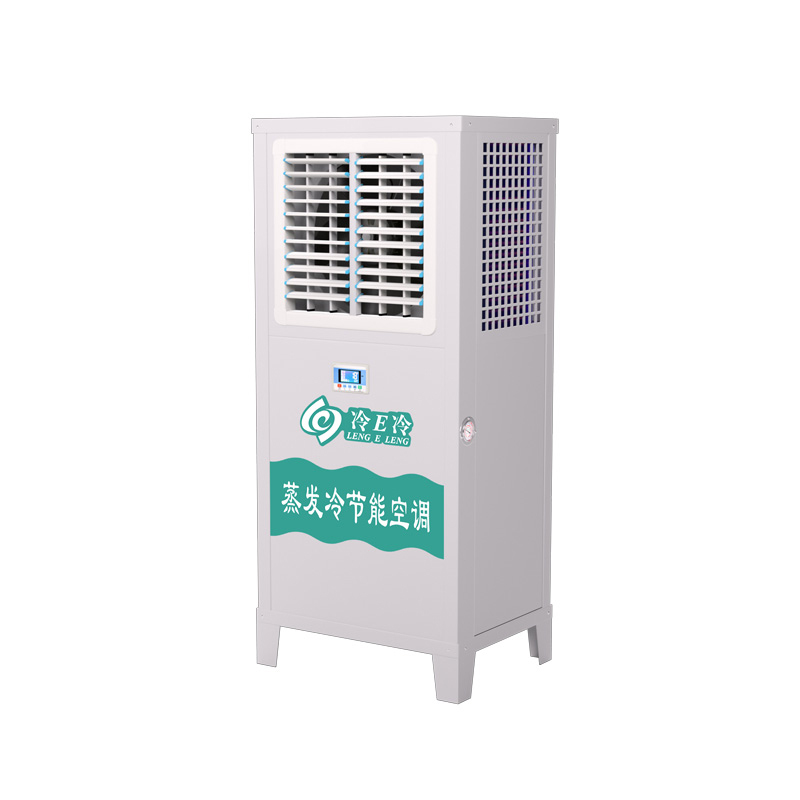

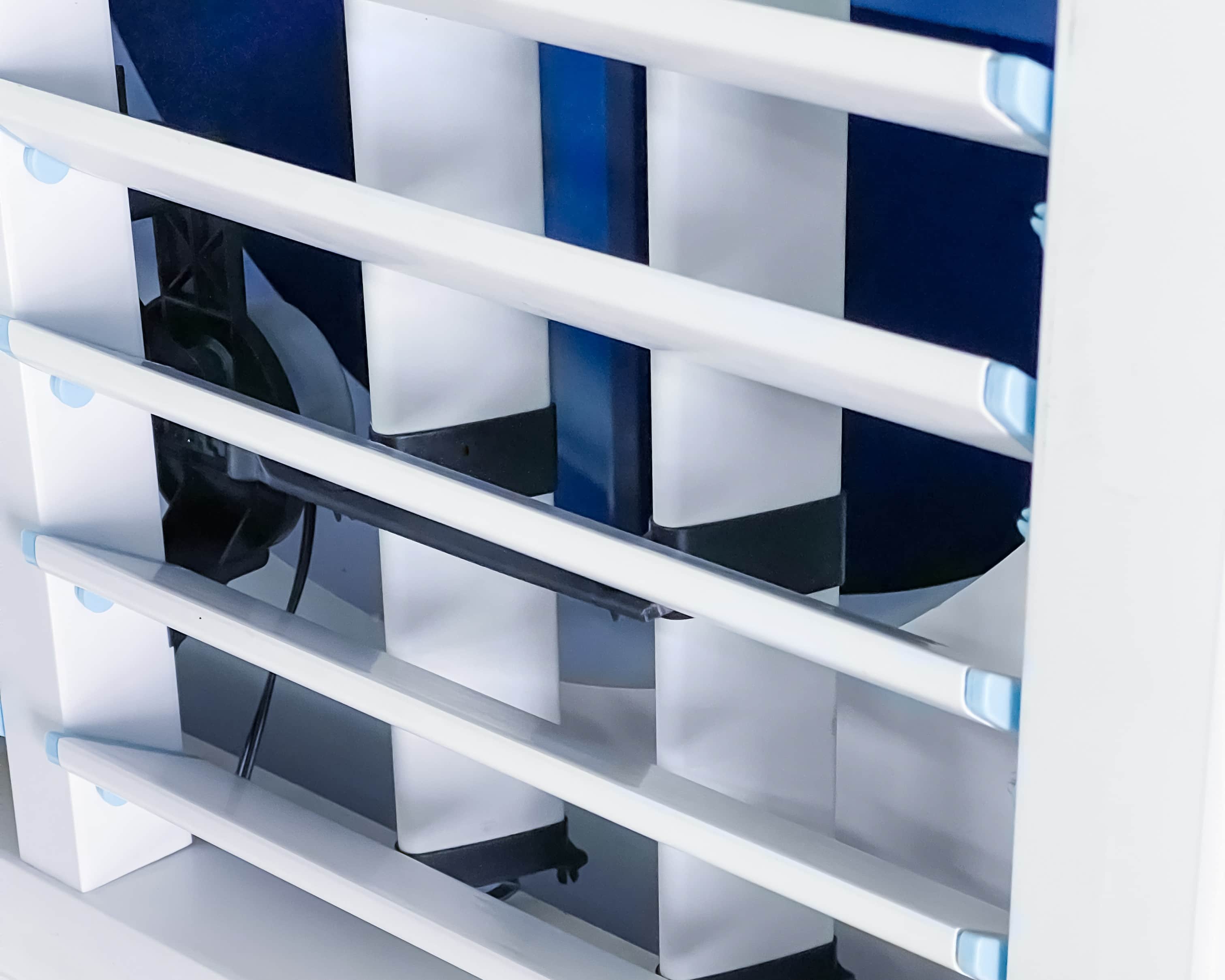

Vertical  Louvers
Model Number 5HP 7HP Single Fan 7HP Dual Fan 10HP Dual Fan
Compressor Power (kW) 3.75 7 7 10
Cooling Capacity (kW) 18 25 25 36
Cold Air Outlet (mm) 56*54 56*54 44*111 44*111
Motor Power (kW) 0.09 0.25 0.18 0.18
Head (M) 10~15 10~15 10~15 10~15
Rated Power (kW) 4.6 6 5.93 8.18
Temperature Control Range (°C) 13-30 13-30 13-30 13-30
Refrigeration Area (㎡) 150-200 250-300 300 400-450
Refrigerant Type R410A R410A R410A R410A
Length, Width, and Height (cm) 80*60*168 80*60*168 84*73*201 84*73*201
Weight (kg) 170 180 230 240
Motor Power (kW) 0.5 0.5 1 1
Air Volume (m³/h) 10300 10300 10300*2 10300*2
Heat Dissipation Ambient Temperature (°C) 40 40 40 40

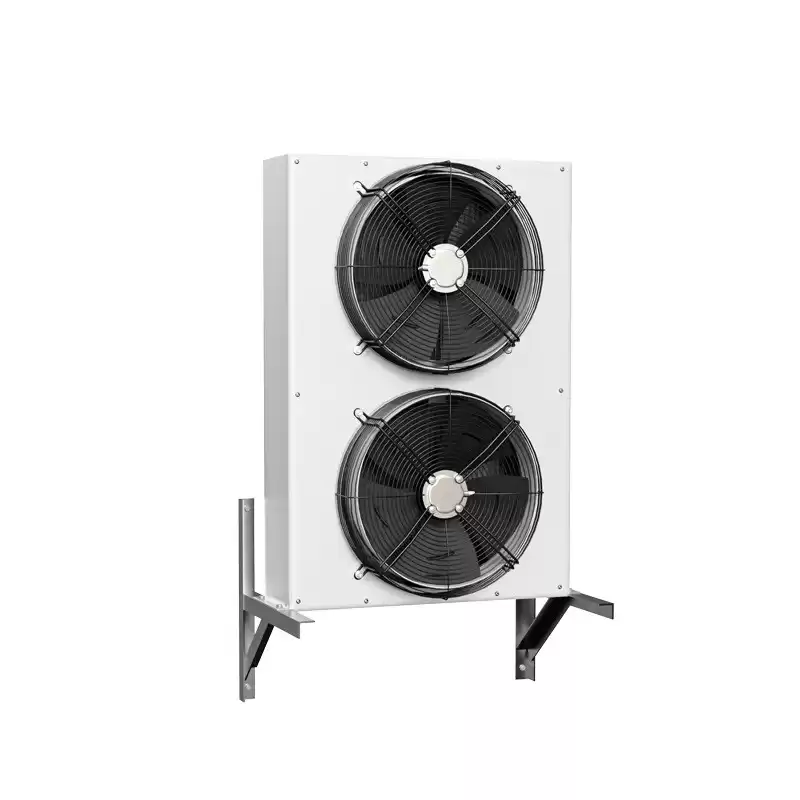

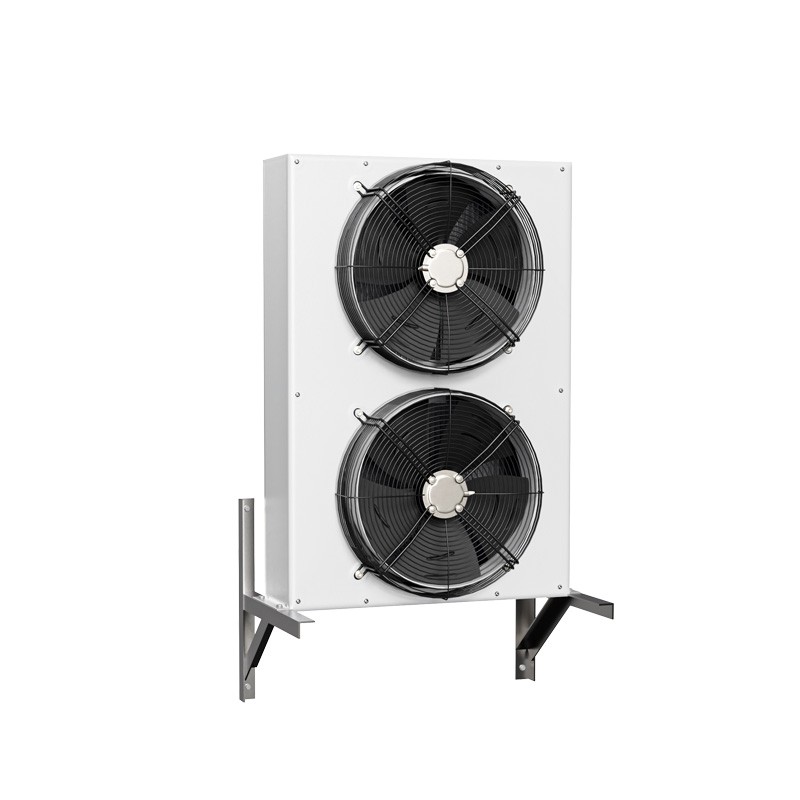

External Machine Size (cm) 74*22*107 84*22*117 84*22*117 (74*22*107)*2
Weight (kg) 35 40 40 35*2

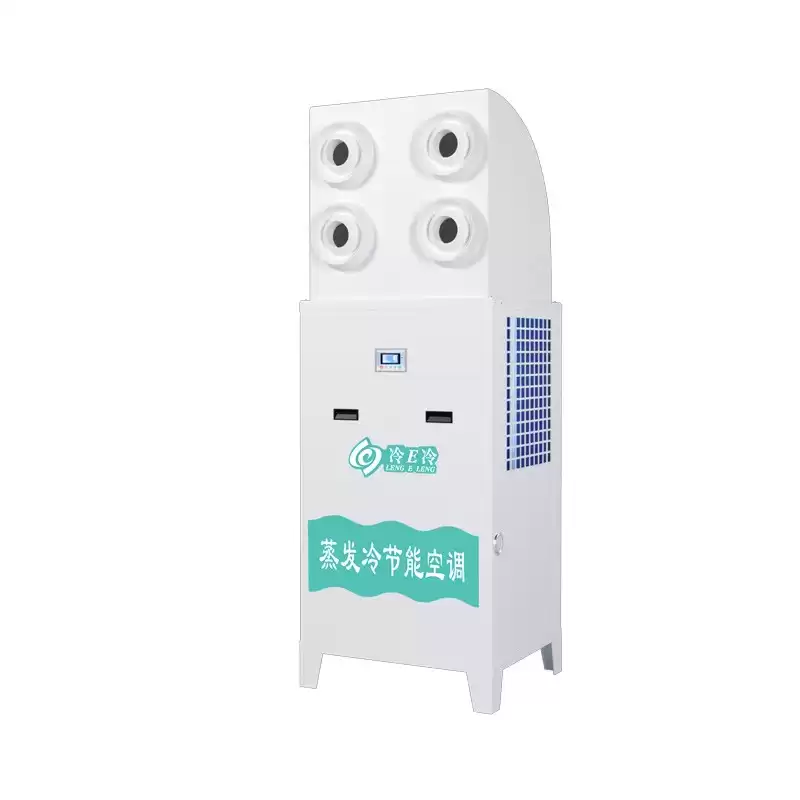

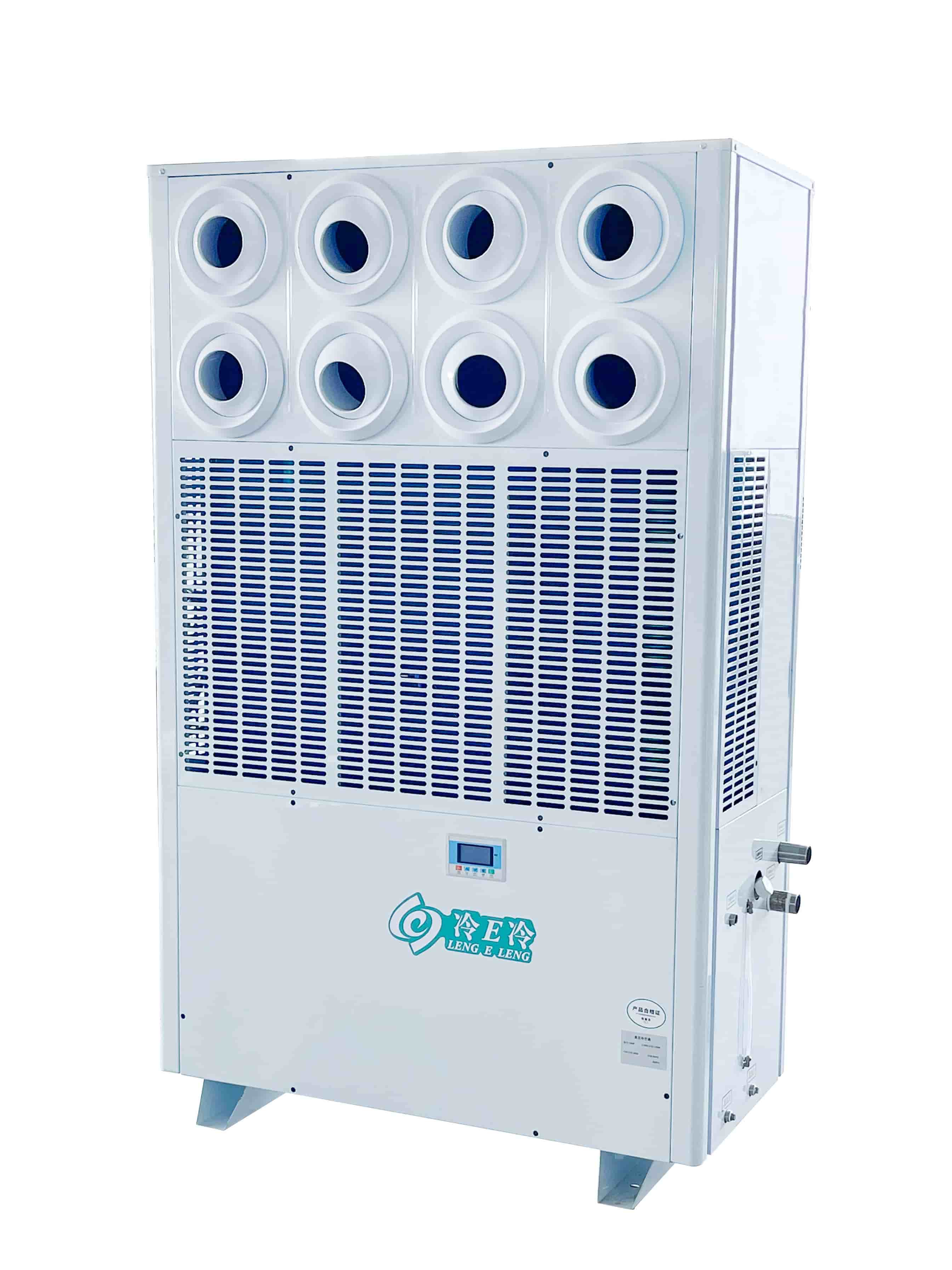

Vertical  Jet  Model
Model Number 5HP 7HP 10HP 12HP 15HP
Compressor Power (kW) 3.75 5.25 7.5 9 10.5
Cooling Capacity (kW) 18 25 36 43 54
Rated Power (kW) 5.1 7.1 10.64 12.14 14.6
Temperature Control Range (°C) 13-30 13-30 13-30 13-30 13-30
Motor Power (kW) 0.52 1 0.52*2 0.52*2 1*2
Air Volume (m³/h) 3350 4200 6700 6700 8400
Refrigeration Area (㎡) 150-200 250-300 400-450 500-550 650-700
Refrigerant Type R410A R410A R410A R410A R410A
Length, Width, and Height (cm) 80*60*197 80*60*197 131*64*212 131*64*212 131*64*212
Weight (kg) 166 180 330 340 365
Motor Power (kW) 0.5 0.5 0.5*2 0.5*2 0.5*2
Air Volume (m³/h) 10300 10300 10300*2 10300*2 10300*2
Heat Dissipation Ambient Temperature (°C) 40 40 40 40 40
External Machine Size (cm) 74*22*107 84*22*117 (74*22*107)*2 (74*22*107)*2 (84*22*117)*2
Weight (kg) 35 40 35*2 35*2 40*2

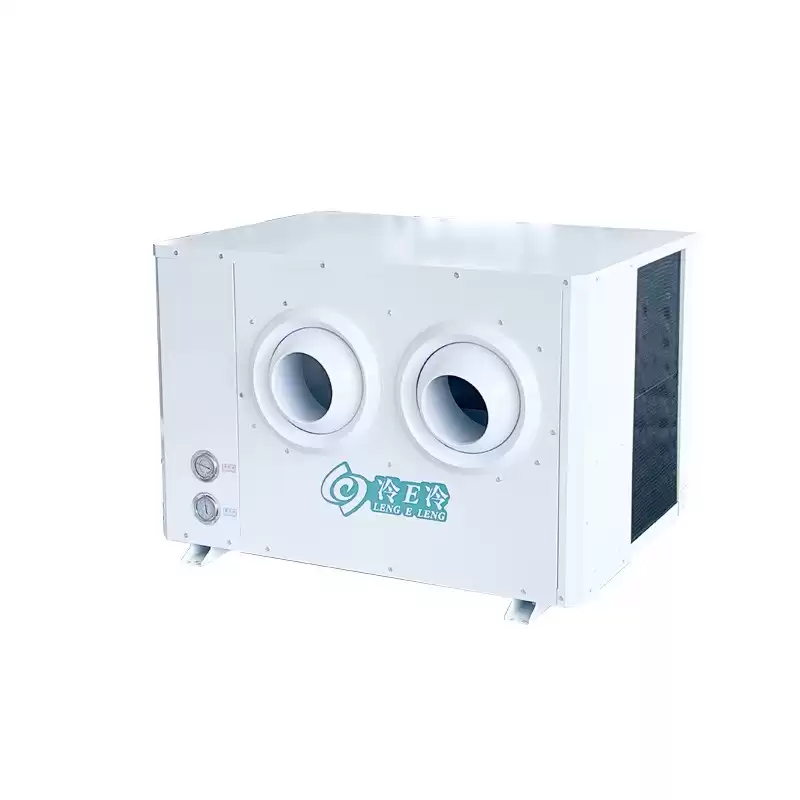

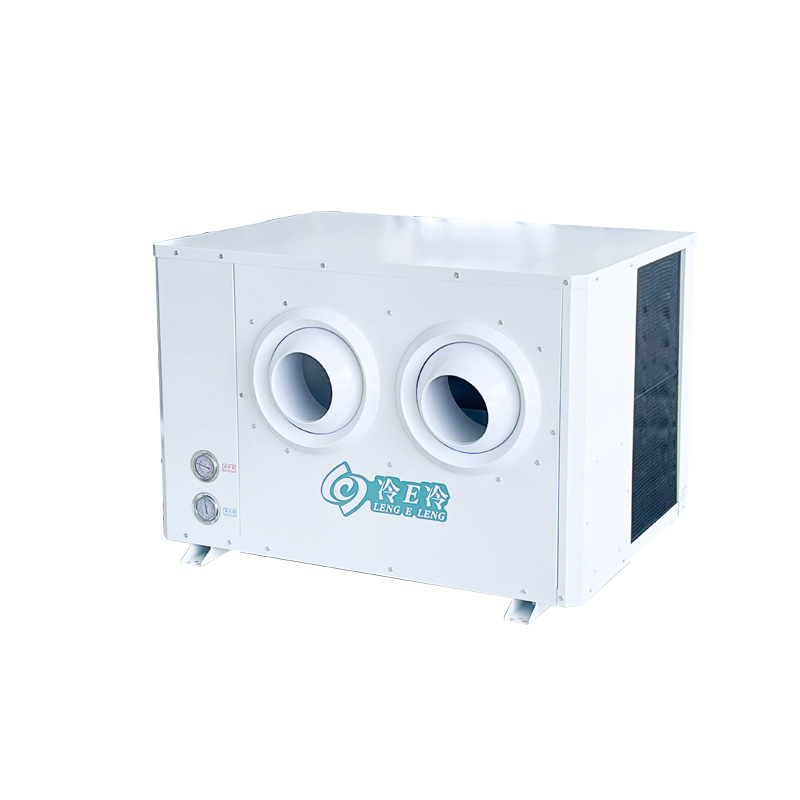

Ceiling Jet Model
Model Number 5HP 7HP
Compressor Power (kW) 3.75 5.25
Cooling Capacity (kW) 18 25
Rated Power (kW) 5.1 7.1
Temperature Control Range (°C) 13-30 13-30
Motor Power (kW) 0.52 1
Air Volume (m³/h) 3350 4200
Cooling Area (㎡) 150-200 250-300
Refrigerant Type R410A R410A
Length, Width, and Height (cm) 118*86*76 116*86*76
Weight (kg) 166 180
Motor Power (kW) 0.5 0.5
Air Volume (m³/h) 10300 10300
Heat Dissipation Ambient Temperature (°C) 40 40
Ternal Machine Size (cm) 74*22*107 84*22*117
Weight (kg) 35 40













Key Features

✅ Flexible Selection of Multiple Powers: Provide a variety of power models (covering 150-700㎡+ space), accurately matching the cooling needs of workshops and factories of different sizes.

✅ 8-10℃ Strong Cooling: Break through the cooling limitations of traditional industrial air conditioners, and the actual temperature is 8-10℃ lower than the room temperature, effectively meeting the heat dissipation needs of high-temperature environments such as injection molding workshops and metal processing.

✅ Long-Lasting Water Tank Design: The built-in large-capacity water tank can be used for several months after adding water once, without the need for external water pipes, completely getting rid of water source restrictions, especially suitable for water shortage scenarios such as remote warehouses and off-grid factories.

Maintenance-Free Stainless Steel Pipeline: The fully enclosed stainless steel pipeline system is corrosion-resistant and anti-scaling, and does not require chemical cleaning or disassembly, eliminating pipeline blockage and maintenance costs from the source, and extending the equipment life by 30%.

No Water Consumption and Zero Evaporation: Adopting a sealed water circulation design, there is no evaporation loss, and it reduces water consumption by 90% compared with traditional wet cooling air conditioners, meeting green manufacturing and environmental protection requirements.

Intelligent Fault Warning: Built-in sensors monitor the operating status in real time, automatically shut down, and alarm when an abnormality occurs, reducing equipment loss and production interruption risks.

Multi-scenario Adaptation: Widely used in injection molding workshops, metal processing plants, logistics warehouses, new energy battery plants, etc., supporting 24-hour continuous high-load operation.











Product Detail Display

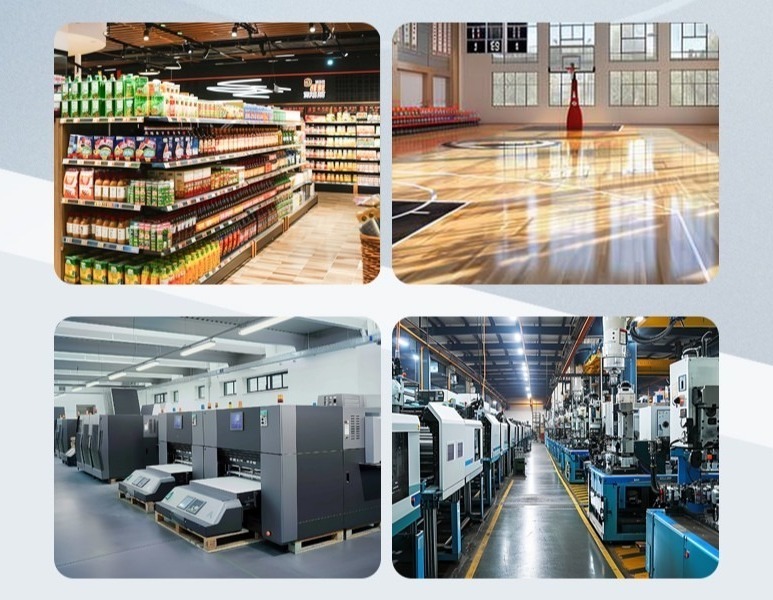

WIDE RANGE OF APPLICATIONS
Suitable for supermarkets, mold workshops, basketball courts,

printing factories, and electronics factories.

industrial air conditioning unit











ADJUSTABLE THREE-WAY AIR OUTLET

LARGE AREA COOL EXPERIENCE



Large Space Waterless AC System

120° adjustable outlet air design,

Achieve a large area cold air supply.

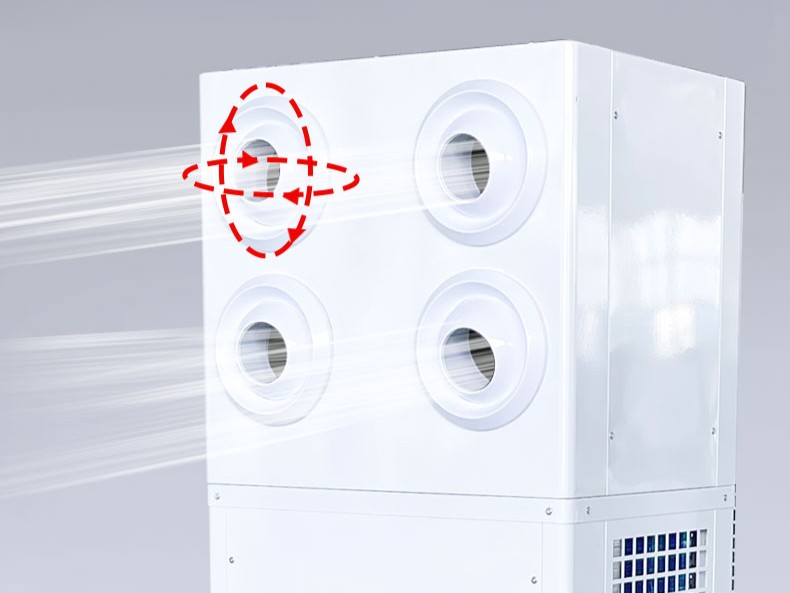

360° ADJUSTABLE SPHERICAL AIR OUTLET DESIGN



Large-space industrial cooler

Achieve a 15-meter long-distance cold air delivery.

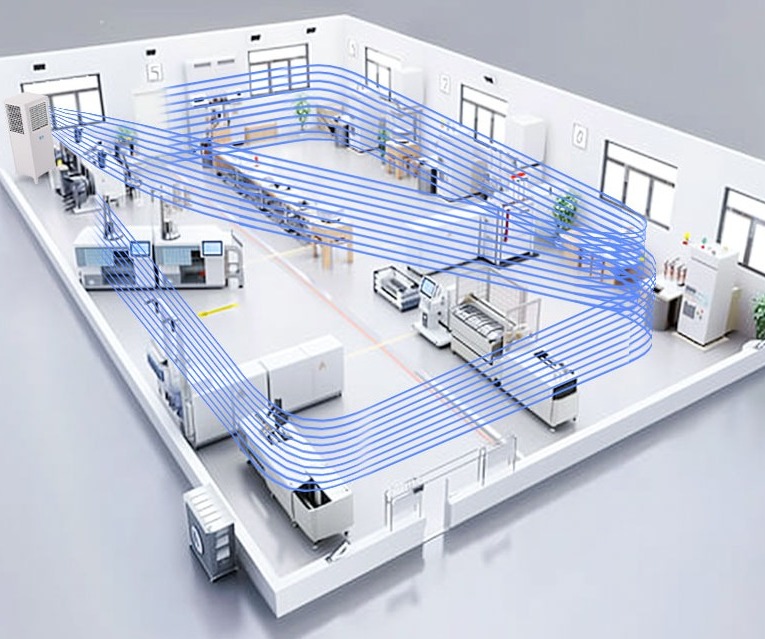

LARGE AREA WIDE ANGLE AIR SUPPLY

INCREASE THE COOLING SPEED OF A LARGE SPACE

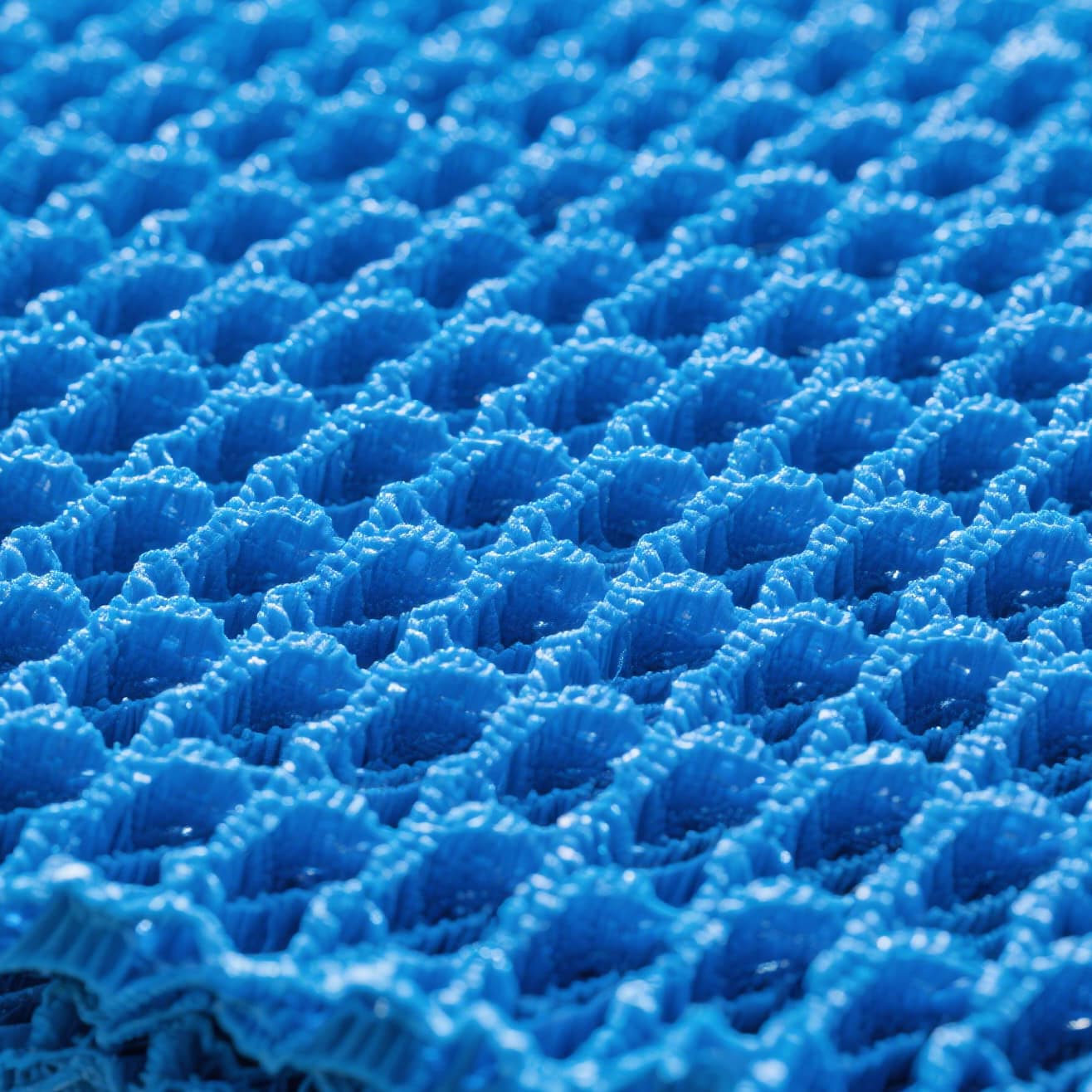

Eco-Friendly Evaporative Cooling Technology

Large power fan, long-distance air supply.

Provides even cooling for large spaces.

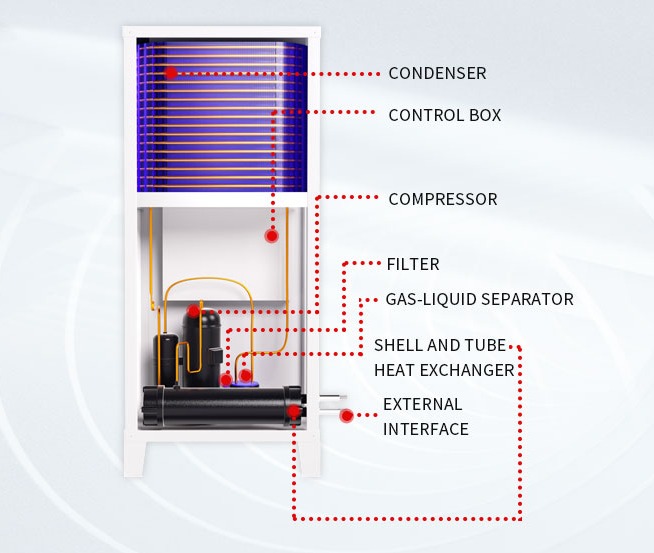

STRUCTURE ANALYSIS OF

EVAPORATIVE COOLING AIR CONDITIONING

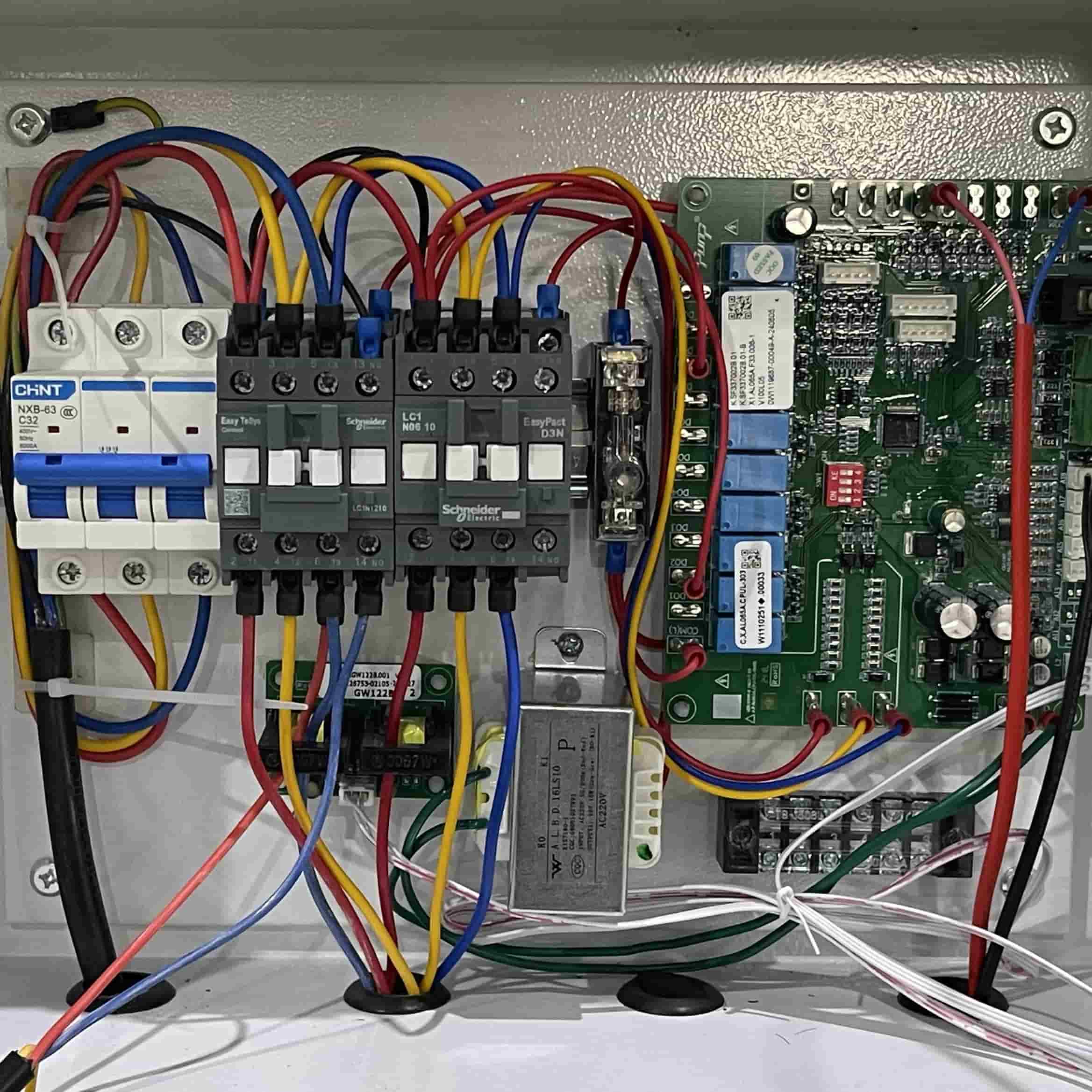

User-Friendly Evaporative Cooling Controls

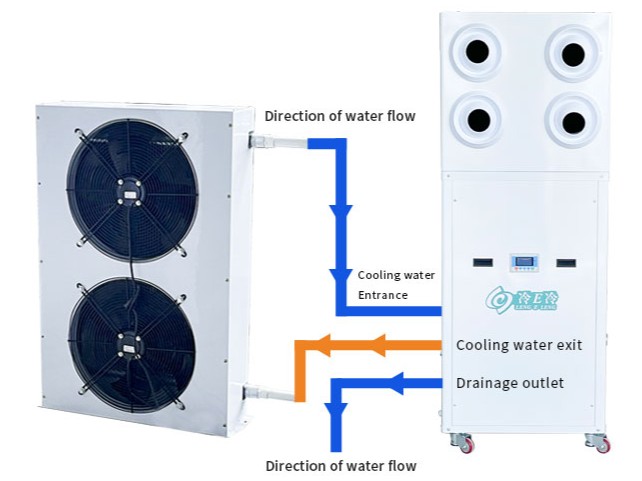

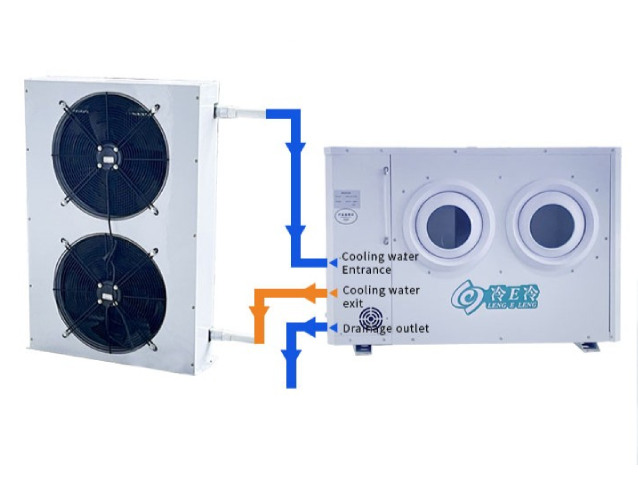

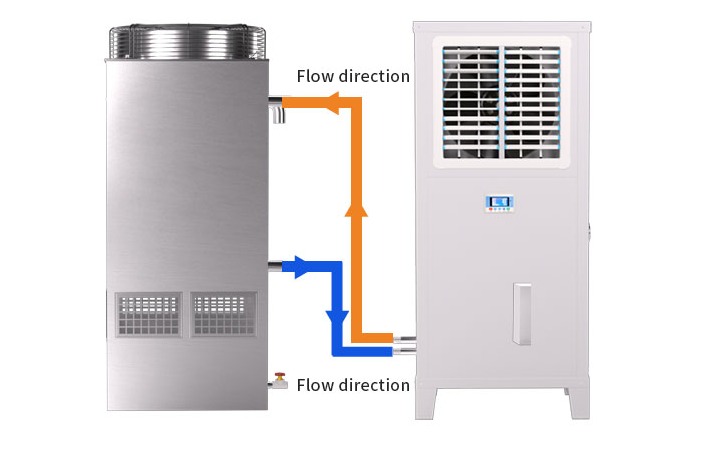

SCHEMATIC DIAGRAM OF AIR-COOLED CONNECTION


Advanced Evaporative Cooling Climate SolutionsZero-Cleaning Industrial Cooling SolutionWater-Efficient Factory Air ConditionerLong-life water tank conditioner
