Maintenance Free Plain Bearings COM..T HCOM..T



Ball: Gcr15 Steel,Hardened HRC 58-64,Precision groundHard chrome plated.

Outer Race: Carbon steel.

Composite or PTFE fabric

Sliding contact surfaces: steel/PTFE.

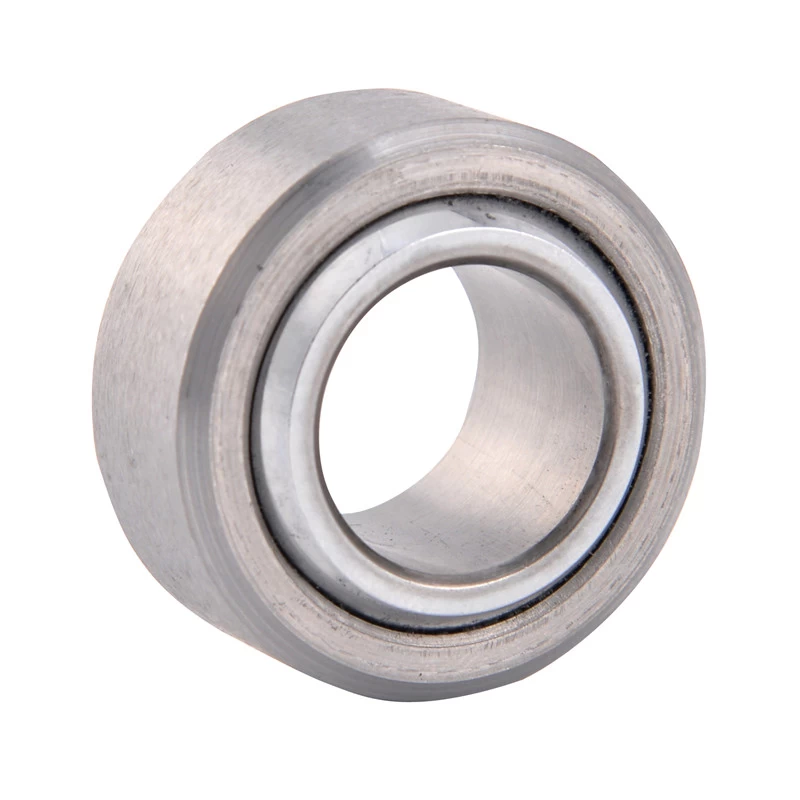

Spherical Bearing COM8T

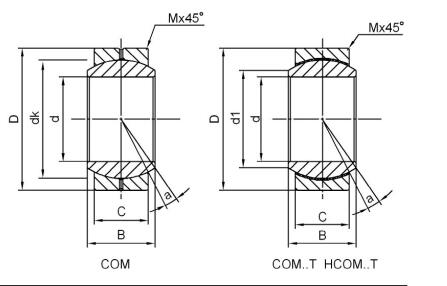

Bearing No. Dimensions(mm)
Misalign
angle
Ult,Radial
static
load (KN)
Weight
kg
d +0.038    -0.012
D +0
 -0.016
B ±0.127 C±0.127 dk rsx45°
COM3T 4.825 14.288 7.14 5.54 10.31 0.4 11 21.6 0.0045
COM4T 6.35 16.667 8.71 6.35 12.7 0.55 13.5 33 0.009
COM5T 7.938 19.05 9.53 7.14 14.27 0.8 12 43.2 0.0136
COM6T 9.525 20.638 10.31 7.92 16.66 0.8 10 56 0.018
COM7T 11.113 23.017 11.1 8.71 18.23 0.8 8 63 0.022
COM8T 12.7 25.4 12.7 9.91 20.65 0.8 9.5 88.4 0.031
COM9T 14.288 27.78 14.28 11.1 23.01 0.8 9.5 110.9 0.04
COM10T 15.875 30.163 15.88 12.7 25.4 0.8 8.5 141.9 0.049
COM12T 19.05 36.512 19.05 15.06 30.15 1.1 9 212.98 0.090
COM14T 22.225 39.688 22.23 17.86 33.32 1.1 9.5 279.9 0.118
COM16T 25.4 44.45 25.4 20.24 38.1 1.1 10 368.3 0.177



Bearing No. Dimensions(mm)
Misalign
angle
Ult,Radial
static
load (KN)
Weight
kg
d +0 038
  -0.012
D +0
 -0.016
B ±0.127 C±0.127 dk rsx45°
HCOM16T 25.4 50.8 25.4 19.84 42.62 0.8 9 472.5 0.249
HCOM19T 30.162 60.325 30.15 23.8 50.8 0.8 8.5 672.1 0.408
HCOM20T 31.75 60.325 30.15 23.8 50.8 0.8 8.5 672.1 0.408
HCOM24T 38.1 69.85 34.92 27.79 58.72 0.8 8.5 907.1 0.616
HCOM28T 44.45 79.375 39.67 31.75 66.68 1.1 8.0 1176.7 0.884
HCOM32T 50.8 88.9 44.45 34.92 74.6 1.1 8.5 1448.2 1.206
