Maintenance Free Plain Bearings SGE..PW


Inner Race: 440C Stainless steel,Heat treated,Precision ground.

Outer Race: 304 Stainless steel,With liner of PTFE composite.

Sliding contact surfaces: Steel/PTFE composite.

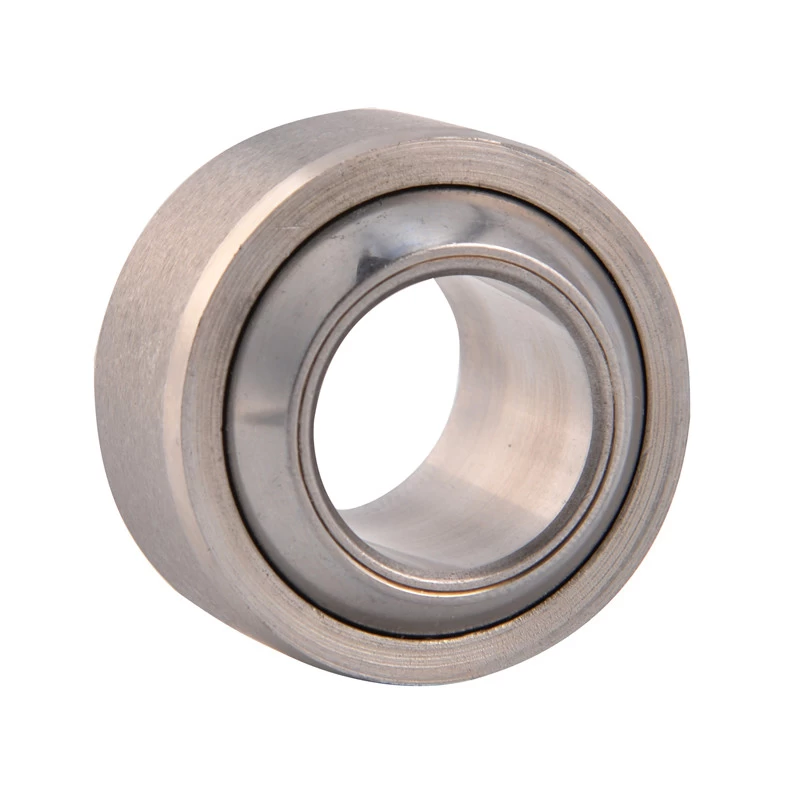

Stainless Steel Radial Spherical Plain Bearings SGE20PW

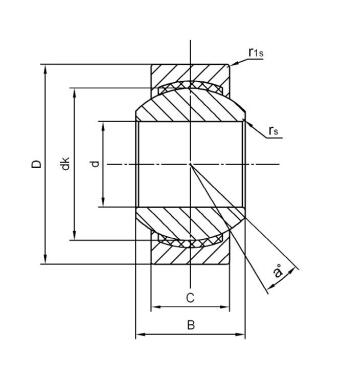

Bearing No. Dimensions(mm)
Load ratings
KN
a°
weight
kg
d D B c dk rs r1s Dynamic Static
SGE5PW 5 13 8 6 11.112 0.3 0.3 6 15 13 0.006
SGE6PW 6 16 9 6.75 12.7 0.3 0.3 7.65 19.3 13 0.010
SGE8PW 8 19 12 9 15.875 0.3 0.3 12.9 32 14 0.018
SGE10PW 10 22 14 10.5 19 05 0.3 0.3 18 45 13 0.027
SGE12PW 12 26 16 12 22.225 0.3 0.3 24 60 13 0.043
SGE14PW 14 28 19 13.5 25.4 0.3 0.3 31 76.5 16 0.055
SGE16PW 16 32 21 15 28.575 0.3 0.3 39 96.5 15 0.08
SGE18PW 18 35 23 16.5 31.75 0.3 0.3 47.5 118 15 0.10
SGE20PW 20 40 25 18 34.925 0.3 0.6 57 140 14 0.15
SGE22PW 22 42 28 20 38.1 0.3 0.6 68 170 15 0.18
SGE25PW 25 47 31 22 42.85 0.3 0.6 85 212 15 0.24
SGE30PW 30 55 37 25 50.8 0.3 0.6 114 285 17 0.38
