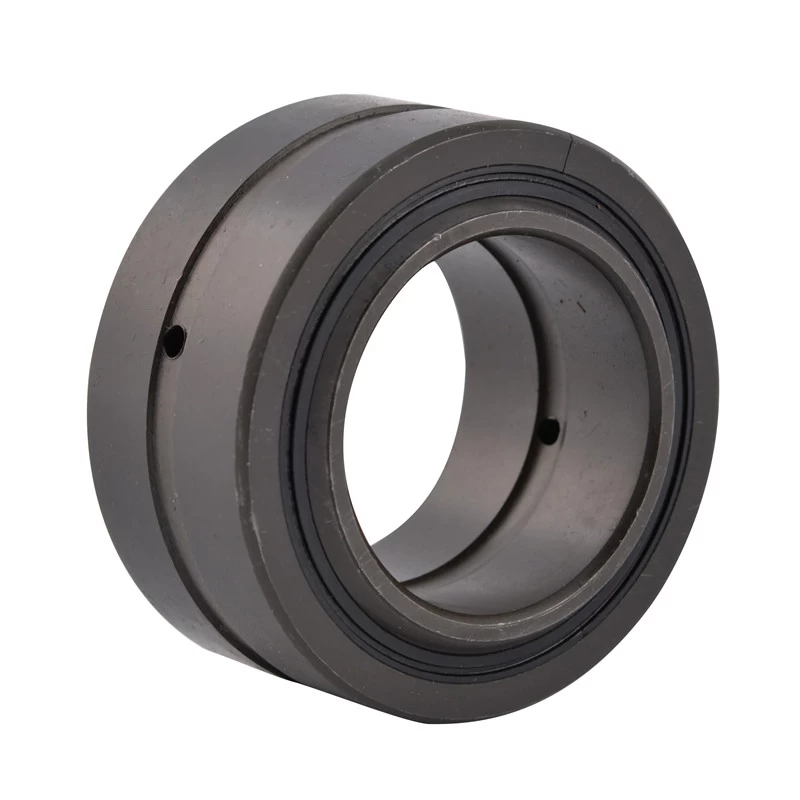

Maintenance Required Plain Bearings GEZ..ES/GEZ..ES-2RS


Inner Race: Gcr15 Steel,Hardened HRC 58-64,Surface phosphated.

Outer Race: Gcr15 Steel,Hadened HRC 54-60,Surface phosphated.

Bore size d≧140mm: Inner and outer race are all Gcr15 SiMn.

Sliding contact surfaces: Steel/Stee


Facebook Twitter Pinterest LinkedIn 分享

Spherical Plain Bearings GEZ12ES

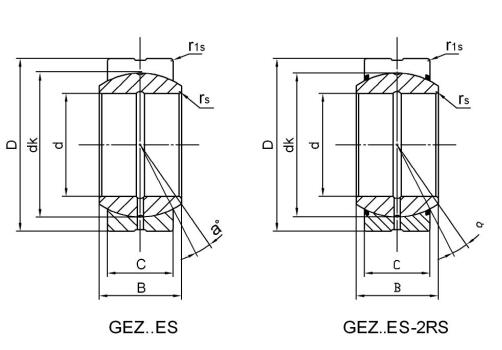

Bearing No. Dimensions(mm/inch)
Load ratings
KN
a°
≈
weight
≈ kg
d D B c dk
rs
min
r1s
min
Dynamic Static
GEZ12ES 12.700 22.225 11.100 9.525 18 0.15 0.6 13 41 6 0.022
GEZ12ES 0.5 0.875 0.437 0.375 0.707 0.006 0.024 13 41 6 0.022
GEZ15ES 15.875 26.988 13.894 11.913 23 0.15 0.6 22 65 6 0.036
GEZ15ES 0.625 1.0625 0.547 0.469 0.904 0.006 0.024 22 65 6 0.036
GEZ19ES 19.050 31.750 16.662 14.275 27.5 0.3 0.6 31 95 6 0.053
GEZ19ES 0.75 1.25 0.656 0.562 1.081 0.012 0.024 31 95 6 0.053
GEZ22ES 22.225 36.513 19.431 16.662 32 0.3 0.6 42 127 6 0.085
GEZ22ES 0.875 1.4375 0.756 0.656 1.258 0.012 0.024 42 127 6 0.085
GEZ25ES 25.400 41.275 22.225 19.050 36.5 0.3 0.6 56 166 6 0.121
GEZ25ES 1 1.625 0.875 0.75 1.437 0.012 0.024 56 166 6 0.121
GEZ31ES 31.750 50.800 27.762 23.800 45.5 0.6 0.6 86 260 6 0.23
GEZ31ES 1.25 2 1.093 0.937 1.788 0.024 0.024 86 260 6 0.23
GEZ34ES 34.925 55.563 30.150 26.187 49 0.6 1 102 310 6 0.35
GEZ34ES 1.375 2.1875 1.187 1.031 1.926 0.024 0.04 102 310 6 0.35
GEZ38ES 38.100 61.913 33.325 28.575 54.7 0.6 1 125 375 6 0.42
GEZ38ES 1.5 2.4375 1.312 1.125 2.154 0.024 0.04 125 375 6 0.42
GEZ44ES 44.450 71.438 38.887 33.325 63.9 0.6 1 170 510 6 0.64
GEZ44ES 1.75 2.8125 1.531 1.312 2.511 0.024 0.04 170 510 6 0.64
GEZ50ES 50.800 80.963 44.450 38.100 73 0.6 1 224 670 6 0.93
GEZ50ES 2 3.1875 1.75 1.5 2.869 0.024 0.04 224 670 6 0.93
GEZ57ES 57.150 90.488 50.013 42.850 82 0.6 1 280 850 6 1.3
GEZ57ES 2.25 3.5625 1.969 1.687 3.223 0.024 0.04 280 850 6 1.3
GEZ63ES 63.500 100.013 55.550 47.625 92 1 1 355 1060 6 1.85
GEZ63ES 2.5 3.9375 2.187 1.875 3.616 0.04 0.04 355 1060 6 1.85
GEZ69ES 69.850 111.125 61.112 52.375 100 1 1 415 1250 6 2.4
GEZ69ES 2.75 4.375 2.406 2.062 3.937 0.04 0.04 415 1250 6 2.4
GEZ76ES 76.200 120.650 66.675 57.150 109.5 1 1 500 1500 6 3.1
GEZ76ES 3 4.75 2.625 2.25 4.303 0.04 0.04 500 1500 6 3.1
GEZ82ES 82.550 130.175 72.238 61.900 119 1 1 585 1760 6 3.8
GEZ82ES 3.25 5.125 2.844 2.437 4.685 0.04 0.04 585 1760 6 3.8
GEZ88ES 88.9 139.7 77.775 66.675 128 1.0 1.0 680 2040 6 4.8
GEZ88ES 3.5 5.5 3.062 2.625 5.04 0.04 0.04 680 2040 6 4.8
GEZ95ES 95.25 149.225 83.337 71.425 137 1.0 1.0 780 2360 6 5.8
GEZ95ES 3.75 5.875 3.281 2.812 5.393 0.04 0.04 780 2360 6 5.8
GEZ101ES 101.600 158.750 88.900 76.200 146 1.0 1.0 900 2650 6 7
GEZ101ES 4 6.25 3.5 3 5.748 0.04 0.04 900 2650 6 7
GEZ107ES 107.950 168.275 94.463 80.950 155 1.0 1.0 1000 3000 6 8.41
GEZ107ES 4.25 6.625 3.719 3.187 6.102 0.04 0.04 1000 3000 6 8.41
GEZ114ES 114.300 177.800 100.013 85.725 164.5 1.0 1.0 1120 3400 6 9.8
GEZ114ES 4.5 7 3.937 3.375 6.476 0.04 0.04 1120 3400 6 9.8
GEZ120ES 120.650 187.325 105.562 90.475 173.5 1.0 1.0 1250 3750 6 11.5
GEZ120ES 4.75 7.375 4.156 3.562 6.83 0.04 0.04 1250 3750 6 11.5
GEZ127ES 127.000 196.850 111.125 95.25 183 1.0 1.0 1400 4150 6 13.5
GEZ127ES 5 7.75 4.375 3.75 7.204 0.04 0.04 1400 4150 6 13.5
GEZ152ES 152.400 222.250 120.65 104.775 207 1.0 1.0 1730 5200 5 17.5
GEZ152ES 6 8.75 4.75 4.125 8.15 0.04 0.04 1730 5200 5 17.5

Bearing No. Dimensions(mm/inch)
Load ratings
KN
a°
≈
weight
≈ kg
d D B c dk
rs
min
r1s
min
Dynamic Static
GEZ25ES-2RS 25.400 41.275 22.225 19.050 36.5 0.3 0.6 56 166 6 0.121
GEZ25ES-2RS 1 1.625 0.875 0.75 1.437 0.012 0.024 56 166 6 0.121
GEZ31ES-2RS 31.750 50.800 27.762 23.800 45.5 0.6 0.6 86 260 6 0.23
GEZ31ES-2RS 1.25 2 1.093 0.937 1.788 0.024 0.024 86 260 6 0.23
GEZ34ES-2RS 34.925 55.563 30.150 26.187 49 0.6 1 102 310 6 0.35
GEZ34ES-2RS 1.375 2.1875 1.187 1.031 1.926 0.024 0.04 102 310 6 0.35
GEZ38ES-2RS 38.100 61.913 33.325 28.575 54.7 0.6 1 125 375 6 0.42
GEZ38ES-2RS 1.5 2.4375 1.312 1.125 2.154 0.024 0.04 125 375 6 0.42
GEZ44ES-2RS 44.450 71.438 38.887 33.325 63.9 0.6 1 170 510 6 0.64
GEZ44ES-2RS 1.75 2.8125 1.531 1.312 2.511 0.024 0.04 170 510 6 0.64
GEZ50ES-2RS 50.800 80.963 44.450 38.100 73 0.6 1 224 670 6 0.93
GEZ50ES-2RS 2 3.1875 1.75 1.5 2.869 0.024 0.04 224 670 6 0.93
GEZ57ES-2RS 57.150 90.488 50.013 42.850 82 0.6 1 280 850 6 1.3
GEZ57ES-2RS 2.25 3.5625 1.969 1.687 3.223 0.024 0.04 280 850 6 1.3
GEZ63ES-2RS 63.500 100.013 55.550 47.625 92 1 1 355 1060 6 1.85
GEZ63ES-2RS 2.5 3.9375 2.187 1.875 3.616 0.04 0.04 355 1060 6 1.85
GEZ69ES-2RS 69.850 111.125 61.112 52.375 100 1 1 415 1250 6 2.4
GEZ69ES-2RS 2.75 4.375 2.406 2.062 3.937 0.04 0.04 415 1250 6 2.4
GEZ76ES-2RS 76.200 120.650 66.675 57.150 109.5 1 1 500 1500 6 3.1
GEZ76ES-2RS 3 4.75 2.625 2.25 4.303 0.04 0.04 500 1500 6 3.1
GEZ82ES-2RS 82.550 130.175 72.238 61.900 119 1 1 585 1760 6 3.8
GEZ82ES-2RS 3.25 5.125 2.844 2.437 4.685 0.04 0.04 585 1760 6 3.8
GEZ88ES-2RS 88.9 139.7 77.775 66.675 128 1.0 1.0 680 2040 6 4.8
GEZ88ES-2RS 3.5 5.5 3.062 2.625 5.04 0.04 0.04 680 2040 6 4.8
GEZ95ES-2RS 95.25 149.225 83.337 71.425 137 1.0 1.0 780 2360 6 5.8
GEZ95ES-2RS 3.75 5.875 3.281 2.812 5.393 0.04 0.04 780 2360 6 5.8
GEZ101ES-2RS 101.600 158.750 88.900 76.200 146 1.0 1.0 900 2650 6 7
GEZ101ES-2RS 4 6.25 3.5 3 5.748 0.04 0.04 900 2650 6 7
GEZ107ES-2RS 107.950 168.275 94.463 80.950 155 1.0 1.0 1000 3000 6 8.41
GEZ107ES-2RS 4.25 6.625 3.719 3.187 6.102 0.04 0.04 1000 3000 6 8.41
GEZ114ES-2RS 114.300 177.800 100.013 85.725 164.5 1.0 1.0 1120 3400 6 9.8
GEZ114ES-2RS 4.5 7 3.937 3.375 6.476 0.04 0.04 1120 3400 6 9.8
GEZ120ES-2RS 120.650 187.325 105.562 90.475 173.5 1.0 1.0 1250 3750 6 11.5
GEZ120ES-2RS 4.75 7.375 4.156 3.562 6.83 0.04 0.04 1250 3750 6 11.5
GEZ127ES-2RS 127.000 196.850 111.125 95.25 183 1.0 1.0 1400 4150 6 13.5
GEZ127ES-2RS 5 7.75 4.375 3.75 7.204 0.04 0.04 1400 4150 6 13.5
GEZ152ES-2RS 152.400 222.250 120.65 104.775 207 1.0 1.0 1730 5200 5 17.5
GEZ152ES-2RS 6 8.75 4.75 4.125 8.15 0.04 0.04 1730 5200 5 17.5
