Maintenance Required Plain Bearings MIB AIB SIB

BALL: 52100 Bearing Steel,Heat Treated,Hard Chrome Plated,Precision Ground

RACE:

MIB:  Low Carbon Steel, I.D.Protective Coated for Corrosion Resistance,Oil coated Mfr.Option-Stailess Steel, Heat Treated.

AIB:  Low Carbon Steel, I.D.Protective Coated for Corrosion Resistance,Oil coated Mfr.Option-Stailess Steel, Heat Treated.

SIB:  Stainless Steel,Heat Treated and Oil Coated.


Facebook Twitter Pinterest LinkedIn 分享

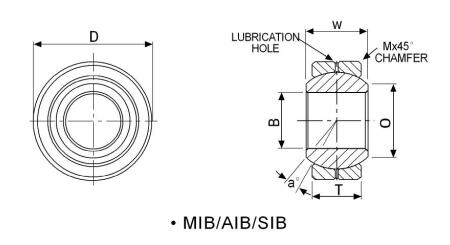

Spherical Plain Bearings MIB3

Bearing No. DIMENSIONS IN INCHES
B
+.0015
-0.0005
D
+ .0000
-.0007
T
+.0000
W
±.005
0
Flat
Dia. Ref.
M
Chamfer
Ref
Ball
Dia.
Ref.
Misalign
Angle
a0
Ult. Radial
Static Load Lbs.
Approx.
Brg.Wgt.
Lbs.
MIB AIB/SIB
MIB3 0.1900 0.5312 0.250 0.312 0.307 0.020 0.437 10 5 4.370 6.555 0.02
MIB4 0.2500 0.6094 0.281 0.375 0.331 0.020 0.500 14.5 5.620 8,430 0.02
MIB5 0.3125 0.7500 0.344 0.437 0.448 0.020 0.625 11.0 8,600 12,900 0.04
MIB6 0.3750 0.8437 0.406 0.500 0.516 0.020 0.719 9.50 11,677 17,516 0.06
MIB7 0.4375 1.0000 0.437 0.562 0.587 0.020 0.812 11.0 14,194 21,291 0.08
MIB8 0.5000 1.0937 0.500 0.625 0.699 0.020 0.937 9.50 18,740 28,110 0.11
MIB10 0.6250 1.3125 0.562 0.750 0.839 0.030 1.125 12.0 25,290 37,935 0.17
MIB12 0.7500 1.5000 0.687 0.875 0.978 0.030 1.312 10.0 32,448 48,672 0.25
MIB16 1.0000 2.1250 1.000 1.375 1.275 0.060 1.875 15.0 60,000 90,000 0.79

Bearing No. DIMENSIONS IN INCHES
B
+.0015
-0.0005
D
+ .0000
-.0007
T
+.0000
W
±.005
0
Flat
Dia. Ref.
M
Chamfer
Ref
Ball
Dia.
Ref.
Misalign
Angle
a0
Ult. Radial
Static Load Lbs.
Approx.
Brg.Wgt.
Lbs.
MIB AIB/SIB
AIB3 0.1900 0.5312 0.250 0.312 0.307 0.020 0.437 10 5 4.370 6.555 0.02
AIB4 0.2500 0.6094 0.281 0.375 0.331 0.020 0.500 14.5 5.620 8,430 0.02
AIB5 0.3125 0.7500 0.344 0.437 0.448 0.020 0.625 11.0 8,600 12,900 0.04
AIB6 0.3750 0.8437 0.406 0.500 0.516 0.020 0.719 9.50 11,677 17,516 0.06
AIB7 0.4375 1.0000 0.437 0.562 0.587 0.020 0.812 11.0 14,194 21,291 0.08
AIB8 0.5000 1.0937 0.500 0.625 0.699 0.020 0.937 9.50 18,740 28,110 0.11
AIB10 0.6250 1.3125 0.562 0.750 0.839 0.030 1.125 12.0 25,290 37,935 0.17
AIB 12 0.7500 1.5000 0.687 0.875 0.978 0.030 1.312 10.0 32,448 48,672 0.25
AIB16 1.0000 2.1250 1.000 1.375 1.275 0.060 1.875 15.0 60,000 90,000 0.79

Bearing No. DIMENSIONS IN INCHES
B
+.0015
-0.0005
D
+ .0000
-.0007
T
+.0000
W
±.005
0
Flat
Dia. Ref.
M
Chamfer
Ref
Ball
Dia.
Ref.
Misalign
Angle
a0
Ult. Radial
Static Load Lbs.
Approx.
Brg.Wgt.
Lbs.
MIB AIB/SIB
SIB3 0.1900 0.5312 0.250 0.312 0.307 0.020 0.437 10 5 4.370 6.555 0.02
SIB4 0.2500 0.6094 0.281 0.375 0.331 0.020 0.500 14.5 5.620 8,430 0.02
SIB5 0.3125 0.7500 0.344 0.437 0.448 0.020 0.625 11.0 8,600 12,900 0.04
SIB6 0.3750 0.8437 0.406 0.500 0.516 0.020 0.719 9.50 11,677 17,516 0.06
SIB7 0.4375 1.0000 0.437 0.562 0.587 0.020 0.812 11.0 14,194 21,291 0.08
SIB8 0.5000 1.0937 0.500 0.625 0.699 0.020 0.937 9.50 18,740 28,110 0.11
SIB10 0.6250 1.3125 0.562 0.750 0.839 0.030 1.125 12.0 25,290 37,935 0.17
SIB12 0.7500 1.5000 0.687 0.875 0.978 0.030 1.312 10.0 32,448 48,672 0.25
SIB16 1.0000 2.1250 1.000 1.375 1.275 0.060 1.875 15.0 60,000 90,000 0.79
