Product Name:
Maniron Multicoupler 400MHz Transceiver Multiplexer is double band RF Transceiver with different frequency,support to custom services.
Product Feature:
♦ Wide Frequency Band
♦ Low Noise Figure
♦ Low VSWR
♦ High Port to Port Isolation
Technical and Electronic Specifications:
|
Model No.
|
MN-TC-400M
|
Frequency
|
Rx1：486.012 Rx2:487.7625
|
Noise Figure
|
≤3.5（dB）
|
Total Gain
|
3～15（dB）Adjustable
|
Power
|
+12V
|
Working current
|
≤250mA
|
Adjacent isolation degree
|
≥20dB
|
VSWR
|
1.25
|
Impedance(Ω)
|
50
|
Services:
1. Professional skills support for Maniron Multicoupler N type Connector 400MHz 12V Coupler Rx1 :486.0125 Rx2 :487.7625 Transceiver Multiplexer
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

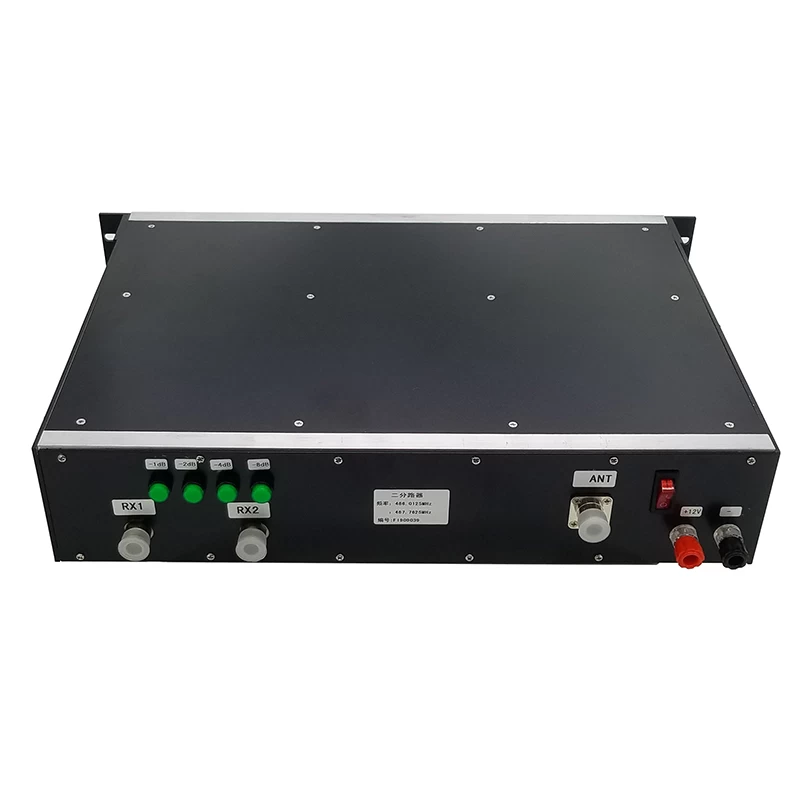

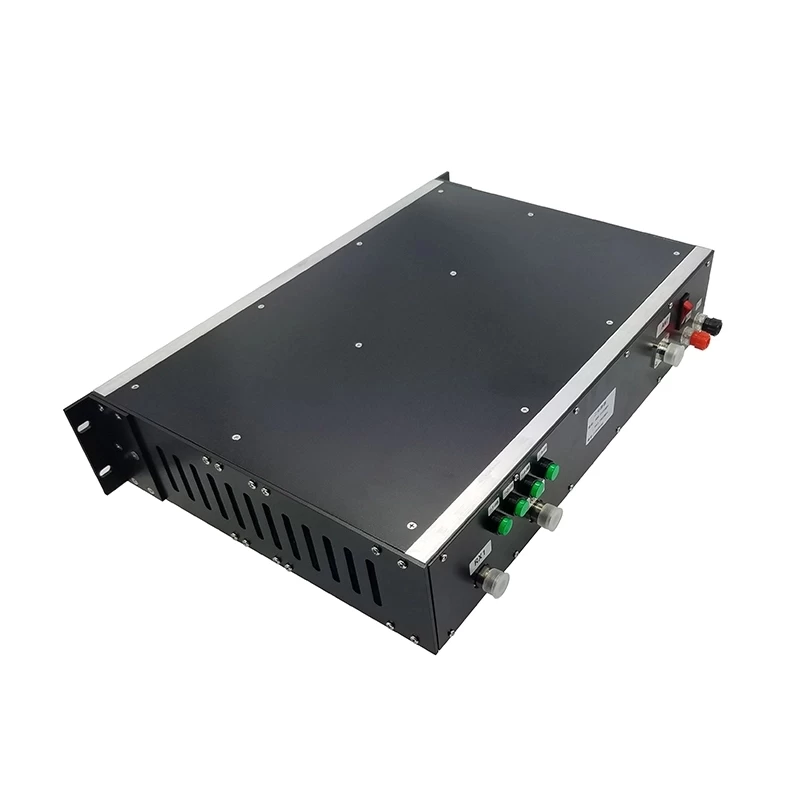

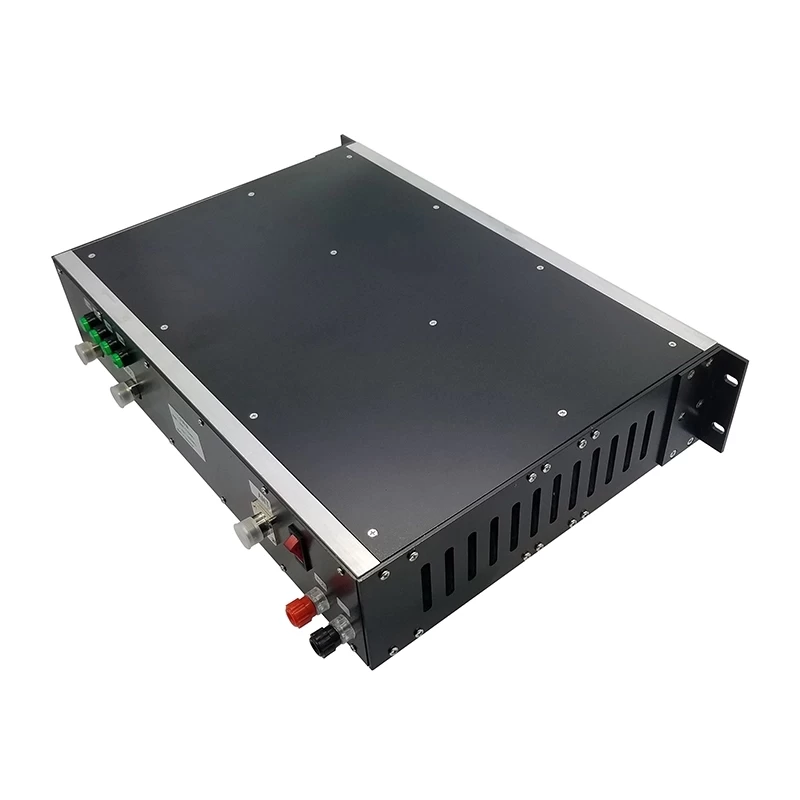

Detailed Image:
