Manual 10 ton Hydraulic Press Machine
for Powder Press Used in Many Fields
Product Specification
TOB-PPH-10T Manual Powder Press Machine is used for cosmetic ,medicine powder, chemical powder sheet preparation. The Press diameter is between 6mm-60mm. Practical in food, medicine, chemical, ceramics and other industries. It is an ideal equipment for the laboratory to do scientific research in enterprises, colleges and universities.
For lithium battery, it is used for press the powder materials as electrode for battery or super capacitor research.
|
Model
|
Powder Press Machine TOB-PPH-10T
|
|
Max Pressure
|
5T/10T can be customized
|
|
Max working stroke
|
125mm/140mm
|
|
Dimension
|
220*160*370mm
|
|
Weight
|
20kg
|
|
Die materials
|
Stainless steel or Cr steel
|
|
Oil type
|
10 mechanical oil (already filled it up)
|
|
application
|
Food, cosmetic, medical, chemical, ceramics......
|
|
Thickness of tablet
|
≤20mm 304 stainless steel mold suitable for using 2-3 ton jack
>20mm 304 stainless steel mold suitable for using 5 ton jack
|
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

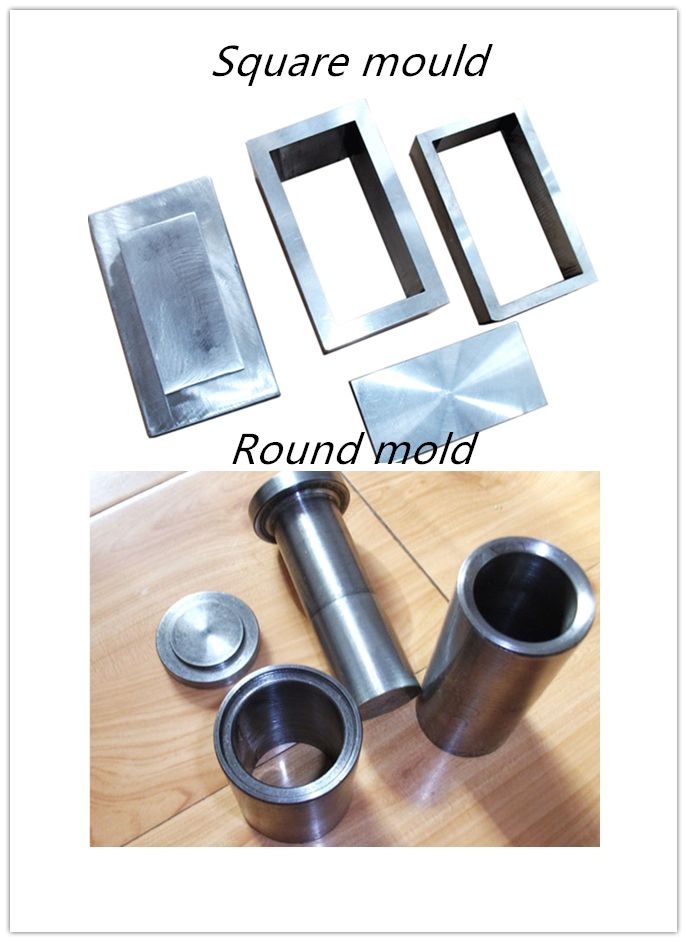

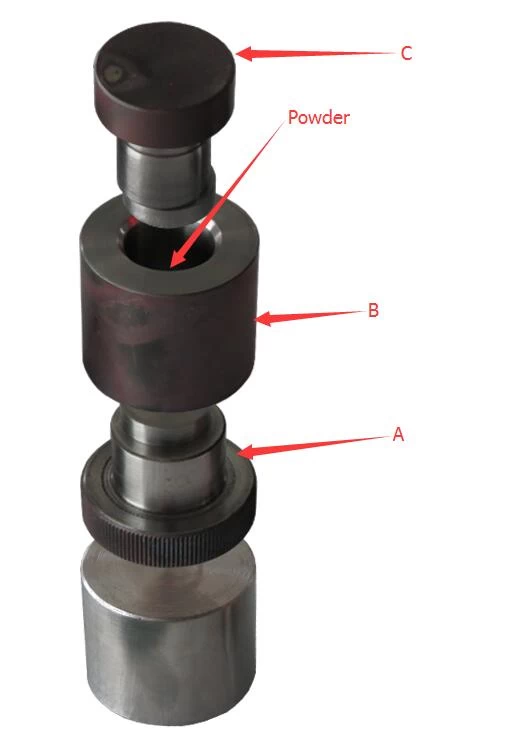

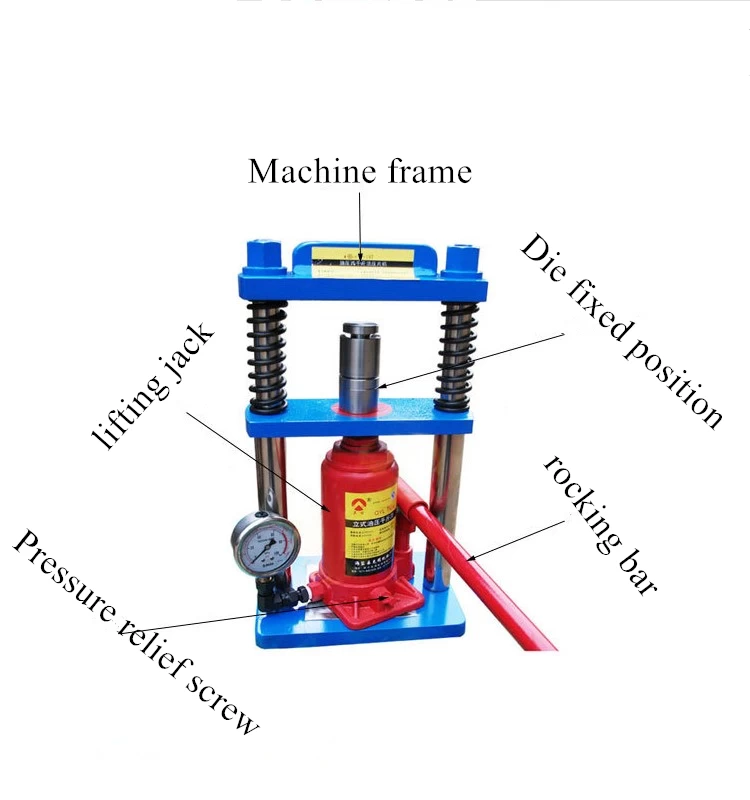

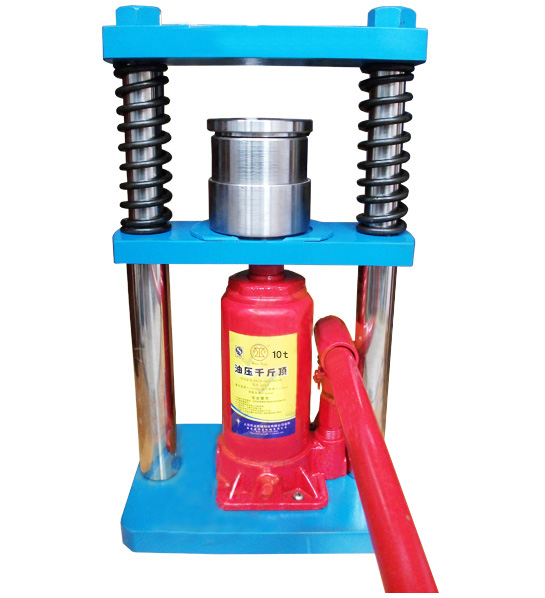

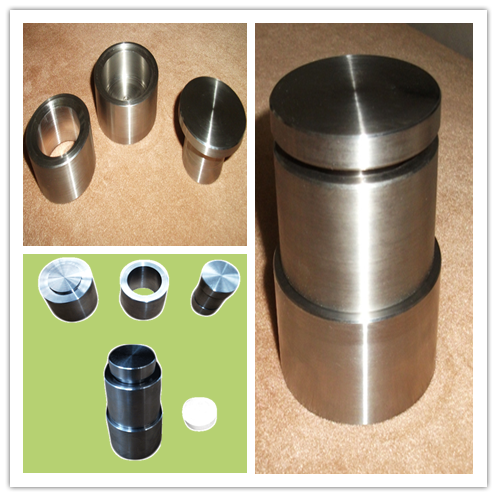

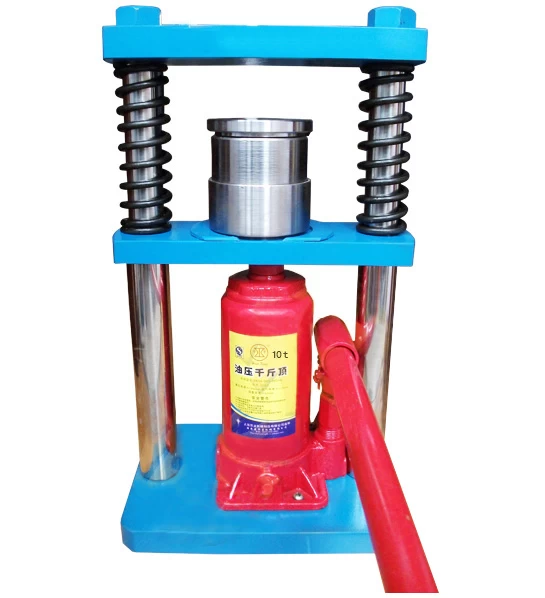

Product Image
Product Packing
