Manual Aluminum Punching Machine for
Lithium ion Battery Production Line
Product Specification

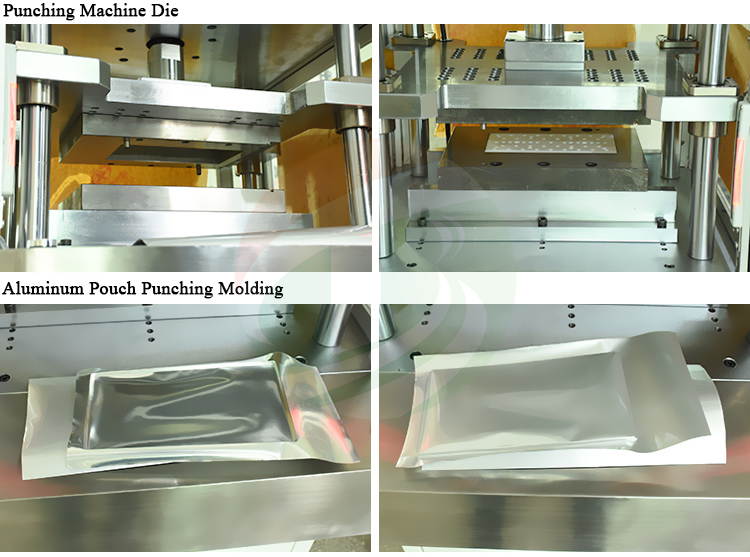

1 TOB-SCX-400 Manual Aluminium Punching Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries.
2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.
3 This pouch forming machine is mainly used for lithium battery production line, it's mold can be bespoked according to customers' requirements.
|
Model
|
Manual Aluminium Punching Machine TOB-SCX-400
|
|
Source voltage
|
AC 220V/110V, 50/60HZ
|
|
Power
|
2500W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Suitable aluminum film thickness
|
0.1-0.2mm
|
|
Suitable aluminum film size
|
400*300mm(L*W), customized
|
|
Output
|
200-500EA/H
|
|
Output pressure
|
0-5T, Adjustable
|
|
Air source
|
0.5-0.7MPa
|
|
Mold materials
|
S136 Die steel
|
|
Dimension(L*W*H)
|
700*650*1900mm
|
|
Weight
|
About 500kg
|
|
Package Dimension (L*W*H)
|
800*750*2080mm
|
|
Package Weight
|
600kg
|
Service:
1 We supply machines with battery technology support.
2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.
3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.
4 We can also supply a full set of battery technology for battery design, research and producing.

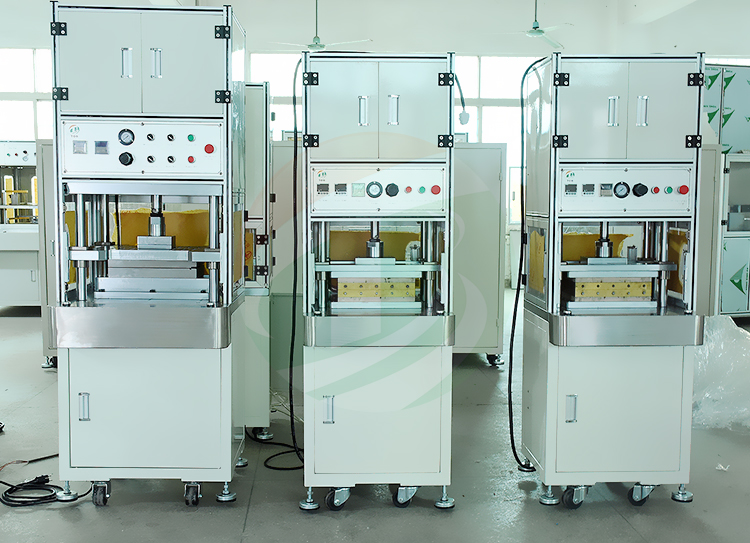

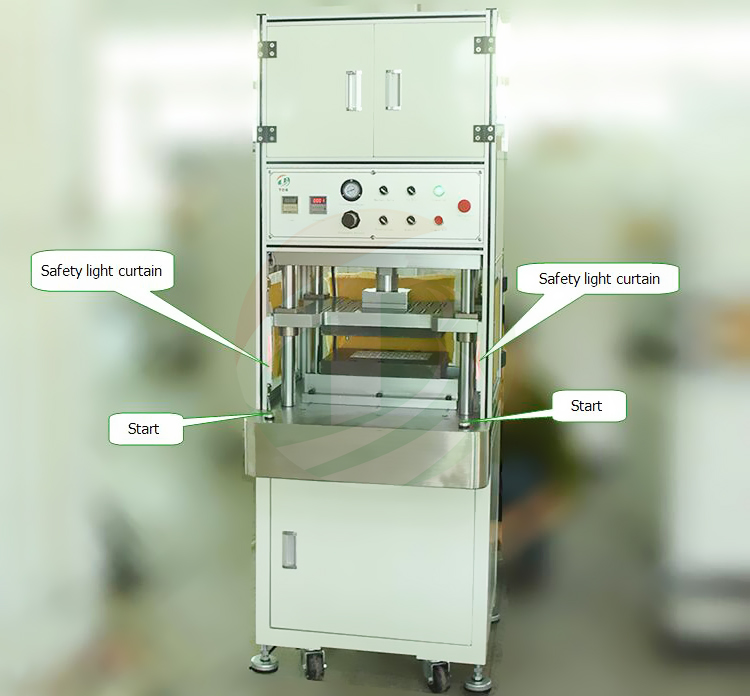

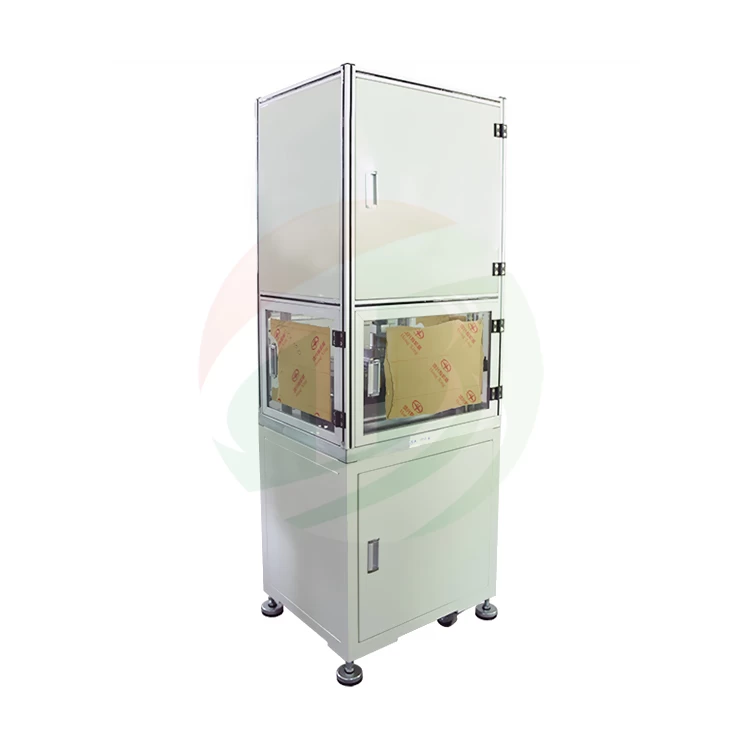

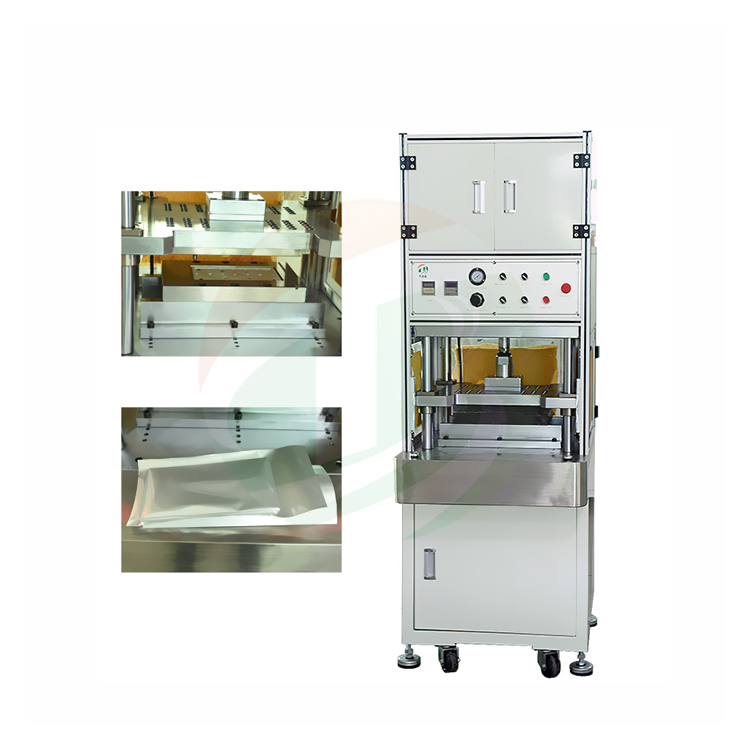

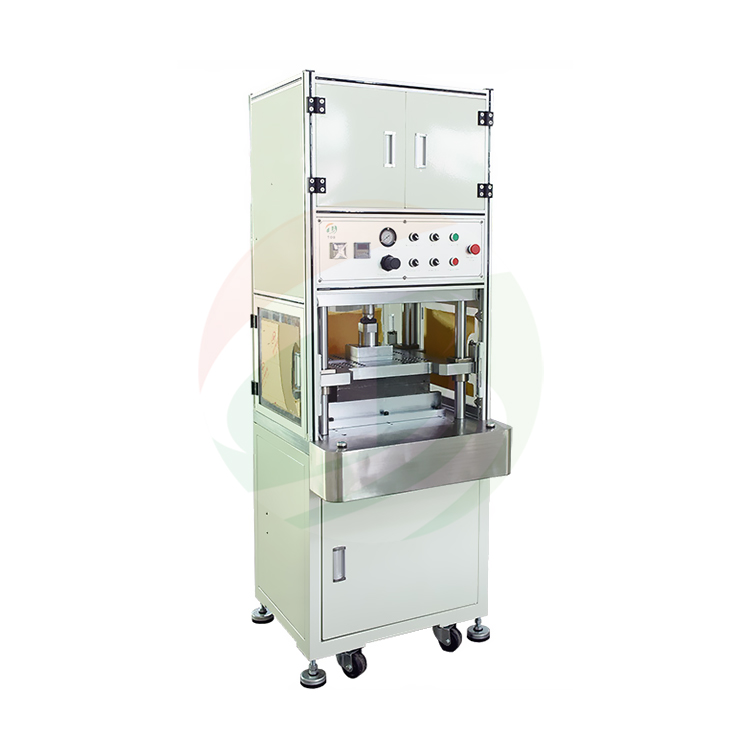

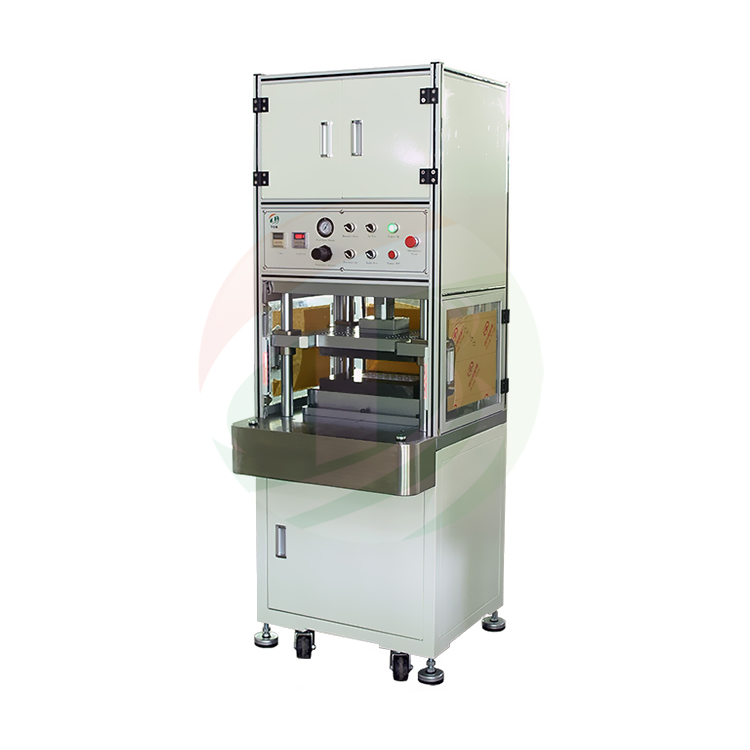

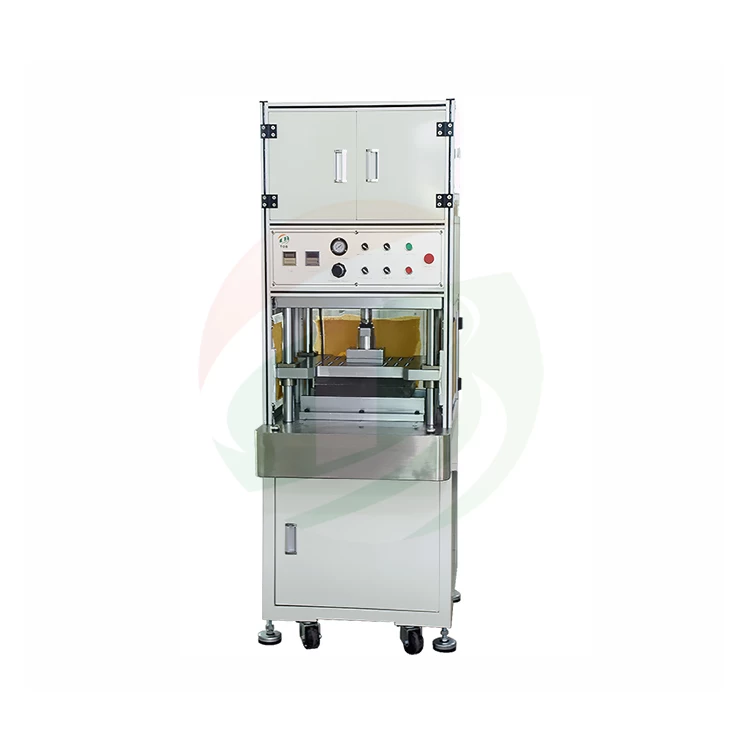

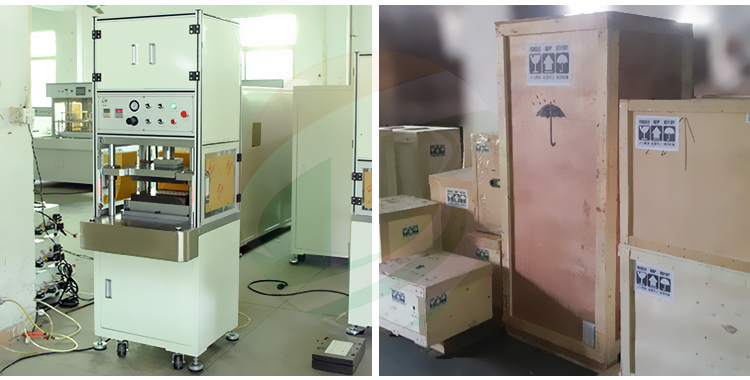

Product Image
Product Packing
1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
